BODC Cruise Metadata Report for RRS Challenger (74CH) cruise CH13/77
Introduction
This report collates information from the BODC cruise inventory and oceanographic databases. It presents
- Cruise Inventory Information
- A summary of BODC data holdings for the cruise from the

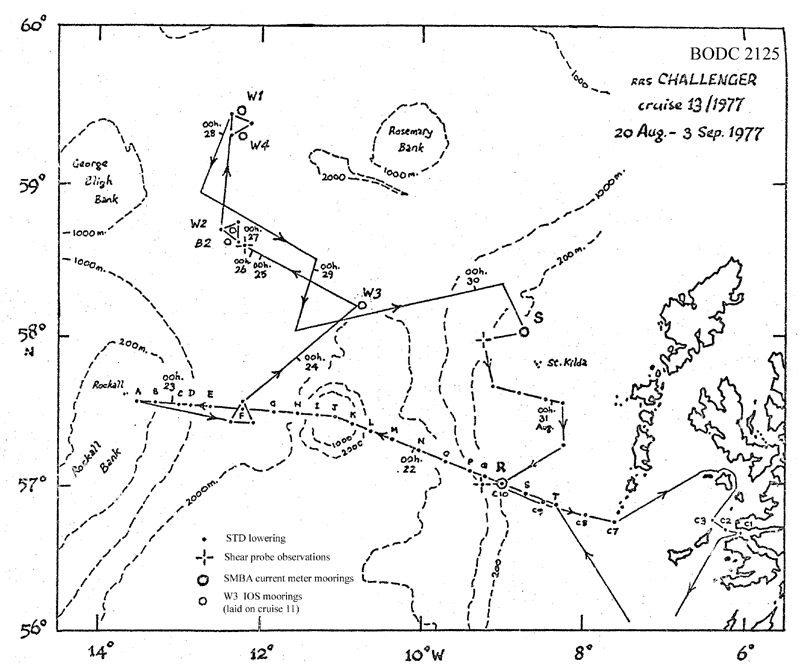

- References - including cruise tracks and cruise reports
Cruise Inventory Information
| Long name | RRS Challenger (74CH) cruise CH13/77 |
|---|---|
| Short name | CH13/77 |
| Objectives and Narrative |
Cruise objectives were.
(1) Service the current meter mooring at 57N, 9W and recover another NW of St Kilda. Accomplished. (2) STD time series at apices of 15km triangles centred on the JASIN moorings and Anton Dohrn Station F. Completed for Station F and two of the moorings plus five of six profiles on a third mooring before bad weather set in. One mooring not worked. (3) Make shear measurements with the Royal Australian Navy Gradient Richardson number meter. Accomplished. (4) Work the Anton Dohrn Seamount (Ellett Line) STD section. Accomplished. (5) Work a series of 25-hour STD time series stations to 1200m depth. Not possible due to weather. (6) Record along-track temperature and salinity using the STD in a pumped flow on-deck with 10-minute bathymetric depth soundings. Accomplished. (7) Repeat the shelf-edge STD stations worked on RRS Challenger cruise 10/77. One of the shelf-edge sections (Barra Head) worked. (8) Collect large-volume surface water samples for radiocaesium analysis. Accomplished with STD profiles. |
| Ship | RRS Challenger |
| Departure Port | Ardrossan, United Kingdom |
| Departure Date | 1977-08-20 |
| Arrival Port | Ardrossan, United Kingdom |
| Arrival Date | 1977-09-03 |
| Principal Scientist(s) | David J Ellett (Scottish Marine Biological Association) |
| Responsible Organisation | Scottish Marine Biological Association |
| Associated Project(s) | JASIN |
| IHB Sea Areas Visited | North East Atlantic Ocean (limit 40W) |
| Marsden Squares Visited | 181;479 |
| Work Area Description | |
| Unable to lookup cruise bounds at this time | |
| Work Area Bounding Polygon | |
| Southern Limit | unknown |
| Northern Limit | unknown |
| Western Limit | unknown |
| Eastern Limit | unknown |
Cruise Inventory Datasets
| Physical oceanography | |
|---|---|
| CTD stations |
Quantity:
number of stations =
52
Description: |
| Current meters |
Quantity:
number of deployments =
1
Description: 48 days |
| Other physical oceanographic measurements |
Quantity:
number of measurements =
3
Description: gradient(Richardson number meter) |
| Surface measurements underway (T,S) | Description: |
| Water bottle stations |
Quantity:
number of stations =
42
Description: S surface 35 T surface |
| Chemical oceanography | |
| Isotopes |
Quantity:
number of samples =
6
Description: |
| Geology and geophysics | |
| Bottom photography | Description: motion picture |
Cruise Inventory Mooring/Buoy Operations
No information on datasets is currently available
Summary of BODC Data Holdings for the Cruise
National Oceanographic Database
Summary
| # Series | Instrument Description | Parameters |
|---|---|---|
| 49 | CTD/STD cast |
Salinity of the water column Temperature of the water column Vertical spatial coordinates |
| 1 | CTD/STD cast |
Reference numbers Salinity of the water column Temperature of the water column Vertical spatial coordinates |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
Full List
| BODC Reference | Instrument Description | Date/Time | Location | |
|---|---|---|---|---|
| 88669 | CTD/STD cast | 1977-08-21 10:36Z | 56° 51' N, 8° 19' W | Click for more |
| 88670 | CTD/STD cast | 1977-08-21 12:50Z | 56° 56' N, 8° 46' W | Click for more |
| 88682 | CTD/STD cast | 1977-08-21 14:40Z | 57° 1' N, 9° 1' W | Click for more |
| 88694 | CTD/STD cast | 1977-08-21 16:05Z | 57° 3' N, 9° 13' W | Click for more |
| 88701 | CTD/STD cast | 1977-08-21 17:34Z | 57° 5' N, 9° 24' W | Click for more |
| 88713 | CTD/STD cast | 1977-08-21 19:53Z | 57° 9' N, 9° 43' W | Click for more |
| 88725 | CTD/STD cast | 1977-08-21 22:38Z | 57° 12' N, 10° 2' W | Click for more |
| 88737 | CTD/STD cast | 1977-08-22 01:15Z | 57° 16' N, 10° 21' W | Click for more |
| 88749 | CTD/STD cast | 1977-08-22 03:47Z | 57° 21' N, 10° 38' W | Click for more |
| 88750 | CTD/STD cast | 1977-08-22 06:27Z | 57° 24' N, 10° 51' W | Click for more |
| 88762 | CTD/STD cast | 1977-08-22 08:19Z | 57° 26' N, 11° 4' W | Click for more |
| 88774 | CTD/STD cast | 1977-08-22 10:11Z | 57° 27' N, 11° 19' W | Click for more |
| 88786 | CTD/STD cast | 1977-08-22 11:58Z | 57° 29' N, 11° 32' W | Click for more |
| 88798 | CTD/STD cast | 1977-08-22 14:21Z | 57° 29' N, 11° 50' W | Click for more |
| 88805 | CTD/STD cast | 1977-08-22 17:11Z | 57° 30' N, 12° 15' W | Click for more |
| 88817 | CTD/STD cast | 1977-08-22 19:59Z | 57° 31' N, 12° 38' W | Click for more |
| 88829 | CTD/STD cast | 1977-08-22 21:52Z | 57° 32' N, 12° 52' W | Click for more |
| 88830 | CTD/STD cast | 1977-08-22 23:19Z | 57° 32' N, 12° 58' W | Click for more |
| 88842 | CTD/STD cast | 1977-08-23 01:02Z | 57° 33' N, 13° 19' W | Click for more |
| 88854 | CTD/STD cast | 1977-08-23 02:15Z | 57° 33' N, 13° 32' W | Click for more |
| 88866 | CTD/STD cast | 1977-08-23 09:59Z | 57° 27' N, 12° 22' W | Click for more |
| 88878 | CTD/STD cast | 1977-08-23 12:00Z | 57° 26' N, 12° 8' W | Click for more |
| 88891 | CTD/STD cast | 1977-08-23 12:46Z | 57° 27' N, 12° 7' W | Click for more |
| 88909 | CTD/STD cast | 1977-08-23 14:09Z | 57° 33' N, 12° 14' W | Click for more |
| 88910 | CTD/STD cast | 1977-08-23 14:53Z | 57° 34' N, 12° 15' W | Click for more |
| 88922 | CTD/STD cast | 1977-08-23 16:30Z | 57° 27' N, 12° 21' W | Click for more |
| 88934 | CTD/STD cast | 1977-08-23 18:00Z | 57° 27' N, 12° 6' W | Click for more |
| 88946 | CTD/STD cast | 1977-08-23 18:47Z | 57° 27' N, 12° 6' W | Click for more |
| 88958 | CTD/STD cast | 1977-08-23 20:13Z | 57° 33' N, 12° 18' W | Click for more |
| 88971 | CTD/STD cast | 1977-08-23 20:54Z | 57° 33' N, 12° 14' W | Click for more |
| 88983 | CTD/STD cast | 1977-08-26 17:15Z | 58° 37' N, 12° 18' W | Click for more |
| 88995 | CTD/STD cast | 1977-08-26 18:51Z | 58° 45' N, 12° 16' W | Click for more |
| 89009 | CTD/STD cast | 1977-08-26 20:56Z | 58° 41' N, 12° 29' W | Click for more |
| 89010 | CTD/STD cast | 1977-08-26 23:21Z | 58° 37' N, 12° 16' W | Click for more |
| 89022 | CTD/STD cast | 1977-08-27 01:21Z | 58° 45' N, 12° 17' W | Click for more |
| 89034 | CTD/STD cast | 1977-08-27 03:17Z | 58° 42' N, 12° 29' W | Click for more |
| 89046 | CTD/STD cast | 1977-08-27 08:38Z | 59° 18' N, 12° 21' W | Click for more |
| 89058 | CTD/STD cast | 1977-08-27 10:42Z | 59° 22' N, 12° 4' W | Click for more |
| 89071 | CTD/STD cast | 1977-08-27 12:40Z | 59° 26' N, 12° 19' W | Click for more |
| 89083 | CTD/STD cast | 1977-08-27 15:05Z | 59° 18' N, 12° 21' W | Click for more |
| 89095 | CTD/STD cast | 1977-08-27 17:02Z | 59° 22' N, 12° 5' W | Click for more |
| 89102 | CTD/STD cast | 1977-08-30 21:03Z | 57° 40' N, 9° 6' W | Click for more |
| 89114 | CTD/STD cast | 1977-08-30 22:46Z | 57° 37' N, 8° 49' W | Click for more |
| 89126 | CTD/STD cast | 1977-08-31 00:31Z | 57° 34' N, 8° 31' W | Click for more |
| 89138 | CTD/STD cast | 1977-08-31 02:58Z | 57° 33' N, 8° 17' W | Click for more |
| 89151 | CTD/STD cast | 1977-08-31 04:45Z | 57° 16' N, 8° 16' W | Click for more |
| 89163 | CTD/STD cast | 1977-08-31 18:40Z | 57° 1' N, 9° 11' W | Click for more |
| 89175 | CTD/STD cast | 1977-08-31 18:50Z | 57° 1' N, 9° 11' W | Click for more |
| 89187 | CTD/STD cast | 1977-08-31 23:55Z | 56° 46' N, 7° 59' W | Click for more |
| 89199 | CTD/STD cast | 1977-09-01 01:44Z | 56° 43' N, 7° 39' W | Click for more |
Project Database
No data currently held for this cruise in the BODC Project Database
