BODC Cruise Metadata Report for FRV Scotia (749S) cruise 1089S
Introduction
This report collates information from the BODC cruise inventory and oceanographic databases. It presents
- Cruise Inventory Information
- A summary of BODC data holdings for the cruise from the

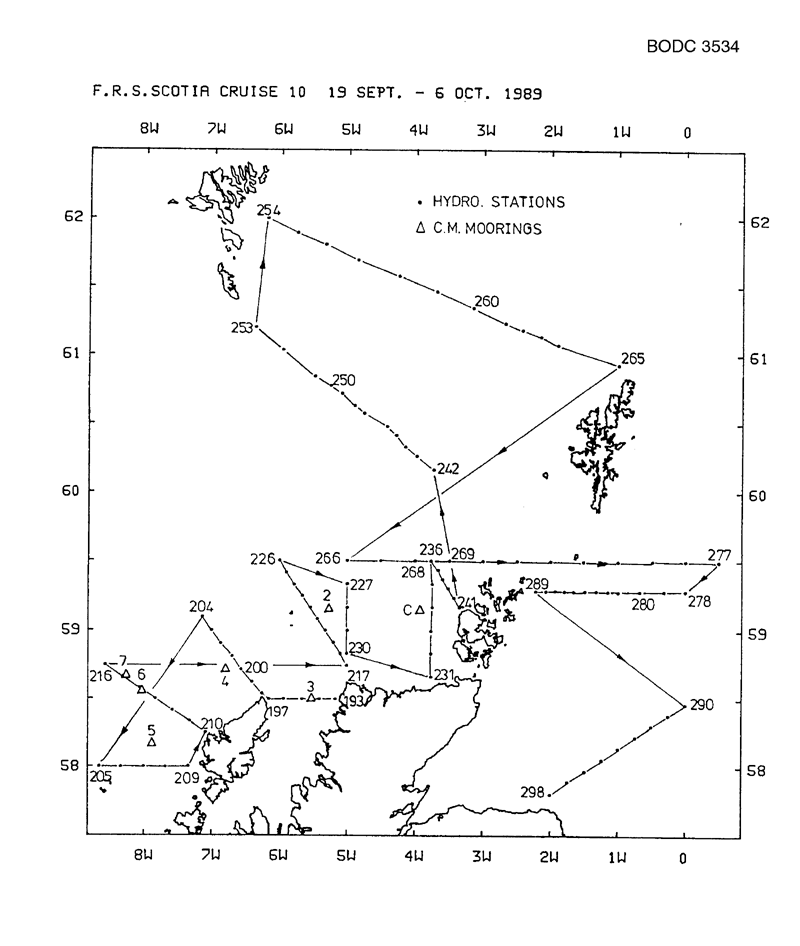

- References - including cruise tracks and cruise reports
Cruise Inventory Information
| Long name | FRV Scotia (749S) cruise 1089S |
|---|---|
| Short name | 1089S |
| Objectives and Narrative |
1. To recover 7 current meter moorings which were deployed west of the Hebrides and west of Orkney in June 1989.
2. To work hydrographic stations along the Fair Isle - Munken, Faroe and the Nolso, Faroe - Flugga, Shetland sections. 3. To carry out hydrographic surveys in the areas west of the Hebrides, west of Orkney and Shetland and in the northern North Sea. 4. To collect water samples for radio caesium analysis. 5. If equipment resources permit, to deploy the self-contained ADCP on a temporary current meter mooring close to one of the existing moorings as an intercomparison exercie. If deployed, this mooring will be recovered before the end of the cruise. |
| Ship | FRV Scotia |
| Departure Port | Aberdeen, United Kingdom |
| Departure Date | 1989-09-19 |
| Arrival Port | Aberdeen, United Kingdom |
| Arrival Date | 1989-10-06 |
| Principal Scientist(s) | Eric W Henderson (Scottish Office Agriculture and Fisheries Department Aberdeen Marine Laboratory) |
| Responsible Organisation | Scottish Office Agriculture and Fisheries Department Aberdeen Marine Laboratory |
| Associated Project(s) | |
| IHB Sea Areas Visited | North Sea, North East Atlantic Ocean (limit 40W) |
| Marsden Squares Visited | 181;3/181;4/217;1/217;2 |
| Work Area Description | West of Hebrides and West of Orkney |
| Unable to lookup cruise bounds at this time | |
| Work Area Bounding Polygon | |
| Southern Limit | unknown |
| Northern Limit | unknown |
| Western Limit | unknown |
| Eastern Limit | unknown |
Cruise Inventory Datasets
| Physical oceanography | |
|---|---|
| CTD stations |
Quantity:
number of profiles =
70
Description: |
| Current meters |
Quantity:
number of stations =
7
Description: |
| Surface measurements underway (T,S) | Description: duration of cruise |
| Water bottle stations |
Quantity:
number of stations =
48
Description: |
| Chemical oceanography | |
| Nitrate |
Quantity:
number of stations =
12
Description: |
| Phosphate |
Quantity:
number of stations =
12
Description: |
| Radioactivity | Description: water samples collected for radio-caesium analysis. |
| Silicate |
Quantity:
number of stations =
36
Description: |
Cruise Inventory Mooring/Buoy Operations
| Latitude | Longitude | Data type | Description |
|---|---|---|---|
| 58° 34' N | 8° 2' W | Current meters | 2cm from mooring 6 rec. by trawler 15.8.89 |
| 58° 43' N | 6° 47' W | Current meters | mooring 4 laid 22.6.89 - total loss |
| 59° 9' N | 5° 16' W | Current meters | rec. mooring 2 with 2cm and wlr laid 26.6.89 |
| 58° 30' N | 5° 31' W | Current meters | rec. mooring 3 with 2 cm laid 25.6.89 |
| 58° 10' N | 7° 52' W | Current meters | rec. mooring 5 with 2cm laid 24.6.89 |
| 58° 40' N | 8° 16' W | Current meters | rec. mooring 7 with 2 cm (laid 23.6.89). |
| 59° 9' N | 3° 55' W | Current meters | rec. mooring c with 2cm laid 26.6.89 |
| 59° 10' N | 5° 16' W | Sea level (inc. bot. press., inverted echosounder) | rec. mooring 2 with 2cm and wlr laid 26.6.89 |
Summary of BODC Data Holdings for the Cruise
National Oceanographic Database
Summary
| # Series | Instrument Description | Parameters |
|---|---|---|
| 68 | CTD/STD cast |
Density of the water column Electrical conductivity of the water column Salinity of the water column Temperature of the water column Vertical spatial coordinates |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
Full List
| BODC Reference | Instrument Description | Date/Time | Location | |
|---|---|---|---|---|
| 406048 | CTD/STD cast | 1989-09-26 15:50Z | 58° 30' N, 5° 10' W | Click for more |
| 406061 | CTD/STD cast | 1989-09-26 17:30Z | 58° 30' N, 5° 24' W | Click for more |
| 406073 | CTD/STD cast | 1989-09-26 18:37Z | 58° 30' N, 5° 40' W | Click for more |
| 406085 | CTD/STD cast | 1989-09-26 19:46Z | 58° 30' N, 5° 55' W | Click for more |
| 406097 | CTD/STD cast | 1989-09-26 20:47Z | 58° 30' N, 6° 9' W | Click for more |
| 406104 | CTD/STD cast | 1989-09-26 21:19Z | 58° 32' N, 6° 15' W | Click for more |
| 406116 | CTD/STD cast | 1989-09-26 22:11Z | 58° 37' N, 6° 24' W | Click for more |
| 406128 | CTD/STD cast | 1989-09-26 23:13Z | 58° 43' N, 6° 33' W | Click for more |
| 406141 | CTD/STD cast | 1989-09-27 00:18Z | 58° 48' N, 6° 42' W | Click for more |
| 406153 | CTD/STD cast | 1989-09-27 01:47Z | 58° 54' N, 6° 51' W | Click for more |
| 406165 | CTD/STD cast | 1989-09-27 02:52Z | 59° 0' N, 7° 0' W | Click for more |
| 406177 | CTD/STD cast | 1989-09-27 03:58Z | 59° 6' N, 7° 9' W | Click for more |
| 406189 | CTD/STD cast | 1989-09-27 19:04Z | 58° 0' N, 8° 39' W | Click for more |
| 406190 | CTD/STD cast | 1989-09-27 20:14Z | 58° 0' N, 8° 20' W | Click for more |
| 406208 | CTD/STD cast | 1989-09-27 21:27Z | 58° 0' N, 8° 0' W | Click for more |
| 406221 | CTD/STD cast | 1989-09-27 22:50Z | 58° 0' N, 7° 40' W | Click for more |
| 406233 | CTD/STD cast | 1989-09-28 00:05Z | 58° 0' N, 7° 20' W | Click for more |
| 406245 | CTD/STD cast | 1989-09-28 01:51Z | 58° 15' N, 7° 5' W | Click for more |
| 406257 | CTD/STD cast | 1989-09-28 03:06Z | 58° 19' N, 7° 19' W | Click for more |
| 406269 | CTD/STD cast | 1989-09-28 04:23Z | 58° 25' N, 7° 34' W | Click for more |
| 406270 | CTD/STD cast | 1989-09-28 05:38Z | 58° 30' N, 7° 49' W | Click for more |
| 406282 | CTD/STD cast | 1989-09-28 07:14Z | 58° 34' N, 8° 4' W | Click for more |
| 406294 | CTD/STD cast | 1989-09-28 09:00Z | 58° 40' N, 8° 19' W | Click for more |
| 406301 | CTD/STD cast | 1989-09-28 10:09Z | 58° 45' N, 8° 34' W | Click for more |
| 406313 | CTD/STD cast | 1989-09-29 02:31Z | 58° 45' N, 5° 0' W | Click for more |
| 406325 | CTD/STD cast | 1989-09-29 03:25Z | 58° 49' N, 5° 6' W | Click for more |
| 406337 | CTD/STD cast | 1989-09-29 04:16Z | 58° 55' N, 5° 13' W | Click for more |
| 406349 | CTD/STD cast | 1989-09-29 05:23Z | 59° 0' N, 5° 19' W | Click for more |
| 406350 | CTD/STD cast | 1989-09-29 06:15Z | 59° 4' N, 5° 26' W | Click for more |
| 406362 | CTD/STD cast | 1989-09-29 07:09Z | 59° 10' N, 5° 33' W | Click for more |
| 406374 | CTD/STD cast | 1989-09-29 08:03Z | 59° 15' N, 5° 39' W | Click for more |
| 406386 | CTD/STD cast | 1989-09-29 09:01Z | 59° 19' N, 5° 46' W | Click for more |
| 406398 | CTD/STD cast | 1989-09-29 10:26Z | 59° 25' N, 5° 52' W | Click for more |
| 406405 | CTD/STD cast | 1989-09-29 11:24Z | 59° 30' N, 6° 0' W | Click for more |
| 406417 | CTD/STD cast | 1989-09-29 18:37Z | 59° 19' N, 5° 0' W | Click for more |
| 406429 | CTD/STD cast | 1989-09-29 19:42Z | 59° 10' N, 5° 0' W | Click for more |
| 406430 | CTD/STD cast | 1989-09-29 21:07Z | 59° 0' N, 5° 0' W | Click for more |
| 406442 | CTD/STD cast | 1989-09-29 22:16Z | 58° 49' N, 5° 0' W | Click for more |
| 406454 | CTD/STD cast | 1989-09-30 02:21Z | 58° 39' N, 3° 14' W | Click for more |
| 406466 | CTD/STD cast | 1989-09-30 03:38Z | 58° 49' N, 3° 45' W | Click for more |
| 406478 | CTD/STD cast | 1989-09-30 04:52Z | 59° 0' N, 3° 45' W | Click for more |
| 406491 | CTD/STD cast | 1989-09-30 06:21Z | 59° 10' N, 3° 45' W | Click for more |
| 406509 | CTD/STD cast | 1989-09-30 07:31Z | 59° 19' N, 3° 45' W | Click for more |
| 406510 | CTD/STD cast | 1989-09-30 08:44Z | 59° 30' N, 3° 45' W | Click for more |
| 406522 | CTD/STD cast | 1989-09-30 09:49Z | 59° 25' N, 3° 39' W | Click for more |
| 406534 | CTD/STD cast | 1989-09-30 10:30Z | 59° 22' N, 3° 35' W | Click for more |
| 406546 | CTD/STD cast | 1989-09-30 11:14Z | 59° 18' N, 3° 30' W | Click for more |
| 406558 | CTD/STD cast | 1989-09-30 12:10Z | 59° 13' N, 3° 25' W | Click for more |
| 406571 | CTD/STD cast | 1989-09-30 12:48Z | 59° 10' N, 3° 20' W | Click for more |
| 406583 | CTD/STD cast | 1989-10-04 00:58Z | 59° 30' N, 5° 0' W | Click for more |
| 406595 | CTD/STD cast | 1989-10-04 02:36Z | 59° 30' N, 4° 30' W | Click for more |
| 406602 | CTD/STD cast | 1989-10-04 08:15Z | 59° 30' N, 3° 0' W | Click for more |
| 406614 | CTD/STD cast | 1989-10-04 09:37Z | 59° 30' N, 2° 30' W | Click for more |
| 406626 | CTD/STD cast | 1989-10-04 10:55Z | 59° 30' N, 1° 59' W | Click for more |
| 406638 | CTD/STD cast | 1989-10-04 12:23Z | 59° 30' N, 1° 30' W | Click for more |
| 406651 | CTD/STD cast | 1989-10-04 13:48Z | 59° 30' N, 1° 0' W | Click for more |
| 406663 | CTD/STD cast | 1989-10-04 15:44Z | 59° 30' N, 0° 30' W | Click for more |
| 406675 | CTD/STD cast | 1989-10-04 17:26Z | 59° 30' N, 0° 0' E | Click for more |
| 406687 | CTD/STD cast | 1989-10-04 19:12Z | 59° 30' N, 0° 30' E | Click for more |
| 406699 | CTD/STD cast | 1989-10-05 16:47Z | 58° 28' N, 0° 0' W | Click for more |
| 406706 | CTD/STD cast | 1989-10-05 17:51Z | 58° 22' N, 0° 15' W | Click for more |
| 406718 | CTD/STD cast | 1989-10-05 18:57Z | 58° 18' N, 0° 30' W | Click for more |
| 406731 | CTD/STD cast | 1989-10-05 20:01Z | 58° 13' N, 0° 45' W | Click for more |
| 406743 | CTD/STD cast | 1989-10-05 21:05Z | 58° 7' N, 1° 0' W | Click for more |
| 406755 | CTD/STD cast | 1989-10-05 22:28Z | 58° 3' N, 1° 15' W | Click for more |
| 406767 | CTD/STD cast | 1989-10-05 23:28Z | 57° 58' N, 1° 30' W | Click for more |
| 406779 | CTD/STD cast | 1989-10-06 00:40Z | 57° 53' N, 1° 45' W | Click for more |
| 406780 | CTD/STD cast | 1989-10-06 01:53Z | 57° 48' N, 2° 0' W | Click for more |
Project Database
No data currently held for this cruise in the BODC Project Database
