BODC Cruise Metadata Report for RRS Challenger (74CH) cruise CH69

Introduction

This report collates information from the BODC cruise inventory and oceanographic databases. It presents

Cruise Inventory Information

Long name RRS Challenger (74CH) cruise CH69
Short name CH69
Objectives and Narrative 1. To define spatial and temporal characteristics of the plumes emanating from the estuaries of the Humber and Wash within an area off the east coast of England.
2. To determine the principle mechanisms for transport of water borne conservative tracers away from estuary mouths in order to paramaterise them in water quality models.
3. To determine pathways for non-conservative tracers in plumes in relation to sediment/water interactions and biological processes in the water column.
4. To reinforce the study of sediment/water exchanges and bioturbation effects on water column chemistry through further work at the SERE resuspension sites previously studied during cruises 44, 52, 60 and 65.
Ship RRS Challenger
Departure Port Barry, United Kingdom
Departure Date 1990-07-26
Arrival Port Great Yarmouth, United Kingdom
Arrival Date 1990-08-07
Principal Scientist(s) Alan W Morris (Plymouth Marine Laboratory)
Responsible Organisation Plymouth Marine Laboratory
Associated Project(s) NERC North Sea Project
IHB Sea Areas Visited North Sea
Marsden Squares Visited 181;1/216;1

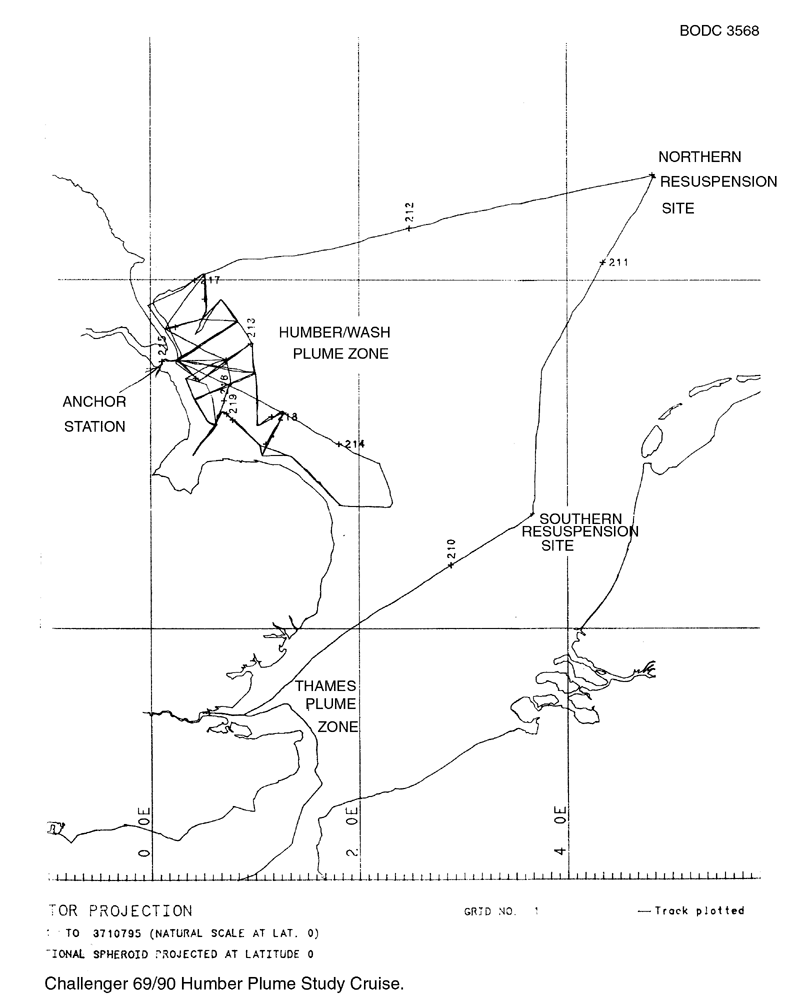

Work Area Description Thames Estuary, Humber Estuary and Plume
Work Area Bounding Polygon 50N,5W; 55N,5W; 55N,5E; 50N,5E; 50N,5W
Southern Limit 50N
Northern Limit 55N
Western Limit 5W
Eastern Limit 5E

Cruise Inventory Datasets

Physical oceanography
CTD stations Quantity: number of profiles = 50
Description:
Surface measurements underway (T,S) Quantity: track kilometres = 800
Description:
Surface measurements underway (T,S) Quantity: activity duration in hours = 24
Description: Continuous T,S,transmittance,fluorometer at anchor site over 24 hours
Transparency (eg transmissometer) Quantity: track kilometres = 800
Description: Continuous sampling of surface seawater
Transparency (eg transmissometer) Quantity: activity duration in hours = 24
Description: Continuous T,S,transmittance,fluorometer at anchor site over 24 hours
Transparency (eg transmissometer) Quantity: number of profiles = 44
Description:
Chemical oceanography
Nitrate Quantity: track kilometres = 600
Description: Continuous sampling of surface seawater
Nitrite Quantity: track kilometres = 600
Description: Continuous sampling of surface seawater
Other chemical oceanographic measurements Quantity: number of stations = 11
Description: Cores incubated on-board for chemical flux measurements
Phosphate Quantity: track kilometres = 600
Description: Continuous sampling of surface seawater
Silicate Quantity: track kilometres = 600
Description: Continuous sampling of surface seawater
Contamination
Other contaminant measurements Quantity: number of samples = 40
Description: analysis of sediment micro organic pollutant content
Other contaminant measurements Quantity: number of samples = 30
Description: Particulate organic contaminants from non-contaminating pump system
Suspended matter Quantity: number of profiles = 49
Description: Water bottle samples
Suspended matter Quantity: number of samples = 60
Description: Samples from non-contaminating pump system
Trace metals Quantity: number of profiles = 49
Description: Water bottle samples
Trace metals Quantity: number of samples = 60
Description: Samples from non-contaminating pump system
Biology and fisheries
Phytoplankton pigs (eg chlorophyll, fluorescence) Quantity: track kilometres = 800
Description: Continuous sampling of surface seawater
Phytoplankton pigs (eg chlorophyll, fluorescence) Quantity: number of profiles = 49
Description: Water bottle samples
Phytoplankton pigs (eg chlorophyll, fluorescence) Quantity: activity duration in hours = 24
Description: Continuous T,S,transmittance,fluorometer at anchor site over 24 hours
Phytoplankton pigs (eg chlorophyll, fluorescence) Quantity: number of samples = 60
Description: Samples from non-contaminating pump system
Primary productivity Quantity: number of experiments = 5
Description: Vertical profile samples for on-board incubation with 14C
Zoobenthos Quantity: number of stations = 10
Description:
Geology and geophysics
Core - soft bottom Quantity: number of stations = 10
Description:
Grab Quantity: number of samples = 40
Description:

Cruise Inventory Mooring/Buoy Operations

No information on datasets is currently available

Summary of BODC Data Holdings for the Cruise

National Oceanographic Database

Summary

# Series Instrument Description Parameters
35 Bottle station Chlorophyll pigment concentrations in water bodies
Phaeopigment concentrations in the water column
Quality control flags
Reference numbers
Vertical spatial coordinates
50 CTD/STD cast Chlorophyll pigment concentrations in water bodies
Concentration of suspended particulate material in the water column
Density of the water column
Salinity of the water column
Temperature of the water column
Transmittance and attenuance of the water column
Vertical spatial coordinates
Visible waveband radiance and irradiance measurements in the water column
1 Meteorological data logger Date and time
Horizontal spatial co-ordinates
Visible waveband radiance and irradiance measurements in the atmosphere
1 Pumped water sample Date and time
Horizontal spatial co-ordinates
Nitrate concentration parameters in the water column
Nitrite concentration parameters in the water column
Phosphate concentration parameters in the water column
Silicate concentration parameters in the water column
1 Pumped water sample Chlorophyll pigment concentrations in water bodies
Date and time
Horizontal spatial co-ordinates
Phaeopigment concentrations in the water column
1 Ship's non-toxic supply Chlorophyll pigment concentrations in water bodies
Concentration of suspended particulate material in the water column
Date and time
Horizontal spatial co-ordinates
Nitrate concentration parameters in the water column
Nitrite concentration parameters in the water column
Phosphate concentration parameters in the water column
Salinity of the water column
Silicate concentration parameters in the water column
Temperature of the water column
Transmittance and attenuance of the water column
1 Single-beam echosounder Bathymetry and Elevation
Date and time
Horizontal spatial co-ordinates

Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)

Full List

BODC Reference Instrument Description Date/Time Location
824023 CTD/STD cast 1990-07-30 12:38Z 54° 35' N, 4° 49' E Click for more
824035 CTD/STD cast 1990-07-31 07:16Z 54° 2' N, 0° 30' E Click for more
824047 CTD/STD cast 1990-07-31 10:13Z 53° 51' N, 0° 1' W Click for more
824059 CTD/STD cast 1990-07-31 14:22Z 53° 53' N, 0° 40' E Click for more
824060 CTD/STD cast 1990-07-31 15:40Z 53° 46' N, 0° 49' E Click for more
824072 CTD/STD cast 1990-08-01 00:21Z 53° 39' N, 0° 58' E Click for more
824084 CTD/STD cast 1990-08-01 01:38Z 53° 28' N, 1° 0' E Click for more
824096 CTD/STD cast 1990-08-01 03:16Z 53° 24' N, 0° 46' E Click for more
824103 CTD/STD cast 1990-08-01 22:21Z 52° 57' N, 2° 12' E Click for more
824115 CTD/STD cast 1990-08-02 00:36Z 53° 4' N, 1° 45' E Click for more
824127 CTD/STD cast 1990-08-02 03:15Z 53° 15' N, 1° 18' E Click for more
824139 CTD/STD cast 1990-08-02 09:33Z 53° 32' N, 0° 6' E Click for more
824140 CTD/STD cast 1990-08-02 10:34Z 53° 32' N, 0° 6' E Click for more
824152 CTD/STD cast 1990-08-02 11:34Z 53° 32' N, 0° 6' E Click for more
824164 CTD/STD cast 1990-08-02 12:32Z 53° 32' N, 0° 6' E Click for more
824176 CTD/STD cast 1990-08-02 13:33Z 53° 32' N, 0° 6' E Click for more
824188 CTD/STD cast 1990-08-02 14:32Z 53° 32' N, 0° 6' E Click for more
824207 CTD/STD cast 1990-08-02 15:32Z 53° 32' N, 0° 6' E Click for more
824219 CTD/STD cast 1990-08-02 16:30Z 53° 32' N, 0° 6' E Click for more
824220 CTD/STD cast 1990-08-02 17:33Z 53° 32' N, 0° 6' E Click for more
824232 CTD/STD cast 1990-08-02 18:32Z 53° 32' N, 0° 6' E Click for more
824244 CTD/STD cast 1990-08-02 19:32Z 53° 32' N, 0° 6' E Click for more
824256 CTD/STD cast 1990-08-02 20:35Z 53° 32' N, 0° 6' E Click for more
824268 CTD/STD cast 1990-08-02 21:34Z 53° 32' N, 0° 6' E Click for more
824281 CTD/STD cast 1990-08-02 22:33Z 53° 32' N, 0° 6' E Click for more
824293 CTD/STD cast 1990-08-02 23:33Z 53° 33' N, 0° 6' E Click for more
824300 CTD/STD cast 1990-08-03 00:33Z 53° 32' N, 0° 6' E Click for more
824312 CTD/STD cast 1990-08-03 01:32Z 53° 32' N, 0° 6' E Click for more
824324 CTD/STD cast 1990-08-03 02:37Z 53° 32' N, 0° 6' E Click for more
824336 CTD/STD cast 1990-08-03 03:32Z 53° 32' N, 0° 6' E Click for more
824348 CTD/STD cast 1990-08-03 04:32Z 53° 32' N, 0° 6' E Click for more
824361 CTD/STD cast 1990-08-03 05:36Z 53° 32' N, 0° 6' E Click for more
824373 CTD/STD cast 1990-08-03 06:34Z 53° 32' N, 0° 6' E Click for more
824385 CTD/STD cast 1990-08-03 07:35Z 53° 32' N, 0° 6' E Click for more
824397 CTD/STD cast 1990-08-03 08:33Z 53° 32' N, 0° 6' E Click for more
824404 CTD/STD cast 1990-08-05 00:38Z 54° 1' N, 0° 31' E Click for more
824416 CTD/STD cast 1990-08-05 01:08Z 53° 59' N, 0° 31' E Click for more
824428 CTD/STD cast 1990-08-05 01:36Z 53° 57' N, 0° 31' E Click for more
824441 CTD/STD cast 1990-08-05 02:02Z 53° 55' N, 0° 31' E Click for more
824453 CTD/STD cast 1990-08-05 02:26Z 53° 53' N, 0° 32' E Click for more
824465 CTD/STD cast 1990-08-05 03:02Z 53° 51' N, 0° 32' E Click for more
824477 CTD/STD cast 1990-08-05 03:28Z 53° 49' N, 0° 31' E Click for more
824489 CTD/STD cast 1990-08-05 04:01Z 53° 48' N, 0° 31' E Click for more
824490 CTD/STD cast 1990-08-05 04:25Z 53° 46' N, 0° 30' E Click for more
824508 CTD/STD cast 1990-08-05 04:51Z 53° 45' N, 0° 28' E Click for more
824521 CTD/STD cast 1990-08-05 05:15Z 53° 43' N, 0° 27' E Click for more
824533 CTD/STD cast 1990-08-05 05:40Z 53° 41' N, 0° 25' E Click for more
824545 CTD/STD cast 1990-08-06 00:47Z 53° 10' N, 1° 1' E Click for more
824557 CTD/STD cast 1990-08-07 04:01Z 52° 54' N, 1° 31' E Click for more
824569 CTD/STD cast 1990-08-07 05:47Z 52° 42' N, 1° 49' E Click for more
953354 Single-beam echosounder 1990-07-27 00:00Z to 1990-08-07 06:09Z 49° 51' N to 54° 35' N; 5° 29' W to 4° 51' E Click for more
953366 Meteorological data logger 1990-07-27 00:00Z to 1990-08-07 06:09Z 49° 51' N to 54° 35' N; 5° 29' W to 4° 51' E Click for more
953378 Ship's non-toxic supply 1990-07-27 00:00Z to 1990-08-07 06:09Z 49° 51' N to 54° 35' N; 5° 29' W to 4° 51' E Click for more
1362072 Pumped water sample 1990-07-28 07:45Z to 1990-08-04 07:26Z 51° 25' N to 54° 2' N; 0° 1' W to 2° 18' E Click for more
1652984 Pumped water sample 1990-07-28 07:45Z to 1990-08-04 08:03Z 51° 25' N to 53° 46' N; 0° 8' E to 3° 39' E Click for more
1683320 Bottle station 1990-07-30 12:42Z 54° 35' N, 4° 49' E Click for more
1683332 Bottle station 1990-07-31 07:22Z 54° 2' N, 0° 30' E Click for more
1683344 Bottle station 1990-07-31 10:15Z 53° 51' N, 0° 1' W Click for more
1683356 Bottle station 1990-07-31 14:26Z 53° 53' N, 0° 40' E Click for more
1683368 Bottle station 1990-07-31 15:43Z 53° 46' N, 0° 49' E Click for more
1683381 Bottle station 1990-08-01 00:25Z 53° 39' N, 0° 58' E Click for more
1683393 Bottle station 1990-08-01 01:45Z 53° 28' N, 1° 0' E Click for more
1683400 Bottle station 1990-08-01 03:20Z 53° 24' N, 0° 46' E Click for more
1683412 Bottle station 1990-08-02 00:42Z 53° 4' N, 1° 45' E Click for more
1683424 Bottle station 1990-08-02 03:21Z 53° 15' N, 1° 18' E Click for more
1683436 Bottle station 1990-08-02 09:34Z 53° 32' N, 0° 6' E Click for more
1683448 Bottle station 1990-08-02 11:36Z 53° 32' N, 0° 6' E Click for more
1683461 Bottle station 1990-08-02 12:37Z 53° 32' N, 0° 6' E Click for more
1683473 Bottle station 1990-08-02 13:35Z 53° 32' N, 0° 6' E Click for more
1683485 Bottle station 1990-08-02 14:33Z 53° 32' N, 0° 6' E Click for more
1683497 Bottle station 1990-08-02 15:36Z 53° 32' N, 0° 6' E Click for more
1683504 Bottle station 1990-08-02 17:37Z 53° 32' N, 0° 6' E Click for more
1683516 Bottle station 1990-08-02 18:35Z 53° 32' N, 0° 6' E Click for more
1683528 Bottle station 1990-08-02 19:38Z 53° 32' N, 0° 6' E Click for more
1683541 Bottle station 1990-08-02 20:44Z 53° 32' N, 0° 6' E Click for more
1683553 Bottle station 1990-08-02 21:35Z 53° 32' N, 0° 6' E Click for more
1683565 Bottle station 1990-08-02 22:36Z 53° 32' N, 0° 6' E Click for more
1683577 Bottle station 1990-08-02 23:36Z 53° 33' N, 0° 6' E Click for more
1683589 Bottle station 1990-08-03 00:36Z 53° 32' N, 0° 6' E Click for more
1683590 Bottle station 1990-08-03 01:41Z 53° 32' N, 0° 6' E Click for more
1683608 Bottle station 1990-08-03 02:34Z 53° 32' N, 0° 6' E Click for more
1683621 Bottle station 1990-08-03 03:36Z 53° 32' N, 0° 6' E Click for more
1683633 Bottle station 1990-08-03 04:33Z 53° 32' N, 0° 6' E Click for more
1683645 Bottle station 1990-08-03 05:38Z 53° 32' N, 0° 6' E Click for more
1683657 Bottle station 1990-08-03 06:36Z 53° 32' N, 0° 6' E Click for more
1683669 Bottle station 1990-08-03 07:36Z 53° 32' N, 0° 6' E Click for more
1683670 Bottle station 1990-08-04 03:21Z 53° 24' N, 0° 32' E Click for more
1683682 Bottle station 1990-08-05 02:04Z 53° 55' N, 0° 31' E Click for more
1683694 Bottle station 1990-08-05 03:31Z 53° 49' N, 0° 31' E Click for more
1683701 Bottle station 1990-08-07 04:04Z 52° 54' N, 1° 31' E Click for more

Project Database

# Events Gear Type Parameters Held
13 Box core
Organometallic and organometalloid species concentration parameters in sediments
Redox potential in sediment
Sediment water content, porosity and surface area
Trace metalloid concentrations in sediment pore water
Metadata parameters
Alkalinity, acidity and pH of the water column
Nutrient concentrations in sediment pore waters
Sediment grain size parameters
Nutrient fluxes between the bed and the water column
Metal fluxes between the bed and the water column
Metal concentrations in sediment pore waters
51 CTD frame plus rosette sampler Dissolved metal concentrations in the water column
Particulate metal concentrations in the water column
Transmittance and attenuance of the water column
Visible waveband radiance and irradiance measurements in the water column
Density of the water column
Chlorophyll pigment concentrations in water bodies
Dissolved trace metalloid and inorganic selenium concentrations in water bodies
Primary production in the water column
Metadata parameters
Salinity of the water column
Concentration of suspended particulate material in the water column
Temperature of the water column
Organometallic and organometalloid species concentration parameters in water bodies
Phaeopigment concentrations in the water column
69 All plastic clean surface pumped supply Dissolved metal concentrations in the water column
Particulate metal concentrations in the water column
Density of the water column
Transmittance and attenuance of the water column
Chlorophyll pigment concentrations in water bodies
Dissolved trace metalloid and inorganic selenium concentrations in water bodies
Silicate concentration parameters in the water column
Salinity of the water column
Concentration of suspended particulate material in the water column
Nitrate concentration parameters in the water column
Temperature of the water column
Organometallic and organometalloid species concentration parameters in water bodies
Phaeopigment concentrations in the water column
Nitrite concentration parameters in the water column
Phosphate concentration parameters in the water column
26 Day grab

Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)

References

Track Charts

Track Chart

Reports

Cruise Report
