BODC Cruise Metadata Report for RRS Discovery (74E3) cruise D192
Introduction
This report collates information from the BODC cruise inventory and oceanographic databases. It presents
- Cruise Inventory Information
- A summary of BODC data holdings for the cruise from the

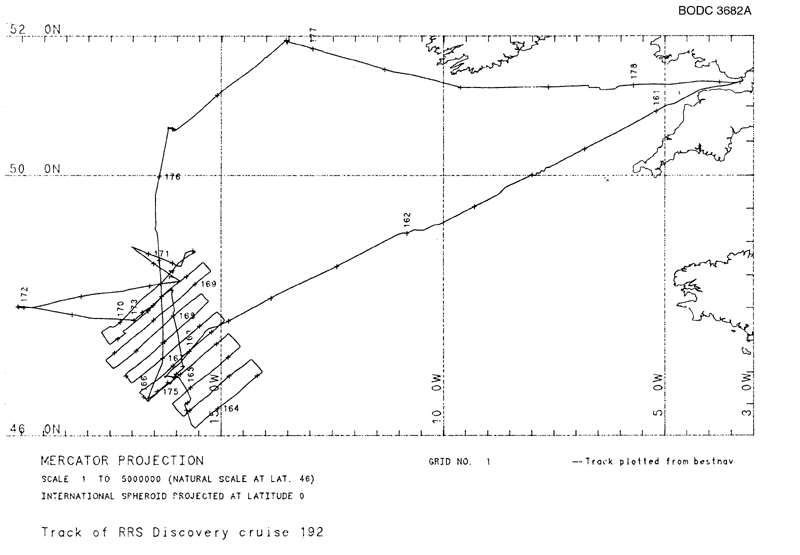

- References - including cruise tracks and cruise reports
Cruise Inventory Information
| Long name | RRS Discovery (74E3) cruise D192 |
|---|---|
| Short name | D192 |
| Objectives and Narrative |
1. Rendezvous with the RRS Charles Darwin in order to transfer urgently needed equipment.

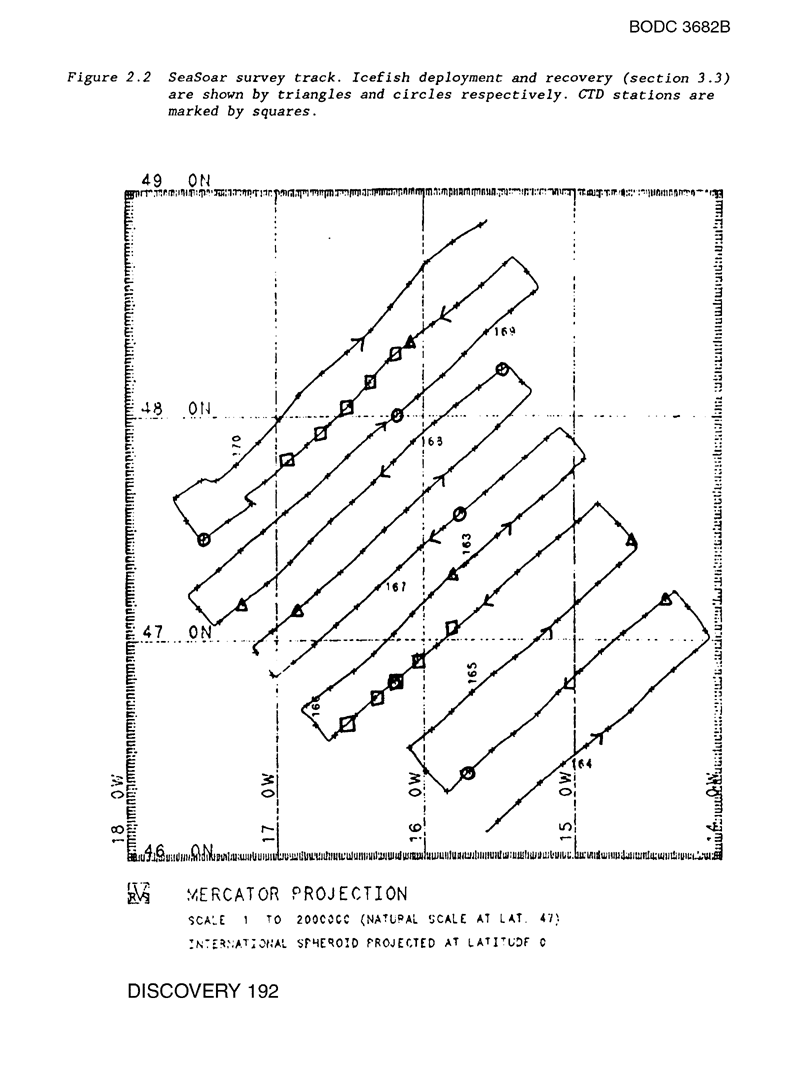

2. Resurvey, using SeaSoar and underway surface chemical measurements, the area marked by the drifting buoys released on Discovery 190. 3. Carry out up to 16 CTD casts within the survey area. 4. Recover the remaining drifting buoys. 5. Recover a BOFS Bathysnap at 48N. |
| Ship | RRS Discovery |
| Departure Port | Barry, United Kingdom |
| Departure Date | 1990-06-09 |
| Arrival Port | Barry, United Kingdom |
| Arrival Date | 1990-06-27 |
| Principal Scientist(s) | David R Turner (Plymouth Marine Laboratory) |
| Responsible Organisation | Plymouth Marine Laboratory |
| Associated Project(s) | BOFS |
| IHB Sea Areas Visited | North East Atlantic Ocean (limit 40W) |
| Marsden Squares Visited | 146 |
| Work Area Description | NE Atlantic |
| Unable to lookup cruise bounds at this time | |
| Work Area Bounding Polygon | |
| Southern Limit | unknown |
| Northern Limit | unknown |
| Western Limit | unknown |
| Eastern Limit | unknown |
Cruise Inventory Datasets
| Physical oceanography | |
|---|---|
| CTD stations |
Quantity:
number of stations =
11
Description: |
| Current meters |
Quantity:
number of recoveries =
1
Description: 1 recovered |
| Current profiler (eg ADCP) |
Quantity:
track kilometres =
3000
Description: Shipborne ADCP |
| Optics (eg underwater light levels) |
Quantity:
track kilometres =
1200
Description: 'ICEFISH' towed at fixed depth (5-12m) |
| Optics (eg underwater light levels) |
Quantity:
track kilometres =
3000
Description: SeaSoar, surface to 400m |
| Subsurface temperature and salinity measurements |
Quantity:
track kilometres =
3000
Description: SeaSoar, surface to 400m |
| Subsurface temperature and salinity measurements |
Quantity:
track kilometres =
1200
Description: 'ICEFISH' towed at fixed depth (5-12m) |
| Surface measurements underway (T,S) |
Quantity:
track kilometres =
3000
Description: |
| Transparency (eg transmissometer) |
Quantity:
track kilometres =
3000
Description: |
| Transparency (eg transmissometer) |
Quantity:
number of stations =
11
Description: |
| Water bottle stations |
Quantity:
number of stations =
11
Description: |
| Chemical oceanography | |
| Alkalinity |
Quantity:
number of stations =
11
Description: |
| Ammonia |
Quantity:
number of stations =
11
Description: |
| Ammonia |
Quantity:
track kilometres =
3000
Description: |
| Carbon dioxide |
Quantity:
track kilometres =
3000
Description: |
| Carbon dioxide |
Quantity:
number of stations =
11
Description: |
| Nitrate |
Quantity:
number of stations =
11
Description: |
| Nitrate |
Quantity:
track kilometres =
3000
Description: |
| Nitrite |
Quantity:
number of stations =
11
Description: |
| Nitrite |
Quantity:
track kilometres =
3000
Description: |
| Other dissolved gases |
Quantity:
number of stations =
11
Description: |
| Oxygen |
Quantity:
track kilometres =
3000
Description: |
| Oxygen |
Quantity:
track kilometres =
3000
Description: SeaSoar, surface to 400m |
| Oxygen |
Quantity:
number of stations =
11
Description: |
| Phosphate |
Quantity:
number of stations =
11
Description: |
| Phosphate |
Quantity:
track kilometres =
3000
Description: |
| Silicate |
Quantity:
track kilometres =
3000
Description: |
| Silicate |
Quantity:
number of stations =
11
Description: |
| pH |
Quantity:
number of stations =
11
Description: |
| Biology and fisheries | |
| Phytoplankton |
Quantity:
number of stations =
11
Description: |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
track kilometres =
3000
Description: SeaSoar, surface to 400m |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of stations =
11
Description: |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
track kilometres =
3000
Description: |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
track kilometres =
1200
Description: 'ICEFISH' towed at fixed depth (5-12m) |
Cruise Inventory Mooring/Buoy Operations
| Latitude | Longitude | Data type | Description |
|---|---|---|---|
| 40° 1' N | 19° 34' W | Bottom photography | Recovery of Bathysnap |
| 40° 1' N | 19° 34' W | Current meters | Recovery of Bathysnap, deployed 19 May 1989 |
| 40° 1' N | 19° 34' W | Other biological/fisheries measurement | Recovery of Bathysnap |
Summary of BODC Data Holdings for the Cruise
National Oceanographic Database
Summary
| # Series | Instrument Description | Parameters |
|---|---|---|
| 7 | Bottle station |
Nitrate concentration parameters in the water column Nitrite concentration parameters in the water column Phosphate concentration parameters in the water column Quality control flags Reference numbers Silicate concentration parameters in the water column Vertical spatial coordinates |
| 6 | Bottle station |
Ammonium and ammonia concentration parameters in water bodies Nitrate concentration parameters in the water column Nitrite concentration parameters in the water column Phosphate concentration parameters in the water column Quality control flags Reference numbers Silicate concentration parameters in the water column Vertical spatial coordinates |
| 3 | CTD/STD cast |
Chlorophyll pigment concentrations in water bodies Density of the water column Salinity of the water column Temperature of the water column Vertical spatial coordinates Visible waveband radiance and irradiance measurements in the water column |
| 4 | CTD/STD cast |
Density of the water column Salinity of the water column Temperature of the water column Vertical spatial coordinates |
| 11 | CTD/STD cast |
Chlorophyll pigment concentrations in water bodies Density of the water column Salinity of the water column Temperature of the water column Vertical spatial coordinates |
| 1 | CTD/STD cast |
Chlorophyll pigment concentrations in water bodies Density of the water column Salinity of the water column Temperature of the water column Transmittance and attenuance of the water column Vertical spatial coordinates Visible waveband radiance and irradiance measurements in the water column |
| 1 | CTD/STD cast |
Chlorophyll pigment concentrations in water bodies Density of the water column Salinity of the water column Temperature of the water column Transmittance and attenuance of the water column Vertical spatial coordinates |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
Full List
| BODC Reference | Instrument Description | Date/Time | Location | |
|---|---|---|---|---|
| 961723 | CTD/STD cast | 1990-06-12 09:23Z | 46° 33' N, 15° 42' W | Click for more |
| 961735 | CTD/STD cast | 1990-06-12 12:26Z | 46° 30' N, 15° 46' W | Click for more |
| 961747 | CTD/STD cast | 1990-06-21 23:35Z | 47° 49' N, 16° 57' W | Click for more |
| 961759 | CTD/STD cast | 1990-06-22 01:02Z | 47° 49' N, 16° 55' W | Click for more |
| 961760 | CTD/STD cast | 1990-06-22 05:05Z | 47° 56' N, 16° 46' W | Click for more |
| 961772 | CTD/STD cast | 1990-06-22 08:22Z | 47° 56' N, 16° 46' W | Click for more |
| 961784 | CTD/STD cast | 1990-06-22 09:05Z | 47° 56' N, 16° 46' W | Click for more |
| 961796 | CTD/STD cast | 1990-06-22 11:08Z | 48° 3' N, 16° 31' W | Click for more |
| 961803 | CTD/STD cast | 1990-06-22 13:45Z | 48° 3' N, 16° 30' W | Click for more |
| 961815 | CTD/STD cast | 1990-06-22 15:30Z | 48° 10' N, 16° 20' W | Click for more |
| 961827 | CTD/STD cast | 1990-06-22 18:17Z | 48° 11' N, 16° 19' W | Click for more |
| 961839 | CTD/STD cast | 1990-06-22 19:55Z | 48° 17' N, 16° 7' W | Click for more |
| 961840 | CTD/STD cast | 1990-06-22 23:17Z | 48° 17' N, 16° 6' W | Click for more |
| 961852 | CTD/STD cast | 1990-06-23 07:49Z | 47° 4' N, 15° 51' W | Click for more |
| 961864 | CTD/STD cast | 1990-06-23 10:15Z | 47° 4' N, 15° 51' W | Click for more |
| 961876 | CTD/STD cast | 1990-06-23 12:34Z | 46° 57' N, 16° 1' W | Click for more |
| 961888 | CTD/STD cast | 1990-06-23 16:50Z | 46° 49' N, 16° 10' W | Click for more |
| 961907 | CTD/STD cast | 1990-06-23 17:49Z | 46° 50' N, 16° 12' W | Click for more |
| 961919 | CTD/STD cast | 1990-06-23 23:16Z | 46° 41' N, 16° 25' W | Click for more |
| 961920 | CTD/STD cast | 1990-06-24 05:15Z | 46° 35' N, 16° 38' W | Click for more |
| 1296774 | Bottle station | 1990-06-12 09:37Z | 46° 33' N, 15° 42' W | Click for more |
| 1296786 | Bottle station | 1990-06-21 23:44Z | 47° 49' N, 16° 57' W | Click for more |
| 1296798 | Bottle station | 1990-06-22 09:14Z | 47° 56' N, 16° 46' W | Click for more |
| 1296805 | Bottle station | 1990-06-22 13:53Z | 48° 3' N, 16° 30' W | Click for more |
| 1296817 | Bottle station | 1990-06-22 18:29Z | 48° 11' N, 16° 19' W | Click for more |
| 1296829 | Bottle station | 1990-06-22 21:09Z | 48° 17' N, 16° 7' W | Click for more |
| 1296830 | Bottle station | 1990-06-22 23:32Z | 48° 17' N, 16° 6' W | Click for more |
| 1296842 | Bottle station | 1990-06-23 10:24Z | 47° 4' N, 15° 51' W | Click for more |
| 1296854 | Bottle station | 1990-06-23 13:40Z | 46° 57' N, 16° 1' W | Click for more |
| 1296866 | Bottle station | 1990-06-23 18:52Z | 46° 50' N, 16° 12' W | Click for more |
| 1296878 | Bottle station | 1990-06-23 22:26Z | 46° 43' N, 16° 27' W | Click for more |
| 1296891 | Bottle station | 1990-06-24 01:20Z | 46° 41' N, 16° 25' W | Click for more |
| 1296909 | Bottle station | 1990-06-24 06:17Z | 46° 35' N, 16° 38' W | Click for more |
Project Database
| # Events | Gear Type | Parameters Held |
|---|---|---|
| 21 | CTD frame plus rosette sampler |
Total dissolved inorganic carbon (TCO2) concentration in the water column
Transmittance and attenuance of the water column Nitrite concentration parameters in the water column Particulate total and organic nitrogen concentrations in the water column Phosphate concentration parameters in the water column Salinity of the water column Temperature of the water column Dissolved oxygen parameters in the water column Silicate concentration parameters in the water column Visible waveband radiance and irradiance measurements in the water column Density of the water column Ammonium and ammonia concentration parameters in water bodies Nitrate concentration parameters in the water column Metadata parameters Chlorophyll pigment concentrations in water bodies Alkalinity, acidity and pH of the water column Particulate total and organic carbon concentrations in the water column Partial pressure (pCO2) and fugacity (fCO2) of carbon dioxide in the water column |
| 2 | Sample taken from ship's non-toxic supply | |
| 2 | Water bottle hydrocast | |
| 556 | SeaSoar profile from gridded data |
Dissolved oxygen parameters in the water column
Temperature of the water column Salinity of the water column Density of the water column Chlorophyll pigment concentrations in water bodies |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
