BODC Cruise Metadata Report for RRS Charles Darwin (74AB) cruise CD85
Introduction
This report collates information from the BODC cruise inventory and oceanographic databases. It presents
- Cruise Inventory Information
- A summary of BODC data holdings for the cruise from the

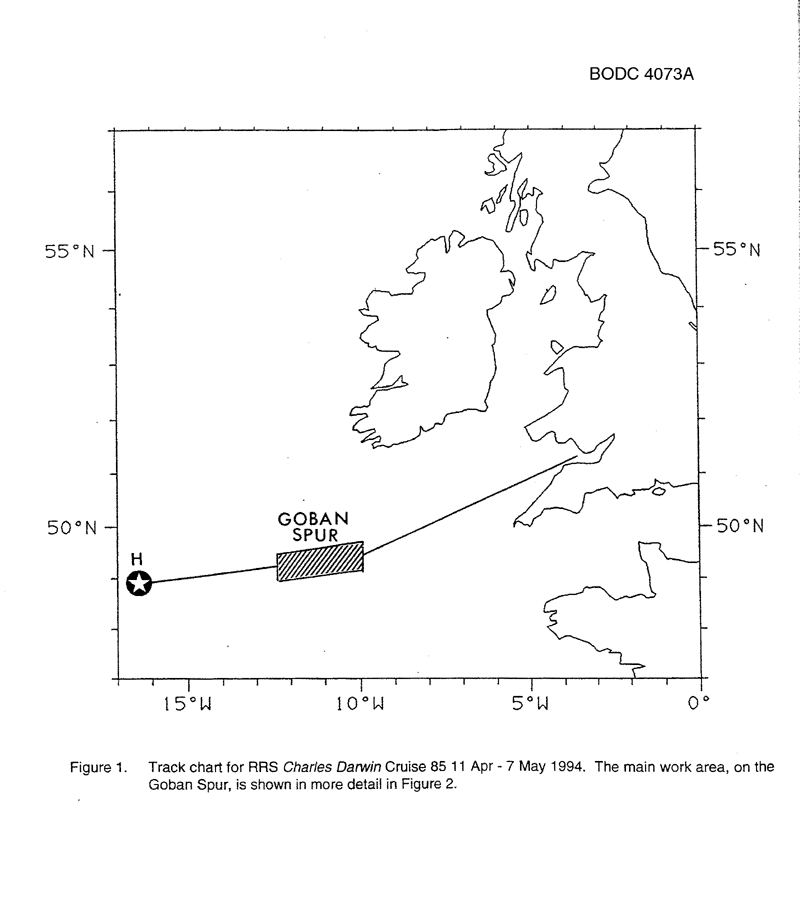

- References - including cruise tracks and cruise reports
Cruise Inventory Information
| Long name | RRS Charles Darwin (74AB) cruise CD85 |
|---|---|
| Short name | CD85 |
| Objectives and Narrative |
UK contribution to OMEX to quantify the biologically mediated cross-slope exchanges and vertical fluxes of biogenic material in the region of the Goban Spur.
Main Tasks: 1. 2 x SeaSoar survey to investigate hydrographic structure of region 2. Net sampling to study the data and night vertical distribution of macroplankton and micronekton. 3. Observe patterns of acoustic back-scatter using ship-borne ADCP; and 'sea-truthing' of data using LHPR net samples. 4. Asses marine snow distribution and abundance, using sediment trap moorings, cameras and large water bottles. 5. Evaluate cross-slope changes in phytoplankton and microzooplankton. |
| Ship | RRS Charles Darwin |
| Departure Port | Barry, United Kingdom |
| Departure Date | 1994-04-11 |
| Arrival Port | Barry, United Kingdom |
| Arrival Date | 1994-05-07 |
| Principal Scientist(s) | Phil Pugh (Institute of Oceanographic Sciences Deacon Laboratory) |
| Responsible Organisation | Institute of Oceanographic Sciences Deacon Laboratory |
| Associated Project(s) | OMEX II/MAST |
| IHB Sea Areas Visited | North East Atlantic Ocean (limit 40W) |
| Marsden Squares Visited | 146;3/146;4/147 |
| Work Area Description | NE Atlantic, Goban Spur 49-50N;11-13W;, St. H 49N;16.5W |
| Unable to lookup cruise bounds at this time | |
| Work Area Bounding Polygon | |
| Southern Limit | unknown |
| Northern Limit | unknown |
| Western Limit | unknown |
| Eastern Limit | unknown |
Cruise Inventory Datasets
| Physical oceanography | |
|---|---|
| Bathythermograph |
Quantity:
number of profiles =
36
Description: XBTs - DRA system, T7 and a few T5 probes |
| CTD stations |
Quantity:
number of stations =
18
Description: CTD and multisampler for microzooplankton collection |
| CTD stations |
Quantity:
number of stations =
30
Description: CTD and marine snow profiling camera |
| Current profiler (eg ADCP) | Description: continuous shipborne ADCP |
| Subsurface temperature and salinity measurements |
Quantity:
number of surveys =
2
Description: 2 SeaSoar surveys, towed undulating CTD plus fluorometer |
| Surface measurements underway (T,S) | Description: continuous thermosalinograph surface measurements |
| Water bottle stations |
Quantity:
number of stations =
20
Description: 100l water bottles to collect marine snow |
| Water bottle stations |
Quantity:
number of stations =
18
Description: multisampler for microzooplankton collection on CTD |
| Water bottle stations |
Quantity:
number of stations =
31
Description: 1 with S only)30l Niskins |
| Chemical oceanography | |
| Ammonia |
Quantity:
activity duration in days =
4
Description: |
| Nitrate |
Quantity:
number of stations =
31
Description: 30l Niskins |
| Nitrate |
Quantity:
number of surveys =
2
Description: autoanalyser run in conj. w. SeaSoar surveys, surface |
| Nitrite |
Quantity:
activity duration in days =
4
Description: ng autoanalyser run in conj. w. SeaSoar surveys, surface |
| Phosphate |
Quantity:
number of stations =
31
Description: 30l Niskins |
| Phosphate |
Quantity:
number of surveys =
2
Description: autoanalyser run in conj. w. SeaSoar surveys, surface |
| Radioactivity |
Quantity:
number of samples =
31
Description: 30l Niskins |
| Silicate |
Quantity:
activity duration in days =
4
Description: OPALWCP7 Particulate opaline silica |
| Silicate |
Quantity:
number of stations =
31
Description: 30l Niskins |
| Biology and fisheries | |
| Nekton |
Quantity:
number of hauls =
28
Description: IOS RMT 1+8M towed multinet for microzooplankton and micronekton |
| Other biological/fisheries measurement |
Quantity:
number of profiles =
1
Description: MZBNMITX Total microzooplankton abundance (cell numbers) |
| Other biological/fisheries measurement |
Quantity:
number of profiles =
1
Description: MZBCMITX Total microzooplankton biomass (expressed as carbon) |
| Other biological/fisheries measurement | Description: samples for phytoplankton species counts |
| Other biological/fisheries measurement |
Quantity:
activity duration in days =
4
Description: PHAESPP1 Spectrophotometric phaeopigments (Lorenzen) |
| Particulate organic matter (inc POC, PON) |
Quantity:
activity duration in days =
4
Description: CORGCAP1 Particulate organic carbon (acidified) |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of surveys =
2
Description: SCHLFLPF Size-fractionated fluorometric chl-a |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of surveys =
2
Description: SCHLFLPB Size-fractionated fluorometric chl-a |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of stations =
31
Description: 30l Niskins |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
activity duration in days =
3
Description: CPHLPR01 In-situ fluorometer chlorophyll |
| Phytoplankton pigs (eg chlorophyll, fluorescence) | Description: continuous fluorescence surface measurements |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
activity duration in days =
4
Description: CPHLFLP1 Fluorometric chlorophyll-a |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of surveys =
2
Description: CPHLFLP4 Fluorometric chlorophyll-a |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of surveys =
2
Description: 2 SeaSoar surveys, towed undulating CTD plus fluorometer |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of experiments =
1
Description: MZCTDDTX Daily chlorophyll turnover by microzooplankton grazing |
| Primary productivity |
Quantity:
number of stations =
31
Description: 30l Niskins |
| Seston |
Quantity:
number of stations =
20
Description: 100l water bottles to collect marine snow |
| Seston |
Quantity:
number of deployments =
15
Description: CTD and marine snow profiling camera |
| Zooplankton |
Quantity:
number of stations =
18
Description: multisampler for microzooplankton collection on CTD |
| Zooplankton |
Quantity:
number of hauls =
28
Description: IOS RMT 1+8M towed multinet for microzooplankton and micronekton |
| Zooplankton |
Quantity:
number of deployments =
4
Description: Longhurst-Hardy plankton rec. for zooplank. to 'sea-truth' ADCP data |
| Zooplankton |
Quantity:
number of hauls =
12
Description: various vertical nets for zooplankton |
| Zooplankton |
Quantity:
number of hauls =
17
Description: Apstein vertical nets for microzooplankton |
Cruise Inventory Mooring/Buoy Operations
| Latitude | Longitude | Data type | Description |
|---|---|---|---|
| 49° 25' N | 11° 46' W | Current profiler (eg ADCP) | moored ADCP laid 13 April, rec. 26 April |
| 49° 31' N | 11° 28' W | Primary productivity | drifting prim. prod. rig depl. during daylight 1 May |
| 49° 16' N | 12° 15' W | Primary productivity | drifting prim. prod. rig depl. during daylight 21 Apr |
| 49° 10' N | 12° 46' W | Primary productivity | drifting prim. prod. rig depl. during daylight, 18 Apr |
| 48° 58' N | 16° 22' W | Sediment traps | IOS sediment trap mooring, laid Sept 92, release fired, but no mooring |
| 49° 25' N | 11° 31' W | Sediment traps | OMEX1 sediment trap mooring, laid Jan 94, not found |
| 49° 10' N | 12° 49' W | Sediment traps | OMEX2 sediment trap mooring, rec. & redepl. |
| 48° 58' N | 16° 28' W | Sediment traps | replacement IOS sediment trap mooring laid |
Summary of BODC Data Holdings for the Cruise
National Oceanographic Database
Summary
| # Series | Instrument Description | Parameters |
|---|---|---|
| 17 | Bottle station |
Ammonium and ammonia concentration parameters in water bodies Nitrate concentration parameters in the water column Nitrite concentration parameters in the water column Phosphate concentration parameters in the water column Quality control flags Reference numbers Silicate concentration parameters in the water column Vertical spatial coordinates |
| 2 | Bottle station |
Ammonium and ammonia concentration parameters in water bodies Nitrate concentration parameters in the water column Nitrite concentration parameters in the water column Phosphate concentration parameters in the water column Quality control flags Reference numbers Vertical spatial coordinates |
| 17 | Bottle station |
Chlorophyll pigment concentrations in water bodies Quality control flags Reference numbers Vertical spatial coordinates |
| 7 | Bottle station |
Carotenoid and flavenoid pigment concentrations in water bodies Chlorophyll pigment concentrations in water bodies Phaeopigment concentrations in the water column Quality control flags Reference numbers Vertical spatial coordinates |
| 12 | Bottle station |
Chlorophyll pigment concentrations in water bodies Phaeopigment concentrations in the water column Quality control flags Reference numbers Vertical spatial coordinates |
| 1 | CTD/STD cast |
Temperature of the water column Vertical spatial coordinates |
| 1 | CTD/STD cast |
Chlorophyll pigment concentrations in water bodies Temperature of the water column Vertical spatial coordinates |
| 7 | CTD/STD cast |
Density of the water column Salinity of the water column Temperature of the water column Vertical spatial coordinates |
| 21 | CTD/STD cast |
Chlorophyll pigment concentrations in water bodies Density of the water column Salinity of the water column Temperature of the water column Vertical spatial coordinates |
| 1 | Paddle wheel current meter |
Date and time Electrical conductivity of the water column Horizontal velocity of the water column (currents) Salinity of the water column Temperature of the water column |
| 1 | Paddle wheel current meter |
Date and time Electrical conductivity of the water column Horizontal velocity of the water column (currents) Salinity of the water column Temperature of the water column Transmittance and attenuance of the water column |
| 1 | Pumped water sample |
Chlorophyll pigment concentrations in water bodies Date and time Horizontal spatial co-ordinates Phaeopigment concentrations in the water column |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
Full List
| BODC Reference | Instrument Description | Date/Time | Location | |
|---|---|---|---|---|
| 444308 | Paddle wheel current meter | 1994-04-18 14:04Z to 1994-09-16 09:04Z | 49° 11' N, 12° 49' W | Click for more |
| 444321 | Paddle wheel current meter | 1994-04-18 13:56Z to 1994-09-16 09:57Z | 49° 11' N, 12° 49' W | Click for more |
| 887233 | CTD/STD cast | 1994-04-22 16:36Z | 49° 25' N, 11° 46' W | Click for more |
| 887245 | CTD/STD cast | 1994-04-22 17:05Z | 49° 25' N, 11° 46' W | Click for more |
| 887257 | CTD/STD cast | 1994-04-22 21:33Z | 49° 21' N, 11° 49' W | Click for more |
| 887269 | CTD/STD cast | 1994-04-23 01:13Z | 49° 25' N, 11° 33' W | Click for more |
| 887270 | CTD/STD cast | 1994-04-23 06:02Z | 49° 24' N, 11° 36' W | Click for more |
| 887282 | CTD/STD cast | 1994-04-25 21:50Z | 49° 21' N, 11° 37' W | Click for more |
| 887294 | CTD/STD cast | 1994-04-15 00:25Z | 49° 16' N, 12° 13' W | Click for more |
| 887301 | CTD/STD cast | 1994-04-18 03:36Z | 49° 8' N, 12° 47' W | Click for more |
| 887313 | CTD/STD cast | 1994-04-18 05:53Z | 49° 10' N, 12° 46' W | Click for more |
| 887325 | CTD/STD cast | 1994-04-18 21:15Z | 49° 7' N, 12° 49' W | Click for more |
| 887337 | CTD/STD cast | 1994-04-20 09:59Z | 49° 7' N, 12° 24' W | Click for more |
| 887349 | CTD/STD cast | 1994-04-23 05:38Z | 49° 24' N, 11° 36' W | Click for more |
| 887350 | CTD/STD cast | 1994-04-26 05:18Z | 49° 22' N, 11° 36' W | Click for more |
| 887362 | CTD/STD cast | 1994-04-16 06:51Z | 49° 25' N, 12° 46' W | Click for more |
| 887374 | CTD/STD cast | 1994-05-02 21:16Z | 49° 29' N, 10° 59' W | Click for more |
| 887386 | CTD/STD cast | 1994-05-05 04:01Z | 49° 34' N, 11° 10' W | Click for more |
| 887398 | CTD/STD cast | 1994-05-05 12:46Z | 49° 33' N, 11° 7' W | Click for more |
| 887405 | CTD/STD cast | 1994-04-27 06:36Z | 49° 30' N, 10° 58' W | Click for more |
| 887417 | CTD/STD cast | 1994-04-27 22:20Z | 49° 26' N, 11° 15' W | Click for more |
| 887429 | CTD/STD cast | 1994-04-30 03:09Z | 49° 5' N, 13° 18' W | Click for more |
| 887430 | CTD/STD cast | 1994-04-22 00:57Z | 49° 12' N, 12° 14' W | Click for more |
| 887442 | CTD/STD cast | 1994-04-26 06:16Z | 49° 22' N, 11° 35' W | Click for more |
| 887454 | CTD/STD cast | 1994-04-27 00:24Z | 49° 27' N, 11° 11' W | Click for more |
| 887466 | CTD/STD cast | 1994-04-27 05:37Z | 49° 30' N, 10° 58' W | Click for more |
| 887478 | CTD/STD cast | 1994-04-27 21:15Z | 49° 26' N, 11° 15' W | Click for more |
| 887491 | CTD/STD cast | 1994-04-30 02:24Z | 49° 4' N, 13° 18' W | Click for more |
| 887509 | CTD/STD cast | 1994-05-01 05:08Z | 49° 31' N, 11° 28' W | Click for more |
| 887510 | CTD/STD cast | 1994-05-02 05:29Z | 49° 19' N, 11° 24' W | Click for more |
| 887522 | CTD/STD cast | 1994-05-02 06:20Z | 49° 19' N, 11° 24' W | Click for more |
| 887534 | CTD/STD cast | 1994-04-21 01:50Z | 49° 10' N, 12° 21' W | Click for more |
| 1267905 | Bottle station | 1994-04-16 04:58Z | 49° 24' N, 12° 48' W | Click for more |
| 1267917 | Bottle station | 1994-04-18 02:18Z | 49° 8' N, 12° 46' W | Click for more |
| 1267929 | Bottle station | 1994-04-18 23:42Z | 49° 7' N, 12° 49' W | Click for more |
| 1267930 | Bottle station | 1994-04-21 01:06Z | 49° 10' N, 12° 21' W | Click for more |
| 1267942 | Bottle station | 1994-04-22 02:41Z | 49° 12' N, 12° 15' W | Click for more |
| 1267954 | Bottle station | 1994-04-23 02:31Z | 49° 25' N, 11° 34' W | Click for more |
| 1267966 | Bottle station | 1994-04-23 04:20Z | 49° 25' N, 11° 35' W | Click for more |
| 1267978 | Bottle station | 1994-04-25 04:44Z | 49° 20' N, 11° 38' W | Click for more |
| 1267991 | Bottle station | 1994-04-26 04:38Z | 49° 22' N, 11° 36' W | Click for more |
| 1268005 | Bottle station | 1994-04-26 05:00Z | 49° 22' N, 11° 36' W | Click for more |
| 1268017 | Bottle station | 1994-04-26 06:50Z | 49° 22' N, 11° 35' W | Click for more |
| 1268029 | Bottle station | 1994-04-27 03:50Z | 49° 30' N, 10° 59' W | Click for more |
| 1268030 | Bottle station | 1994-04-27 23:23Z | 49° 25' N, 11° 15' W | Click for more |
| 1268042 | Bottle station | 1994-04-30 04:03Z | 49° 6' N, 13° 18' W | Click for more |
| 1268054 | Bottle station | 1994-05-01 04:15Z | 49° 31' N, 11° 28' W | Click for more |
| 1268066 | Bottle station | 1994-05-02 04:59Z | 49° 19' N, 11° 24' W | Click for more |
| 1268078 | Bottle station | 1994-05-02 06:48Z | 49° 20' N, 11° 24' W | Click for more |
| 1282404 | Bottle station | 1994-04-27 05:54Z | 49° 30' N, 10° 58' W | Click for more |
| 1282416 | Bottle station | 1994-05-01 05:23Z | 49° 31' N, 11° 28' W | Click for more |
| 1652093 | Bottle station | 1994-04-23 02:31Z | 49° 25' N, 11° 34' W | Click for more |
| 1652100 | Bottle station | 1994-04-30 04:03Z | 49° 6' N, 13° 18' W | Click for more |
| 1665165 | Bottle station | 1994-04-18 03:40Z | 49° 8' N, 12° 47' W | Click for more |
| 1665177 | Bottle station | 1994-04-18 06:02Z | 49° 10' N, 12° 46' W | Click for more |
| 1665189 | Bottle station | 1994-04-27 05:54Z | 49° 30' N, 10° 58' W | Click for more |
| 1665190 | Bottle station | 1994-04-27 06:38Z | 49° 30' N, 10° 58' W | Click for more |
| 1665208 | Bottle station | 1994-04-30 02:30Z | 49° 4' N, 13° 18' W | Click for more |
| 1669511 | Bottle station | 1994-05-01 05:23Z | 49° 31' N, 11° 28' W | Click for more |
| 1676255 | Pumped water sample | 1994-04-13 17:15Z to 1994-05-04 23:30Z | 49° 6' N to 49° 30' N; 12° 43' W to 10° 58' W | Click for more |
| 1680113 | Bottle station | 1994-04-18 06:50Z | 49° 10' N, 12° 46' W | Click for more |
| 1680125 | Bottle station | 1994-04-20 12:15Z | 49° 7' N, 12° 23' W | Click for more |
| 1680137 | Bottle station | 1994-04-20 12:58Z | 49° 7' N, 12° 23' W | Click for more |
| 1680149 | Bottle station | 1994-04-20 13:03Z | 49° 7' N, 12° 23' W | Click for more |
| 1680150 | Bottle station | 1994-04-22 02:41Z | 49° 12' N, 12° 15' W | Click for more |
| 1680162 | Bottle station | 1994-04-22 20:24Z | 49° 21' N, 11° 49' W | Click for more |
| 1680174 | Bottle station | 1994-04-23 02:31Z | 49° 25' N, 11° 34' W | Click for more |
| 1680186 | Bottle station | 1994-04-26 05:00Z | 49° 22' N, 11° 36' W | Click for more |
| 1680198 | Bottle station | 1994-04-26 06:50Z | 49° 22' N, 11° 35' W | Click for more |
| 1680205 | Bottle station | 1994-04-27 03:50Z | 49° 30' N, 10° 59' W | Click for more |
| 1680217 | Bottle station | 1994-04-27 23:23Z | 49° 25' N, 11° 15' W | Click for more |
| 1680229 | Bottle station | 1994-04-30 04:03Z | 49° 6' N, 13° 18' W | Click for more |
| 1680230 | Bottle station | 1994-05-01 04:15Z | 49° 31' N, 11° 28' W | Click for more |
| 1680242 | Bottle station | 1994-05-02 06:48Z | 49° 20' N, 11° 24' W | Click for more |
| 1680254 | Bottle station | 1994-05-02 22:50Z | 49° 29' N, 10° 59' W | Click for more |
| 1680266 | Bottle station | 1994-05-05 12:06Z | 49° 33' N, 11° 7' W | Click for more |
| 1690107 | Bottle station | 1994-04-16 04:58Z | 49° 24' N, 12° 48' W | Click for more |
| 1690119 | Bottle station | 1994-04-18 02:18Z | 49° 8' N, 12° 46' W | Click for more |
| 1690120 | Bottle station | 1994-04-18 23:42Z | 49° 7' N, 12° 49' W | Click for more |
| 1690132 | Bottle station | 1994-04-21 01:06Z | 49° 10' N, 12° 21' W | Click for more |
| 1690144 | Bottle station | 1994-04-23 04:20Z | 49° 25' N, 11° 35' W | Click for more |
| 1690156 | Bottle station | 1994-04-25 04:44Z | 49° 20' N, 11° 38' W | Click for more |
| 1690168 | Bottle station | 1994-04-26 04:38Z | 49° 22' N, 11° 36' W | Click for more |
| 1690181 | Bottle station | 1994-04-27 03:50Z | 49° 30' N, 10° 59' W | Click for more |
| 1690193 | Bottle station | 1994-04-27 23:23Z | 49° 25' N, 11° 15' W | Click for more |
| 1690200 | Bottle station | 1994-04-30 04:03Z | 49° 6' N, 13° 18' W | Click for more |
| 1690212 | Bottle station | 1994-05-01 04:15Z | 49° 31' N, 11° 28' W | Click for more |
| 1690224 | Bottle station | 1994-05-02 04:59Z | 49° 19' N, 11° 24' W | Click for more |
Project Database
| # Events | Gear Type | Parameters Held |
|---|---|---|
| 3 | Instrument mooring |
Sedimentation flux of identified biota in the water column
Sedimentation flux of metallic and metalloid elements and isotopes in water bodies Stable isotopes in water bodies Sedimentation flux of carbon, nitrogen or organic matter in the water column Sedimentation flux of pigments in the water column Sediment grain size parameters Sedimentation flux of alkenones and alkenoates in the water column Sedimentation flux quantification in the water column Sedimentation flux of non-metallic inorganic species in the water column |
| 4 | Longhurst-Hardy Plankton Recorder | |
| 33 | CTD frame plus rosette sampler |
Carotenoid and flavenoid pigment concentrations in water bodies
Nitrite concentration parameters in the water column Salinity of the water column Temperature of the water column Phosphate concentration parameters in the water column Phytoplankton generic biomass in water bodies Silicate concentration parameters in the water column Microzooplankton non taxonomy-related biomass expressed as carbon per unit volume of the water column Density of the water column Ammonium and ammonia concentration parameters in water bodies Phytoplankton generic abundance in water bodies Microzooplankton generic abundance in water bodies Phaeopigment concentrations in the water column Nitrate concentration parameters in the water column Chlorophyll pigment concentrations in water bodies Particulate total and organic carbon concentrations in the water column Concentration of silicon species in the water column |
| 17 | Apstein opening-closing mesh zooplankton net | |
| 159 | SeaSoar profile from gridded data | |
| 36 | Expendable Bathythermograph | |
| 4 | WP-2 zooplankton net | |
| 77 | RMT multiple zooplankton net tow |
Zooplankton taxonomy-related abundance per unit volume of the water column
Zooplankton carbon biomass per unit area of the water column |
| 3154 | Shipborne Acoustic Doppler Current Profile | |
| 4 | SeaSoar tow | |
| 3 | In situ productivity incubations | |
| 29 | Water bottle hydrocast |
Uptake of other nutrients in the water column
Nitrite concentration parameters in the water column Regenerated production in water bodies Carotenoid and flavenoid pigment concentrations in water bodies Phytoplankton taxonomic abundance in water bodies Phosphate concentration parameters in the water column Silicate concentration parameters in the water column Microzooplankton grazing Ammonium and ammonia concentration parameters in water bodies Microzooplankton non taxonomy-related biomass expressed as carbon per unit volume of the water column Phaeopigment concentrations in the water column Nitrate concentration parameters in the water column Metadata parameters Microzooplankton generic abundance in water bodies Chlorophyll pigment concentrations in water bodies Primary production in the water column New production in water bodies Particulate total and organic carbon concentrations in the water column Concentration of silicon species in the water column |
| 8 | 1 metre sq. Indian Ocean standard net | |
| 19 | Marine snow catcher | |
| 38 | Sample taken from ship's non-toxic supply |
Salinity of the water column
Phaeopigment concentrations in the water column Chlorophyll pigment concentrations in water bodies |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
