BODC Cruise Metadata Report for FRV Scotia (749S) cruise 1694S
Introduction
This report collates information from the BODC cruise inventory and oceanographic databases. It presents
- Cruise Inventory Information
- A summary of BODC data holdings for the cruise from the

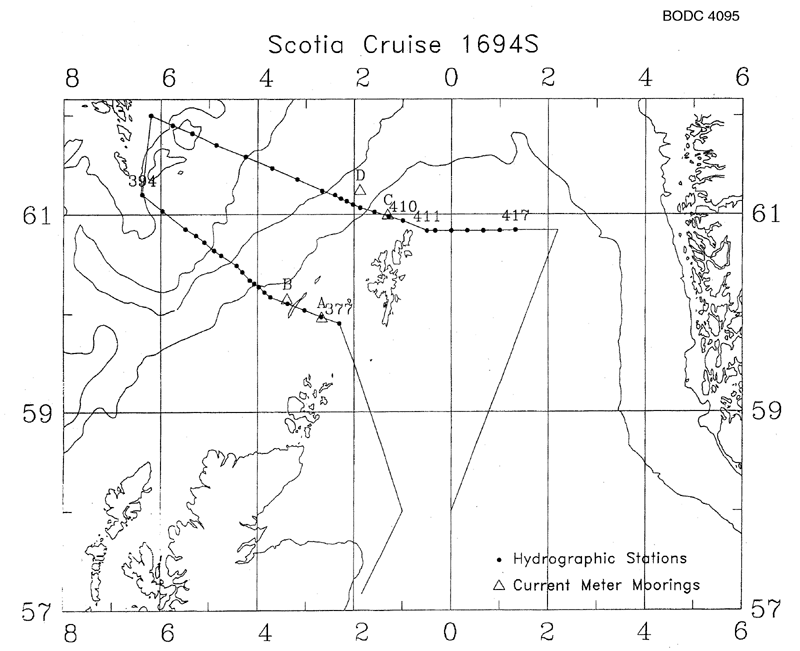

- References - including cruise tracks and cruise reports
Cruise Inventory Information
| Long name | FRV Scotia (749S) cruise 1694S |
|---|---|
| Short name | 1694S |
| Objectives and Narrative |
1. To deploy 4 current meters to the north and west of Shetland.
2. To perform hydrographic surveys along the Fair Isle-Munken and Nolso-Flugga standard sections. 3. To perform hydrographic surveys along the shelf edge to the north and west of Shetland. 4. To suvey the standard JONSIS, East Shetland (ES), and northern North Sea (EC) sections. 5. To collect the Fair-Isle radio-caesium sample for analysis by MAFF, Lowestoft. |
| Ship | FRV Scotia |
| Departure Port | Aberdeen, United Kingdom |
| Departure Date | 1994-11-05 |
| Arrival Port | Aberdeen, United Kingdom |
| Arrival Date | 1994-11-14 |
| Principal Scientist(s) | Bill Turrell (Scottish Office Agriculture Environment and Fisheries Department Aberdeen Marine Laboratory) |
| Responsible Organisation | Scottish Office Agriculture Environment and Fisheries Department Aberdeen Marine Laboratory |
| Associated Project(s) | |
| IHB Sea Areas Visited | North Sea, North East Atlantic Ocean (limit 40W) |
| Marsden Squares Visited | 181;3/217;1/217;2/252;1 |
| Work Area Description | North and west of the Shetland Islands |
| Unable to lookup cruise bounds at this time | |
| Work Area Bounding Polygon | |
| Southern Limit | unknown |
| Northern Limit | unknown |
| Western Limit | unknown |
| Eastern Limit | unknown |
Cruise Inventory Datasets
| Physical oceanography | |
|---|---|
| CTD stations |
Quantity:
number of stations =
37
Description: CTD and 1 water bottle for calibration |
| Current meters |
Quantity:
number of stations =
4
Description: 10 ACM deployed |
| Current profiler (eg ADCP) |
Quantity:
track kilometres =
1389
Description: |
| Surface measurements underway (T,S) |
Quantity:
track kilometres =
1389
Description: |
| Water bottle stations |
Quantity:
number of stations =
4
Description: |
| Chemical oceanography | |
| Radioactivity |
Quantity:
number of samples =
1
Description: Caesium sample |
Cruise Inventory Mooring/Buoy Operations
| Latitude | Longitude | Data type | Description |
|---|---|---|---|
| 61° 0' N | 1° 19' W | Current meters | Deployed 2 ACM, 7 Nov 1994 |
| 59° 58' N | 2° 40' W | Current meters | Deployed 2 ACM, 8 Nov 1994 |
| 61° 15' N | 1° 52' W | Current meters | Deployed 3 ACM, 7 Nov 1994 |
| 60° 9' N | 3° 22' W | Current meters | Deployed 3 ACM, 8 Nov 1994 |
Summary of BODC Data Holdings for the Cruise
National Oceanographic Database
Summary
| # Series | Instrument Description | Parameters |
|---|---|---|
| 37 | CTD/STD cast |
Density of the water column Electrical conductivity of the water column Salinity of the water column Temperature of the water column Vertical spatial coordinates |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
Full List
| BODC Reference | Instrument Description | Date/Time | Location | |
|---|---|---|---|---|
| 422294 | CTD/STD cast | 1994-11-08 17:29Z | 59° 54' N, 2° 18' W | Click for more |
| 422301 | CTD/STD cast | 1994-11-08 18:50Z | 59° 58' N, 2° 40' W | Click for more |
| 422313 | CTD/STD cast | 1994-11-08 20:07Z | 60° 2' N, 3° 1' W | Click for more |
| 422325 | CTD/STD cast | 1994-11-08 21:24Z | 60° 6' N, 3° 22' W | Click for more |
| 422337 | CTD/STD cast | 1994-11-08 22:48Z | 60° 10' N, 3° 44' W | Click for more |
| 422349 | CTD/STD cast | 1994-11-08 23:36Z | 60° 13' N, 3° 51' W | Click for more |
| 422350 | CTD/STD cast | 1994-11-09 00:31Z | 60° 16' N, 3° 58' W | Click for more |
| 422362 | CTD/STD cast | 1994-11-09 01:20Z | 60° 18' N, 4° 4' W | Click for more |
| 422374 | CTD/STD cast | 1994-11-09 02:18Z | 60° 20' N, 4° 9' W | Click for more |
| 422386 | CTD/STD cast | 1994-11-09 03:29Z | 60° 25' N, 4° 18' W | Click for more |
| 422398 | CTD/STD cast | 1994-11-09 05:07Z | 60° 28' N, 4° 25' W | Click for more |
| 422405 | CTD/STD cast | 1994-11-09 07:20Z | 60° 34' N, 4° 45' W | Click for more |
| 422417 | CTD/STD cast | 1994-11-09 09:07Z | 60° 37' N, 4° 54' W | Click for more |
| 422429 | CTD/STD cast | 1994-11-09 10:57Z | 60° 43' N, 5° 6' W | Click for more |
| 422430 | CTD/STD cast | 1994-11-09 12:36Z | 60° 46' N, 5° 16' W | Click for more |
| 422442 | CTD/STD cast | 1994-11-09 14:31Z | 60° 51' N, 5° 28' W | Click for more |
| 422454 | CTD/STD cast | 1994-11-09 16:39Z | 61° 1' N, 5° 57' W | Click for more |
| 422466 | CTD/STD cast | 1994-11-09 18:41Z | 61° 12' N, 6° 22' W | Click for more |
| 422478 | CTD/STD cast | 1994-11-10 01:03Z | 62° 0' N, 6° 12' W | Click for more |
| 422491 | CTD/STD cast | 1994-11-10 03:01Z | 61° 54' N, 5° 45' W | Click for more |
| 422509 | CTD/STD cast | 1994-11-10 04:58Z | 61° 49' N, 5° 21' W | Click for more |
| 422510 | CTD/STD cast | 1994-11-10 07:14Z | 61° 42' N, 4° 51' W | Click for more |
| 422522 | CTD/STD cast | 1994-11-10 14:33Z | 61° 34' N, 4° 15' W | Click for more |
| 422534 | CTD/STD cast | 1994-11-10 19:06Z | 61° 28' N, 3° 42' W | Click for more |
| 422546 | CTD/STD cast | 1994-11-11 07:51Z | 61° 7' N, 2° 9' W | Click for more |
| 422558 | CTD/STD cast | 1994-11-11 09:00Z | 61° 6' N, 2° 1' W | Click for more |
| 422571 | CTD/STD cast | 1994-11-11 10:09Z | 61° 4' N, 1° 52' W | Click for more |
| 422583 | CTD/STD cast | 1994-11-11 11:30Z | 61° 1' N, 1° 34' W | Click for more |
| 422595 | CTD/STD cast | 1994-11-11 12:43Z | 60° 58' N, 1° 17' W | Click for more |
| 422602 | CTD/STD cast | 1994-11-11 13:58Z | 60° 55' N, 0° 59' W | Click for more |
| 422614 | CTD/STD cast | 1994-11-11 15:42Z | 60° 49' N, 0° 30' W | Click for more |
| 422626 | CTD/STD cast | 1994-11-11 16:37Z | 60° 49' N, 0° 19' W | Click for more |
| 422638 | CTD/STD cast | 1994-11-11 17:54Z | 60° 49' N, 0° 0' E | Click for more |
| 422651 | CTD/STD cast | 1994-11-11 19:17Z | 60° 49' N, 0° 19' E | Click for more |
| 422663 | CTD/STD cast | 1994-11-11 20:40Z | 60° 49' N, 0° 40' E | Click for more |
| 422675 | CTD/STD cast | 1994-11-11 22:09Z | 60° 49' N, 1° 0' E | Click for more |
| 422687 | CTD/STD cast | 1994-11-11 23:54Z | 60° 50' N, 1° 19' E | Click for more |
Project Database
No data currently held for this cruise in the BODC Project Database
