BODC Cruise Metadata Report for RRS Challenger (74CH) cruise CH123A
Introduction
This report collates information from the BODC cruise inventory and oceanographic databases. It presents
- Cruise Inventory Information
- A summary of BODC data holdings for the cruise from the

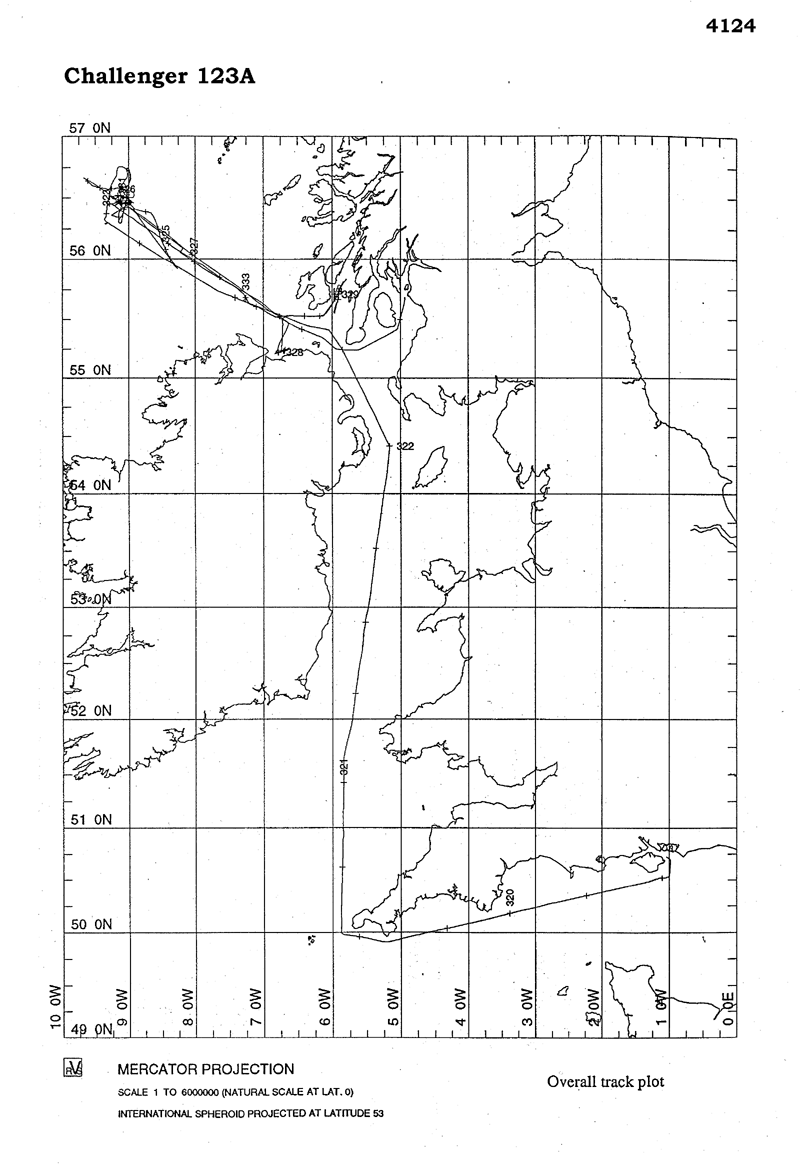

- References - including cruise tracks and cruise reports
Cruise Inventory Information
| Long name | RRS Challenger (74CH) cruise CH123A |
|---|---|
| Short name | CH123A |
| Objectives and Narrative |
1. To identify the time and space scales of ocean-shelf momentum transmission and to quantify the contributions to ocean-shelf water exchange by physical processes.
2. To estimate fluxes in water, heat and certain dissolved and suspended constituents across a section of the shelf edge with special emphasis on net organic carbon export from, and nutrient import to, the shelf. 3. To relate sediment properties and fluxes to the physical context. 4. To quantify organic carbon cycling in shelf-edge sediments. 5. To incorporate process understanding into models which will be tested by comparison with observations and provide a basis for estimation of fluxes integrated over time and the length of the shelf edge. |
| Ship | RRS Challenger |
| Departure Port | Southampton, United Kingdom |
| Departure Date | 1995-11-15 |
| Arrival Port | Ardrossan, United Kingdom |
| Arrival Date | 1995-11-29 |
| Principal Scientist(s) | John Huthnance (Proudman Oceanographic Laboratory) |
| Responsible Organisation | Proudman Oceanographic Laboratory |
| Associated Project(s) | LOIS - SES |
| IHB Sea Areas Visited | Inner Seas off the West Coast of Scotland, North East Atlantic Ocean (limit 40W) |
| Marsden Squares Visited | 181;4 |
| Work Area Description | Inner Seas/NE Atlantic, SES area 5627-5643N;00856W-00939W |
| Unable to lookup cruise bounds at this time | |
| Work Area Bounding Polygon | |
| Southern Limit | unknown |
| Northern Limit | unknown |
| Western Limit | unknown |
| Eastern Limit | unknown |
Cruise Inventory Datasets
| Physical oceanography | |
|---|---|
| CTD stations |
Quantity:
number of stations =
21
Description: CTD with transmissometer and fluorometer |
| Current meters |
Quantity:
number of stations =
2
Description: 6 cms: 3 depl. & 3 rec. & redepl. |
| Current profiler (eg ADCP) |
Quantity:
activity duration in days =
14
Description: Shipborne ADCP |
| Subsurface temperature and salinity measurements |
Quantity:
number of deployments =
4
Description: SeaSoar deployments along 1000m,500m,170m depth contours |
| Surface measurements underway (T,S) |
Quantity:
activity duration in days =
14
Description: Surface underway measurements with thermosalinograph, fluorometer and transmissometer |
| Transparency (eg transmissometer) |
Quantity:
number of stations =
21
Description: CTD with transmissometer and fluorometer |
| Transparency (eg transmissometer) |
Quantity:
activity duration in days =
14
Description: Surface underway measurements with thermosalinograph, fluorometer and transmissometer |
| Water bottle stations |
Quantity:
number of stations =
21
Description: CTD rosette water bottle calibration samples, at least 2 per cast |
| Chemical oceanography | |
| Other dissolved gases |
Quantity:
number of samples =
300
Description: surface samples for CO determination |
| Oxygen |
Quantity:
number of deployments =
4
Description: SeaSoar deployments along 1000m,500m,170m depth contours |
| Biology and fisheries | |
| Particulate organic matter (inc POC, PON) |
Quantity:
number of samples =
41
Description: POC/PON determ. from bottles on 5 CTD casts to maximum depth of 994m |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
activity duration in days =
14
Description: Surface underway measurements with thermosalinograph, fluorometer and transmissometer |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of samples =
36
Description: sub-surface samples for chlorophyll determination |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of samples =
17
Description: surface samples for chlorophyll determination |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of deployments =
4
Description: SeaSoar deployments along 1000m,500m,170m depth contours |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of stations =
21
Description: CTD with transmissometer and fluorometer |
Cruise Inventory Mooring/Buoy Operations
| Latitude | Longitude | Data type | Description |
|---|---|---|---|
| 56° 27' N | 8° 58' W | Current meters | Site S140, 3 CMs and 1 transmissometer recovered and redeployed |
| 56° 28' N | 9° 4' W | Current meters | Site S300, 3 CMs and transmissometer deployed |
| 56° 28' N | 8° 58' W | Current profiler (eg ADCP) | Site S140, pop-up ADCP/bottom pressure recorder recovered and redeployed. |
| 56° 27' N | 9° 4' W | Current profiler (eg ADCP) | Site S400, pop-up ADCP recovered |
| 56° 27' N | 9° 7' W | Current profiler (eg ADCP) | Site S600, experimental ADCP deployed, but adrift by 27 Nov 1995 |
| 56° 27' N | 8° 58' W | Phytoplankton pigs (eg chlorophyll, fluorescence) | Site S140, transmissometer and fulorometer recovered and redeployed |
| 56° 28' N | 8° 58' W | Sea level (inc. bot. press., inverted echosounder) | Site S140, pop-up ADCP/bottom pressure recorder recovered and redeployed. |
| 56° 27' N | 8° 58' W | Subsurface temperature measurements | Site S140, thermistor chain recovered. |
| 56° 27' N | 8° 58' W | Transparency (eg transmissometer) | Site S140, transmissometer and fulorometer recovered and redeployed |
| 56° 28' N | 9° 4' W | Transparency (eg transmissometer) | Site S300, 3 CMs and transmissometer deployed |
Summary of BODC Data Holdings for the Cruise
National Oceanographic Database
Summary
| # Series | Instrument Description | Parameters |
|---|---|---|
| 1 | Acoustic doppler current profiler |
Date and time Horizontal velocity of the water column (currents) Metadata parameters Vertical spatial coordinates Vertical velocity of the water column (currents) |
| 18 | Bottle station |
Chlorophyll pigment concentrations in water bodies Phaeopigment concentrations in the water column Quality control flags Reference numbers Vertical spatial coordinates |
| 1 | Bottom pressure sensor tide gauge |
Date and time Sea level Temperature of the water column |
| 3 | CTD in towed or autonomous underwater vehicle |
Chlorophyll pigment concentrations in water bodies Date and time Horizontal spatial co-ordinates Reference numbers Salinity of the water column Temperature of the water column Vertical spatial coordinates |
| 4 | CTD/STD cast |
Chlorophyll pigment concentrations in water bodies Density of the water column Salinity of the water column Temperature of the water column Vertical spatial coordinates Visible waveband radiance and irradiance measurements in the water column |
| 17 | CTD/STD cast |
Chlorophyll pigment concentrations in water bodies Density of the water column Salinity of the water column Temperature of the water column Transmittance and attenuance of the water column Vertical spatial coordinates Visible waveband radiance and irradiance measurements in the water column |
| 1 | Fluorometers |
Chlorophyll pigment concentrations in water bodies Date and time Raw fluorometer output |
| 1 | Paddle wheel current meter |
Date and time Electrical conductivity of the water column Horizontal velocity of the water column (currents) Moored instrument depth Salinity of the water column Temperature of the water column Transmittance and attenuance of the water column |
| 2 | Paddle wheel current meter |
Date and time Electrical conductivity of the water column Horizontal velocity of the water column (currents) Moored instrument depth Salinity of the water column Temperature of the water column |
| 1 | Pumped water sample |
Chlorophyll pigment concentrations in water bodies Date and time Horizontal spatial co-ordinates Phaeopigment concentrations in the water column |
| 1 | Transmissometer |
Date and time Electrical conductivity of the water column Salinity of the water column Temperature of the water column Transmittance and attenuance of the water column |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
Full List
| BODC Reference | Instrument Description | Date/Time | Location | |
|---|---|---|---|---|
| 436148 | Paddle wheel current meter | 1995-11-19 17:15Z to 1996-01-22 13:15Z | 56° 27' N, 8° 58' W | Click for more |
| 438905 | Paddle wheel current meter | 1995-11-27 07:45Z to 1995-12-01 12:45Z | 56° 27' N, 9° 3' W | Click for more |
| 439367 | Paddle wheel current meter | 1995-11-19 17:15Z to 1996-01-22 13:15Z | 56° 27' N, 8° 57' W | Click for more |
| 442664 | Bottom pressure sensor tide gauge | 1995-11-19 17:30Z to 1996-02-01 10:15Z | 56° 27' N, 8° 58' W | Click for more |
| 444241 | Acoustic doppler current profiler | 1995-11-19 17:34Z to 1996-02-01 09:54Z | 56° 27' N, 8° 58' W | Click for more |
| 476231 | Fluorometers | 1995-11-27 20:01Z to 1995-12-06 11:02Z | 56° 27' N, 8° 58' W | Click for more |
| 496152 | Transmissometer | 1995-11-27 15:54Z to 1995-12-06 09:56Z | 56° 27' N, 8° 58' W | Click for more |
| 507587 | CTD in towed or autonomous underwater vehicle | 1995-11-18 23:11Z to 1995-11-19 05:59Z | 56° 18' N to 56° 45' N; 9° 22' W to 9° 1' W | Click for more |
| 507599 | CTD in towed or autonomous underwater vehicle | 1995-11-19 19:20Z to 1995-11-20 06:29Z | 56° 17' N to 56° 45' N; 9° 9' W to 8° 58' W | Click for more |
| 507606 | CTD in towed or autonomous underwater vehicle | 1995-11-21 19:34Z to 1995-11-21 23:36Z | 56° 29' N to 56° 34' N; 9° 15' W to 8° 55' W | Click for more |
| 854682 | CTD/STD cast | 1995-11-18 22:12Z | 56° 17' N, 9° 21' W | Click for more |
| 854694 | CTD/STD cast | 1995-11-19 10:36Z | 56° 28' N, 8° 58' W | Click for more |
| 854701 | CTD/STD cast | 1995-11-19 14:43Z | 56° 30' N, 9° 0' W | Click for more |
| 854713 | CTD/STD cast | 1995-11-19 17:41Z | 56° 27' N, 9° 0' W | Click for more |
| 854725 | CTD/STD cast | 1995-11-20 07:29Z | 56° 26' N, 8° 58' W | Click for more |
| 854737 | CTD/STD cast | 1995-11-21 09:44Z | 56° 26' N, 8° 58' W | Click for more |
| 854749 | CTD/STD cast | 1995-11-21 11:07Z | 56° 27' N, 9° 1' W | Click for more |
| 854750 | CTD/STD cast | 1995-11-21 11:46Z | 56° 27' N, 9° 2' W | Click for more |
| 854762 | CTD/STD cast | 1995-11-21 12:32Z | 56° 27' N, 9° 3' W | Click for more |
| 854774 | CTD/STD cast | 1995-11-21 16:08Z | 56° 27' N, 8° 57' W | Click for more |
| 854786 | CTD/STD cast | 1995-11-25 11:23Z | 55° 42' N, 5° 51' W | Click for more |
| 854798 | CTD/STD cast | 1995-11-25 12:28Z | 55° 45' N, 5° 51' W | Click for more |
| 854805 | CTD/STD cast | 1995-11-25 16:30Z | 55° 33' N, 5° 58' W | Click for more |
| 854817 | CTD/STD cast | 1995-11-25 22:25Z | 55° 49' N, 5° 48' W | Click for more |
| 854829 | CTD/STD cast | 1995-11-26 22:02Z | 56° 25' N, 8° 58' W | Click for more |
| 854830 | CTD/STD cast | 1995-11-27 01:51Z | 56° 31' N, 9° 18' W | Click for more |
| 854842 | CTD/STD cast | 1995-11-27 12:58Z | 56° 27' N, 9° 5' W | Click for more |
| 854854 | CTD/STD cast | 1995-11-27 15:07Z | 56° 26' N, 9° 0' W | Click for more |
| 854866 | CTD/STD cast | 1995-11-27 21:38Z | 56° 27' N, 8° 57' W | Click for more |
| 854878 | CTD/STD cast | 1995-11-27 23:06Z | 56° 28' N, 9° 9' W | Click for more |
| 854891 | CTD/STD cast | 1995-11-28 00:55Z | 56° 28' N, 9° 8' W | Click for more |
| 1655042 | Pumped water sample | 1995-11-18 22:44Z to 1995-11-27 21:55Z | 56° 14' N to 56° 39' N; 9° 21' W to 8° 42' W | Click for more |
| 1664900 | Bottle station | 1995-11-18 22:29Z | 56° 17' N, 9° 21' W | Click for more |
| 1664912 | Bottle station | 1995-11-21 16:15Z | 56° 27' N, 8° 57' W | Click for more |
| 1664924 | Bottle station | 1995-11-25 11:30Z | 55° 42' N, 5° 51' W | Click for more |
| 1664936 | Bottle station | 1995-11-25 12:33Z | 55° 45' N, 5° 51' W | Click for more |
| 1664948 | Bottle station | 1995-11-25 16:37Z | 55° 33' N, 5° 58' W | Click for more |
| 1664961 | Bottle station | 1995-11-25 22:34Z | 55° 49' N, 5° 48' W | Click for more |
| 1664973 | Bottle station | 1995-11-26 22:12Z | 56° 25' N, 8° 58' W | Click for more |
| 1664985 | Bottle station | 1995-11-27 02:21Z | 56° 31' N, 9° 18' W | Click for more |
| 1664997 | Bottle station | 1995-11-27 13:14Z | 56° 27' N, 9° 5' W | Click for more |
| 1665000 | Bottle station | 1995-11-27 21:42Z | 56° 27' N, 8° 57' W | Click for more |
| 1665012 | Bottle station | 1995-11-19 10:46Z | 56° 28' N, 8° 58' W | Click for more |
| 1665024 | Bottle station | 1995-11-19 14:50Z | 56° 30' N, 9° 0' W | Click for more |
| 1665036 | Bottle station | 1995-11-19 17:51Z | 56° 27' N, 9° 0' W | Click for more |
| 1665048 | Bottle station | 1995-11-20 07:35Z | 56° 26' N, 8° 58' W | Click for more |
| 1665061 | Bottle station | 1995-11-21 09:52Z | 56° 26' N, 8° 58' W | Click for more |
| 1665073 | Bottle station | 1995-11-21 11:15Z | 56° 27' N, 9° 1' W | Click for more |
| 1665085 | Bottle station | 1995-11-21 11:56Z | 56° 27' N, 9° 2' W | Click for more |
| 1665097 | Bottle station | 1995-11-21 12:49Z | 56° 27' N, 9° 3' W | Click for more |
Project Database
| # Events | Gear Type | Parameters Held |
|---|---|---|
| 394 | SeaSoar profile from gridded data |
Temperature of the water column
Salinity of the water column Density of the water column Chlorophyll pigment concentrations in water bodies |
| 3 | SeaSoar tow | |
| 47 | Sample taken from ship's non-toxic supply |
Salinity of the water column
Phaeopigment concentrations in the water column Chlorophyll pigment concentrations in water bodies |
| 1955 | Shipborne Acoustic Doppler Current Profile | |
| 21 | CTD frame plus rosette sampler |
Transmittance and attenuance of the water column
Particulate total and organic nitrogen concentrations in the water column Salinity of the water column Temperature of the water column Visible waveband radiance and irradiance measurements in the water column Density of the water column Phaeopigment concentrations in the water column Chlorophyll pigment concentrations in water bodies Particulate total and organic carbon concentrations in the water column |
| 5 | Instrument mooring |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
