BODC Cruise Metadata Report for RRS Challenger (74CH) cruise CH127
Introduction
This report collates information from the BODC cruise inventory and oceanographic databases. It presents
- Cruise Inventory Information
- A summary of BODC data holdings for the cruise from the

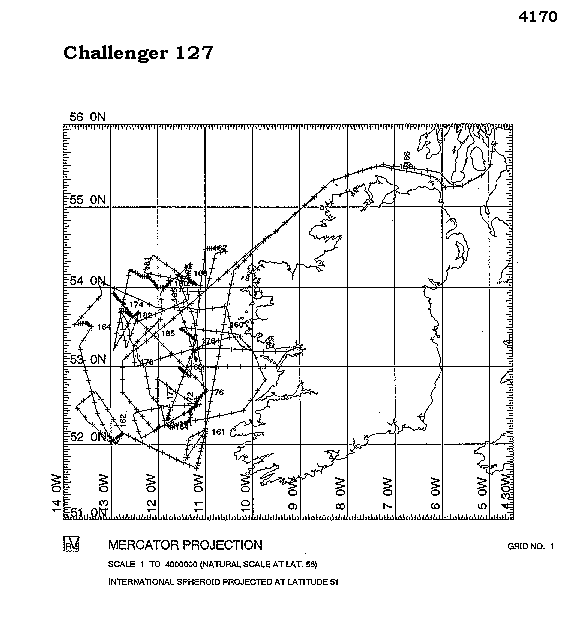

- References - including cruise tracks and cruise reports
Cruise Inventory Information
Long name | RRS Challenger (74CH) cruise CH127 |
---|---|
Short name | CH127 |
Objectives and Narrative | Study of Continental Air Mass. Part of the eastern Atlantic experiment within the NERC funded ASCOE project. Aims are to investigate the oxidation of sulphur and nitrogen species over the North Atlantic. Land (Mace Head, Eire), ship (Challenger) and aircraft (C-130 Hercules and Jetstream) platforms have been used to make measurements. These include surface water dimethyl sulphide (DMS), aerosol phase nitrogen, sulpur, metal and anionic species, gas phase nitrogen and sulphur species and rain water. The cycles of sulphur, nitrogen and metal species are thought to be linked and important in climate control: this project aims to investigate this further. |
Ship | RRS Challenger |
Departure Port | Fairlie, United Kingdom |
Departure Date | 1996-06-06 |
Arrival Port | Fairlie, United Kingdom |
Arrival Date | 1996-07-05 |
Principal Scientist(s) | Lucinda Spokes (University of East Anglia School of Environmental Sciences) |
Responsible Organisation | University of East Anglia School of Environmental Sciences |
Associated Project(s) | Atmospheric Studies in the Oceanic Environment (ASCOE) |
IHB Sea Areas Visited | North East Atlantic Ocean (limit 40W) |
Marsden Squares Visited | 181;2/181;4/182;1 |
Work Area Description | West of Ireland from coast to the shelf break |
Unable to lookup cruise bounds at this time | |
Work Area Bounding Polygon | |
Southern Limit | unknown |
Northern Limit | unknown |
Western Limit | unknown |
Eastern Limit | unknown |
Cruise Inventory Datasets
Physical oceanography | |
---|---|
CTD stations |
Quantity:
number of profiles =
24
Description: |
Current profiler (eg ADCP) |
Quantity:
track kilometres =
3262
Description: shipborne ADCP (to 500m) |
Surface measurements underway (T,S) |
Quantity:
track kilometres =
3262
Description: |
Chemical oceanography | |
Other chemical oceanographic measurements |
Quantity:
number of experiments =
15
Description: photochemical production of CS2 |
Other dissolved gases |
Quantity:
number of profiles =
21
Description: dissolved methyl halides and carbon disulphide and chlorophyll |
Biology and fisheries | |
Birds |
Quantity:
activity duration in days =
24
Description: |
Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of samples =
403
Description: |
Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of profiles =
21
Description: dissolved methyl halides and carbon disulphide and chlorophyll |
Meteorology | |
Atmospheric chemistry |
Quantity:
number of samples =
12
Description: aerosol (hivol) samples for metals |
Atmospheric chemistry |
Quantity:
number of samples =
101
Description: filter packs for particulate MSA, SO4, NO3, Cl and gaseous SO2, and NH3 |
Atmospheric chemistry |
Quantity:
activity duration in days =
24
Description: continuous gaseous No, NO2 and O3 |
Atmospheric chemistry |
Quantity:
number of samples =
11
Description: tetra alkyl lead and ionic alkyl lead |
Atmospheric chemistry |
Quantity:
number of samples =
63
Description: |
Atmospheric chemistry |
Quantity:
number of samples =
19
Description: rainwater samples for trace metals and major ions |
Atmospheric chemistry |
Quantity:
number of samples =
63
Description: HiVol filter samples (2 samplers) for sulphur and nitrogrn isotopes |
Atmospheric chemistry |
Quantity:
number of samples =
13
Description: Air bottle samples for hydrocarbon analysis |
Incident radiation |
Quantity:
track kilometres =
3262
Description: |
Geology and geophysics | |
Single-beam echosounding |
Quantity:
track kilometres =
3262
Description: bathymetry |
Cruise Inventory Mooring/Buoy Operations
No information on datasets is currently available
Summary of BODC Data Holdings for the Cruise
National Oceanographic Database
Summary
# Series | Instrument Description | Parameters |
---|---|---|
22 | CTD/STD cast |
Chlorophyll pigment concentrations in water bodies Density of the water column Salinity of the water column Temperature of the water column Transmittance and attenuance of the water column Vertical spatial coordinates |
2 | CTD/STD cast |
Density of the water column Salinity of the water column Temperature of the water column Transmittance and attenuance of the water column Vertical spatial coordinates |
1 | Multiple instrument types |
Air pressure Air temperature Atmospheric humidity Bathymetry and Elevation Chlorophyll pigment concentrations in water bodies Date and time Horizontal platform movement Horizontal spatial co-ordinates Platform or instrument orientation Raw fluorometer output Salinity of the water column Solar Radiation Temperature of the water column Transmittance and attenuance of the water column Visible waveband radiance and irradiance measurements in the atmosphere Wind strength and direction |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
Full List
BODC Reference | Instrument Description | Date/Time | Location | |
---|---|---|---|---|
610086 | Multiple instrument types | 1996-06-06 15:30Z to 1996-07-04 08:40Z | 51° 40' N to 55° 35' N; 13° 46' W to 4° 57' W | Click for more |
1049202 | CTD/STD cast | 1996-06-07 07:22Z | 55° 8' N, 8° 38' W | Click for more |
1049214 | CTD/STD cast | 1996-06-09 10:14Z | 51° 45' N, 11° 9' W | Click for more |
1049226 | CTD/STD cast | 1996-06-10 08:33Z | 52° 3' N, 12° 59' W | Click for more |
1049238 | CTD/STD cast | 1996-06-11 08:34Z | 52° 1' N, 12° 55' W | Click for more |
1049251 | CTD/STD cast | 1996-06-14 08:18Z | 52° 56' N, 11° 27' W | Click for more |
1049263 | CTD/STD cast | 1996-06-15 08:17Z | 54° 30' N, 10° 43' W | Click for more |
1049275 | CTD/STD cast | 1996-06-15 09:33Z | 54° 30' N, 10° 42' W | Click for more |
1049287 | CTD/STD cast | 1996-06-15 13:03Z | 54° 27' N, 10° 34' W | Click for more |
1049299 | CTD/STD cast | 1996-06-16 08:31Z | 54° 4' N, 11° 17' W | Click for more |
1049306 | CTD/STD cast | 1996-06-17 08:19Z | 54° 12' N, 11° 20' W | Click for more |
1049318 | CTD/STD cast | 1996-06-18 08:32Z | 53° 19' N, 10° 46' W | Click for more |
1049331 | CTD/STD cast | 1996-06-19 08:02Z | 52° 15' N, 11° 32' W | Click for more |
1049343 | CTD/STD cast | 1996-06-20 08:06Z | 52° 28' N, 11° 15' W | Click for more |
1049355 | CTD/STD cast | 1996-06-21 08:06Z | 52° 39' N, 11° 1' W | Click for more |
1049367 | CTD/STD cast | 1996-06-22 08:06Z | 53° 52' N, 12° 52' W | Click for more |
1049379 | CTD/STD cast | 1996-06-23 08:09Z | 54° 8' N, 11° 31' W | Click for more |
1049380 | CTD/STD cast | 1996-06-24 08:17Z | 52° 33' N, 11° 11' W | Click for more |
1049392 | CTD/STD cast | 1996-06-24 11:40Z | 52° 30' N, 11° 10' W | Click for more |
1049411 | CTD/STD cast | 1996-06-25 08:19Z | 52° 21' N, 11° 47' W | Click for more |
1049423 | CTD/STD cast | 1996-06-26 08:18Z | 53° 24' N, 11° 19' W | Click for more |
1049435 | CTD/STD cast | 1996-06-27 11:47Z | 53° 4' N, 11° 12' W | Click for more |
1049447 | CTD/STD cast | 1996-06-29 08:59Z | 54° 12' N, 12° 31' W | Click for more |
1049459 | CTD/STD cast | 1996-06-30 10:31Z | 53° 42' N, 12° 46' W | Click for more |
1049460 | CTD/STD cast | 1996-07-02 08:16Z | 52° 13' N, 11° 58' W | Click for more |
Project Database
# Events | Gear Type | Parameters Held |
---|---|---|
24 | Water bottle hydrocast | |
24 | CTD frame plus rosette sampler |
Transmittance and attenuance of the water column
Temperature of the water column Salinity of the water column Density of the water column Chlorophyll pigment concentrations in water bodies |
13 | Pressurised air bottle sample | |
158 | Bulk filtered air sample | |
19 | Rain water collector | |
19 | Surface water sample collected by a bucket on a rope | |
514 | Sample taken from ship's non-toxic supply |
Organosulphur and organoselenium species concentration parameters in water bodies
Gas fluxes between the water column and the atmosphere Salinity of the water column Phaeopigment concentrations in the water column Chlorophyll pigment concentrations in water bodies |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
