BODC Cruise Metadata Report for FRV Scotia (749S) cruise 1397S_2
Introduction
This report collates information from the BODC cruise inventory and oceanographic databases. It presents
- Cruise Inventory Information
- A summary of BODC data holdings for the cruise from the

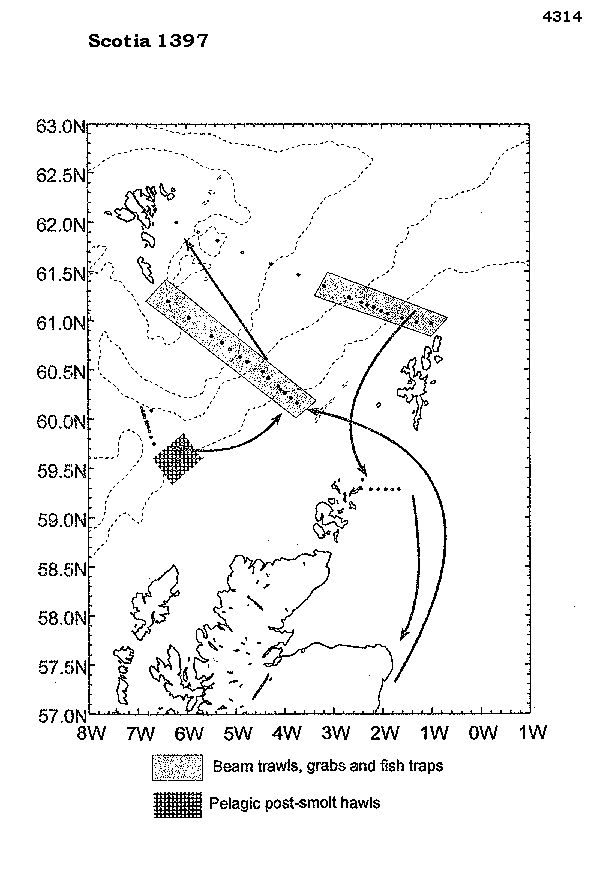

- References - including cruise tracks and cruise reports
Cruise Inventory Information
| Long name | FRV Scotia (749S) cruise 1397S_2 |
|---|---|
| Short name | 1397S_2 |
| Objectives and Narrative |
1. To perform hydrographic surveys along the standard Faroe-Shetland Channel sections using a CTD with rosette water sampler. A vessel mounted ADCP and thermosalinograph will also be run continuously.
2. To perform detailed experiments concerning the sampling, storage and analysis of nutrient samples. 3. To deploy a NORDIC WOCE ADCP mooring (NWSE) at the shelf edge west of Shetland. 4. To recover, service and redeploy a NORDIC WOCE ADCP mooring (NWSD) in the centre of the Faroe-Shetland Channel. 5. To perform experimental deep water trawls northwest of Shetland along the Munken-Fair Isle line. 6. To recover and store samples of deep water coral. 7. To deploy and recover temporary fish trap moorings for a duration of approximately 24 hours at various sites along the Munken - Fair Isle line. 8. To perform repeat ADCP sections in conjunction with satellite altimeter over-flights (if external funding for hire of DGPS approved). 9. To perform experimental trawls in order to assess surface fish population in the autumn at a location known to have high concentrations of salmon post-smolts during the summer. 10. To perform hydrographic surveys along the JONSIS standard section, if time permits. 11. To collect the Fair Isle caesium sample, and samples of sea water for laboratory use. 12. To conduct seabird observations (JNCC). |
| Ship | FRV Scotia |
| Departure Port | Aberdeen, United Kingdom |
| Departure Date | 1997-10-22 |
| Arrival Port | Aberdeen, United Kingdom |
| Arrival Date | 1997-11-06 |
| Principal Scientist(s) | Bill Turrell (Fisheries Research Services Aberdeen Marine Laboratory) |
| Responsible Organisation | Fisheries Research Services Aberdeen Marine Laboratory |
| Associated Project(s) | |
| IHB Sea Areas Visited | North Sea, North East Atlantic Ocean (limit 40W) |
| Marsden Squares Visited | 181;3/181;4/217;1/217;2 |
| Work Area Description | NE Atlantic, NW North Sea, Faroe-Shetland Channel |
| Unable to lookup cruise bounds at this time | |
| Work Area Bounding Polygon | |
| Southern Limit | unknown |
| Northern Limit | unknown |
| Western Limit | unknown |
| Eastern Limit | unknown |
Cruise Inventory Datasets
| Physical oceanography | |
|---|---|
| CTD stations |
Quantity:
number of stations =
49
Description: |
| Current profiler (eg ADCP) |
Quantity:
number of deployments =
3
Description: ADCP & ACM rec./depl. |
| Surface measurements underway (T,S) |
Quantity:
activity duration in days =
15
Description: +B02 Fluorescence |
| Water bottle stations |
Quantity:
number of stations =
86
Description: incl. 6: Jonis line chemistry, 29: Fraoe/Shetland chemistry & 2: nutrient comparisons |
| Chemical oceanography | |
| Nitrate |
Quantity:
number of stations =
6
Description: Jonsis line chemistry |
| Phosphate |
Quantity:
number of stations =
6
Description: Jonsis line chemistry |
| Silicate |
Quantity:
number of stations =
37
Description: 6: Jonsis line chemistry, 29:Faroe /Shetland chemistry & 2:Nutrient Comparisons |
| Biology and fisheries | |
| Demersal fish |
Quantity:
number of hauls =
30
Description: Beam Trawls |
| Demersal fish |
Quantity:
number of hauls =
4
Description: Fish traps for deepwater fish |
| Pelagic fish |
Quantity:
number of hauls =
2
Description: Hauls for post smolts |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of stations =
6
Description: Jonsis line chemistry |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
activity duration in days =
15
Description: +B02 Fluorescence |
| Geology and geophysics | |
| Grab |
Quantity:
number of deployments =
18
Description: |
Cruise Inventory Mooring/Buoy Operations
| Latitude | Longitude | Data type | Description |
|---|---|---|---|
| 60° 16' N | 4° 21' W | Current profiler (eg ADCP) | RDI SC ADCP (150kHz) deployed 28.10.97 |
| 60° 25' N | 4° 22' W | Current profiler (eg ADCP) | RDI SC ADCP (75kHz) and ACM deployed 28.10.97 |
| 60° 25' N | 4° 22' W | Current profiler (eg ADCP) | RDI SC ADCP (75kHz) and ACM recovered 24.10.97 |
Summary of BODC Data Holdings for the Cruise
National Oceanographic Database
Summary
| # Series | Instrument Description | Parameters |
|---|---|---|
| 49 | CTD/STD cast |
Electrical conductivity of the water column Reference numbers Salinity of the water column Temperature of the water column Vertical spatial coordinates |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
Full List
| BODC Reference | Instrument Description | Date/Time | Location | |
|---|---|---|---|---|
| 482838 | CTD/STD cast | 1997-10-23 07:32Z | 60° 9' N, 3° 44' W | Click for more |
| 482851 | CTD/STD cast | 1997-10-23 08:35Z | 60° 13' N, 3° 51' W | Click for more |
| 482863 | CTD/STD cast | 1997-10-23 09:44Z | 60° 16' N, 3° 59' W | Click for more |
| 482875 | CTD/STD cast | 1997-10-23 11:03Z | 60° 18' N, 4° 4' W | Click for more |
| 482887 | CTD/STD cast | 1997-10-23 12:02Z | 60° 19' N, 4° 7' W | Click for more |
| 482899 | CTD/STD cast | 1997-10-23 14:28Z | 60° 25' N, 4° 19' W | Click for more |
| 482906 | CTD/STD cast | 1997-10-23 16:36Z | 60° 28' N, 4° 25' W | Click for more |
| 482918 | CTD/STD cast | 1997-10-23 19:17Z | 60° 34' N, 4° 44' W | Click for more |
| 482931 | CTD/STD cast | 1997-10-23 22:46Z | 60° 37' N, 4° 54' W | Click for more |
| 482943 | CTD/STD cast | 1997-10-24 01:08Z | 60° 43' N, 5° 6' W | Click for more |
| 482955 | CTD/STD cast | 1997-10-24 12:39Z | 60° 46' N, 5° 16' W | Click for more |
| 482967 | CTD/STD cast | 1997-10-24 14:23Z | 60° 51' N, 5° 28' W | Click for more |
| 482979 | CTD/STD cast | 1997-10-24 18:38Z | 61° 1' N, 5° 57' W | Click for more |
| 482980 | CTD/STD cast | 1997-10-24 20:49Z | 61° 12' N, 6° 22' W | Click for more |
| 482992 | CTD/STD cast | 1997-10-26 17:04Z | 60° 34' N, 4° 45' W | Click for more |
| 483006 | CTD/STD cast | 1997-10-26 19:35Z | 60° 34' N, 4° 45' W | Click for more |
| 483018 | CTD/STD cast | 1997-10-29 01:14Z | 60° 5' N, 6° 43' W | Click for more |
| 483031 | CTD/STD cast | 1997-10-29 23:02Z | 59° 45' N, 6° 39' W | Click for more |
| 483043 | CTD/STD cast | 1997-10-30 01:49Z | 59° 49' N, 6° 43' W | Click for more |
| 483055 | CTD/STD cast | 1997-10-30 03:24Z | 59° 52' N, 6° 45' W | Click for more |
| 483067 | CTD/STD cast | 1997-10-30 05:04Z | 59° 55' N, 6° 46' W | Click for more |
| 483079 | CTD/STD cast | 1997-10-30 06:20Z | 59° 57' N, 6° 48' W | Click for more |
| 483080 | CTD/STD cast | 1997-10-30 07:24Z | 59° 58' N, 6° 49' W | Click for more |
| 483092 | CTD/STD cast | 1997-10-30 08:19Z | 60° 1' N, 6° 51' W | Click for more |
| 483111 | CTD/STD cast | 1997-10-30 09:10Z | 60° 3' N, 6° 52' W | Click for more |
| 483123 | CTD/STD cast | 1997-10-30 10:16Z | 60° 4' N, 6° 53' W | Click for more |
| 483135 | CTD/STD cast | 1997-10-30 11:38Z | 60° 7' N, 6° 55' W | Click for more |
| 483147 | CTD/STD cast | 1997-10-31 19:14Z | 62° 0' N, 6° 12' W | Click for more |
| 483159 | CTD/STD cast | 1997-10-31 20:54Z | 61° 54' N, 5° 45' W | Click for more |
| 483160 | CTD/STD cast | 1997-10-31 22:38Z | 61° 49' N, 5° 21' W | Click for more |
| 483172 | CTD/STD cast | 1997-11-01 00:23Z | 61° 42' N, 4° 51' W | Click for more |
| 483184 | CTD/STD cast | 1997-11-01 02:40Z | 61° 34' N, 4° 15' W | Click for more |
| 483196 | CTD/STD cast | 1997-11-01 05:45Z | 61° 28' N, 3° 42' W | Click for more |
| 483203 | CTD/STD cast | 1997-11-01 08:54Z | 61° 21' N, 3° 10' W | Click for more |
| 483215 | CTD/STD cast | 1997-11-01 11:51Z | 61° 13' N, 2° 40' W | Click for more |
| 483227 | CTD/STD cast | 1997-11-01 14:48Z | 61° 10' N, 2° 25' W | Click for more |
| 483239 | CTD/STD cast | 1997-11-01 15:09Z | 61° 9' N, 2° 18' W | Click for more |
| 483240 | CTD/STD cast | 1997-11-01 16:34Z | 61° 7' N, 2° 10' W | Click for more |
| 483252 | CTD/STD cast | 1997-11-01 18:41Z | 61° 6' N, 2° 0' W | Click for more |
| 483264 | CTD/STD cast | 1997-11-01 19:43Z | 61° 4' N, 1° 53' W | Click for more |
| 483276 | CTD/STD cast | 1997-11-01 20:57Z | 61° 1' N, 1° 35' W | Click for more |
| 483288 | CTD/STD cast | 1997-11-01 22:01Z | 60° 58' N, 1° 17' W | Click for more |
| 483307 | CTD/STD cast | 1997-11-02 00:09Z | 60° 58' N, 1° 0' W | Click for more |
| 483319 | CTD/STD cast | 1997-11-05 01:05Z | 59° 17' N, 2° 14' W | Click for more |
| 483320 | CTD/STD cast | 1997-11-05 02:01Z | 59° 16' N, 2° 5' W | Click for more |
| 483332 | CTD/STD cast | 1997-11-05 02:51Z | 59° 16' N, 1° 55' W | Click for more |
| 483344 | CTD/STD cast | 1997-11-05 03:38Z | 59° 16' N, 1° 48' W | Click for more |
| 483356 | CTD/STD cast | 1997-11-05 04:32Z | 59° 16' N, 1° 40' W | Click for more |
| 483368 | CTD/STD cast | 1997-11-05 05:36Z | 59° 16' N, 1° 30' W | Click for more |
Project Database
No data currently held for this cruise in the BODC Project Database
