BODC Cruise Metadata Report for FRV Scotia (748S) cruise 1600S
Introduction
This report collates information from the BODC cruise inventory and oceanographic databases. It presents
- Cruise Inventory Information
- A summary of BODC data holdings for the cruise from the

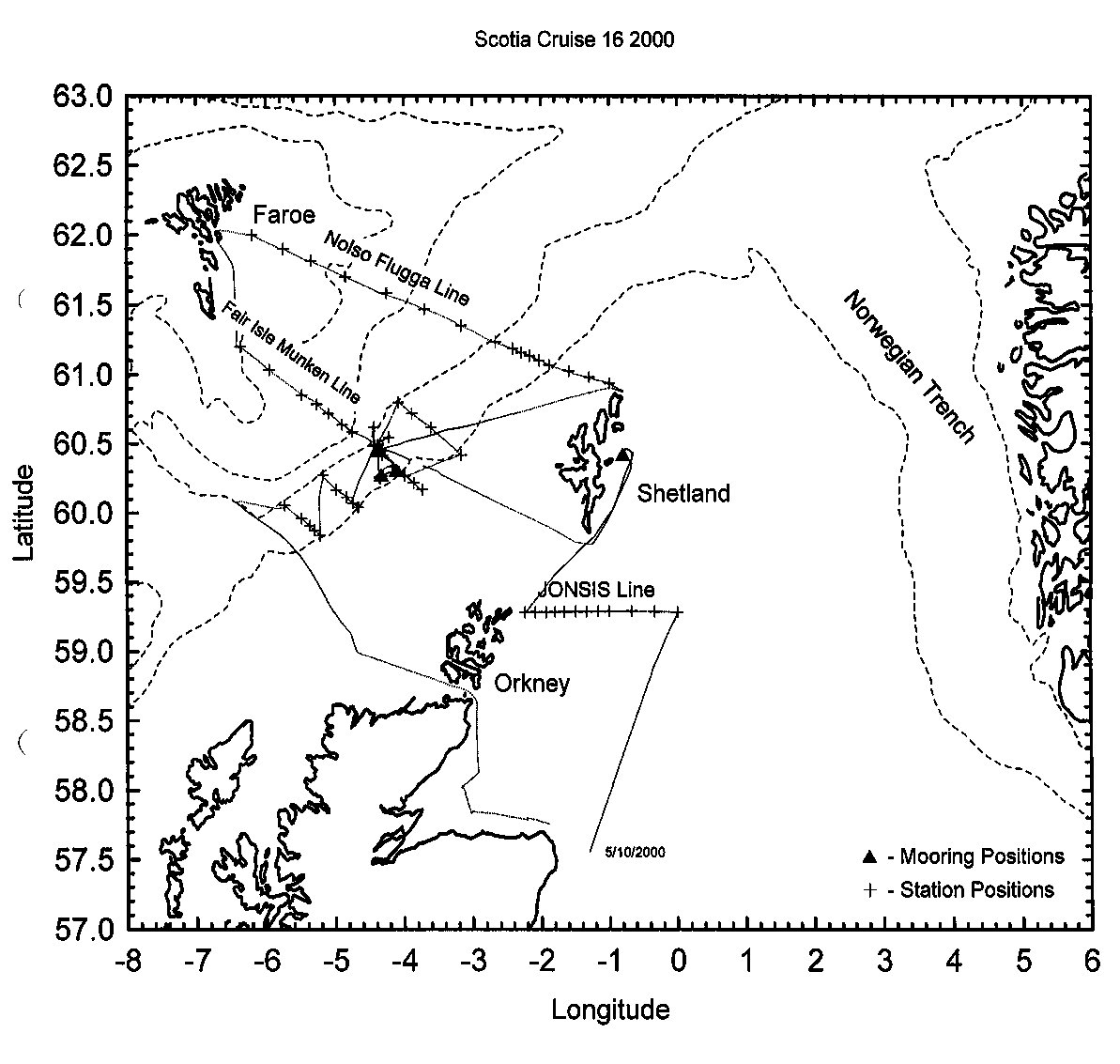

- References - including cruise tracks and cruise reports
Cruise Inventory Information
| Long name | FRV Scotia (748S) cruise 1600S |
|---|---|
| Short name | 1600S |
| Objectives and Narrative |
1. To perform hydrographic surveys along the JONSIS standard section in the northern North Sea.
2. To perform hydrographic surveys along the standard Faeroe-Shetland Channel sections. 3. To service two of the Nordic WOCE ADCP moorings. 4. To service a mooring east of Lerwick in support of the MAIA project. 5. To undertake comparison trials throughout the trip with Skalar and Bran + Luebbe AA3 nutrient analysers with the aim of commissioning the latter nutrient analyser. 6. To perform ad-hoc sonar buoy recordings for cetaceans. 7. To perform a continuous 13 hour CTD surveys at the positions of the Nordic WOCE Moorings A-E to study the effects of internal tides. 8. To perform a continuous 13 hour or 25 hour CTD and ship ADCP survey of the Wyville-Thomson Ridge to study the effects of internal tides. 9. Repeat wide area CTD survey of Faeroe-Shetland Channel. 10. To film the use of oceanographic equipment for a Carlton TV programme on global climate change. 11. To deploy water level recorder moorings adjacent to the ADCP moorings. |
| Ship | FRV Scotia |
| Departure Port | Aberdeen, United Kingdom |
| Departure Date | 2000-10-05 |
| Arrival Port | Aberdeen, United Kingdom |
| Arrival Date | 2000-10-19 |
| Principal Scientist(s) | George Slesser (Fisheries Research Services Aberdeen Marine Laboratory) |
| Responsible Organisation | Fisheries Research Services Aberdeen Marine Laboratory |
| Associated Project(s) | |
| IHB Sea Areas Visited | North Sea, North East Atlantic Ocean (limit 40W) |
| Marsden Squares Visited | 181;3/181;4/217;1/217;2 |
| Work Area Description | NW North Sea, Faroe-Shetland Channel |
| Unable to lookup cruise bounds at this time | |
| Work Area Bounding Polygon | |
| Southern Limit | unknown |
| Northern Limit | unknown |
| Western Limit | unknown |
| Eastern Limit | unknown |
Cruise Inventory Datasets
| Physical oceanography | |
|---|---|
| CTD stations |
Quantity:
number of profiles =
100
Description: Seabird 911+ CTD with Fluorometer |
| Subsurface temperature and salinity measurements |
Quantity:
activity duration in days =
15
Description: Seabird Thermosalinograph. |
| Chemical oceanography | |
| Nitrate |
Quantity:
number of stations =
100
Description: Nutrient samples at standard depths. |
| Phosphate |
Quantity:
number of stations =
100
Description: Nutrient samples at standard depths. |
| Silicate |
Quantity:
number of stations =
100
Description: Nutrient samples at standard depths. |
| Biology and fisheries | |
| Mammals and reptiles |
Quantity:
number of stations =
20
Description: Acoustic monitoring of Cetaceans. |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of profiles =
100
Description: Seabird 911+ CTD with Fluorometer |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of samples =
6419
Description: Chlorophyll samples for calibration. |
Cruise Inventory Mooring/Buoy Operations
| Latitude | Longitude | Data type | Description |
|---|---|---|---|
| 60° 27' N | 4° 22' W | Current profiler (eg ADCP) | NWSD NORDIC WOCE mooring deployed |
| 60° 16' N | 4° 19' W | Current profiler (eg ADCP) | NWSE NORDIC WOCE mooring deployed |
| 60° 27' N | 4° 22' W | Current profiler (eg ADCP) | Recovery of NWSD NORDIC WOCE mooring |
| 60° 25' N | 0° 48' W | Other physical oceanographic measurements | MAIA mooring recovered |
| 60° 18' N | 4° 6' W | Sea level (inc. bot. press., inverted echosounder) | Water level recorder mooring deployed |
| 60° 27' N | 4° 22' W | Sea level (inc. bot. press., inverted echosounder) | Water level recorder mooring deployed |
Summary of BODC Data Holdings for the Cruise
National Oceanographic Database
Summary
| # Series | Instrument Description | Parameters |
|---|---|---|
| 100 | CTD/STD cast |
Electrical conductivity of the water column Salinity of the water column Temperature of the water column Vertical spatial coordinates |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
Full List
| BODC Reference | Instrument Description | Date/Time | Location | |
|---|---|---|---|---|
| 561190 | CTD/STD cast | 2000-10-06 05:08Z | 59° 16' N, 0° 0' E | Click for more |
| 561208 | CTD/STD cast | 2000-10-06 08:48Z | 59° 16' N, 0° 19' W | Click for more |
| 561221 | CTD/STD cast | 2000-10-06 10:06Z | 59° 16' N, 0° 40' W | Click for more |
| 561233 | CTD/STD cast | 2000-10-06 11:22Z | 59° 16' N, 0° 56' W | Click for more |
| 561245 | CTD/STD cast | 2000-10-06 12:17Z | 59° 17' N, 1° 9' W | Click for more |
| 561257 | CTD/STD cast | 2000-10-06 13:07Z | 59° 18' N, 1° 19' W | Click for more |
| 561269 | CTD/STD cast | 2000-10-06 13:53Z | 59° 16' N, 1° 30' W | Click for more |
| 561270 | CTD/STD cast | 2000-10-06 14:44Z | 59° 16' N, 1° 40' W | Click for more |
| 561282 | CTD/STD cast | 2000-10-06 15:23Z | 59° 16' N, 1° 47' W | Click for more |
| 561294 | CTD/STD cast | 2000-10-06 16:05Z | 59° 16' N, 1° 55' W | Click for more |
| 561301 | CTD/STD cast | 2000-10-06 16:49Z | 59° 16' N, 2° 4' W | Click for more |
| 561313 | CTD/STD cast | 2000-10-06 17:32Z | 59° 16' N, 2° 13' W | Click for more |
| 561325 | CTD/STD cast | 2000-10-08 13:10Z | 60° 27' N, 4° 22' W | Click for more |
| 561337 | CTD/STD cast | 2000-10-08 14:44Z | 60° 27' N, 4° 22' W | Click for more |
| 561349 | CTD/STD cast | 2000-10-08 15:57Z | 60° 27' N, 4° 22' W | Click for more |
| 561350 | CTD/STD cast | 2000-10-08 17:10Z | 60° 27' N, 4° 22' W | Click for more |
| 561362 | CTD/STD cast | 2000-10-08 18:30Z | 60° 27' N, 4° 22' W | Click for more |
| 561374 | CTD/STD cast | 2000-10-08 19:51Z | 60° 27' N, 4° 22' W | Click for more |
| 561386 | CTD/STD cast | 2000-10-08 21:09Z | 60° 27' N, 4° 22' W | Click for more |
| 561398 | CTD/STD cast | 2000-10-08 22:29Z | 60° 27' N, 4° 22' W | Click for more |
| 561405 | CTD/STD cast | 2000-10-08 23:38Z | 60° 27' N, 4° 22' W | Click for more |
| 561417 | CTD/STD cast | 2000-10-09 00:40Z | 60° 27' N, 4° 22' W | Click for more |
| 561429 | CTD/STD cast | 2000-10-09 01:34Z | 60° 27' N, 4° 22' W | Click for more |
| 561430 | CTD/STD cast | 2000-10-09 16:41Z | 60° 9' N, 3° 44' W | Click for more |
| 561442 | CTD/STD cast | 2000-10-09 17:31Z | 60° 13' N, 3° 51' W | Click for more |
| 561454 | CTD/STD cast | 2000-10-09 18:23Z | 60° 16' N, 3° 58' W | Click for more |
| 561466 | CTD/STD cast | 2000-10-09 19:06Z | 60° 18' N, 4° 4' W | Click for more |
| 561478 | CTD/STD cast | 2000-10-09 19:56Z | 60° 20' N, 4° 9' W | Click for more |
| 561491 | CTD/STD cast | 2000-10-09 21:17Z | 60° 25' N, 4° 19' W | Click for more |
| 561509 | CTD/STD cast | 2000-10-09 22:41Z | 60° 28' N, 4° 25' W | Click for more |
| 561510 | CTD/STD cast | 2000-10-10 00:57Z | 60° 34' N, 4° 45' W | Click for more |
| 561522 | CTD/STD cast | 2000-10-10 02:37Z | 60° 34' N, 4° 45' W | Click for more |
| 561534 | CTD/STD cast | 2000-10-10 04:19Z | 60° 37' N, 4° 53' W | Click for more |
| 561546 | CTD/STD cast | 2000-10-10 06:11Z | 60° 43' N, 5° 6' W | Click for more |
| 561558 | CTD/STD cast | 2000-10-10 07:42Z | 60° 47' N, 5° 16' W | Click for more |
| 561571 | CTD/STD cast | 2000-10-10 09:24Z | 60° 51' N, 5° 28' W | Click for more |
| 561583 | CTD/STD cast | 2000-10-10 11:36Z | 61° 1' N, 5° 57' W | Click for more |
| 561595 | CTD/STD cast | 2000-10-10 13:27Z | 61° 12' N, 6° 22' W | Click for more |
| 561602 | CTD/STD cast | 2000-10-12 10:17Z | 62° 0' N, 6° 12' W | Click for more |
| 561614 | CTD/STD cast | 2000-10-12 12:01Z | 61° 54' N, 5° 45' W | Click for more |
| 561626 | CTD/STD cast | 2000-10-12 13:41Z | 61° 49' N, 5° 21' W | Click for more |
| 561638 | CTD/STD cast | 2000-10-12 15:34Z | 61° 42' N, 4° 51' W | Click for more |
| 561651 | CTD/STD cast | 2000-10-12 17:53Z | 61° 34' N, 4° 15' W | Click for more |
| 561663 | CTD/STD cast | 2000-10-12 20:44Z | 61° 28' N, 3° 42' W | Click for more |
| 561675 | CTD/STD cast | 2000-10-12 23:27Z | 61° 21' N, 3° 10' W | Click for more |
| 561687 | CTD/STD cast | 2000-10-13 02:02Z | 61° 13' N, 2° 40' W | Click for more |
| 561699 | CTD/STD cast | 2000-10-13 03:52Z | 61° 10' N, 2° 25' W | Click for more |
| 561706 | CTD/STD cast | 2000-10-13 05:06Z | 61° 9' N, 2° 17' W | Click for more |
| 561718 | CTD/STD cast | 2000-10-13 06:19Z | 61° 7' N, 2° 10' W | Click for more |
| 561731 | CTD/STD cast | 2000-10-13 07:36Z | 61° 6' N, 2° 1' W | Click for more |
| 561743 | CTD/STD cast | 2000-10-13 08:36Z | 61° 4' N, 1° 52' W | Click for more |
| 561755 | CTD/STD cast | 2000-10-13 09:54Z | 61° 1' N, 1° 36' W | Click for more |
| 561767 | CTD/STD cast | 2000-10-13 11:08Z | 60° 58' N, 1° 18' W | Click for more |
| 561779 | CTD/STD cast | 2000-10-13 12:40Z | 60° 55' N, 1° 0' W | Click for more |
| 561780 | CTD/STD cast | 2000-10-13 13:46Z | 60° 52' N, 0° 48' W | Click for more |
| 561792 | CTD/STD cast | 2000-10-14 16:43Z | 60° 16' N, 4° 20' W | Click for more |
| 561811 | CTD/STD cast | 2000-10-14 16:56Z | 60° 16' N, 4° 19' W | Click for more |
| 561823 | CTD/STD cast | 2000-10-14 17:25Z | 60° 16' N, 4° 19' W | Click for more |
| 561835 | CTD/STD cast | 2000-10-14 18:10Z | 60° 16' N, 4° 19' W | Click for more |
| 561847 | CTD/STD cast | 2000-10-14 18:40Z | 60° 15' N, 4° 19' W | Click for more |
| 561859 | CTD/STD cast | 2000-10-14 19:13Z | 60° 16' N, 4° 19' W | Click for more |
| 561860 | CTD/STD cast | 2000-10-14 20:00Z | 60° 15' N, 4° 20' W | Click for more |
| 561872 | CTD/STD cast | 2000-10-14 20:37Z | 60° 15' N, 4° 21' W | Click for more |
| 561884 | CTD/STD cast | 2000-10-14 21:10Z | 60° 15' N, 4° 21' W | Click for more |
| 561896 | CTD/STD cast | 2000-10-14 21:41Z | 60° 15' N, 4° 21' W | Click for more |
| 561903 | CTD/STD cast | 2000-10-14 22:21Z | 60° 15' N, 4° 21' W | Click for more |
| 561915 | CTD/STD cast | 2000-10-14 22:52Z | 60° 15' N, 4° 21' W | Click for more |
| 561927 | CTD/STD cast | 2000-10-14 23:28Z | 60° 15' N, 4° 21' W | Click for more |
| 561939 | CTD/STD cast | 2000-10-15 00:02Z | 60° 15' N, 4° 21' W | Click for more |
| 561940 | CTD/STD cast | 2000-10-15 00:38Z | 60° 15' N, 4° 21' W | Click for more |
| 561952 | CTD/STD cast | 2000-10-15 01:00Z | 60° 15' N, 4° 21' W | Click for more |
| 561964 | CTD/STD cast | 2000-10-15 01:30Z | 60° 15' N, 4° 21' W | Click for more |
| 561976 | CTD/STD cast | 2000-10-15 02:04Z | 60° 15' N, 4° 21' W | Click for more |
| 561988 | CTD/STD cast | 2000-10-15 02:42Z | 60° 15' N, 4° 21' W | Click for more |
| 562003 | CTD/STD cast | 2000-10-15 03:28Z | 60° 15' N, 4° 21' W | Click for more |
| 562015 | CTD/STD cast | 2000-10-15 04:10Z | 60° 15' N, 4° 21' W | Click for more |
| 562027 | CTD/STD cast | 2000-10-15 04:56Z | 60° 15' N, 4° 21' W | Click for more |
| 562039 | CTD/STD cast | 2000-10-15 22:45Z | 60° 16' N, 4° 0' W | Click for more |
| 562040 | CTD/STD cast | 2000-10-16 01:26Z | 60° 25' N, 3° 10' W | Click for more |
| 562052 | CTD/STD cast | 2000-10-16 03:40Z | 60° 37' N, 3° 36' W | Click for more |
| 562064 | CTD/STD cast | 2000-10-16 05:28Z | 60° 43' N, 3° 53' W | Click for more |
| 562076 | CTD/STD cast | 2000-10-16 07:07Z | 60° 48' N, 4° 5' W | Click for more |
| 562088 | CTD/STD cast | 2000-10-16 11:40Z | 60° 29' N, 4° 22' W | Click for more |
| 562107 | CTD/STD cast | 2000-10-16 12:55Z | 60° 26' N, 4° 19' W | Click for more |
| 562119 | CTD/STD cast | 2000-10-16 15:00Z | 60° 28' N, 4° 25' W | Click for more |
| 562120 | CTD/STD cast | 2000-10-16 16:44Z | 60° 37' N, 4° 26' W | Click for more |
| 562132 | CTD/STD cast | 2000-10-16 18:58Z | 60° 28' N, 4° 25' W | Click for more |
| 562144 | CTD/STD cast | 2000-10-16 20:39Z | 60° 32' N, 4° 13' W | Click for more |
| 562156 | CTD/STD cast | 2000-10-16 22:15Z | 60° 28' N, 4° 25' W | Click for more |
| 562168 | CTD/STD cast | 2000-10-17 01:02Z | 60° 28' N, 4° 25' W | Click for more |
| 562181 | CTD/STD cast | 2000-10-17 04:41Z | 60° 2' N, 4° 40' W | Click for more |
| 562193 | CTD/STD cast | 2000-10-17 05:19Z | 60° 4' N, 4° 44' W | Click for more |
| 562200 | CTD/STD cast | 2000-10-17 06:30Z | 60° 6' N, 4° 49' W | Click for more |
| 562212 | CTD/STD cast | 2000-10-17 07:25Z | 60° 9' N, 4° 59' W | Click for more |
| 562224 | CTD/STD cast | 2000-10-17 08:50Z | 60° 16' N, 5° 10' W | Click for more |
| 562236 | CTD/STD cast | 2000-10-17 12:33Z | 59° 49' N, 5° 13' W | Click for more |
| 562248 | CTD/STD cast | 2000-10-17 13:12Z | 59° 52' N, 5° 18' W | Click for more |
| 562261 | CTD/STD cast | 2000-10-17 13:59Z | 59° 54' N, 5° 22' W | Click for more |
| 562273 | CTD/STD cast | 2000-10-17 14:57Z | 59° 57' N, 5° 29' W | Click for more |
| 562285 | CTD/STD cast | 2000-10-17 16:44Z | 60° 3' N, 5° 43' W | Click for more |
Project Database
No data currently held for this cruise in the BODC Project Database
