Metadata Report for BODC Series Reference Number 598725


Metadata Summary

Data Description

Data Category CTD or STD cast
Instrument Type
NameCategories
LI-COR LI-192 PAR sensor  radiometers
Falmouth Scientific Instruments Integrated CTD Profiler  CTD; water temperature sensor; salinity sensor
Dr.Haardt BackScat I Fluorometer Model 1101  fluorometers; optical backscatter sensors
Instrument Mounting research vessel
Originating Country United Kingdom
Originator -
Originating Organization Centre for Environment, Fisheries and Aquaculture Science Lowestoft Laboratory
Processing Status banked
Online delivery of data Download available - Ocean Data View (ODV) format
Project(s) -


Data Identifiers

Originator's Identifier CO07/97/57
BODC Series Reference 598725


Time Co-ordinates(UT)

Start Time (yyyy-mm-dd hh:mm) 1997-07-28 10:24
End Time (yyyy-mm-dd hh:mm) -
Nominal Cycle Interval 1.0 decibars


Spatial Co-ordinates

Latitude 54.91720 N ( 54° 55.0' N )
Longitude 1.54430 E ( 1° 32.7' E )
Positional Uncertainty Unspecified
Minimum Sensor or Sampling Depth 2.97 m
Maximum Sensor or Sampling Depth 27.75 m
Minimum Sensor or Sampling Height 2.25 m
Maximum Sensor or Sampling Height 27.03 m
Sea Floor Depth 30.0 m
Sea Floor Depth Source -
Sensor or Sampling Distribution Variable common depth - All sensors are grouped effectively at the same depth, but this depth varies significantly during the series
Sensor or Sampling Depth Datum Instantaneous - Depth measured below water line or instantaneous water body surface
Sea Floor Depth Datum Instantaneous - Depth measured below water line or instantaneous water body surface


Parameters

BODC CODERankUnitsTitle
FVLTWS011VoltsRaw signal (voltage) of instrument output by linear-response chlorophyll fluorometer
IRRDUV011MicroEinsteins per square metre per secondDownwelling vector irradiance as photons of electromagnetic radiation (PAR wavelengths) in the water body by cosine-collector radiometer
PRESPR011DecibarsPressure (spatial coordinate) exerted by the water body by profiling pressure sensor and correction to read zero at sea level
PSALST011DimensionlessPractical salinity of the water body by CTD and computation using UNESCO 1983 algorithm
TEMPST011Degrees CelsiusTemperature of the water body by CTD or STD
TSEDBS011Milligrams per litreConcentration of suspended particulate material {SPM} per unit volume of the water body [particulate >unknown phase] by in-situ optical backscatter measurement

Definition of Rank

  • Rank 1 is a one-dimensional parameter
  • Rank 2 is a two-dimensional parameter
  • Rank 0 is a one-dimensional parameter describing the second dimension of a two-dimensional parameter (e.g. bin depths for moored ADCP data)

Problem Reports

In the salinity channel there are large spikes and null values that have been flagged on the thermocline. This could be due to a mismatch between the conductivity cell and the thermistor.

Chlorophyll concentration channel data values are null in all or part of this cast.


Data Access Policy

Public domain data

These data have no specific confidentiality restrictions for users. However, users must acknowledge data sources as it is not ethical to publish data without proper attribution. Any publication or other output resulting from usage of the data should include an acknowledgment.

The recommended acknowledgment is

"This study uses data from the data source/organisation/programme, provided by the British Oceanographic Data Centre and funded by the funding body."


Narrative Documents

Falmouth Scientific Integrated CTD (ICTD) Profiler

The FSI ICTD is designed to collect high precision conductivity, temperature and pressure data with self calibrating electronics. This instrument can support five primary sensors (including up to three temperature sensors) and can be coupled with a water bottle sampler. The ICTD is equipped with a titanium housing rated to 7000 m and has a sampling rate of 32 Hz.

Three temperature sensors are available: primary platinum, redundant platinum and exposed thermistor. Any combination of these can be used in the primary channels. The instrument also has multiple RS-232 serial inputs for a variety of sensors including: ADCP, Benthos PSA-916 Altimeter and WetLabs SAFire. There are an additional eight DC input channels that can support virtually any sensor that has a DC output.

Specifications:

Parameter Conductivity Temperature Pressure
Sensor Inductive cell Platinum thermometer Precision-machined Silicon
Range 0 to 70 mS cm-1 -2 to 35°C Customer specified
Accuracy ±0.002 mS cm-1 0.002°C ±0.01 % full scale
Resolution 0.0001 mS cm-1 0.00005°C 0.0004 % full scale
Response 5.0 cm at 1 ms-1

150 ms Platinum

20 ms Thermistor*

25 ms

*Optional

Further details can be found in the manufacturer's specification sheet.

Dr Haardt BackScat I fluorometer

The Dr Haardt BackScat I is a backscatter fluorometer designed to detect concentrations of a variety of substances in the water column. The instrument uses a Xe-flashlight source and exhibits a fast response and low power consumption. Integrated turbidity and other sensors are available and the instrument has a titanium housing rated to a maximum depth of 6000 m.

Each fluorometer is custom-built to measure substances of interest. Available spectral ranges are visible, UV I and UV II. A range of filter units are available for the measurement of chlorophyll-a, phycoerythrin, humic acids, aromatic hydrocarbons, phenol, oils, rhodamine B, sulforhodamine, fluorescein, eosin, pyranin and naphthionate.

LI-COR LI-192 Underwater Quantum Sensor

The LI-192 Underwater Quantum Sensor is used to measure photosynthetic photon flux density and is cosine corrected. The sensor is often referred to as LI-192SA or LI-192SB (the LI-192SB model was superseded by LI-192SA). One of the main differences is that the LI-192SA model includes a built-in voltage output for interfacing with NexSens iSIC and SDL data loggers.

Sensor specifications, current at January 2012, are given in the table below. More information can be found in the manufacturer's LI-192SA andLI-192SB specification sheets.

Sensor Specifications

(Specifications apply to both models unless otherwise stated)

Absolute Calibration ± 5 % in air traceable to NBS.
Sensitivity Typically 3 µA per 1000 µmol s-1 m-2 for LI-192SB and 4 µA per 1000 µmol s-1 m-2 for LI-192SA in water.
Linearity Maximum deviation of 1 % up to 10,000 µmol s-1 m-2.
Stability < ± 2 % change over a 1 year period.
Response Time 10 µs.
Temperature Dependence ± 0.15 % per °C maximum.
Cosine Correction Optimized for both underwater and atmospheric use.
Azimuth < ± 1 % error over 360 ° at 45 ° elevation.
Detector High stability silicon photovoltaic detector (blue enhanced).
Sensor Housing Corrosion resistant metal with acrylic diffuser for both saltwater and freshwater applications. Waterproof to withstand 800 psi (5500 kPa) (560 meters).

RV Corystes Cruise 07/97 CTD Data Documentation

Stations 2 - 66

For this cruise the FSI CTD (s/n 1366) was used.

Nineteen CTD profiles were obtained. Water temperatures were measured with two electronic reversing thermometers. Water samples were collected for salinity analysis and measurement of nutrients, chlorophyll and suspended load content.

PART A

1. THERMOMETER DATA

Two electronic reversing thermometer readings were available at 17 stations. Four pair were removed because the differences between them and the CTD were too great. All the differences between the remaining pairs of thermometers were <0.005°C.

2. SALINITY DATA

Water samples were taken at all stations for later analysis. Three pairs of duplicate samples were taken. The differences were 0.003, 0.002 and 0.002 respectively.

3. SENSOR CALIBRATION FOR FSI CTD

a) Pressure

The laboratory calibration of June 1997 was used to correct the pressure sensor:

Pcor = Pctd - 1.0 db

b) Temperature

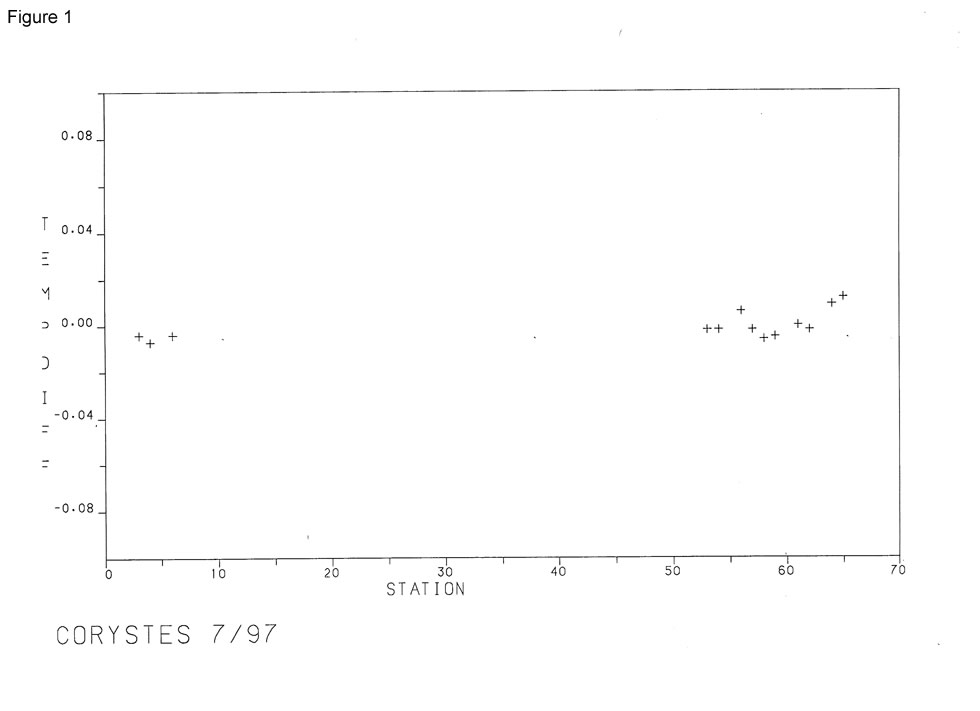

Fig. 1 shows the differences between the mean thermometer temperatures and uncorrected CTD temperatures. The mean difference for 13 points was 0.007°C. The PRT and thermistor were corrected using the laboratory calibration of June 1997 where:

Tcor = Tctd + dT

when:

dT=ax^2 + bx + c

and for the PRT

a= 0.0000095168, b = -0.0005463732, c = 0.0054077205

and for the thermistor

a= 0.0000897380, b = -0.0026687945, c= 0.0196128684

The CTD temperatures were corrected using the PRT sensor.

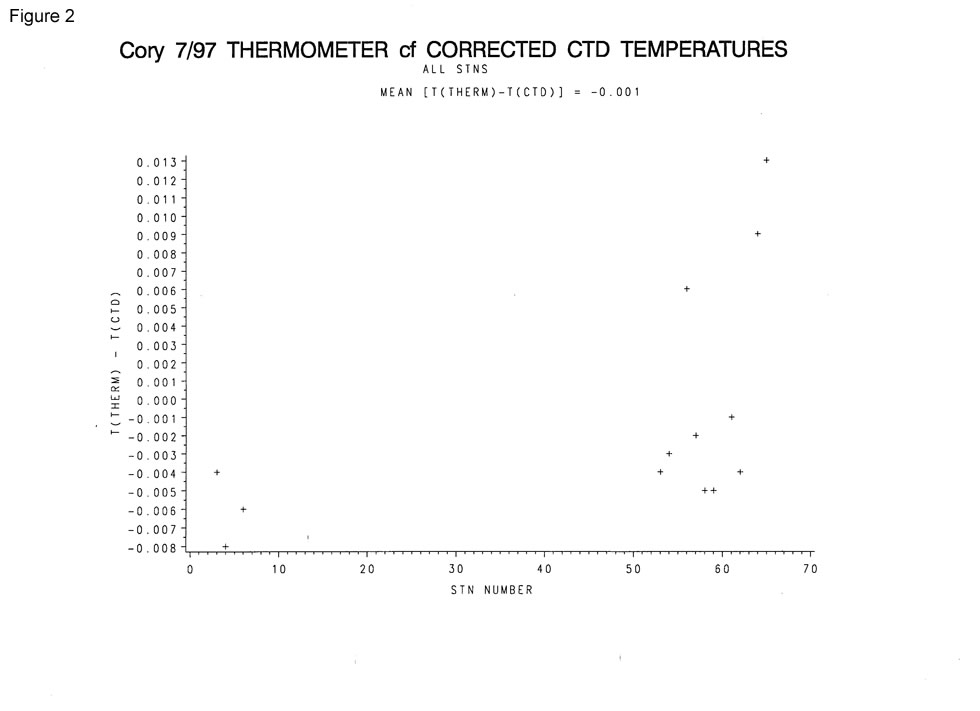

Fig. 2 shows the differences between the thermometer readings and CTD temperatures after the latter have been corrected.

c) Salinity

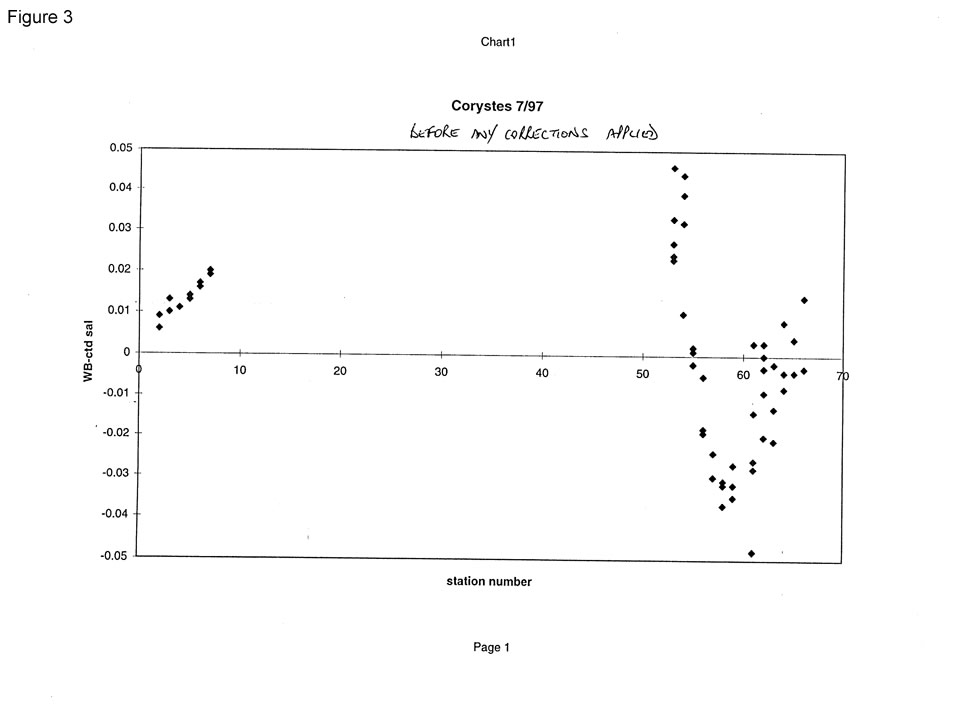

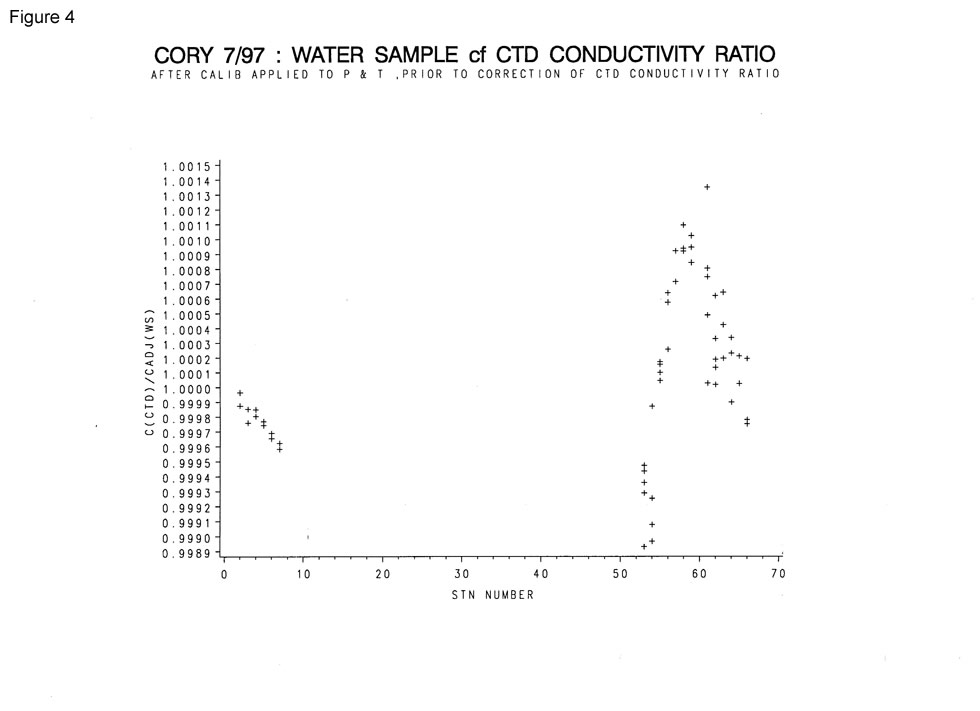

Fig. 3 and Fig. 4 are plots using the water sample salinity values which were derived from analysis done on the Guildline salinometer. This clearly shows that something is wrong, and discussions with KJM have indicated that the problems lies with the water sample salinity values.

Accordingly calibration of the CTD salinity sensor was not possible using these sample results. Consequently the coefficients derived for CORYSTES 9/97 were used since this cruise was only 3 weeks after CORYSTES 7/97.

For the data held on the LSDM the CTD salinity value has been substituted in each case.

The coefficients were derived to calibrate the CTD conductivity sensor using a least square fit between the ratio of water sample conductivity to CTD conductivity and the CTD temperature and pressure.

CR(cor) = CR(ctd)*{a*T(cor) + b*P(cor) + c}

where T(cor) and P(cor) are the corrected CTD temperature and pressure and where:

a = -0.490652762E-04, b = -0.449967172E-06, c = 0.100068654E+01

PART B

1. LSS (volts) AND SUSPENDED LOAD (mg/l)

During the whole of this cruise a light scattering sensor (LSS) was used and recorded voltages were noted at each sampling depth on the log sheet. A linear regression was calculated in the form of

S.Load = bx + c

where b = 6.790 c = 0.578 r = 0.85 N = 31

2. FLUOROMETER AND CHLOROPHYLL (mg/m^3)

A Dr Haardt fluorometer was fitted to the CTD for this cruise. A linear regression was used of the form:

Chl = a*Fv + b where Fv = fluorometer volts

and a = 7.384 b = -0.169

rmse=0.65, r^2=0.7, N=55

S R Jones
November 1997

After the cruise it was found that the fluorometer had not been wired correctly and this results in noisy profiles from this sensor. The *.corchl files include the fluorometer voltage but the chlorophyll has been set to -9.0.
