BODC Cruise Metadata Report for FRV Scotia (749S) cruise 0689S
Introduction
This report collates information from the BODC cruise inventory and oceanographic databases. It presents
- Cruise Inventory Information
- A summary of BODC data holdings for the cruise from the

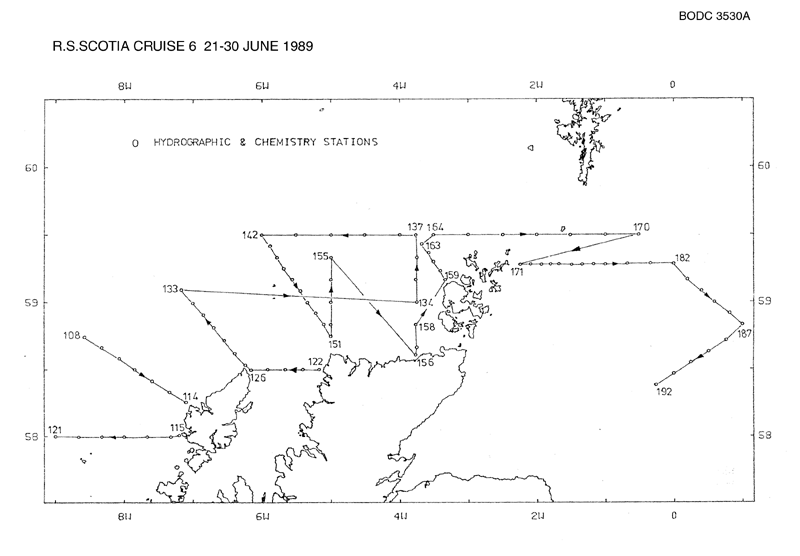

- References - including cruise tracks and cruise reports
Cruise Inventory Information
| Long name | FRV Scotia (749S) cruise 0689S |
|---|---|
| Short name | 0689S |
| Objectives and Narrative |
(1) To deploy 7 current meter moorings west of the Hebrides and west of Orkney.
(2) To carry out hydrographic surveys in the areas west of the Hebrides and west of Orkney. (3) To carry out an intercomparison between the Neil Brown "SMART" CTD and the Applied Microsystems STD12. |
| Ship | FRV Scotia |
| Departure Port | Aberdeen, United Kingdom |
| Departure Date | 1989-06-21 |
| Arrival Port | Aberdeen, United Kingdom |
| Arrival Date | 1989-06-30 |
| Principal Scientist(s) | Bill Turrell (Scottish Office Agriculture and Fisheries Department Aberdeen Marine Laboratory) |
| Responsible Organisation | Scottish Office Agriculture and Fisheries Department Aberdeen Marine Laboratory |
| Associated Project(s) | |
| IHB Sea Areas Visited | North Sea, North East Atlantic Ocean (limit 40W) |
| Marsden Squares Visited | 181;3/181;4/216;3 |
| Work Area Description | West of Hebrides and West of Orkney |
| Unable to lookup cruise bounds at this time | |
| Work Area Bounding Polygon | |
| Southern Limit | unknown |
| Northern Limit | unknown |
| Western Limit | unknown |
| Eastern Limit | unknown |
Cruise Inventory Datasets
| Physical oceanography | |
|---|---|
| CTD stations |
Quantity:
number of profiles =
73
Description: |
| Current meters |
Quantity:
number of stations =
7
Description: |
| Surface measurements underway (T,S) | Description: run throughout cruise |
| Water bottle stations |
Quantity:
number of profiles =
15
Description: Knudsen bottle samples. |
| Chemical oceanography | |
| Nitrate |
Quantity:
number of stations =
85
Description: |
| Phosphate |
Quantity:
number of stations =
12
Description: |
| Silicate |
Quantity:
number of stations =
12
Description: |

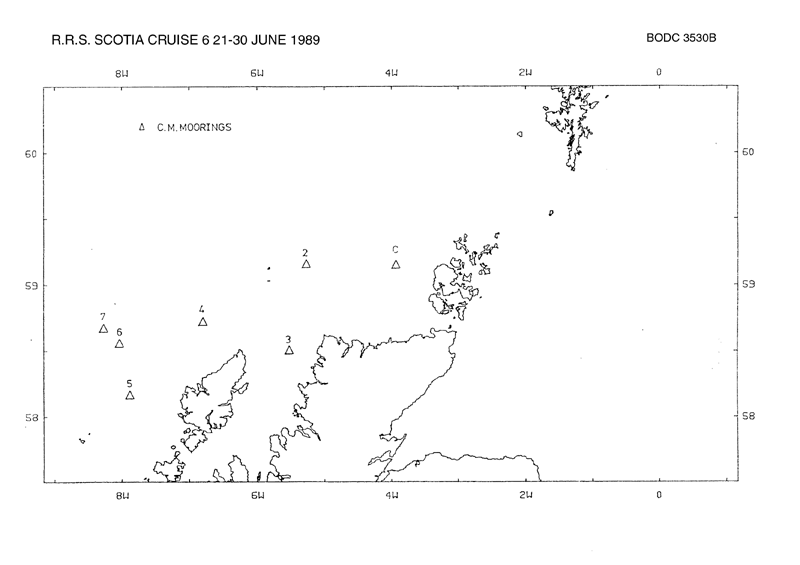

Cruise Inventory Mooring/Buoy Operations
| Latitude | Longitude | Data type | Description |
|---|---|---|---|
| 58° 43' N | 6° 47' W | Current meters | laid 4 with 2cm (due up sept 89) |
| 58° 34' N | 8° 2' W | Current meters | laid 6 with 2cm (due up sept 89) |
| 58° 40' N | 8° 16' W | Current meters | laid 7 with 2 cm (due up sept 89) |
| 58° 30' N | 5° 31' W | Current meters | laid with 2 cm (due up sept 89) |
| 58° 10' N | 7° 52' W | Current meters | laid with 2cm (due up sept 89) |
| 59° 9' N | 5° 16' W | Current meters | laid with 2cm and WLR (due up sept 89) |
| 59° 9' N | 3° 55' W | Current meters |
Summary of BODC Data Holdings for the Cruise
National Oceanographic Database
Summary
| # Series | Instrument Description | Parameters |
|---|---|---|
| 73 | CTD/STD cast |
Density of the water column Electrical conductivity of the water column Salinity of the water column Temperature of the water column Vertical spatial coordinates |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
Full List
| BODC Reference | Instrument Description | Date/Time | Location | |
|---|---|---|---|---|
| 405230 | CTD/STD cast | 1989-06-23 19:52Z | 58° 44' N, 8° 34' W | Click for more |
| 405242 | CTD/STD cast | 1989-06-23 21:48Z | 58° 40' N, 8° 19' W | Click for more |
| 405254 | CTD/STD cast | 1989-06-23 23:12Z | 58° 34' N, 8° 4' W | Click for more |
| 405266 | CTD/STD cast | 1989-06-24 00:23Z | 58° 30' N, 7° 50' W | Click for more |
| 405278 | CTD/STD cast | 1989-06-24 01:26Z | 58° 25' N, 7° 35' W | Click for more |
| 405291 | CTD/STD cast | 1989-06-24 02:31Z | 58° 19' N, 7° 20' W | Click for more |
| 405309 | CTD/STD cast | 1989-06-24 03:32Z | 58° 15' N, 7° 6' W | Click for more |
| 405310 | CTD/STD cast | 1989-06-24 11:23Z | 58° 0' N, 7° 12' W | Click for more |
| 405322 | CTD/STD cast | 1989-06-24 12:25Z | 58° 0' N, 7° 19' W | Click for more |
| 405334 | CTD/STD cast | 1989-06-24 13:37Z | 58° 0' N, 7° 40' W | Click for more |
| 405346 | CTD/STD cast | 1989-06-24 15:02Z | 58° 0' N, 8° 0' W | Click for more |
| 405358 | CTD/STD cast | 1989-06-24 16:21Z | 58° 0' N, 8° 19' W | Click for more |
| 405371 | CTD/STD cast | 1989-06-24 17:51Z | 58° 0' N, 8° 40' W | Click for more |
| 405383 | CTD/STD cast | 1989-06-24 19:23Z | 58° 0' N, 9° 0' W | Click for more |
| 405395 | CTD/STD cast | 1989-06-25 14:11Z | 58° 30' N, 5° 10' W | Click for more |
| 405402 | CTD/STD cast | 1989-06-25 15:14Z | 58° 30' N, 5° 24' W | Click for more |
| 405414 | CTD/STD cast | 1989-06-25 16:21Z | 58° 30' N, 5° 39' W | Click for more |
| 405426 | CTD/STD cast | 1989-06-25 17:22Z | 58° 30' N, 5° 54' W | Click for more |
| 405438 | CTD/STD cast | 1989-06-25 18:17Z | 58° 30' N, 6° 9' W | Click for more |
| 405451 | CTD/STD cast | 1989-06-25 18:49Z | 58° 31' N, 6° 15' W | Click for more |
| 405463 | CTD/STD cast | 1989-06-25 19:42Z | 58° 37' N, 6° 23' W | Click for more |
| 405475 | CTD/STD cast | 1989-06-25 20:41Z | 58° 43' N, 6° 33' W | Click for more |
| 405487 | CTD/STD cast | 1989-06-25 21:42Z | 58° 48' N, 6° 42' W | Click for more |
| 405499 | CTD/STD cast | 1989-06-25 22:36Z | 58° 54' N, 6° 51' W | Click for more |
| 405506 | CTD/STD cast | 1989-06-25 23:40Z | 59° 0' N, 6° 59' W | Click for more |
| 405518 | CTD/STD cast | 1989-06-26 00:40Z | 59° 5' N, 7° 10' W | Click for more |
| 405531 | CTD/STD cast | 1989-06-26 15:43Z | 59° 0' N, 3° 45' W | Click for more |
| 405543 | CTD/STD cast | 1989-06-26 16:45Z | 59° 10' N, 3° 45' W | Click for more |
| 405555 | CTD/STD cast | 1989-06-26 17:53Z | 59° 19' N, 3° 45' W | Click for more |
| 405567 | CTD/STD cast | 1989-06-26 19:02Z | 59° 30' N, 3° 45' W | Click for more |
| 405579 | CTD/STD cast | 1989-06-26 19:55Z | 59° 30' N, 4° 0' W | Click for more |
| 405580 | CTD/STD cast | 1989-06-26 21:36Z | 59° 30' N, 4° 30' W | Click for more |
| 405592 | CTD/STD cast | 1989-06-26 22:54Z | 59° 30' N, 5° 0' W | Click for more |
| 405611 | CTD/STD cast | 1989-06-27 00:32Z | 59° 30' N, 5° 30' W | Click for more |
| 405623 | CTD/STD cast | 1989-06-27 02:02Z | 59° 30' N, 6° 0' W | Click for more |
| 405635 | CTD/STD cast | 1989-06-27 02:45Z | 59° 25' N, 5° 52' W | Click for more |
| 405647 | CTD/STD cast | 1989-06-27 03:30Z | 59° 19' N, 5° 46' W | Click for more |
| 405659 | CTD/STD cast | 1989-06-27 04:14Z | 59° 15' N, 5° 40' W | Click for more |
| 405660 | CTD/STD cast | 1989-06-27 04:55Z | 59° 10' N, 5° 33' W | Click for more |
| 405672 | CTD/STD cast | 1989-06-27 05:35Z | 59° 4' N, 5° 27' W | Click for more |
| 405684 | CTD/STD cast | 1989-06-27 06:18Z | 59° 0' N, 5° 19' W | Click for more |
| 405696 | CTD/STD cast | 1989-06-27 07:03Z | 58° 55' N, 5° 13' W | Click for more |
| 405703 | CTD/STD cast | 1989-06-27 07:56Z | 58° 50' N, 5° 6' W | Click for more |
| 405715 | CTD/STD cast | 1989-06-27 09:48Z | 58° 45' N, 5° 0' W | Click for more |
| 405727 | CTD/STD cast | 1989-06-27 10:42Z | 58° 49' N, 5° 0' W | Click for more |
| 405739 | CTD/STD cast | 1989-06-27 11:50Z | 59° 0' N, 5° 0' W | Click for more |
| 405740 | CTD/STD cast | 1989-06-27 12:52Z | 59° 10' N, 5° 0' W | Click for more |
| 405752 | CTD/STD cast | 1989-06-27 13:55Z | 59° 19' N, 5° 0' W | Click for more |
| 405764 | CTD/STD cast | 1989-06-27 18:52Z | 58° 36' N, 3° 45' W | Click for more |
| 405776 | CTD/STD cast | 1989-06-27 19:29Z | 58° 40' N, 3° 45' W | Click for more |
| 405788 | CTD/STD cast | 1989-06-27 20:34Z | 58° 49' N, 3° 45' W | Click for more |
| 405807 | CTD/STD cast | 1989-06-27 22:52Z | 59° 10' N, 3° 20' W | Click for more |
| 405819 | CTD/STD cast | 1989-06-27 23:28Z | 59° 13' N, 3° 25' W | Click for more |
| 405820 | CTD/STD cast | 1989-06-28 00:08Z | 59° 18' N, 3° 30' W | Click for more |
| 405832 | CTD/STD cast | 1989-06-28 00:45Z | 59° 22' N, 3° 34' W | Click for more |
| 405844 | CTD/STD cast | 1989-06-28 01:25Z | 59° 25' N, 3° 40' W | Click for more |
| 405856 | CTD/STD cast | 1989-06-28 02:15Z | 59° 30' N, 3° 30' W | Click for more |
| 405868 | CTD/STD cast | 1989-06-28 03:40Z | 59° 30' N, 3° 0' W | Click for more |
| 405881 | CTD/STD cast | 1989-06-28 04:56Z | 59° 30' N, 2° 30' W | Click for more |
| 405893 | CTD/STD cast | 1989-06-28 06:15Z | 59° 30' N, 2° 0' W | Click for more |
| 405900 | CTD/STD cast | 1989-06-28 07:48Z | 59° 30' N, 1° 30' W | Click for more |
| 405912 | CTD/STD cast | 1989-06-28 09:21Z | 59° 30' N, 1° 0' W | Click for more |
| 405924 | CTD/STD cast | 1989-06-28 10:58Z | 59° 30' N, 0° 30' W | Click for more |
| 405936 | CTD/STD cast | 1989-06-29 03:25Z | 59° 10' N, 0° 12' E | Click for more |
| 405948 | CTD/STD cast | 1989-06-29 04:18Z | 59° 4' N, 0° 24' E | Click for more |
| 405961 | CTD/STD cast | 1989-06-29 05:09Z | 59° 0' N, 0° 36' E | Click for more |
| 405973 | CTD/STD cast | 1989-06-29 06:04Z | 58° 55' N, 0° 48' E | Click for more |
| 405985 | CTD/STD cast | 1989-06-29 06:56Z | 58° 49' N, 1° 0' E | Click for more |
| 405997 | CTD/STD cast | 1989-06-29 08:05Z | 58° 43' N, 0° 45' E | Click for more |
| 406000 | CTD/STD cast | 1989-06-29 09:21Z | 58° 37' N, 0° 30' E | Click for more |
| 406012 | CTD/STD cast | 1989-06-29 10:27Z | 58° 33' N, 0° 15' E | Click for more |
| 406024 | CTD/STD cast | 1989-06-29 11:37Z | 58° 28' N, 0° 0' W | Click for more |
| 406036 | CTD/STD cast | 1989-06-29 12:49Z | 58° 22' N, 0° 15' W | Click for more |
Project Database
No data currently held for this cruise in the BODC Project Database
