BODC Cruise Metadata Report for RRS Discovery (74E3) cruise D191
Introduction
This report collates information from the BODC cruise inventory and oceanographic databases. It presents
- Cruise Inventory Information
- A summary of BODC data holdings for the cruise from the

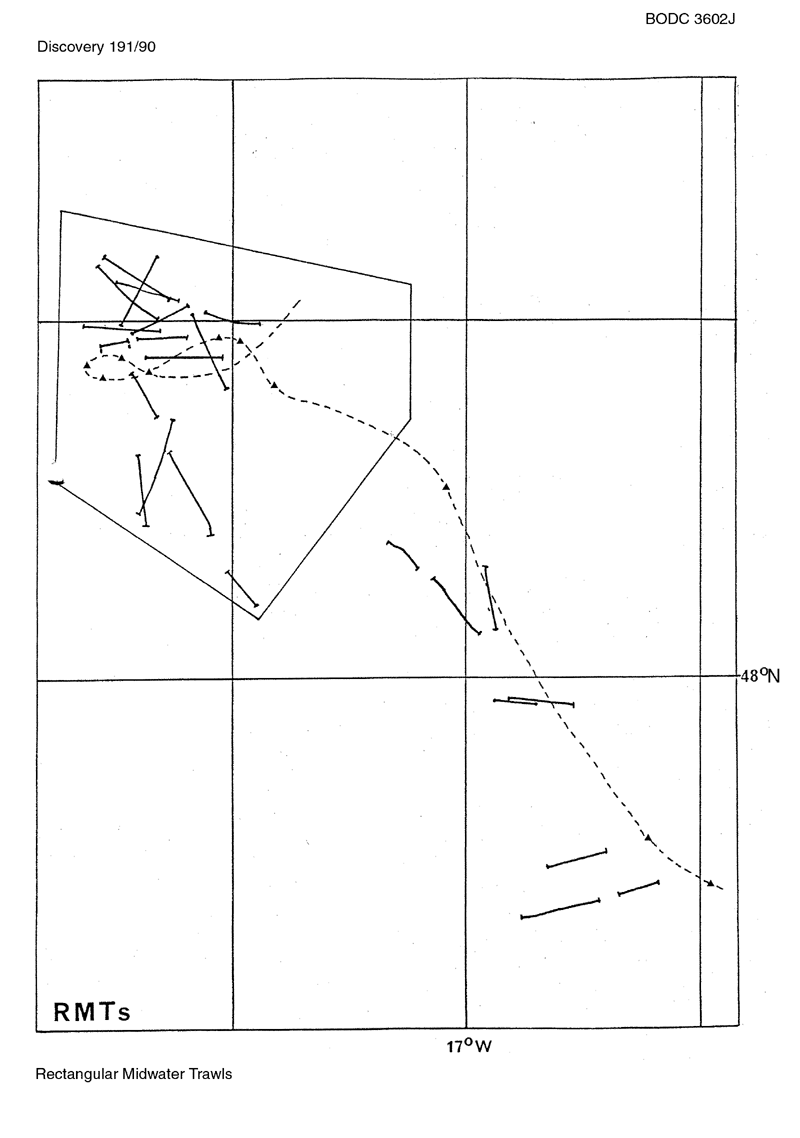

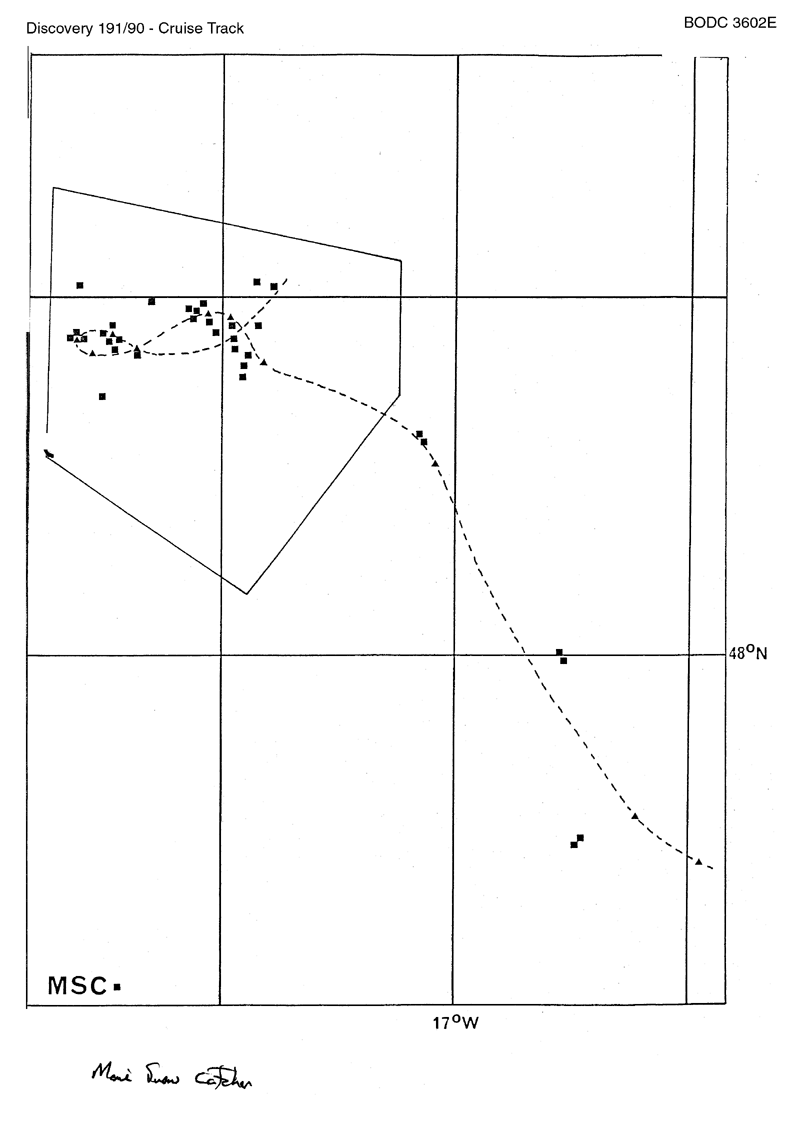

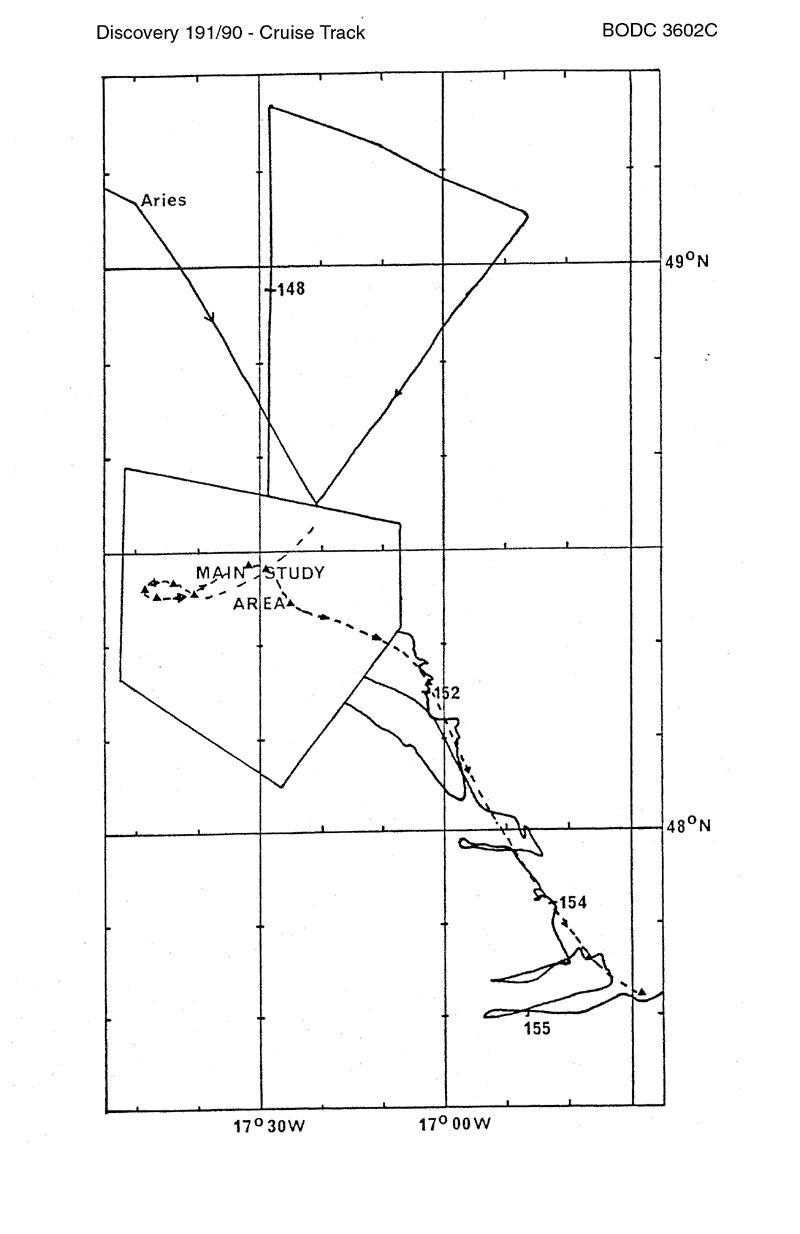

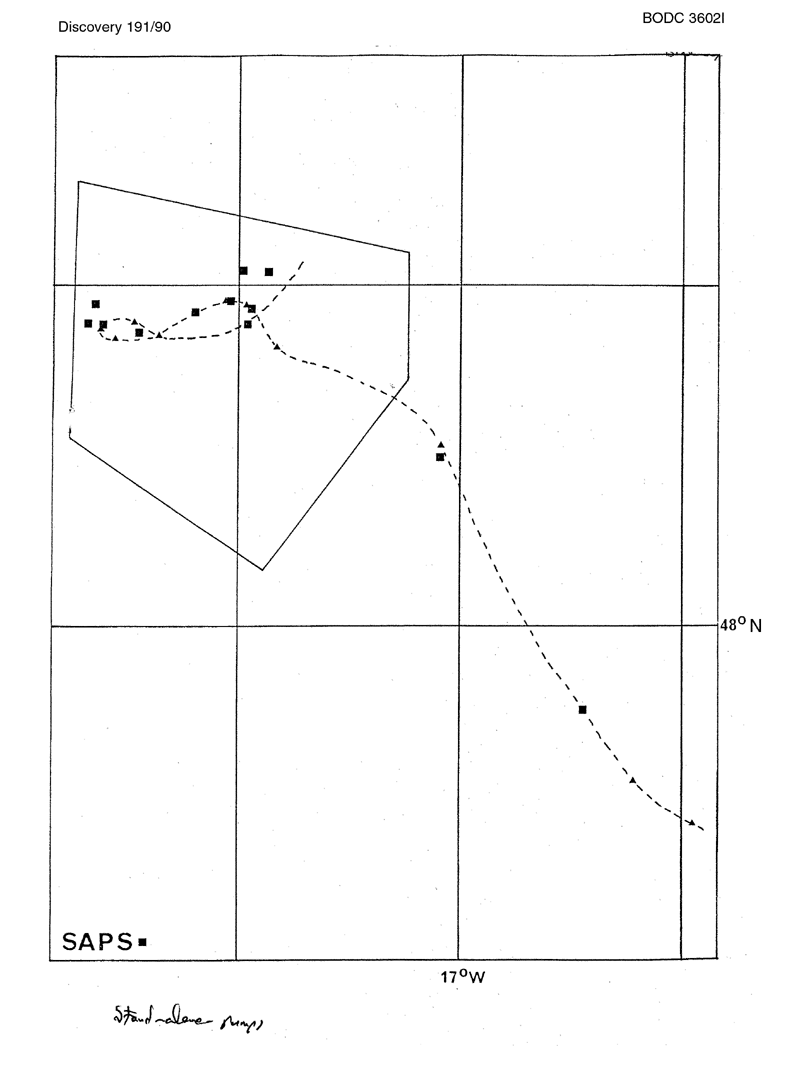

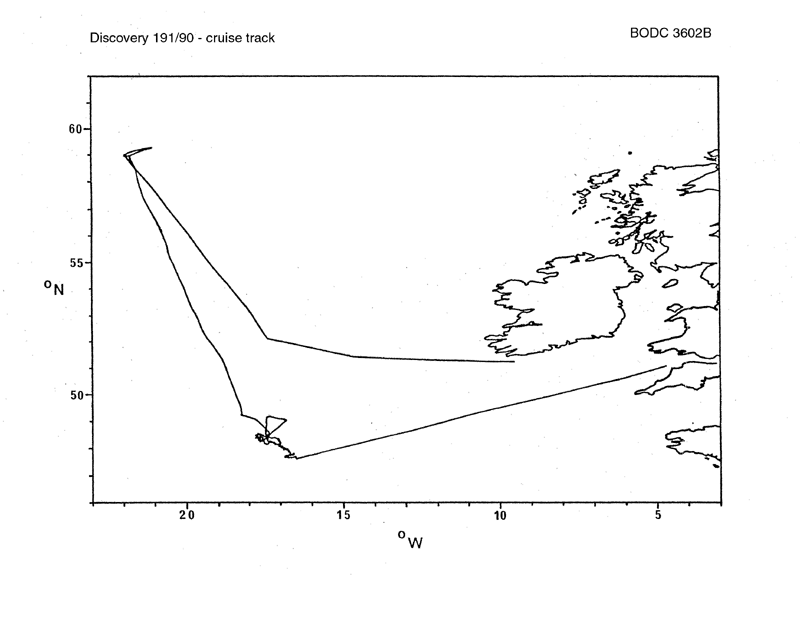

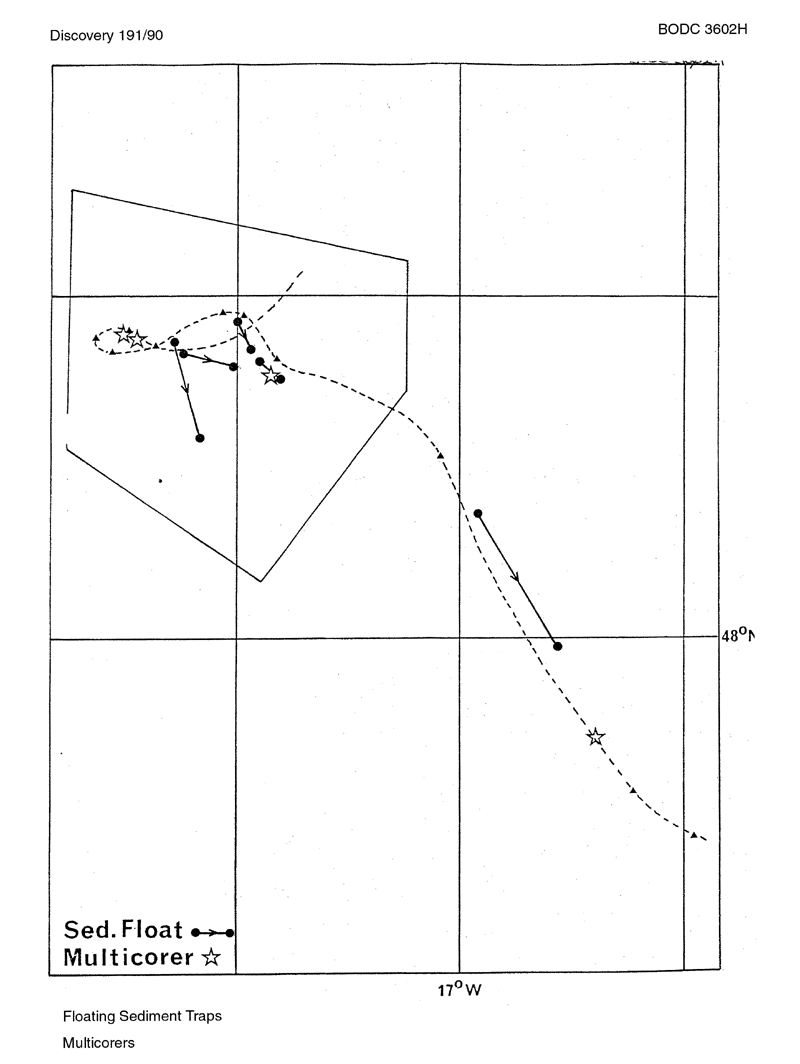

- References - including cruise tracks and cruise reports
Cruise Inventory Information
| Long name | RRS Discovery (74E3) cruise D191 |
|---|---|
| Short name | D191 |
| Objectives and Narrative |
1. To recover moorings deployed 59N 22W in 1989.
2. To participate in the BOFS Langrangian experiment by: (a) Coordinating JGOFS level 1 observations every two days between the two Darwin cruises. (b) Investigating quantitatively and qualitatively the particulate material throughout the water column, sampling it using stand-alone pumps, sediment traps, large volume water bottles and coherent light photography. (c) Sampling the pelagic communities in the top 1000m of the water column to assess their contribution to the biological pump. (d) Collecting core samples of the surficial sediment to evaluate the microbial response to increases in organic input associated with the onset of the spring bloom. (e) To maintain contact with, and service the drifting moorings deployed for the experiment. |
| Ship | RRS Discovery |
| Departure Port | Barry, United Kingdom |
| Departure Date | 1990-05-11 |
| Arrival Port | Barry, United Kingdom |
| Arrival Date | 1990-06-06 |
| Principal Scientist(s) | Martin V Angel (Institute of Oceanographic Sciences Deacon Laboratory) |
| Responsible Organisation | Institute of Oceanographic Sciences Deacon Laboratory |
| Associated Project(s) | BOFS |
| IHB Sea Areas Visited | North East Atlantic Ocean (limit 40W) |
| Marsden Squares Visited | 146;4/183;3 |
| Work Area Description | main areas 59N,22dW; 48.5N,17.5W |
| Unable to lookup cruise bounds at this time | |
| Work Area Bounding Polygon | |
| Southern Limit | unknown |
| Northern Limit | unknown |
| Western Limit | unknown |
| Eastern Limit | unknown |
Cruise Inventory Datasets
| Physical oceanography | |
|---|---|
| Bathythermograph |
Quantity:
number of profiles =
25
Description: |
| CTD stations |
Quantity:
number of profiles =
21
Description: 5 with T only |
| Transparency (eg transmissometer) |
Quantity:
number of profiles =
10
Description: |
| Water bottle stations |
Quantity:
number of profiles =
21
Description: |
| Chemical oceanography | |
| Ammonia |
Quantity:
number of profiles =
10
Description: |
| Carbon dioxide |
Quantity:
number of profiles =
10
Description: pCO2 |
| Nitrate |
Quantity:
number of profiles =
10
Description: |
| Nitrite |
Quantity:
number of profiles =
10
Description: |
| Other dissolved gases |
Quantity:
number of profiles =
10
Description: N2 and Argon |
| Oxygen |
Quantity:
number of profiles =
10
Description: |
| Phosphate |
Quantity:
number of profiles =
10
Description: |
| Silicate |
Quantity:
number of profiles =
10
Description: |
| Contamination | |
| Suspended matter |
Quantity:
number of profiles =
14
Description: marine snow camera profiles to 300m or more |
| Suspended matter |
Quantity:
number of deployments =
13
Description: Stand alone pump samples filtering large volumes of water in situ |
| Suspended matter |
Quantity:
number of samples =
29
Description: 100 litre water bottle sample to collect aggregates in top 300m |
| Biology and fisheries | |
| Benthic bacteria/micro-organisms |
Quantity:
number of cores =
4
Description: Multicorer samples for lipid analyses, bacteriological study & infauna sampling |
| Biochemical measurements (eg lipids, amino acids) |
Quantity:
number of deployments =
13
Description: Stand alone pump samples filtering large volumes of water in situ |
| Biochemical measurements (eg lipids, amino acids) |
Quantity:
number of cores =
4
Description: Multicorer samples for lipid analyses, bacteriological study & infauna sampling |
| Nekton |
Quantity:
number of hauls =
54
Description: Trawls with RMT(1+8)m to profile pelagic communities & quantify diel migration |
| Pelagic bacteria/micro-organisms |
Quantity:
number of samples =
56
Description: Range of microbiological assays from bottle samples from thro'out water column |
| Primary productivity |
Quantity:
number of experiments =
12
Description: 14C and O2 production in top 35m using deck incubations |
| Zoobenthos |
Quantity:
number of cores =
4
Description: Multicorer samples for lipid analyses, bacteriological study & infauna sampling |
| Zooplankton |
Quantity:
number of hauls =
21
Description: WP2 and Apstein nets for JGOFS protocols and experimental material |
| Zooplankton |
Quantity:
number of hauls =
54
Description: Trawls with RMT(1+8)m to profile pelagic communities & quantify diel migration |
Cruise Inventory Mooring/Buoy Operations
| Latitude | Longitude | Data type | Description |
|---|---|---|---|
| 59° 16' N | 21° 3' W | Other biological/fisheries measurement | recovered time lapse camera (depth 2879m), laid May 1989 |
| 48° 27' N | 17° 25' W | Sediment traps | deployed long-term drifting sediment traps, depths:- 176m, 591m, 1009m, 2466m |
| 48° 25' N | 17° 37' W | Sediment traps | deployed short-term (2 days) drifting sediment traps, depths:- 50,100,200,300m |
| 48° 10' N | 16° 58' W | Sediment traps | deployed short-term (2 days) drifting sediment traps, depths:- 50,100,200,300m |
| 48° 27' N | 17° 30' W | Sediment traps | deployed short-term (2 days) drifting sediment traps, depths:- 50,100,200,300m |
| 48° 24' N | 17° 28' W | Sediment traps | deployed short-term (2 days) drifting sediment traps, depths:- 50,100,200,300m |
| 48° 25' N | 17° 39' W | Sediment traps | deployed short-term (3 days) drifting sediment traps, depths:- 50,100,200,300m |
Summary of BODC Data Holdings for the Cruise
National Oceanographic Database
Summary
| # Series | Instrument Description | Parameters |
|---|---|---|
| 20 | Bottle station |
Nitrate concentration parameters in the water column Nitrite concentration parameters in the water column Phosphate concentration parameters in the water column Quality control flags Reference numbers Silicate concentration parameters in the water column Vertical spatial coordinates |
| 1 | Bottle station |
Nitrate concentration parameters in the water column Nitrite concentration parameters in the water column Quality control flags Reference numbers Silicate concentration parameters in the water column Vertical spatial coordinates |
| 3 | CTD/STD cast |
Chlorophyll pigment concentrations in water bodies Temperature of the water column Vertical spatial coordinates |
| 2 | CTD/STD cast |
Chlorophyll pigment concentrations in water bodies Density of the water column Salinity of the water column Temperature of the water column Vertical spatial coordinates Visible waveband radiance and irradiance measurements in the water column |
| 10 | CTD/STD cast |
Density of the water column Salinity of the water column Temperature of the water column Vertical spatial coordinates |
| 23 | CTD/STD cast |
Chlorophyll pigment concentrations in water bodies Density of the water column Salinity of the water column Temperature of the water column Transmittance and attenuance of the water column Vertical spatial coordinates Visible waveband radiance and irradiance measurements in the water column |
| 4 | CTD/STD cast |
Chlorophyll pigment concentrations in water bodies Density of the water column Salinity of the water column Temperature of the water column Transmittance and attenuance of the water column Vertical spatial coordinates |
| 1 | CTD/STD cast |
Chlorophyll pigment concentrations in water bodies Temperature of the water column Vertical spatial coordinates Visible waveband radiance and irradiance measurements in the water column |
| 1 | CTD/STD cast |
Chlorophyll pigment concentrations in water bodies Temperature of the water column Transmittance and attenuance of the water column Vertical spatial coordinates |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
Full List
| BODC Reference | Instrument Description | Date/Time | Location | |
|---|---|---|---|---|
| 961237 | CTD/STD cast | 1990-05-15 14:17Z | 58° 59' N, 21° 57' W | Click for more |
| 961249 | CTD/STD cast | 1990-05-16 08:16Z | 59° 0' N, 21° 55' W | Click for more |
| 961250 | CTD/STD cast | 1990-05-19 04:22Z | 48° 34' N, 17° 19' W | Click for more |
| 961262 | CTD/STD cast | 1990-05-19 05:23Z | 48° 33' N, 17° 19' W | Click for more |
| 961274 | CTD/STD cast | 1990-05-19 09:45Z | 48° 31' N, 17° 21' W | Click for more |
| 961286 | CTD/STD cast | 1990-05-19 19:24Z | 48° 31' N, 17° 25' W | Click for more |
| 961298 | CTD/STD cast | 1990-05-20 04:31Z | 48° 29' N, 17° 34' W | Click for more |
| 961305 | CTD/STD cast | 1990-05-21 01:44Z | 48° 30' N, 17° 47' W | Click for more |
| 961317 | CTD/STD cast | 1990-05-21 03:27Z | 48° 30' N, 17° 47' W | Click for more |
| 961329 | CTD/STD cast | 1990-05-21 04:18Z | 48° 30' N, 17° 48' W | Click for more |
| 961330 | CTD/STD cast | 1990-05-21 04:53Z | 48° 30' N, 17° 48' W | Click for more |
| 961342 | CTD/STD cast | 1990-05-21 05:58Z | 48° 30' N, 17° 48' W | Click for more |
| 961354 | CTD/STD cast | 1990-05-21 09:00Z | 48° 31' N, 17° 48' W | Click for more |
| 961366 | CTD/STD cast | 1990-05-22 01:42Z | 48° 28' N, 17° 51' W | Click for more |
| 961378 | CTD/STD cast | 1990-05-22 02:57Z | 48° 28' N, 17° 51' W | Click for more |
| 961391 | CTD/STD cast | 1990-05-23 00:04Z | 48° 28' N, 17° 48' W | Click for more |
| 961409 | CTD/STD cast | 1990-05-23 03:11Z | 48° 29' N, 17° 48' W | Click for more |
| 961410 | CTD/STD cast | 1990-05-23 03:57Z | 48° 29' N, 17° 48' W | Click for more |
| 961422 | CTD/STD cast | 1990-05-23 06:29Z | 48° 30' N, 17° 46' W | Click for more |
| 961434 | CTD/STD cast | 1990-05-23 09:10Z | 48° 27' N, 17° 43' W | Click for more |
| 961446 | CTD/STD cast | 1990-05-24 03:06Z | 48° 25' N, 17° 39' W | Click for more |
| 961458 | CTD/STD cast | 1990-05-25 03:43Z | 48° 27' N, 17° 34' W | Click for more |
| 961471 | CTD/STD cast | 1990-05-25 04:49Z | 48° 28' N, 17° 33' W | Click for more |
| 961483 | CTD/STD cast | 1990-05-25 06:25Z | 48° 28' N, 17° 32' W | Click for more |
| 961495 | CTD/STD cast | 1990-05-26 20:15Z | 48° 26' N, 17° 29' W | Click for more |
| 961502 | CTD/STD cast | 1990-05-27 03:34Z | 48° 26' N, 17° 30' W | Click for more |
| 961514 | CTD/STD cast | 1990-05-27 05:30Z | 48° 27' N, 17° 28' W | Click for more |
| 961526 | CTD/STD cast | 1990-05-27 06:45Z | 48° 26' N, 17° 27' W | Click for more |
| 961538 | CTD/STD cast | 1990-05-27 08:05Z | 48° 28' N, 17° 27' W | Click for more |
| 961551 | CTD/STD cast | 1990-05-28 23:20Z | 48° 25' N, 17° 28' W | Click for more |
| 961563 | CTD/STD cast | 1990-05-29 02:59Z | 48° 25' N, 17° 27' W | Click for more |
| 961575 | CTD/STD cast | 1990-05-29 06:56Z | 48° 24' N, 17° 27' W | Click for more |
| 961587 | CTD/STD cast | 1990-05-29 19:05Z | 48° 27' N, 17° 43' W | Click for more |
| 961599 | CTD/STD cast | 1990-05-30 10:31Z | 48° 21' N, 17° 28' W | Click for more |
| 961606 | CTD/STD cast | 1990-05-30 14:16Z | 48° 21' N, 17° 12' W | Click for more |
| 961618 | CTD/STD cast | 1990-05-30 19:08Z | 48° 29' N, 17° 20' W | Click for more |
| 961631 | CTD/STD cast | 1990-05-31 04:12Z | 48° 23' N, 17° 23' W | Click for more |
| 961643 | CTD/STD cast | 1990-06-01 06:38Z | 48° 16' N, 17° 3' W | Click for more |
| 961655 | CTD/STD cast | 1990-06-02 20:58Z | 47° 57' N, 16° 44' W | Click for more |
| 961667 | CTD/STD cast | 1990-06-03 03:17Z | 47° 58' N, 16° 57' W | Click for more |
| 961679 | CTD/STD cast | 1990-06-03 07:55Z | 47° 53' N, 16° 44' W | Click for more |
| 961680 | CTD/STD cast | 1990-06-04 06:57Z | 47° 43' N, 16° 33' W | Click for more |
| 961692 | CTD/STD cast | 1990-06-04 16:25Z | 47° 42' N, 16° 31' W | Click for more |
| 961711 | CTD/STD cast | 1990-06-04 16:45Z | 47° 41' N, 16° 30' W | Click for more |
| 1249401 | Bottle station | 1990-05-15 15:16Z | 58° 59' N, 21° 57' W | Click for more |
| 1249413 | Bottle station | 1990-05-16 08:40Z | 59° 0' N, 21° 55' W | Click for more |
| 1249425 | Bottle station | 1990-05-19 06:53Z | 48° 33' N, 17° 19' W | Click for more |
| 1249437 | Bottle station | 1990-05-19 10:02Z | 48° 31' N, 17° 21' W | Click for more |
| 1249449 | Bottle station | 1990-05-19 19:45Z | 48° 31' N, 17° 25' W | Click for more |
| 1249450 | Bottle station | 1990-05-21 06:14Z | 48° 30' N, 17° 48' W | Click for more |
| 1249462 | Bottle station | 1990-05-21 10:26Z | 48° 31' N, 17° 48' W | Click for more |
| 1249474 | Bottle station | 1990-05-22 03:10Z | 48° 28' N, 17° 51' W | Click for more |
| 1249486 | Bottle station | 1990-05-23 06:43Z | 48° 30' N, 17° 46' W | Click for more |
| 1249498 | Bottle station | 1990-05-25 03:48Z | 48° 27' N, 17° 34' W | Click for more |
| 1249505 | Bottle station | 1990-05-25 06:39Z | 48° 28' N, 17° 32' W | Click for more |
| 1249517 | Bottle station | 1990-05-27 07:04Z | 48° 26' N, 17° 27' W | Click for more |
| 1249529 | Bottle station | 1990-05-26 21:47Z | 48° 26' N, 17° 29' W | Click for more |
| 1249530 | Bottle station | 1990-05-29 03:08Z | 48° 25' N, 17° 27' W | Click for more |
| 1249542 | Bottle station | 1990-05-29 07:10Z | 48° 24' N, 17° 27' W | Click for more |
| 1249554 | Bottle station | 1990-05-29 19:16Z | 48° 27' N, 17° 43' W | Click for more |
| 1249566 | Bottle station | 1990-05-31 04:22Z | 48° 23' N, 17° 23' W | Click for more |
| 1249578 | Bottle station | 1990-06-01 06:53Z | 48° 16' N, 17° 3' W | Click for more |
| 1249591 | Bottle station | 1990-06-02 21:15Z | 47° 57' N, 16° 44' W | Click for more |
| 1249609 | Bottle station | 1990-06-03 03:27Z | 47° 58' N, 16° 57' W | Click for more |
| 1249610 | Bottle station | 1990-06-03 08:14Z | 47° 53' N, 16° 44' W | Click for more |
Project Database
| # Events | Gear Type | Parameters Held |
|---|---|---|
| 13 | Stand-alone pumps | |
| 47 | Expendable Bathythermograph | Temperature of the water column |
| 6 | Drifting rig with sediment traps | |
| 46 | CTD frame plus rosette sampler |
Transmittance and attenuance of the water column
Total dissolved inorganic carbon (TCO2) concentration in the water column Bacterial production in the water column Nitrite concentration parameters in the water column Particulate total and organic nitrogen concentrations in the water column Carotenoid and flavenoid pigment concentrations in water bodies Salinity of the water column Temperature of the water column Phosphate concentration parameters in the water column Dissolved oxygen parameters in the water column Concentration of alkenones and alkenoates in the water column Silicate concentration parameters in the water column Visible waveband radiance and irradiance measurements in the water column Bacteria generic abundance in water bodies Density of the water column Microzooplankton non taxonomy-related biomass expressed as carbon per unit volume of the water column Nitrate concentration parameters in the water column Phaeopigment concentrations in the water column Metadata parameters Microzooplankton generic abundance in water bodies Chlorophyll pigment concentrations in water bodies Partial pressure (pCO2) and fugacity (fCO2) of carbon dioxide in the water column Particulate total and organic carbon concentrations in the water column Primary production in the water column |
| 28 | Marine snow catcher | |
| 1 | Underwater camera system | |
| 8 | Apstein opening-closing mesh zooplankton net | |
| 5 | Multicorer | |
| 13 | Unspecified zooplankton net or nets | |
| 71 | RMT multiple zooplankton net tow |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
