BODC Cruise Metadata Report for RRS Charles Darwin (74AB) cruise CD58
Introduction
This report collates information from the BODC cruise inventory and oceanographic databases. It presents
- Cruise Inventory Information
- A summary of BODC data holdings for the cruise from the

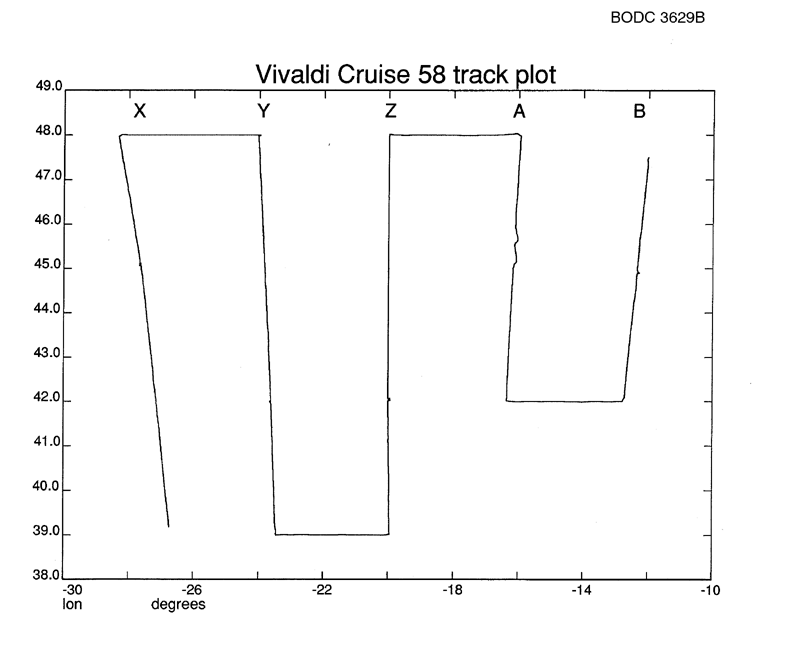

- References - including cruise tracks and cruise reports
Cruise Inventory Information
| Long name | RRS Charles Darwin (74AB) cruise CD58 |
|---|---|
| Short name | CD58 |
| Objectives and Narrative |
Instrument testing and survey of the southern half of the VIVALDI area.
The Vivaldi '91 trial combined the high spatial resolution of SeaSoar surveys with deep CTD stations spaced every 3 degrees of latitude on tracks 300km apart. These primary measurements were complemented by a shipboard acoustic Doppler current profiler, chlorofluorocarbon tracer chemistry, oxygen, nutrient and chlorophyll measurements, and mean surface meteorology. The aims of Vivaldi are to: - calculate seasonal upper ocean heat and fresh water budgets - map isopycnic potential vorticity variations from the sub-tropical gyre to the subpolar gyre - map interannual changes in the properties of water masses formed by deep convection - calculate statistics of upper ocean parameters and air sea fluxes - investigate the role of eddies. |
| Ship | RRS Charles Darwin |
| Departure Port | Barry, United Kingdom |
| Departure Date | 1991-04-25 |
| Arrival Port | Ponta Delgada, Portugal |
| Arrival Date | 1991-05-16 |
| Principal Scientist(s) | Raymond T Pollard (James Rennell Centre for Ocean Circulation) |
| Responsible Organisation | Institute of Oceanographic Sciences Deacon Laboratory, James Rennell Centre for Ocean Circulation |
| Associated Project(s) | VIVALDI UK WOCE |
| IHB Sea Areas Visited | North East Atlantic Ocean (limit 40W) |
| Marsden Squares Visited | 110;4/111;3/111;4/146;1/146;2/146;3/146;4/147;1/147;2/147;3/147;4 |
| Work Area Description | North Atlantic |
| Unable to lookup cruise bounds at this time | |
| Work Area Bounding Polygon | |
| Southern Limit | unknown |
| Northern Limit | unknown |
| Western Limit | unknown |
| Eastern Limit | unknown |
Cruise Inventory Datasets
| Physical oceanography | |
|---|---|
| CTD stations |
Quantity:
number of stations =
19
Description: |
| Current profiler (eg ADCP) |
Quantity:
track kilometres =
5660
Description: Shipborne ADCP |
| Geochemical tracers (eg freons) |
Quantity:
number of stations =
16
Description: CFC-11, CFC-12, CFC-13 |
| Optics (eg underwater light levels) |
Quantity:
track kilometres =
5660
Description: SeaSoar, downwelling PAR |
| Subsurface temperature and salinity measurements |
Quantity:
track kilometres =
5660
Description: SeaSoar |
| Surface measurements underway (T,S) |
Quantity:
track kilometres =
5660
Description: |
| Transparency (eg transmissometer) |
Quantity:
number of stations =
19
Description: |
| Chemical oceanography | |
| Alkalinity | Description: |
| Nitrate |
Quantity:
number of stations =
17
Description: |
| Nitrate |
Quantity:
track kilometres =
5660
Description: surface underway sampling from non-toxic supply at half hourly intervals |
| Oxygen |
Quantity:
number of stations =
19
Description: |
| Phosphate |
Quantity:
number of stations =
17
Description: |
| Phosphate |
Quantity:
track kilometres =
5660
Description: underway surface sampling from non-toxic supply at half hourly intervals |
| Silicate |
Quantity:
number of stations =
17
Description: |
| Silicate |
Quantity:
track kilometres =
5660
Description: surface underway sampling from non-toxic supply at half hourly intervals |
| pH | Description: |
| Biology and fisheries | |
| Pelagic bacteria/micro-organisms |
Quantity:
number of samples =
25
Description: bacteria slides prepared along 20W section |
| Phytoplankton |
Quantity:
number of samples =
15
Description: |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of samples =
17
Description: samples |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of samples =
19
Description: |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
track kilometres =
5660
Description: SeaSoar with Aquatrak fluorometer |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
track kilometres =
5660
Description: surface underway |
| Zooplankton |
Quantity:
number of hauls =
19
Description: 55cm zooplankton net lowered to 100m after each CTD |
| Meteorology | |
| Incident radiation |
Quantity:
track kilometres =
5660
Description: surface underway PAR |
| Routine standard measurements |
Quantity:
track kilometres =
5660
Description: Underway Met. |
| Geology and geophysics | |
| Single-beam echosounding |
Quantity:
track kilometres =
5660
Description: Simrad echosounder |
Cruise Inventory Mooring/Buoy Operations
No information on datasets is currently available
Summary of BODC Data Holdings for the Cruise
National Oceanographic Database
Summary
| # Series | Instrument Description | Parameters |
|---|---|---|
| 16 | Bottle station |
Nitrate concentration parameters in the water column Phosphate concentration parameters in the water column Quality control flags Reference numbers Silicate concentration parameters in the water column Vertical spatial coordinates |
| 1 | Bottle station |
Nitrate concentration parameters in the water column Quality control flags Reference numbers Silicate concentration parameters in the water column Vertical spatial coordinates |
| 16 | Bottle station |
Chlorophyll pigment concentrations in water bodies Phaeopigment concentrations in the water column Quality control flags Reference numbers Vertical spatial coordinates |
| 17 | Bottle station |
Dissolved oxygen parameters in the water column Quality control flags Reference numbers Vertical spatial coordinates |
| 17 | CTD/STD cast |
Chlorophyll pigment concentrations in water bodies Density of the water column Salinity of the water column Temperature of the water column Transmittance and attenuance of the water column Vertical spatial coordinates |
| 1 | Pumped water sample |
Date and time Horizontal spatial co-ordinates Nitrate concentration parameters in the water column Phosphate concentration parameters in the water column Silicate concentration parameters in the water column |
| 1 | Pumped water sample |
Chlorophyll pigment concentrations in water bodies Date and time Horizontal spatial co-ordinates Phaeopigment concentrations in the water column |
| 1 | Single-beam echosounder |
Bathymetry and Elevation Date and time Horizontal spatial co-ordinates |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
Full List
| BODC Reference | Instrument Description | Date/Time | Location | |
|---|---|---|---|---|
| 582201 | Single-beam echosounder | 1991-04-26 02:42Z to 1991-05-16 04:58Z | 37° 53' N to 49° 23' N; 28° 20' W to 8° 9' W | Click for more |
| 971508 | CTD/STD cast | 1991-04-27 03:14Z | 47° 30' N, 12° 0' W | Click for more |
| 971521 | CTD/STD cast | 1991-04-28 04:10Z | 44° 53' N, 12° 16' W | Click for more |
| 971533 | CTD/STD cast | 1991-04-29 06:36Z | 42° 0' N, 12° 45' W | Click for more |
| 971545 | CTD/STD cast | 1991-04-30 03:06Z | 41° 58' N, 16° 22' W | Click for more |
| 971557 | CTD/STD cast | 1991-05-01 06:55Z | 44° 59' N, 16° 11' W | Click for more |
| 971569 | CTD/STD cast | 1991-05-02 08:47Z | 48° 1' N, 15° 59' W | Click for more |
| 971570 | CTD/STD cast | 1991-05-03 09:27Z | 48° 0' N, 20° 0' W | Click for more |
| 971582 | CTD/STD cast | 1991-05-04 13:20Z | 44° 59' N, 20° 0' W | Click for more |
| 971594 | CTD/STD cast | 1991-05-05 16:17Z | 42° 1' N, 19° 56' W | Click for more |
| 971601 | CTD/STD cast | 1991-05-06 18:53Z | 39° 0' N, 19° 57' W | Click for more |
| 971613 | CTD/STD cast | 1991-05-07 19:25Z | 38° 59' N, 23° 28' W | Click for more |
| 971625 | CTD/STD cast | 1991-05-08 21:25Z | 42° 1' N, 23° 37' W | Click for more |
| 971637 | CTD/STD cast | 1991-05-10 00:39Z | 44° 59' N, 23° 48' W | Click for more |
| 971649 | CTD/STD cast | 1991-05-11 02:31Z | 48° 0' N, 24° 1' W | Click for more |
| 971650 | CTD/STD cast | 1991-05-13 11:15Z | 45° 5' N, 27° 38' W | Click for more |
| 971662 | CTD/STD cast | 1991-05-14 13:31Z | 41° 58' N, 27° 6' W | Click for more |
| 971674 | CTD/STD cast | 1991-05-15 14:13Z | 39° 10' N, 26° 43' W | Click for more |
| 1260088 | Bottle station | 1991-04-27 05:13Z | 47° 30' N, 12° 0' W | Click for more |
| 1260107 | Bottle station | 1991-04-28 05:37Z | 44° 53' N, 12° 16' W | Click for more |
| 1260119 | Bottle station | 1991-04-29 08:54Z | 42° 0' N, 12° 45' W | Click for more |
| 1260120 | Bottle station | 1991-04-30 05:20Z | 41° 58' N, 16° 22' W | Click for more |
| 1260132 | Bottle station | 1991-05-01 08:50Z | 44° 59' N, 16° 11' W | Click for more |
| 1260144 | Bottle station | 1991-05-02 11:02Z | 48° 1' N, 15° 59' W | Click for more |
| 1260156 | Bottle station | 1991-05-03 11:07Z | 48° 0' N, 20° 0' W | Click for more |
| 1260168 | Bottle station | 1991-05-04 14:56Z | 44° 59' N, 20° 0' W | Click for more |
| 1260181 | Bottle station | 1991-05-05 17:16Z | 42° 1' N, 19° 56' W | Click for more |
| 1260193 | Bottle station | 1991-05-06 20:33Z | 39° 0' N, 19° 57' W | Click for more |
| 1260200 | Bottle station | 1991-05-07 20:45Z | 38° 59' N, 23° 28' W | Click for more |
| 1260212 | Bottle station | 1991-05-08 22:41Z | 42° 1' N, 23° 37' W | Click for more |
| 1260224 | Bottle station | 1991-05-10 01:45Z | 44° 59' N, 23° 48' W | Click for more |
| 1260236 | Bottle station | 1991-05-11 03:55Z | 48° 0' N, 24° 1' W | Click for more |
| 1260248 | Bottle station | 1991-05-13 12:08Z | 45° 5' N, 27° 38' W | Click for more |
| 1260261 | Bottle station | 1991-05-14 14:34Z | 41° 58' N, 27° 6' W | Click for more |
| 1260273 | Bottle station | 1991-05-15 15:01Z | 39° 10' N, 26° 43' W | Click for more |
| 1359967 | Pumped water sample | 1991-04-27 09:30Z to 1991-05-12 23:30Z | 38° 57' N to 48° 36' N; 28° 20' W to 9° 23' W | Click for more |
| 1668716 | Bottle station | 1991-04-28 05:37Z | 44° 53' N, 12° 16' W | Click for more |
| 1668728 | Bottle station | 1991-04-29 08:54Z | 42° 0' N, 12° 45' W | Click for more |
| 1668741 | Bottle station | 1991-04-30 05:20Z | 41° 58' N, 16° 22' W | Click for more |
| 1668753 | Bottle station | 1991-05-01 08:50Z | 44° 59' N, 16° 11' W | Click for more |
| 1668765 | Bottle station | 1991-05-02 11:02Z | 48° 1' N, 15° 59' W | Click for more |
| 1668777 | Bottle station | 1991-05-03 11:07Z | 48° 0' N, 20° 0' W | Click for more |
| 1668789 | Bottle station | 1991-05-04 14:56Z | 44° 59' N, 20° 0' W | Click for more |
| 1668790 | Bottle station | 1991-05-05 17:16Z | 42° 1' N, 19° 56' W | Click for more |
| 1668808 | Bottle station | 1991-05-06 20:33Z | 39° 0' N, 19° 57' W | Click for more |
| 1668821 | Bottle station | 1991-05-07 20:45Z | 38° 59' N, 23° 28' W | Click for more |
| 1668833 | Bottle station | 1991-05-08 22:41Z | 42° 1' N, 23° 37' W | Click for more |
| 1668845 | Bottle station | 1991-05-10 01:45Z | 44° 59' N, 23° 48' W | Click for more |
| 1668857 | Bottle station | 1991-05-11 03:55Z | 48° 0' N, 24° 1' W | Click for more |
| 1668869 | Bottle station | 1991-05-13 12:08Z | 45° 5' N, 27° 38' W | Click for more |
| 1668870 | Bottle station | 1991-05-14 14:34Z | 41° 58' N, 27° 6' W | Click for more |
| 1668882 | Bottle station | 1991-05-15 15:01Z | 39° 10' N, 26° 43' W | Click for more |
| 1676231 | Pumped water sample | 1991-04-27 17:05Z to 1991-05-15 12:39Z | 38° 57' N to 48° 36' N; 28° 20' W to 9° 23' W | Click for more |
| 1849769 | Bottle station | 1991-04-27 05:13Z | 47° 30' N, 12° 0' W | Click for more |
| 1849770 | Bottle station | 1991-04-28 05:37Z | 44° 53' N, 12° 16' W | Click for more |
| 1849782 | Bottle station | 1991-04-29 08:54Z | 42° 0' N, 12° 45' W | Click for more |
| 1849794 | Bottle station | 1991-04-30 05:20Z | 41° 58' N, 16° 22' W | Click for more |
| 1849801 | Bottle station | 1991-05-01 08:50Z | 44° 59' N, 16° 11' W | Click for more |
| 1849813 | Bottle station | 1991-05-02 11:02Z | 48° 1' N, 15° 59' W | Click for more |
| 1849825 | Bottle station | 1991-05-03 11:07Z | 48° 0' N, 20° 0' W | Click for more |
| 1849837 | Bottle station | 1991-05-04 14:56Z | 44° 59' N, 20° 0' W | Click for more |
| 1849849 | Bottle station | 1991-05-05 17:16Z | 42° 1' N, 19° 56' W | Click for more |
| 1849850 | Bottle station | 1991-05-06 20:33Z | 39° 0' N, 19° 57' W | Click for more |
| 1849862 | Bottle station | 1991-05-07 20:45Z | 38° 59' N, 23° 28' W | Click for more |
| 1849874 | Bottle station | 1991-05-08 22:41Z | 42° 1' N, 23° 37' W | Click for more |
| 1849886 | Bottle station | 1991-05-10 01:45Z | 44° 59' N, 23° 48' W | Click for more |
| 1849898 | Bottle station | 1991-05-11 03:55Z | 48° 0' N, 24° 1' W | Click for more |
| 1849905 | Bottle station | 1991-05-13 12:08Z | 45° 5' N, 27° 38' W | Click for more |
| 1849917 | Bottle station | 1991-05-14 14:34Z | 41° 58' N, 27° 6' W | Click for more |
| 1849929 | Bottle station | 1991-05-15 15:01Z | 39° 10' N, 26° 43' W | Click for more |
Project Database
| # Events | Gear Type | Parameters Held |
|---|---|---|
| 1262 | SeaSoar profile from gridded data |
Temperature of the water column
Salinity of the water column Visible waveband radiance and irradiance measurements in the water column Density of the water column Chlorophyll pigment concentrations in water bodies |
| 2197 | Sample taken from ship's non-toxic supply |
Total dissolved inorganic carbon (TCO2) concentration in the water column
Phosphate concentration parameters in the water column Salinity of the water column Silicate concentration parameters in the water column Density of the water column Nitrate concentration parameters in the water column Phaeopigment concentrations in the water column Alkalinity, acidity and pH of the water column Partial pressure (pCO2) and fugacity (fCO2) of carbon dioxide in the water column Chlorophyll pigment concentrations in water bodies |
| 1788 | Shipborne Acoustic Doppler Current Profile | |
| 18 | Unspecified zooplankton net or nets | |
| 17 | CTD frame plus rosette sampler |
Transmittance and attenuance of the water column
Phosphate concentration parameters in the water column Dissolved oxygen parameters in the water column Temperature of the water column Salinity of the water column Silicate concentration parameters in the water column Density of the water column Nitrate concentration parameters in the water column Phaeopigment concentrations in the water column Chlorofluorocarbon concentrations in the water column Chlorophyll pigment concentrations in water bodies Alkalinity, acidity and pH of the water column |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
