BODC Cruise Metadata Report for RRS Challenger (74CH) cruise CH114
Introduction
This report collates information from the BODC cruise inventory and oceanographic databases. It presents
- Cruise Inventory Information
- A summary of BODC data holdings for the cruise from the

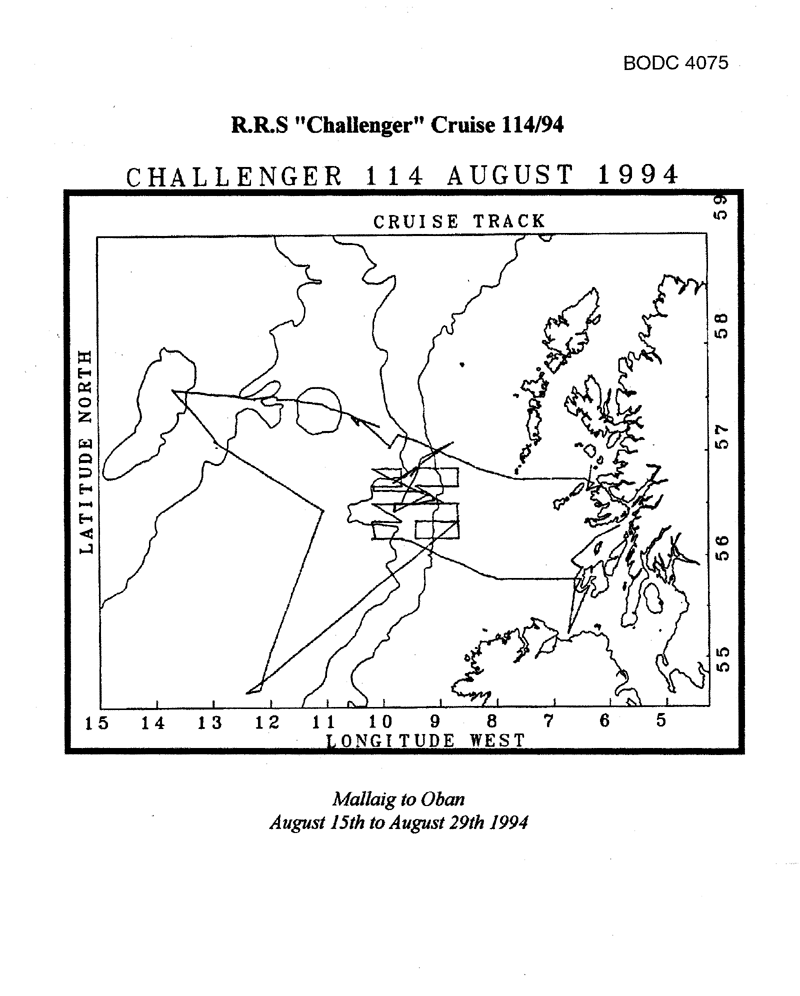

- References - including cruise tracks and cruise reports
Cruise Inventory Information
| Long name | RRS Challenger (74CH) cruise CH114 |
|---|---|
| Short name | CH114 |
| Objectives and Narrative |
1. To work the CTD stations of the Anton Dohrn Seamount (Ellett Line) section, between the shelf-edge and Rockall to continue the Rockall Trough time-series as a UK contribution to WOCE Goal 2.
2. To recover and possibly redeploy a temperature-salinity recorder and thermistor chain at station M of the Anton Dohrn section. 3. To service the DML current meter mooring in the Tiree Passage. 4. To obtain 137Cs, 234Th and 210Pb samples at CTD stations in the Sea of Hebrides for the DML/SURRC LOIS Special Topic. 5. To sample benthos at the SMBA Permanent Station (54º 40'N, 12º 16'W) using the epibenthic sled. 6. To collect a suite of physical, nutrient and biological profiles and samples, including coring, at the shelf-edge. 7. To obtain sulphate reduction and oxygen uptake measurements on multiple corer samples taken across the shelf edge on the LOIS line. 8. To sample benthos using the epibenthic sled on the 2500m contour and also at Station M and on the slope as time and weather permit. 9. To test the Strathclyde University multi-parameter instrument. 10. To collect samples for the EC MAST II Genetic variations in deep sea populations project. |
| Ship | RRS Challenger |
| Departure Port | Mallaig, United Kingdom |
| Departure Date | 1994-08-15 |
| Arrival Port | Oban, United Kingdom |
| Arrival Date | 1994-08-29 |
| Principal Scientist(s) | Joseph M Graham (Dunstaffnage Marine Laboratory) |
| Responsible Organisation | Dunstaffnage Marine Laboratory |
| Associated Project(s) | WOCE/LOIS-SES |
| IHB Sea Areas Visited | Inner Seas off the West Coast of Scotland, North East Atlantic Ocean (limit 40W) |
| Marsden Squares Visited | 181;4/182;3 |
| Work Area Description | NE Atlantic, cont. Shelf, Rockall Trough, LOIS Box, 5610N;840W-5650N;1010W |
| Unable to lookup cruise bounds at this time | |
| Work Area Bounding Polygon | |
| Southern Limit | unknown |
| Northern Limit | unknown |
| Western Limit | unknown |
| Eastern Limit | unknown |
Cruise Inventory Datasets
| Physical oceanography | |
|---|---|
| CTD stations |
Quantity:
number of profiles =
106
Description: |
| Current meters |
Quantity:
number of stations =
1
Description: 2 current meters serviced on one mooring |
| Chemical oceanography | |
| Ammonia |
Quantity:
number of stations =
70
Description: |
| Isotopes |
Quantity:
number of samples =
7
Description: surface water samples for 137Cs and 234Th |
| Isotopes |
Quantity:
number of profiles =
5
Description: mid and bottom water samples for 137Cs and 234Th |
| Isotopes |
Quantity:
number of cores =
2
Description: 210Pb |
| Nitrate |
Quantity:
number of stations =
70
Description: |
| Other chemical oceanographic measurements |
Quantity:
number of cores =
5
Description: sediment samples for sulphate reduction |
| Oxygen |
Quantity:
number of profiles =
106
Description: CTD sensor Received, ICES, but rejected |
| Silicate |
Quantity:
number of stations =
70
Description: |
| Biology and fisheries | |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of profiles =
106
Description: CTD sensor |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of stations =
70
Description: Extracted chlorophyll on water samples |
| Zoobenthos |
Quantity:
number of hauls =
3
Description: epibenthic sledge |
| Geology and geophysics | |
| Core - soft bottom |
Quantity:
number of deployments =
5
Description: multicorer |
| Core - soft bottom |
Quantity:
number of cores =
2
Description: using Sholkovich corer |
Cruise Inventory Mooring/Buoy Operations
| Latitude | Longitude | Data type | Description |
|---|---|---|---|
| 56° 37' N | 6° 24' W | Current meters | Mooring serv.150894, 2 current meters (23m, 33m), 48m sounding |
| 56° 16' N | 10° 25' W | Subsurface temperature measurements | Rec. 170894;thermistor chain,c,t,p logger at 500m/2220m sounding |
Summary of BODC Data Holdings for the Cruise
National Oceanographic Database
Summary
| # Series | Instrument Description | Parameters |
|---|---|---|
| 105 | CTD/STD cast |
Dissolved oxygen parameters in the water column Salinity of the water column Temperature of the water column Vertical spatial coordinates |
| 1 | Paddle wheel current meter |
Date and time Horizontal velocity of the water column (currents) Temperature of the water column |
| 1 | Paddle wheel current meter |
Date and time Horizontal velocity of the water column (currents) Salinity of the water column Temperature of the water column |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
Full List
| BODC Reference | Instrument Description | Date/Time | Location | |
|---|---|---|---|---|
| 390677 | CTD/STD cast | 1994-08-15 15:54Z | 56° 40' N, 6° 7' W | Click for more |
| 390689 | CTD/STD cast | 1994-08-15 20:19Z | 56° 40' N, 6° 16' W | Click for more |
| 390690 | CTD/STD cast | 1994-08-15 21:20Z | 56° 43' N, 6° 27' W | Click for more |
| 390708 | CTD/STD cast | 1994-08-15 23:55Z | 56° 43' N, 6° 44' W | Click for more |
| 390733 | CTD/STD cast | 1994-08-16 04:22Z | 56° 43' N, 7° 19' W | Click for more |
| 390745 | CTD/STD cast | 1994-08-16 05:20Z | 56° 43' N, 7° 30' W | Click for more |
| 390757 | CTD/STD cast | 1994-08-16 08:13Z | 56° 43' N, 7° 40' W | Click for more |
| 390769 | CTD/STD cast | 1994-08-16 09:36Z | 56° 46' N, 8° 0' W | Click for more |
| 390770 | CTD/STD cast | 1994-08-16 11:36Z | 56° 50' N, 8° 19' W | Click for more |
| 390782 | CTD/STD cast | 1994-08-16 12:51Z | 56° 50' N, 8° 19' W | Click for more |
| 390794 | CTD/STD cast | 1994-08-16 15:22Z | 56° 56' N, 8° 46' W | Click for more |
| 390801 | CTD/STD cast | 1994-08-16 16:34Z | 56° 59' N, 8° 58' W | Click for more |
| 390813 | CTD/STD cast | 1994-08-16 17:41Z | 57° 1' N, 9° 6' W | Click for more |
| 390825 | CTD/STD cast | 1994-08-16 18:26Z | 57° 3' N, 9° 13' W | Click for more |
| 390837 | CTD/STD cast | 1994-08-16 20:15Z | 57° 4' N, 9° 19' W | Click for more |
| 390849 | CTD/STD cast | 1994-08-16 21:19Z | 57° 6' N, 9° 25' W | Click for more |
| 390850 | CTD/STD cast | 1994-08-17 01:12Z | 57° 7' N, 9° 33' W | Click for more |
| 390862 | CTD/STD cast | 1994-08-17 03:10Z | 57° 9' N, 9° 42' W | Click for more |
| 390874 | CTD/STD cast | 1994-08-17 21:10Z | 57° 18' N, 10° 22' W | Click for more |
| 390886 | CTD/STD cast | 1994-08-18 02:24Z | 57° 13' N, 10° 3' W | Click for more |
| 390898 | CTD/STD cast | 1994-08-18 06:16Z | 57° 22' N, 10° 40' W | Click for more |
| 390905 | CTD/STD cast | 1994-08-18 10:17Z | 57° 24' N, 10° 52' W | Click for more |
| 390917 | CTD/STD cast | 1994-08-18 11:50Z | 57° 27' N, 11° 4' W | Click for more |
| 390929 | CTD/STD cast | 1994-08-18 14:34Z | 57° 28' N, 11° 18' W | Click for more |
| 390930 | CTD/STD cast | 1994-08-18 16:05Z | 57° 28' N, 11° 31' W | Click for more |
| 390942 | CTD/STD cast | 1994-08-18 20:59Z | 57° 29' N, 11° 51' W | Click for more |
| 390954 | CTD/STD cast | 1994-08-19 00:17Z | 57° 30' N, 12° 14' W | Click for more |
| 390966 | CTD/STD cast | 1994-08-19 05:47Z | 57° 31' N, 12° 37' W | Click for more |
| 390978 | CTD/STD cast | 1994-08-19 08:06Z | 57° 32' N, 12° 52' W | Click for more |
| 390991 | CTD/STD cast | 1994-08-19 10:21Z | 57° 33' N, 13° 0' W | Click for more |
| 391005 | CTD/STD cast | 1994-08-19 12:29Z | 57° 34' N, 13° 19' W | Click for more |
| 391017 | CTD/STD cast | 1994-08-19 14:58Z | 57° 34' N, 13° 37' W | Click for more |
| 391029 | CTD/STD cast | 1994-08-19 19:40Z | 57° 6' N, 12° 55' W | Click for more |
| 391030 | CTD/STD cast | 1994-08-20 00:30Z | 56° 46' N, 12° 3' W | Click for more |
| 391042 | CTD/STD cast | 1994-08-20 06:14Z | 56° 25' N, 11° 3' W | Click for more |
| 391054 | CTD/STD cast | 1994-08-21 16:54Z | 56° 19' N, 8° 40' W | Click for more |
| 391066 | CTD/STD cast | 1994-08-21 19:07Z | 56° 19' N, 9° 4' W | Click for more |
| 391078 | CTD/STD cast | 1994-08-21 19:45Z | 56° 19' N, 9° 10' W | Click for more |
| 391091 | CTD/STD cast | 1994-08-21 20:55Z | 56° 19' N, 9° 15' W | Click for more |
| 391109 | CTD/STD cast | 1994-08-21 21:42Z | 56° 19' N, 9° 19' W | Click for more |
| 391110 | CTD/STD cast | 1994-08-21 22:48Z | 56° 19' N, 9° 25' W | Click for more |
| 391122 | CTD/STD cast | 1994-08-22 00:19Z | 56° 10' N, 9° 25' W | Click for more |
| 391134 | CTD/STD cast | 1994-08-22 02:40Z | 56° 10' N, 9° 10' W | Click for more |
| 391146 | CTD/STD cast | 1994-08-22 04:34Z | 56° 10' N, 8° 40' W | Click for more |
| 391158 | CTD/STD cast | 1994-08-22 07:03Z | 56° 30' N, 8° 40' W | Click for more |
| 391171 | CTD/STD cast | 1994-08-22 09:07Z | 56° 30' N, 9° 10' W | Click for more |
| 391183 | CTD/STD cast | 1994-08-22 12:00Z | 56° 30' N, 9° 25' W | Click for more |
| 391195 | CTD/STD cast | 1994-08-22 16:04Z | 56° 33' N, 9° 6' W | Click for more |
| 391202 | CTD/STD cast | 1994-08-22 18:36Z | 56° 40' N, 9° 25' W | Click for more |
| 391214 | CTD/STD cast | 1994-08-22 20:11Z | 56° 40' N, 9° 10' W | Click for more |
| 391226 | CTD/STD cast | 1994-08-22 23:37Z | 56° 40' N, 8° 40' W | Click for more |
| 391238 | CTD/STD cast | 1994-08-23 01:18Z | 56° 49' N, 8° 40' W | Click for more |
| 391251 | CTD/STD cast | 1994-08-23 04:40Z | 56° 49' N, 9° 10' W | Click for more |
| 391263 | CTD/STD cast | 1994-08-23 05:56Z | 56° 49' N, 9° 25' W | Click for more |
| 391275 | CTD/STD cast | 1994-08-23 08:30Z | 56° 42' N, 9° 48' W | Click for more |
| 391287 | CTD/STD cast | 1994-08-23 10:07Z | 56° 45' N, 9° 40' W | Click for more |
| 391299 | CTD/STD cast | 1994-08-23 11:13Z | 56° 47' N, 9° 31' W | Click for more |
| 391306 | CTD/STD cast | 1994-08-23 12:20Z | 56° 51' N, 9° 23' W | Click for more |
| 391318 | CTD/STD cast | 1994-08-23 16:50Z | 56° 46' N, 9° 29' W | Click for more |
| 391331 | CTD/STD cast | 1994-08-23 19:04Z | 56° 54' N, 9° 16' W | Click for more |
| 391343 | CTD/STD cast | 1994-08-23 19:35Z | 56° 54' N, 9° 13' W | Click for more |
| 391355 | CTD/STD cast | 1994-08-23 20:06Z | 56° 55' N, 9° 12' W | Click for more |
| 391367 | CTD/STD cast | 1994-08-23 20:38Z | 56° 56' N, 9° 10' W | Click for more |
| 391379 | CTD/STD cast | 1994-08-23 21:12Z | 56° 57' N, 9° 7' W | Click for more |
| 391380 | CTD/STD cast | 1994-08-23 21:48Z | 56° 57' N, 9° 7' W | Click for more |
| 391392 | CTD/STD cast | 1994-08-23 22:18Z | 56° 58' N, 9° 4' W | Click for more |
| 391411 | CTD/STD cast | 1994-08-23 22:46Z | 56° 59' N, 9° 1' W | Click for more |
| 391423 | CTD/STD cast | 1994-08-23 23:18Z | 57° 0' N, 9° 0' W | Click for more |
| 391435 | CTD/STD cast | 1994-08-24 00:14Z | 57° 2' N, 8° 52' W | Click for more |
| 391447 | CTD/STD cast | 1994-08-24 01:12Z | 57° 4' N, 8° 45' W | Click for more |
| 391459 | CTD/STD cast | 1994-08-24 14:46Z | 56° 34' N, 9° 12' W | Click for more |
| 391460 | CTD/STD cast | 1994-08-24 20:21Z | 56° 49' N, 10° 10' W | Click for more |
| 391472 | CTD/STD cast | 1994-08-24 23:27Z | 56° 49' N, 9° 40' W | Click for more |
| 391484 | CTD/STD cast | 1994-08-25 04:03Z | 56° 40' N, 9° 40' W | Click for more |
| 391496 | CTD/STD cast | 1994-08-25 06:56Z | 56° 40' N, 10° 10' W | Click for more |
| 391503 | CTD/STD cast | 1994-08-25 15:16Z | 56° 37' N, 9° 15' W | Click for more |
| 391515 | CTD/STD cast | 1994-08-25 17:19Z | 56° 30' N, 8° 55' W | Click for more |
| 391527 | CTD/STD cast | 1994-08-25 18:14Z | 56° 30' N, 9° 0' W | Click for more |
| 391539 | CTD/STD cast | 1994-08-25 18:46Z | 56° 30' N, 9° 4' W | Click for more |
| 391540 | CTD/STD cast | 1994-08-25 20:13Z | 56° 30' N, 9° 10' W | Click for more |
| 391552 | CTD/STD cast | 1994-08-25 20:59Z | 56° 30' N, 9° 15' W | Click for more |
| 391564 | CTD/STD cast | 1994-08-25 22:47Z | 56° 30' N, 9° 19' W | Click for more |
| 391576 | CTD/STD cast | 1994-08-26 00:09Z | 56° 29' N, 9° 24' W | Click for more |
| 391588 | CTD/STD cast | 1994-08-26 04:03Z | 56° 30' N, 9° 40' W | Click for more |
| 391607 | CTD/STD cast | 1994-08-26 07:19Z | 56° 30' N, 10° 10' W | Click for more |
| 391619 | CTD/STD cast | 1994-08-26 12:07Z | 56° 19' N, 9° 39' W | Click for more |
| 391620 | CTD/STD cast | 1994-08-26 15:17Z | 56° 19' N, 10° 10' W | Click for more |
| 391632 | CTD/STD cast | 1994-08-26 20:06Z | 56° 10' N, 10° 10' W | Click for more |
| 391644 | CTD/STD cast | 1994-08-26 23:18Z | 56° 9' N, 9° 39' W | Click for more |
| 391656 | CTD/STD cast | 1994-08-27 07:42Z | 55° 46' N, 8° 0' W | Click for more |
| 391668 | CTD/STD cast | 1994-08-27 09:06Z | 55° 46' N, 7° 41' W | Click for more |
| 391681 | CTD/STD cast | 1994-08-27 10:05Z | 55° 46' N, 7° 28' W | Click for more |
| 391693 | CTD/STD cast | 1994-08-27 10:59Z | 55° 46' N, 7° 16' W | Click for more |
| 391700 | CTD/STD cast | 1994-08-27 11:56Z | 55° 46' N, 7° 4' W | Click for more |
| 391712 | CTD/STD cast | 1994-08-27 12:40Z | 55° 46' N, 6° 55' W | Click for more |
| 391724 | CTD/STD cast | 1994-08-27 13:31Z | 55° 45' N, 6° 46' W | Click for more |
| 391736 | CTD/STD cast | 1994-08-27 14:21Z | 55° 45' N, 6° 37' W | Click for more |
| 391748 | CTD/STD cast | 1994-08-27 15:04Z | 55° 46' N, 6° 30' W | Click for more |
| 391761 | CTD/STD cast | 1994-08-27 17:22Z | 55° 42' N, 6° 22' W | Click for more |
| 391773 | CTD/STD cast | 1994-08-27 18:03Z | 55° 37' N, 6° 25' W | Click for more |
| 391785 | CTD/STD cast | 1994-08-27 19:03Z | 55° 33' N, 6° 30' W | Click for more |
| 391797 | CTD/STD cast | 1994-08-27 19:51Z | 55° 28' N, 6° 33' W | Click for more |
| 391804 | CTD/STD cast | 1994-08-27 20:46Z | 55° 23' N, 6° 37' W | Click for more |
| 391816 | CTD/STD cast | 1994-08-27 21:35Z | 55° 18' N, 6° 41' W | Click for more |
| 391828 | CTD/STD cast | 1994-08-27 22:22Z | 55° 13' N, 6° 45' W | Click for more |
| 508032 | Paddle wheel current meter | 1994-08-15 21:15Z to 1994-11-28 07:45Z | 56° 37' N, 6° 24' W | Click for more |
| 508204 | Paddle wheel current meter | 1994-08-15 21:15Z to 1994-11-28 07:45Z | 56° 37' N, 6° 24' W | Click for more |
Project Database
No data currently held for this cruise in the BODC Project Database
