BODC Cruise Metadata Report for RRS Charles Darwin (74AB) cruise CD84
Introduction
This report collates information from the BODC cruise inventory and oceanographic databases. It presents
- Cruise Inventory Information
- A summary of BODC data holdings for the cruise from the

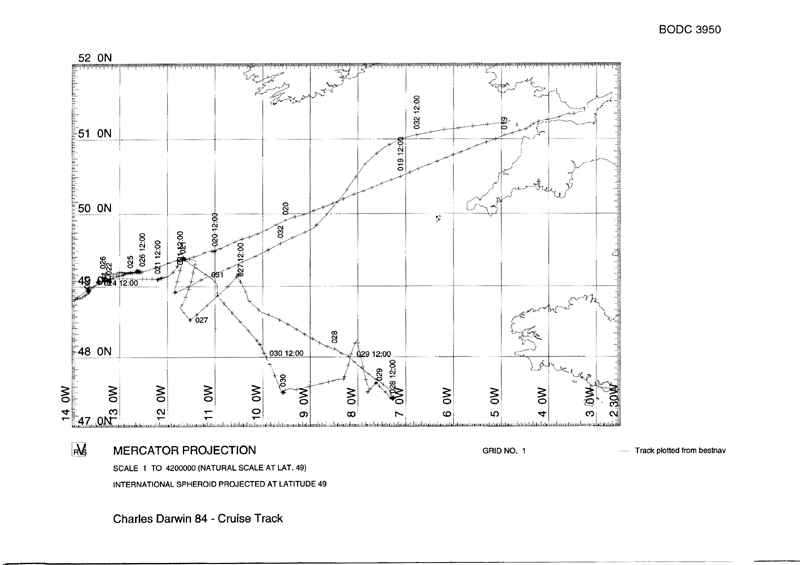

- References - including cruise tracks and cruise reports
Cruise Inventory Information
| Long name | RRS Charles Darwin (74AB) cruise CD84 |
|---|---|
| Short name | CD84 |
| Objectives and Narrative |
1. To study the role of biogeochemical and hydrographic processes in controlling the distribution of dissolved trace metals in the shelf break region and adjacent waters, with due regard to temporal variability.
2. To estimate fluxes across trace metal fronts in the shelf break region and evaluate the use of trace metals as tracers of advective exchanges of waters at the shelf break. 3. Based on these and other OMEX data, to further the development of models for frontal exchange of dissolved trace metals and the linking of these models to a shelf seawater quality model. 4. In addition to the trace metal work, to collect other information and samples relevant to the aims of the OMEX project. |
| Ship | RRS Charles Darwin |
| Departure Port | Barry, United Kingdom |
| Departure Date | 1994-01-18 |
| Arrival Port | Barry, United Kingdom |
| Arrival Date | 1994-02-02 |
| Principal Scientist(s) | Peter J Statham (University of Southampton Department of Oceanography) |
| Responsible Organisation | University of Southampton Department of Oceanography |
| Associated Project(s) | OMEX/MAST |
| IHB Sea Areas Visited | Celtic Sea |
| Marsden Squares Visited | 145;4/146;3 |
| Work Area Description | Goban Spur to La Chappelle Bank |
| Unable to lookup cruise bounds at this time | |
| Work Area Bounding Polygon | |
| Southern Limit | unknown |
| Northern Limit | unknown |
| Western Limit | unknown |
| Eastern Limit | unknown |
Cruise Inventory Datasets
| Physical oceanography | |
|---|---|
| CTD stations |
Quantity:
number of profiles =
20
Description: CTD with dissolved oxygen, transmissometer, and fluorometer. 10 casts with nephelometer and one with upwelling/downwelling PAR. |
| Optics (eg underwater light levels) |
Quantity:
number of profiles =
20
Description: CTD with dissolved oxygen, transmissometer, and fluorometer. 10 casts with nephelometer and one with upwelling/downwelling PAR. |
| Surface measurements underway (T,S) | Description: underway thermosalinograph and fluorometer |
| Transparency (eg transmissometer) |
Quantity:
number of profiles =
20
Description: CTD with dissolved oxygen, transmissometer, and fluorometer. 10 casts with nephelometer and one with upwelling/downwelling PAR. |
| Chemical oceanography | |
| Nitrate | Description: underway and CTD rosette samples for nutrients |
| Other chemical oceanographic measurements |
Quantity:
number of samples =
4
Description: samples for HPLC pigments |
| Other chemical oceanographic measurements |
Quantity:
number of deployments =
3
Description: particle collection by in situ pump |
| Oxygen |
Quantity:
number of profiles =
20
Description: CTD with dissolved oxygen, transmissometer, and fluorometer. 10 casts with nephelometer and one with upwelling/downwelling PAR. |
| Oxygen |
Quantity:
number of profiles =
20
Description: CTD rosette for oxygen (Winkler) |
| Phosphate | Description: underway and CTD rosette samples for nutrients |
| Radioactivity | Description: large volume radionuclide samples for 241-Am, 137-Cs, 239-Pu, 240-Pu, 238-Pu, 90-Sr |
| Silicate | Description: underway and CTD rosette samples for nutrients |
| Contamination | |
| Suspended matter | Description: water samples for gravimetric SPM |
| Trace metals | Description: trace metal samples (Al, Fe, Mn, Cd, Co, Cu, Ni, Pb, Zn) |
| Trace metals |
Quantity:
number of surveys =
1
Description: underway transect (Al) |
| Biology and fisheries | |
| Dissolved organic matter (inc DOC) |
Quantity:
number of samples =
8
Description: Dissolved organic carbon |
| Dissolved organic matter (inc DOC) | Description: DOC and microzooplankton |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of profiles =
5
Description: HPLC pigments (upper 200m) |
| Phytoplankton pigs (eg chlorophyll, fluorescence) | Description: underway thermosalinograph and fluorometer |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of profiles =
20
Description: CTD with dissolved oxygen, transmissometer, and fluorometer. 10 casts with nephelometer and one with upwelling/downwelling PAR. |
| Zooplankton | Description: DOC and microzooplankton |
| Geology and geophysics | |
| Core - soft bottom |
Quantity:
number of cores =
3
Description: kasten & box cores |
Cruise Inventory Mooring/Buoy Operations
| Latitude | Longitude | Data type | Description |
|---|---|---|---|
| 49° 7' N | 12° 10' W | Current meters | current meter array; deployed 21 Jan 1994 |
| 49° 31' N | 11° 31' W | Current meters | current meter array; deployed 27 Jan 1994 |
| 49° 22' N | 11° 40' W | Current profiler (eg ADCP) | STABLE(benthic lander: near bottom currents and suspended matter) deployed 20 Jan 2317GMT and recovered 31Jan 0856GMT |
| 49° 22' N | 11° 40' W | Suspended matter | STABLE(benthic lander:near bottom currents and suspended matter) deployed 20 Jan 2317GMT and recovered 31Jan 0856GMT |
Summary of BODC Data Holdings for the Cruise
National Oceanographic Database
Summary
| # Series | Instrument Description | Parameters |
|---|---|---|
| 12 | Bottle station |
Nitrate concentration parameters in the water column Quality control flags Reference numbers Vertical spatial coordinates |
| 2 | Bottle station |
Nitrate concentration parameters in the water column Phosphate concentration parameters in the water column Quality control flags Reference numbers Vertical spatial coordinates |
| 4 | Bottle station |
Carotenoid and flavenoid pigment concentrations in water bodies Chlorophyll pigment concentrations in water bodies Phaeopigment concentrations in the water column Quality control flags Reference numbers Vertical spatial coordinates |
| 1 | Bottom Lander (miscellaneous instruments) |
Date and time Horizontal velocity of the water column (currents) Platform or instrument orientation Sea level Temperature of the water column |
| 18 | CTD/STD cast |
Density of the water column Dissolved oxygen parameters in the water column Raw suspended particulate material concentration sensor output Salinity of the water column Temperature of the water column Transmittance and attenuance of the water column Vertical spatial coordinates |
| 2 | CTD/STD cast |
Density of the water column Dissolved oxygen parameters in the water column Raw suspended particulate material concentration sensor output Salinity of the water column Temperature of the water column Transmittance and attenuance of the water column Vertical spatial coordinates Visible waveband radiance and irradiance measurements in the water column |
| 2 | Paddle wheel current meter |
Date and time Horizontal velocity of the water column (currents) Temperature of the water column |
| 1 | Paddle wheel current meter |
Date and time Horizontal velocity of the water column (currents) Moored instrument depth Temperature of the water column |
| 1 | Pumped water sample |
Date and time Horizontal spatial co-ordinates Nitrate concentration parameters in the water column |
| 1 | Pumped water sample |
Carotenoid and flavenoid pigment concentrations in water bodies Chlorophyll pigment concentrations in water bodies Date and time Horizontal spatial co-ordinates Phaeopigment concentrations in the water column |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
Full List
| BODC Reference | Instrument Description | Date/Time | Location | |
|---|---|---|---|---|
| 444044 | Paddle wheel current meter | 1994-01-22 20:00Z to 1995-06-08 08:00Z | 49° 6' N, 12° 10' W | Click for more |
| 444068 | Paddle wheel current meter | 1994-01-22 20:00Z to 1995-06-08 08:00Z | 49° 6' N, 12° 10' W | Click for more |
| 444081 | Paddle wheel current meter | 1994-01-22 20:00Z to 1995-06-08 08:00Z | 49° 6' N, 12° 10' W | Click for more |
| 444401 | Bottom Lander (miscellaneous instruments) | 1994-01-20 23:16Z to 1994-01-31 08:54Z | 49° 23' N, 11° 40' W | Click for more |
| 884782 | CTD/STD cast | 1994-01-20 10:03Z | 49° 30' N, 11° 0' W | Click for more |
| 884794 | CTD/STD cast | 1994-01-20 11:12Z | 49° 29' N, 11° 0' W | Click for more |
| 884801 | CTD/STD cast | 1994-01-20 17:54Z | 49° 22' N, 11° 46' W | Click for more |
| 884813 | CTD/STD cast | 1994-01-21 19:14Z | 49° 6' N, 13° 12' W | Click for more |
| 884825 | CTD/STD cast | 1994-01-22 02:34Z | 49° 4' N, 13° 18' W | Click for more |
| 884837 | CTD/STD cast | 1994-01-22 10:42Z | 49° 6' N, 13° 12' W | Click for more |
| 884849 | CTD/STD cast | 1994-01-23 09:23Z | 48° 57' N, 13° 39' W | Click for more |
| 884850 | CTD/STD cast | 1994-01-24 03:26Z | 48° 56' N, 13° 39' W | Click for more |
| 884862 | CTD/STD cast | 1994-01-25 08:55Z | 49° 12' N, 12° 37' W | Click for more |
| 884874 | CTD/STD cast | 1994-01-26 09:29Z | 49° 12' N, 12° 36' W | Click for more |
| 884886 | CTD/STD cast | 1994-01-26 11:08Z | 49° 11' N, 12° 35' W | Click for more |
| 884898 | CTD/STD cast | 1994-01-27 00:28Z | 48° 31' N, 11° 31' W | Click for more |
| 884905 | CTD/STD cast | 1994-01-28 08:55Z | 47° 24' N, 7° 16' W | Click for more |
| 884917 | CTD/STD cast | 1994-01-28 16:43Z | 47° 24' N, 7° 15' W | Click for more |
| 884929 | CTD/STD cast | 1994-01-29 05:09Z | 47° 29' N, 7° 47' W | Click for more |
| 884930 | CTD/STD cast | 1994-01-29 23:45Z | 47° 29' N, 9° 34' W | Click for more |
| 884942 | CTD/STD cast | 1994-01-30 05:35Z | 47° 30' N, 9° 34' W | Click for more |
| 884954 | CTD/STD cast | 1994-01-30 14:22Z | 48° 10' N, 10° 3' W | Click for more |
| 884966 | CTD/STD cast | 1994-01-31 09:56Z | 49° 24' N, 11° 39' W | Click for more |
| 884978 | CTD/STD cast | 1994-01-31 14:29Z | 48° 54' N, 11° 50' W | Click for more |
| 1282244 | Bottle station | 1994-01-26 09:47Z | 49° 12' N, 12° 36' W | Click for more |
| 1282256 | Bottle station | 1994-01-28 09:43Z | 47° 24' N, 7° 16' W | Click for more |
| 1282268 | Bottle station | 1994-01-28 17:09Z | 47° 24' N, 7° 15' W | Click for more |
| 1282281 | Bottle station | 1994-01-30 01:19Z | 47° 29' N, 9° 34' W | Click for more |
| 1282293 | Bottle station | 1994-01-30 06:09Z | 47° 30' N, 9° 34' W | Click for more |
| 1282300 | Bottle station | 1994-01-31 15:05Z | 48° 54' N, 11° 50' W | Click for more |
| 1282312 | Bottle station | 1994-01-21 20:27Z | 49° 6' N, 13° 12' W | Click for more |
| 1282324 | Bottle station | 1994-01-22 03:13Z | 49° 4' N, 13° 18' W | Click for more |
| 1282336 | Bottle station | 1994-01-22 11:02Z | 49° 6' N, 13° 12' W | Click for more |
| 1282348 | Bottle station | 1994-01-23 11:14Z | 48° 57' N, 13° 39' W | Click for more |
| 1282361 | Bottle station | 1994-01-24 04:03Z | 48° 56' N, 13° 39' W | Click for more |
| 1282373 | Bottle station | 1994-01-25 09:31Z | 49° 12' N, 12° 37' W | Click for more |
| 1282385 | Bottle station | 1994-01-28 09:43Z | 47° 24' N, 7° 16' W | Click for more |
| 1282397 | Bottle station | 1994-01-28 17:09Z | 47° 24' N, 7° 15' W | Click for more |
| 1361996 | Pumped water sample | 1994-01-27 11:40Z to 1994-02-01 17:30Z | 47° 24' N to 51° 12' N; 11° 50' W to 5° 7' W | Click for more |
| 1659031 | Pumped water sample | 1994-01-26 09:27Z to 1994-01-31 14:29Z | 47° 30' N to 49° 24' N; 12° 36' W to 9° 34' W | Click for more |
| 1686053 | Bottle station | 1994-01-26 09:47Z | 49° 12' N, 12° 36' W | Click for more |
| 1686065 | Bottle station | 1994-01-28 17:09Z | 47° 24' N, 7° 15' W | Click for more |
| 1686077 | Bottle station | 1994-01-20 11:30Z | 49° 28' N, 11° 0' W | Click for more |
| 1686089 | Bottle station | 1994-01-22 11:02Z | 49° 6' N, 13° 12' W | Click for more |
Project Database
| # Events | Gear Type | Parameters Held |
|---|---|---|
| 3 | Kasten corer |
Stable isotopes in sediment
Geological sample magnetic, electrical and acoustic properties Geological sample density Sediment water content, porosity and surface area Carbon concentrations in sediment Nitrogen concentrations in sediment Sediment grain size parameters |
| 5 | Box core |
Amino acids in sediment
Mineralogical composition Geological sample density Geological sample radioactivity Concentration of inorganic sulphur species in sediment Inorganic chemical composition of sediment or rocks Carbon concentrations in sediment Nitrogen concentrations in sediment Sediment grain size parameters |
| 3 | Longhurst-Hardy Plankton Recorder | |
| 2 | Shipek grab | Sediment grain size parameters |
| 1 | Underwater camera system | |
| 152 | Sample taken from ship's non-toxic supply |
Carotenoid and flavenoid pigment concentrations in water bodies
Salinity of the water column Concentration of suspended particulate material in the water column Microzooplankton non taxonomy-related biomass expressed as carbon per unit volume of the water column Nitrate concentration parameters in the water column Radioactivity in water bodies Microzooplankton generic abundance in water bodies Phaeopigment concentrations in the water column Dissolved metal concentrations in the water column Chlorophyll pigment concentrations in water bodies |
| 2 | Instrument mooring | |
| 20 | CTD frame plus rosette sampler |
Transmittance and attenuance of the water column
Carotenoid and flavenoid pigment concentrations in water bodies Dissolved oxygen parameters in the water column Salinity of the water column Temperature of the water column Phosphate concentration parameters in the water column Dissolved organic carbon concentration in the water column Concentration of suspended particulate material in the water column Visible waveband radiance and irradiance measurements in the water column Density of the water column Microzooplankton non taxonomy-related biomass expressed as carbon per unit volume of the water column Microzooplankton generic abundance in water bodies Phaeopigment concentrations in the water column Nitrate concentration parameters in the water column Chlorophyll pigment concentrations in water bodies Dissolved metal concentrations in the water column |
| 5 | Stand-alone pumps |
Particulate metal concentrations in the water column
Carbon concentrations in suspended particulate material Nitrogen concentrations in suspended particulate material Metadata parameters |
| 1 | Bottom Lander | |
| 3 | Water bottle hydrocast | Radioactivity in water bodies |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
