BODC Cruise Metadata Report for RV Corystes (74RY) cruise COR7/00
Introduction
This report collates information from the BODC cruise inventory and oceanographic databases. It presents
- Cruise Inventory Information
- A summary of BODC data holdings for the cruise from the
- References - including cruise tracks and cruise reports
Cruise Inventory Information
| Long name | RV Corystes (74RY) cruise COR7/00 |
|---|---|
| Short name | COR7/00 |
| Objectives and Narrative |
This was the fourth in a series of cruises planned to investigate the processes that influence productivity and the distribution and behaviour of suspended particulate matter and nutrients in the southern North Sea. The transport of nutrients and particulate matter from UK waters to the southern North Sea and European coastal zone is especially of interest.
1) To service the Smart Buoy and mini-pod moorings deployed during March in the Sean Gas Field and at the Outer Gabbard; 2) To deploy ADCP and current meter moorings in the vicinity of the Sean gas Field Smart Buoy; 3) To collect water samples and CTD profiles; 4) To complete Scanfish surveys; 5) To deploy satellite-tracked drifting buoys. |
| Ship | RV Corystes |
| Departure Port | Lowestoft, United Kingdom |
| Departure Date | 2000-05-18 |
| Arrival Port | Lowestoft, United Kingdom |
| Arrival Date | 2000-05-25 |
| Principal Scientist(s) | Kenneth J Medler (Centre for Environment, Fisheries and Aquaculture Science Lowestoft Laboratory) |
| Responsible Organisation | Centre for Environment, Fisheries and Aquaculture Science Lowestoft Laboratory |
| Associated Project(s) | |
| IHB Sea Areas Visited | North Sea |
| Marsden Squares Visited | 216;1 |
| Work Area Description | Outer Gabbard, Sean Gas Field |
| Unable to lookup cruise bounds at this time | |
| Work Area Bounding Polygon | |
| Southern Limit | unknown |
| Northern Limit | unknown |
| Western Limit | unknown |
| Eastern Limit | unknown |
Cruise Inventory Datasets
| Physical oceanography | |
|---|---|
| CTD stations |
Quantity:
number of stations =
31
Description: Vertical profiles with FSI CTD - turbidity, PAR and chlorophyll sensors fitted |
| Current profiler (eg ADCP) |
Quantity:
activity duration in days =
7
Description: Underway current profiling using RDI vessel-mounted ADCP |
| Optics (eg underwater light levels) |
Quantity:
number of stations =
31
Description: Vertical profiles with FSI CTD - turbidity, PAR and chlorophyll sensors fitted |
| Subsurface temperature and salinity measurements |
Quantity:
track kilometres =
640
Description: Scanfish undulating towed body with temperature, conductivity, turbidity, PAR and fluorescence sensors |
| Surface measurements underway (T,S) |
Quantity:
activity duration in days =
7
Description: Logged hull PRT, temperature, salinity samples |
| Chemical oceanography | |
| Ammonia |
Quantity:
number of stations =
31
Description: General oceanics sampler used to collect samples during upcasts at each CTD station. Samples for conductivity/salinity calibration of CTD, plus nitrates, nitrites, silicates, phosphates, ammonium, total-N, suspended particulate matter, chlorophyll and phaeopigment |
| Ammonia |
Quantity:
number of samples =
120
Description: Near surface samples along Scanfish sections and during cruise |
| Nitrate |
Quantity:
number of samples =
120
Description: Near surface samples along Scanfish sections and during cruise |
| Nitrate |
Quantity:
number of stations =
31
Description: General oceanics sampler used to collect samples during upcasts at each CTD station. Samples for conductivity/salinity calibration of CTD, plus nitrates, nitrites, silicates, phosphates, ammonium, total-N, suspended particulate matter, chlorophyll and phaeopigment |
| Nitrite |
Quantity:
number of samples =
120
Description: Near surface samples along Scanfish sections and during cruise |
| Nitrite |
Quantity:
number of stations =
31
Description: General oceanics sampler used to collect samples during upcasts at each CTD station. Samples for conductivity/salinity calibration of CTD, plus nitrates, nitrites, silicates, phosphates, ammonium, total-N, suspended particulate matter, chlorophyll and phaeopigment |
| Phosphate |
Quantity:
number of stations =
31
Description: General oceanics sampler used to collect samples during upcasts at each CTD station. Samples for conductivity/salinity calibration of CTD, plus nitrates, nitrites, silicates, phosphates, ammonium, total-N, suspended particulate matter, chlorophyll and phaeopigment |
| Phosphate |
Quantity:
number of samples =
120
Description: Near surface samples along Scanfish sections and during cruise |
| Silicate |
Quantity:
number of samples =
120
Description: Near surface samples along Scanfish sections and during cruise |
| Silicate |
Quantity:
number of stations =
31
Description: General oceanics sampler used to collect samples during upcasts at each CTD station. Samples for conductivity/salinity calibration of CTD, plus nitrates, nitrites, silicates, phosphates, ammonium, total-N, suspended particulate matter, chlorophyll and phaeopigment |
| Total - N |
Quantity:
number of stations =
31
Description: General oceanics sampler used to collect samples during upcasts at each CTD station. Samples for conductivity/salinity calibration of CTD, plus nitrates, nitrites, silicates, phosphates, ammonium, total-N, suspended particulate matter, chlorophyll and phaeopigment |
| Contamination | |
| Suspended matter |
Quantity:
number of stations =
31
Description: General oceanics sampler used to collect samples during upcasts at each CTD station. Samples for conductivity/salinity calibration of CTD, plus nitrates, nitrites, silicates, phosphates, ammonium, total-N, suspended particulate matter, chlorophyll and phaeopigment |
| Suspended matter |
Quantity:
number of stations =
31
Description: Vertical profiles with FSI CTD - turbidity, PAR and chlorophyll sensors fitted |
| Suspended matter |
Quantity:
track kilometres =
640
Description: Scanfish undulating towed body with temperature, conductivity, turbidity, PAR and fluorescence sensors |
| Biology and fisheries | |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of stations =
31
Description: General oceanics sampler used to collect samples during upcasts at each CTD station. Samples for conductivity/salinity calibration of CTD, plus nitrates, nitrites, silicates, phosphates, ammonium, total-N, suspended particulate matter, chlorophyll and phaeopigment |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of stations =
31
Description: Vertical profiles with FSI CTD - turbidity, PAR and chlorophyll sensors fitted |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of samples =
120
Description: Near surface samples along Scanfish sections and during cruise |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
track kilometres =
640
Description: Scanfish undulating towed body with temperature, conductivity, turbidity, PAR and fluorescence sensors |

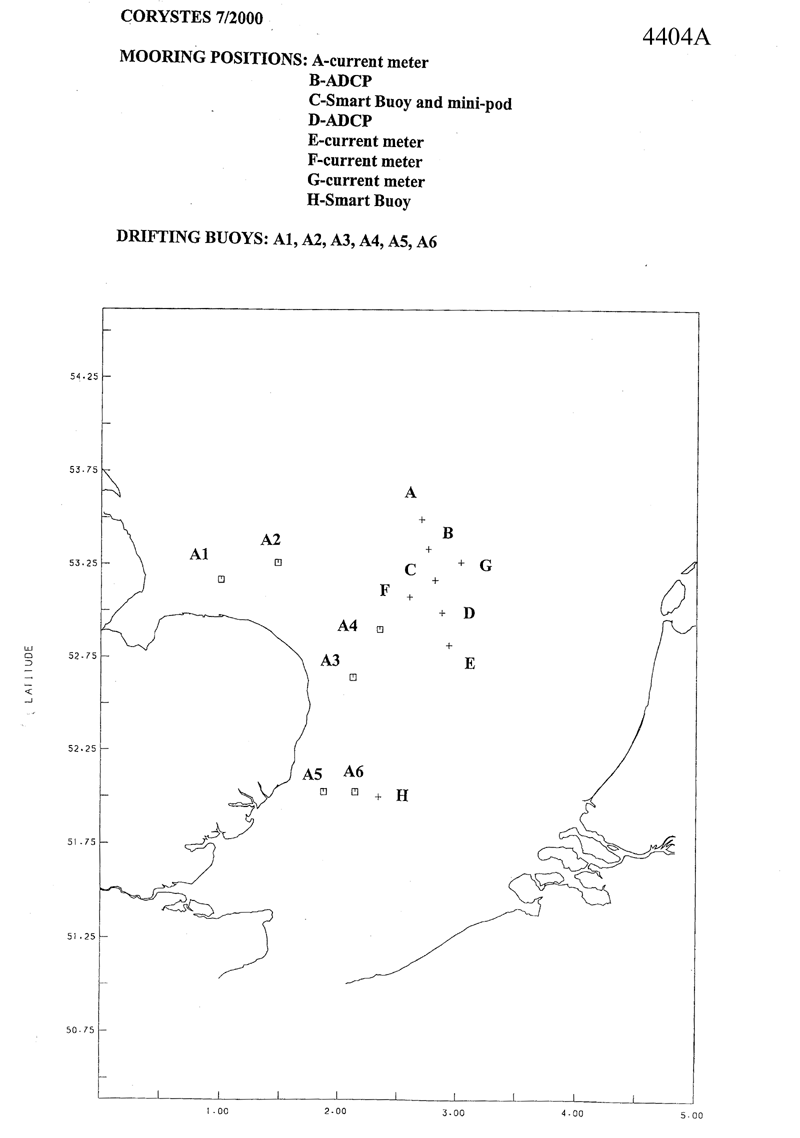

Cruise Inventory Mooring/Buoy Operations
| Latitude | Longitude | Data type | Description |
|---|---|---|---|
| 52° 49' N | 2° 55' E | Current meters | Curent meter mooring E deployed 20/05/00 - instruments at 3m and 19m heights, temperature, conductivity and turbidity |
| 53° 28' N | 2° 42' E | Current meters | Current meter mooring A deployed 20/05/00 - instruments at 3m and 19m heights, temperature and conductivity |
| 53° 4' N | 2° 36' E | Current meters | Current meter mooring F deployed 20/05/00 - instruments at 3m and 19m heights, temperature and conductivity |
| 53° 16' N | 3° 1' E | Current meters | Current meter mooring G deployed 30/05/00 - instruments at 3m and 19m heights, temperature and conductivity |
| 53° 19' N | 2° 45' E | Current profiler (eg ADCP) | Bottom mounted ADCP mooring B deployed 21/05/00 |
| 52° 58' N | 2° 52' E | Current profiler (eg ADCP) | Bottom mounted ADCP mooring D deployed 21/05/00 |
| 52° 0' N | 2° 19' E | Nitrate | Single mooring, sensors in upper 2m, for pressure, temperature, conductivity, chlorophyll, photosynthetically active radiation and nitrate recovered - deployed 18/05/00 |
| 53° 10' N | 2° 49' E | Nitrate | Single mooring, sensors in upper 2m, for pressure, temperature, conductivity, chlorophyll, photosynthetically active radiation and nitrate recovered - deployed 20/05/00 |
| 52° 0' N | 2° 19' E | Nitrate | Single mooring, sensors in upper 2m, for pressure, temperature, conductivity, chlorophyll, photosynthetically active radiation and nitrate recovered - deployed 24/03/00 |
| 53° 10' N | 2° 49' E | Nitrate | Single mooring, sensors in upper 2m, for pressure, temperature, conductivity, chlorophyll, photosynthetically active radiation and nitrate recovered - deployed 26/03/00 |
| 52° 0' N | 2° 19' E | Optics (eg underwater light levels) | Single mooring, sensors in upper 2m, for pressure, temperature, conductivity, chlorophyll, photosynthetically active radiation and nitrate recovered - deployed 18/05/00 |
| 53° 10' N | 2° 49' E | Optics (eg underwater light levels) | Single mooring, sensors in upper 2m, for pressure, temperature, conductivity, chlorophyll, photosynthetically active radiation and nitrate recovered - deployed 20/05/00 |
| 52° 0' N | 2° 19' E | Optics (eg underwater light levels) | Single mooring, sensors in upper 2m, for pressure, temperature, conductivity, chlorophyll, photosynthetically active radiation and nitrate recovered - deployed 24/03/00 |
| 53° 10' N | 2° 49' E | Optics (eg underwater light levels) | Single mooring, sensors in upper 2m, for pressure, temperature, conductivity, chlorophyll, photosynthetically active radiation and nitrate recovered - deployed 26/03/00 |
| 52° 0' N | 2° 19' E | Phytoplankton pigs (eg chlorophyll, fluorescence) | Single mooring, sensors in upper 2m, for pressure, temperature, conductivity, chlorophyll, photosynthetically active radiation and nitrate recovered - deployed 18/05/00 |
| 53° 10' N | 2° 49' E | Phytoplankton pigs (eg chlorophyll, fluorescence) | Single mooring, sensors in upper 2m, for pressure, temperature, conductivity, chlorophyll, photosynthetically active radiation and nitrate recovered - deployed 20/05/00 |
| 52° 0' N | 2° 19' E | Phytoplankton pigs (eg chlorophyll, fluorescence) | Single mooring, sensors in upper 2m, for pressure, temperature, conductivity, chlorophyll, photosynthetically active radiation and nitrate recovered - deployed 24/03/00 |
| 53° 10' N | 2° 49' E | Phytoplankton pigs (eg chlorophyll, fluorescence) | Single mooring, sensors in upper 2m, for pressure, temperature, conductivity, chlorophyll, photosynthetically active radiation and nitrate recovered - deployed 26/03/00 |
| 53° 10' N | 2° 49' E | Sea level (inc. bot. press., inverted echosounder) | Bottom mounted minipod with pressure, temperature turbidity sensors recovered - deployed 20/05/00 |
| 53° 10' N | 2° 49' E | Sea level (inc. bot. press., inverted echosounder) | Bottom mounted minipod with pressure, temperature turbidity sensors recovered - deployed 26/03/00 |
| 52° 1' N | 2° 7' E | Surface drifters/drifting buoys | Surface drifter, 15m drogue, released 18/05/00 |
| 52° 1' N | 1° 52' E | Surface drifters/drifting buoys | Surface drifter, 15m drogue, released 18/05/00 |
| 53° 10' N | 1° 0' E | Surface drifters/drifting buoys | Surface drifter, 15m drogue, released 19/05/00 |
| 53° 16' N | 1° 28' E | Surface drifters/drifting buoys | Surface drifter, 15m drogue, released 19/05/00 |
| 52° 24' N | 2° 19' E | Surface drifters/drifting buoys | Surface drifter, 15m drogue, released 19/05/00 |
| 52° 39' N | 2° 7' E | Surface drifters/drifting buoys | Surface drifter, 15m drogue, released 24/05/00 |
| 53° 10' N | 2° 49' E | Suspended matter | Bottom mounted minipod with pressure, temperature turbidity sensors recovered - deployed 20/05/00 |
| 53° 10' N | 2° 49' E | Suspended matter | Bottom mounted minipod with pressure, temperature turbidity sensors recovered - deployed 26/03/00 |
| 52° 0' N | 2° 19' E | Suspended matter | Single mooring, sensors in upper 2m, for pressure, temperature, conductivity, chlorophyll, photosynthetically active radiation and nitrate recovered - deployed 18/05/00 |
| 53° 10' N | 2° 49' E | Suspended matter | Single mooring, sensors in upper 2m, for pressure, temperature, conductivity, chlorophyll, photosynthetically active radiation and nitrate recovered - deployed 20/05/00 |
| 52° 0' N | 2° 19' E | Suspended matter | Single mooring, sensors in upper 2m, for pressure, temperature, conductivity, chlorophyll, photosynthetically active radiation and nitrate recovered - deployed 24/03/00 |
| 53° 10' N | 2° 49' E | Suspended matter | Single mooring, sensors in upper 2m, for pressure, temperature, conductivity, chlorophyll, photosynthetically active radiation and nitrate recovered - deployed 26/03/00 |
Summary of BODC Data Holdings for the Cruise
National Oceanographic Database
Summary
| # Series | Instrument Description | Parameters |
|---|---|---|
| 6 | CTD/STD cast |
Chlorophyll pigment concentrations in water bodies Concentration of suspended particulate material in the water column Raw fluorometer output Salinity of the water column Temperature of the water column Vertical spatial coordinates Visible waveband radiance and irradiance measurements in the water column |
| 4 | CTD/STD cast |
Chlorophyll pigment concentrations in water bodies Raw fluorometer output Salinity of the water column Temperature of the water column Vertical spatial coordinates Visible waveband radiance and irradiance measurements in the water column |
| 20 | CTD/STD cast |
Salinity of the water column Temperature of the water column Vertical spatial coordinates Visible waveband radiance and irradiance measurements in the water column |
| 1 | CTD/STD cast |
Chlorophyll pigment concentrations in water bodies Concentration of suspended particulate material in the water column Raw fluorometer output Salinity of the water column Temperature of the water column Vertical spatial coordinates |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
Full List
| BODC Reference | Instrument Description | Date/Time | Location | |
|---|---|---|---|---|
| 595414 | CTD/STD cast | 2000-05-18 13:41Z | 52° 0' N, 2° 20' E | Click for more |
| 595426 | CTD/STD cast | 2000-05-18 15:25Z | 52° 0' N, 2° 19' E | Click for more |
| 595438 | CTD/STD cast | 2000-05-18 16:00Z | 52° 0' N, 2° 20' E | Click for more |
| 595451 | CTD/STD cast | 2000-05-18 19:10Z | 52° 0' N, 2° 20' E | Click for more |
| 595463 | CTD/STD cast | 2000-05-19 03:36Z | 53° 0' N, 1° 43' E | Click for more |
| 595475 | CTD/STD cast | 2000-05-19 14:00Z | 53° 10' N, 2° 48' E | Click for more |
| 595487 | CTD/STD cast | 2000-05-19 18:09Z | 53° 10' N, 2° 48' E | Click for more |
| 595499 | CTD/STD cast | 2000-05-19 18:57Z | 53° 10' N, 2° 48' E | Click for more |
| 595506 | CTD/STD cast | 2000-05-19 19:24Z | 53° 9' N, 2° 48' E | Click for more |
| 595518 | CTD/STD cast | 2000-05-19 19:51Z | 53° 10' N, 2° 48' E | Click for more |
| 595531 | CTD/STD cast | 2000-05-20 03:34Z | 53° 10' N, 2° 48' E | Click for more |
| 595543 | CTD/STD cast | 2000-05-20 06:14Z | 53° 10' N, 2° 48' E | Click for more |
| 595555 | CTD/STD cast | 2000-05-20 09:05Z | 53° 28' N, 2° 42' E | Click for more |
| 595567 | CTD/STD cast | 2000-05-20 12:03Z | 53° 15' N, 3° 1' E | Click for more |
| 595579 | CTD/STD cast | 2000-05-20 14:59Z | 52° 49' N, 2° 55' E | Click for more |
| 595580 | CTD/STD cast | 2000-05-20 17:16Z | 53° 4' N, 2° 36' E | Click for more |
| 595592 | CTD/STD cast | 2000-05-20 18:31Z | 53° 10' N, 2° 48' E | Click for more |
| 595611 | CTD/STD cast | 2000-05-20 18:59Z | 53° 10' N, 2° 48' E | Click for more |
| 595623 | CTD/STD cast | 2000-05-20 19:59Z | 53° 10' N, 2° 48' E | Click for more |
| 595635 | CTD/STD cast | 2000-05-20 20:57Z | 53° 9' N, 2° 48' E | Click for more |
| 595647 | CTD/STD cast | 2000-05-21 05:51Z | 53° 19' N, 2° 45' E | Click for more |
| 595659 | CTD/STD cast | 2000-05-22 03:31Z | 53° 37' N, 4° 6' E | Click for more |
| 595660 | CTD/STD cast | 2000-05-23 05:07Z | 53° 46' N, 4° 36' E | Click for more |
| 595672 | CTD/STD cast | 2000-05-24 17:58Z | 52° 18' N, 3° 43' E | Click for more |
| 595684 | CTD/STD cast | 2000-05-24 19:35Z | 52° 18' N, 3° 22' E | Click for more |
| 595696 | CTD/STD cast | 2000-05-24 21:11Z | 52° 18' N, 3° 1' E | Click for more |
| 595703 | CTD/STD cast | 2000-05-24 22:46Z | 52° 18' N, 2° 39' E | Click for more |
| 595715 | CTD/STD cast | 2000-05-25 00:06Z | 52° 18' N, 2° 21' E | Click for more |
| 595727 | CTD/STD cast | 2000-05-25 01:15Z | 52° 18' N, 2° 8' E | Click for more |
| 595739 | CTD/STD cast | 2000-05-25 02:20Z | 52° 18' N, 1° 55' E | Click for more |
| 595740 | CTD/STD cast | 2000-05-25 03:19Z | 52° 18' N, 1° 43' E | Click for more |
Project Database
No data currently held for this cruise in the BODC Project Database
