BODC Cruise Metadata Report for RRS Discovery (74E3) cruise D245
Introduction
This report collates information from the BODC cruise inventory and oceanographic databases. It presents
- Cruise Inventory Information
- A summary of BODC data holdings for the cruise from the

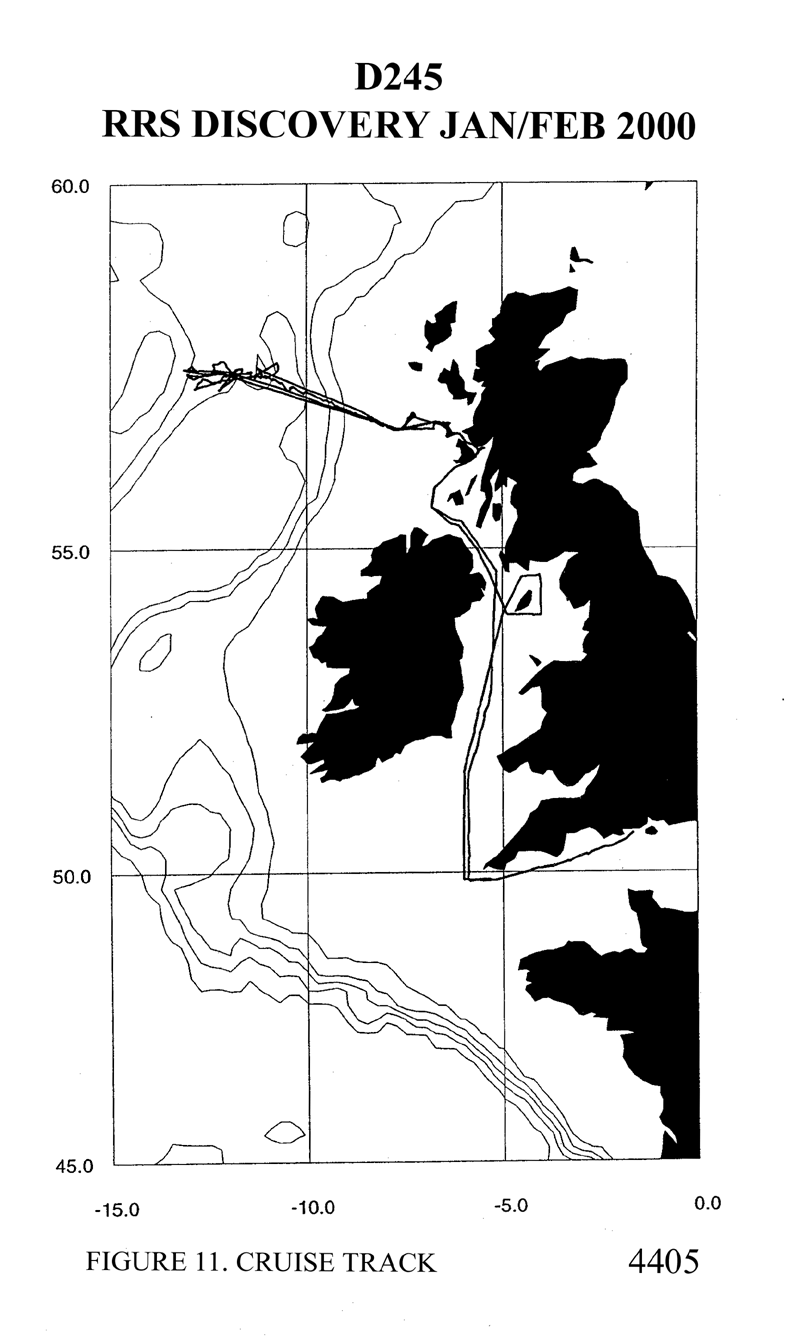

- References - including cruise tracks and cruise reports
Cruise Inventory Information
| Long name | RRS Discovery (74E3) cruise D245 |
|---|---|
| Short name | D245 |
| Objectives and Narrative |
1) Occupy the Ellett Line (Sound of Mull to Rockall) and the SOC extension to Iceland. Due to atrocious weather conditions we didn't even make it to Rockall, 23 nm short.
2) Recover 5 current meter moorings deployed on Challenger 143 - Y, F, M, 2 in Muck Hole. All recovered except F which was subsequently recovered on an RVS trial trip in April 2000 on Charles Darwin. 3) Sample for nutrients for the entire cruise. 4) Take cores from the Muck Deep. |
| Ship | RRS Discovery |
| Departure Port | Southampton, United Kingdom |
| Departure Date | 2000-01-27 |
| Arrival Port | Southampton, United Kingdom |
| Arrival Date | 2000-02-20 |
| Principal Scientist(s) | Colin R Griffiths (Scottish Association for Marine Science), N Penny Holliday (Southampton Oceanography Centre) |
| Responsible Organisation | Scottish Association for Marine Science, Southampton Oceanography Centre |
| Associated Project(s) | |
| IHB Sea Areas Visited | English Channel, Inner Seas off the West Coast of Scotland, Irish Sea and St. George's Channel, North East Atlantic Ocean (limit 40W) |
| Marsden Squares Visited | 145;3/145;4/181;1/181;2/181;4/182;3 |
| Work Area Description | Rockall Trough, Malin Shelf, Irish Sea and English Channel |
| Unable to lookup cruise bounds at this time | |
| Work Area Bounding Polygon | |
| Southern Limit | unknown |
| Northern Limit | unknown |
| Western Limit | unknown |
| Eastern Limit | unknown |
Cruise Inventory Datasets
| Physical oceanography | |
|---|---|
| Bathythermograph |
Quantity:
number of profiles =
95
Description: XBT drops with T5 and T7 probes |
| CTD stations |
Quantity:
number of stations =
44
Description: CTD casts |
| Current profiler (eg ADCP) |
Quantity:
track kilometres =
2778
Description: ADCP |
| Current profiler (eg ADCP) |
Quantity:
number of stations =
44
Description: CTD with LADCP aquatracka, oxygen, fluorometer, altimeter and nitrate sensors + SIS reversing thermometer and pressure sensor |
| Instrumented wave measurements |
Quantity:
track kilometres =
2778
Description: T,S, nutrients |
| Surface measurements underway (T,S) |
Quantity:
track kilometres =
2778
Description: T,S, nutrients |
| Water bottle stations |
Quantity:
number of stations =
44
Description: FSI rosette pylon - 24 bottles employed on CTD upcasts with calibration samples taken for temperature, salinity, pressure and chlorophyll |
| Chemical oceanography | |
| Nitrate |
Quantity:
track kilometres =
2778
Description: T,S, nutrients |
| Nitrate |
Quantity:
number of stations =
44
Description: CTD with LADCP aquatracka, oxygen, fluorometer, altimeter and nitrate sensors + SIS reversing thermometer and pressure sensor |
| Nitrate |
Quantity:
number of stations =
44
Description: Nutrient samples |
| Oxygen |
Quantity:
number of stations =
44
Description: CTD with LADCP aquatracka, oxygen, fluorometer, altimeter and nitrate sensors + SIS reversing thermometer and pressure sensor |
| Oxygen |
Quantity:
number of stations =
44
Description: Calibration samples taken for oxygen |
| Phosphate |
Quantity:
track kilometres =
2778
Description: T,S, nutrients |
| Phosphate |
Quantity:
number of stations =
44
Description: Nutrient samples |
| Silicate |
Quantity:
track kilometres =
2778
Description: T,S, nutrients |
| Silicate |
Quantity:
number of stations =
44
Description: Nutrient samples |
| Biology and fisheries | |
| Birds |
Quantity:
track kilometres =
2778
Description: Seabirds and cetaceans |
| Mammals and reptiles |
Quantity:
track kilometres =
2778
Description: Seabirds and cetaceans |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of stations =
44
Description: CTD with LADCP aquatracka, oxygen, fluorometer, altimeter and nitrate sensors + SIS reversing thermometer and pressure sensor |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of stations =
44
Description: FSI rosette pylon - 24 bottles employed on CTD upcasts with calibration samples taken for temperature, salinity, pressure and chlorophyll |
| Meteorology | |
| Other meteorological measurements |
Quantity:
track kilometres =
2778
Description: T,S, nutrients |
| Routine standard measurements |
Quantity:
activity duration in days =
25
Description: Synoptic met. reports - voluntary observing ship |
| Geology and geophysics | |
| Core - soft bottom |
Quantity:
number of deployments =
11
Description: SMBA multi-corer deployed in Muck Deep |
| Single-beam echosounding |
Quantity:
track kilometres =
2778
Description: Bathymetry - PES |
Cruise Inventory Mooring/Buoy Operations
| Latitude | Longitude | Data type | Description |
|---|---|---|---|
| 56° 49' N | 6° 37' W | Current meters | Recovered Muck Hole mooring with 1 SCADCP |
| 56° 49' N | 6° 31' W | Current meters | Recovered Muck Hole mooring with 3 RCMs, 8 miniloggers and 3 transmissomers |
| 56° 37' N | 6° 25' W | Current meters | Recovered Tiree Passage mooring Y with 2 RCMs |
| 57° 31' N | 12° 15' W | Current meters | Recovered mooring F with 5 RCMs. Note: Mooring F recovered on RVS Charles Darwin cruise in April 2000. |
| 57° 16' N | 10° 22' W | Current meters | Recovered mooring M with 6 RCMs |
Summary of BODC Data Holdings for the Cruise
National Oceanographic Database
Summary
| # Series | Instrument Description | Parameters |
|---|---|---|
| 36 | Bottle station |
Nitrate concentration parameters in the water column Phosphate concentration parameters in the water column Quality control flags Reference numbers Silicate concentration parameters in the water column Vertical spatial coordinates |
| 34 | CTD/STD cast |
Chlorophyll pigment concentrations in water bodies Density of the water column Salinity of the water column Temperature of the water column Transmittance and attenuance of the water column Vertical spatial coordinates |
| 1 | CTD/STD cast |
Chlorophyll pigment concentrations in water bodies Temperature of the water column Transmittance and attenuance of the water column Vertical spatial coordinates |
| 9 | CTD/STD cast |
Chlorophyll pigment concentrations in water bodies Density of the water column Dissolved oxygen parameters in the water column Salinity of the water column Temperature of the water column Transmittance and attenuance of the water column Vertical spatial coordinates |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
Full List
| BODC Reference | Instrument Description | Date/Time | Location | |
|---|---|---|---|---|
| 1074868 | CTD/STD cast | 2000-01-30 09:37Z | 56° 25' N, 6° 36' W | Click for more |
| 1074881 | CTD/STD cast | 2000-01-30 16:23Z | 56° 40' N, 6° 9' W | Click for more |
| 1074893 | CTD/STD cast | 2000-01-31 17:36Z | 56° 48' N, 6° 37' W | Click for more |
| 1074900 | CTD/STD cast | 2000-01-31 19:46Z | 56° 40' N, 6° 17' W | Click for more |
| 1074912 | CTD/STD cast | 2000-01-31 21:03Z | 56° 37' N, 6° 24' W | Click for more |
| 1074924 | CTD/STD cast | 2000-01-31 22:30Z | 56° 44' N, 6° 25' W | Click for more |
| 1074936 | CTD/STD cast | 2000-01-31 23:43Z | 56° 48' N, 6° 20' W | Click for more |
| 1074948 | CTD/STD cast | 2000-02-01 00:58Z | 56° 48' N, 6° 24' W | Click for more |
| 1074961 | CTD/STD cast | 2000-02-01 02:15Z | 56° 48' N, 6° 26' W | Click for more |
| 1074973 | CTD/STD cast | 2000-02-01 03:43Z | 56° 48' N, 6° 31' W | Click for more |
| 1074985 | CTD/STD cast | 2000-02-01 06:17Z | 56° 48' N, 6° 36' W | Click for more |
| 1074997 | CTD/STD cast | 2000-02-01 07:46Z | 56° 49' N, 6° 40' W | Click for more |
| 1075000 | CTD/STD cast | 2000-02-01 15:31Z | 56° 43' N, 6° 44' W | Click for more |
| 1075012 | CTD/STD cast | 2000-02-01 17:21Z | 56° 43' N, 7° 0' W | Click for more |
| 1075024 | CTD/STD cast | 2000-02-01 19:31Z | 56° 43' N, 7° 19' W | Click for more |
| 1075036 | CTD/STD cast | 2000-02-01 21:48Z | 56° 43' N, 7° 30' W | Click for more |
| 1075048 | CTD/STD cast | 2000-02-01 23:43Z | 56° 43' N, 7° 39' W | Click for more |
| 1075061 | CTD/STD cast | 2000-02-02 21:42Z | 56° 46' N, 8° 1' W | Click for more |
| 1075073 | CTD/STD cast | 2000-02-03 00:55Z | 56° 50' N, 8° 19' W | Click for more |
| 1075085 | CTD/STD cast | 2000-02-03 03:32Z | 56° 52' N, 8° 30' W | Click for more |
| 1075097 | CTD/STD cast | 2000-02-03 06:12Z | 56° 57' N, 8° 46' W | Click for more |
| 1075104 | CTD/STD cast | 2000-02-03 08:01Z | 57° 0' N, 9° 0' W | Click for more |
| 1075116 | CTD/STD cast | 2000-02-03 09:19Z | 57° 1' N, 9° 6' W | Click for more |
| 1075128 | CTD/STD cast | 2000-02-03 10:44Z | 57° 2' N, 9° 13' W | Click for more |
| 1075141 | CTD/STD cast | 2000-02-03 12:40Z | 57° 5' N, 9° 19' W | Click for more |
| 1075153 | CTD/STD cast | 2000-02-03 14:49Z | 57° 6' N, 9° 25' W | Click for more |
| 1075165 | CTD/STD cast | 2000-02-03 17:50Z | 57° 7' N, 9° 33' W | Click for more |
| 1075177 | CTD/STD cast | 2000-02-03 20:40Z | 57° 9' N, 9° 40' W | Click for more |
| 1075189 | CTD/STD cast | 2000-02-04 00:47Z | 57° 13' N, 10° 3' W | Click for more |
| 1075190 | CTD/STD cast | 2000-02-04 04:50Z | 57° 18' N, 10° 24' W | Click for more |
| 1075208 | CTD/STD cast | 2000-02-04 15:53Z | 57° 21' N, 10° 40' W | Click for more |
| 1075221 | CTD/STD cast | 2000-02-04 19:11Z | 57° 24' N, 10° 52' W | Click for more |
| 1075233 | CTD/STD cast | 2000-02-04 21:49Z | 57° 27' N, 11° 3' W | Click for more |
| 1075245 | CTD/STD cast | 2000-02-05 05:17Z | 57° 28' N, 11° 18' W | Click for more |
| 1075257 | CTD/STD cast | 2000-02-05 09:12Z | 57° 29' N, 11° 30' W | Click for more |
| 1075269 | CTD/STD cast | 2000-02-14 05:45Z | 57° 30' N, 11° 50' W | Click for more |
| 1075270 | CTD/STD cast | 2000-02-15 06:13Z | 57° 33' N, 13° 0' W | Click for more |
| 1075282 | CTD/STD cast | 2000-02-16 04:32Z | 56° 48' N, 6° 26' W | Click for more |
| 1075294 | CTD/STD cast | 2000-02-16 05:59Z | 56° 48' N, 6° 31' W | Click for more |
| 1075301 | CTD/STD cast | 2000-02-16 19:31Z | 56° 49' N, 6° 40' W | Click for more |
| 1075313 | CTD/STD cast | 2000-02-16 20:52Z | 56° 48' N, 6° 37' W | Click for more |
| 1075325 | CTD/STD cast | 2000-02-16 22:21Z | 56° 48' N, 6° 31' W | Click for more |
| 1075337 | CTD/STD cast | 2000-02-16 23:57Z | 56° 48' N, 6° 24' W | Click for more |
| 1075349 | CTD/STD cast | 2000-02-17 01:21Z | 56° 48' N, 6° 20' W | Click for more |
| 1621807 | Bottle station | 2000-01-30 16:42Z | 56° 40' N, 6° 9' W | Click for more |
| 1621819 | Bottle station | 2000-01-31 17:51Z | 56° 48' N, 6° 37' W | Click for more |
| 1621820 | Bottle station | 2000-01-31 19:50Z | 56° 40' N, 6° 17' W | Click for more |
| 1621832 | Bottle station | 2000-01-31 22:41Z | 56° 44' N, 6° 25' W | Click for more |
| 1621844 | Bottle station | 2000-02-01 02:28Z | 56° 48' N, 6° 26' W | Click for more |
| 1621856 | Bottle station | 2000-02-01 15:38Z | 56° 43' N, 6° 44' W | Click for more |
| 1621868 | Bottle station | 2000-02-01 17:36Z | 56° 43' N, 7° 0' W | Click for more |
| 1621881 | Bottle station | 2000-02-01 19:45Z | 56° 43' N, 7° 19' W | Click for more |
| 1621893 | Bottle station | 2000-02-01 22:01Z | 56° 43' N, 7° 30' W | Click for more |
| 1621900 | Bottle station | 2000-02-01 23:47Z | 56° 43' N, 7° 39' W | Click for more |
| 1621912 | Bottle station | 2000-02-02 21:54Z | 56° 46' N, 8° 1' W | Click for more |
| 1621924 | Bottle station | 2000-02-03 01:07Z | 56° 50' N, 8° 19' W | Click for more |
| 1621936 | Bottle station | 2000-02-03 03:43Z | 56° 52' N, 8° 30' W | Click for more |
| 1621948 | Bottle station | 2000-02-03 06:24Z | 56° 57' N, 8° 46' W | Click for more |
| 1621961 | Bottle station | 2000-02-03 08:11Z | 57° 0' N, 9° 0' W | Click for more |
| 1621973 | Bottle station | 2000-02-03 09:34Z | 57° 1' N, 9° 6' W | Click for more |
| 1621985 | Bottle station | 2000-02-03 11:07Z | 57° 2' N, 9° 13' W | Click for more |
| 1621997 | Bottle station | 2000-02-03 13:12Z | 57° 5' N, 9° 19' W | Click for more |
| 1622000 | Bottle station | 2000-02-03 15:40Z | 57° 6' N, 9° 25' W | Click for more |
| 1622012 | Bottle station | 2000-02-03 18:43Z | 57° 7' N, 9° 33' W | Click for more |
| 1622024 | Bottle station | 2000-02-03 21:29Z | 57° 9' N, 9° 40' W | Click for more |
| 1622036 | Bottle station | 2000-02-04 01:40Z | 57° 13' N, 10° 3' W | Click for more |
| 1622048 | Bottle station | 2000-02-04 05:50Z | 57° 18' N, 10° 24' W | Click for more |
| 1622061 | Bottle station | 2000-02-04 16:46Z | 57° 21' N, 10° 40' W | Click for more |
| 1622073 | Bottle station | 2000-02-04 19:38Z | 57° 24' N, 10° 52' W | Click for more |
| 1622085 | Bottle station | 2000-02-04 22:12Z | 57° 27' N, 11° 3' W | Click for more |
| 1622097 | Bottle station | 2000-02-05 05:44Z | 57° 28' N, 11° 18' W | Click for more |
| 1622104 | Bottle station | 2000-02-05 10:07Z | 57° 29' N, 11° 30' W | Click for more |
| 1622116 | Bottle station | 2000-02-14 06:49Z | 57° 30' N, 11° 50' W | Click for more |
| 1622128 | Bottle station | 2000-02-15 06:40Z | 57° 33' N, 13° 0' W | Click for more |
| 1622141 | Bottle station | 2000-02-16 04:47Z | 56° 48' N, 6° 26' W | Click for more |
| 1622153 | Bottle station | 2000-02-16 19:45Z | 56° 49' N, 6° 40' W | Click for more |
| 1622165 | Bottle station | 2000-02-16 21:07Z | 56° 48' N, 6° 37' W | Click for more |
| 1622177 | Bottle station | 2000-02-16 22:36Z | 56° 48' N, 6° 31' W | Click for more |
| 1622189 | Bottle station | 2000-02-17 00:10Z | 56° 48' N, 6° 24' W | Click for more |
| 1622190 | Bottle station | 2000-02-17 01:27Z | 56° 48' N, 6° 20' W | Click for more |
Project Database
| # Events | Gear Type | Parameters Held |
|---|---|---|
| 44 | CTD frame plus rosette sampler |
Transmittance and attenuance of the water column
Phosphate concentration parameters in the water column Dissolved oxygen parameters in the water column Salinity of the water column Temperature of the water column Silicate concentration parameters in the water column Density of the water column Nitrate concentration parameters in the water column Chlorophyll pigment concentrations in water bodies |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
