BODC Cruise Metadata Report for RRS Charles Darwin (74AB) cruise CD50
Introduction
This report collates information from the BODC cruise inventory and oceanographic databases. It presents
- Cruise Inventory Information
- A summary of BODC data holdings for the cruise from the

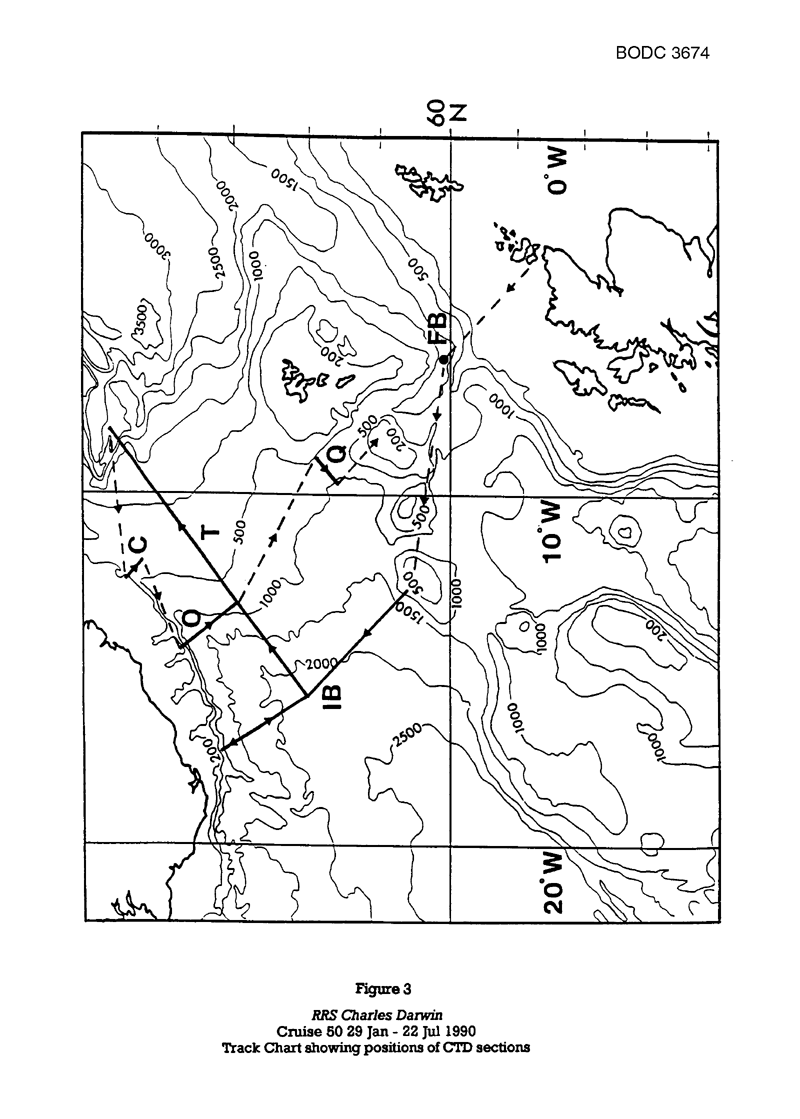

- References - including cruise tracks and cruise reports
Cruise Inventory Information
| Long name | RRS Charles Darwin (74AB) cruise CD50 |
|---|---|
| Short name | CD50 |
| Objectives and Narrative |
1. To observe the path of the overflow water in the Iceland Basin on the south side of the Iceland Faroes Ridge using a lowered CTD, XBTs and ship mounted ACDP (Acoustic Dropper Current Profiler)/
2. To determine the chemical properties (nutrients, dissolved oxygen and aluminium concentration) of the Overflow and Atlantic water masses. 3. To deploy an array of moored current and temperature recorders south of Iceland 4. To deploy a moored ACDP on the Iceland-Faroes Ridge in support of Charles Darwin Cr51 |
| Ship | RRS Charles Darwin |
| Departure Port | Great Yarmouth, United Kingdom |
| Departure Date | 1990-06-29 |
| Arrival Port | Aberdeen, United Kingdom |
| Arrival Date | 1990-07-22 |
| Principal Scientist(s) | W John Gould (Institute of Oceanographic Sciences Deacon Laboratory) |
| Responsible Organisation | Institute of Oceanographic Sciences Deacon Laboratory |
| Associated Project(s) | WOCE |
| IHB Sea Areas Visited | North East Atlantic Ocean (limit 40W) |
| Marsden Squares Visited | 181/182/217/218 |
| Work Area Description | Northern north Atlantic |
| Unable to lookup cruise bounds at this time | |
| Work Area Bounding Polygon | |
| Southern Limit | unknown |
| Northern Limit | unknown |
| Western Limit | unknown |
| Eastern Limit | unknown |
Cruise Inventory Datasets
| Physical oceanography | |
|---|---|
| Bathythermograph |
Quantity:
number of profiles =
48
Description: XBTs, not all good |
| CTD stations |
Quantity:
number of stations =
57
Description: |
| Current meters |
Quantity:
number of stations =
8
Description: 14 cm deployed |
| Current profiler (eg ADCP) | Description: Shipborne ADCP |
| Surface measurements underway (T,S) | Description: continuous measurement |
| Transparency (eg transmissometer) |
Quantity:
number of stations =
57
Description: transmissometer on CTD |
| Water bottle stations |
Quantity:
number of stations =
57
Description: salinity samples, for CTD calibration |
| Chemical oceanography | |
| Nitrate |
Quantity:
number of stations =
57
Description: |
| Other chemical oceanographic measurements |
Quantity:
number of stations =
57
Description: Aluminium determinations |
| Oxygen |
Quantity:
number of stations =
57
Description: oxygen from water bottles |
| Oxygen |
Quantity:
number of stations =
57
Description: oxygen sensor on CTD |
| Phosphate |
Quantity:
number of stations =
57
Description: |
| Silicate |
Quantity:
number of stations =
57
Description: |
| Meteorology | |
| Routine standard measurements | Description: |
| Geology and geophysics | |
| Single-beam echosounding | Description: continuous 10kHz Simrad PES |
Cruise Inventory Mooring/Buoy Operations
| Latitude | Longitude | Data type | Description |
|---|---|---|---|
| 64° 24' N | 11° 55' W | Current meters | 1 Aanderaa and 1 S4, deployed 18 Jul 1990, recovered Charles Darwin cruise 51 |
| 63° 7' N | 17° 18' W | Current meters | 1 Aanderaa current meter, deployed 15 Jul 1990, to be recovered July 1991 |
| 63° 0' N | 17° 6' W | Current meters | 1 Aanderaa current meter, deployed 15 Jul 1990, to be recovered July 1991 |
| 61° 43' N | 15° 24' W | Current meters | 1 Aanderaa current meter, deployed 16 Jul 1990, to be recovered July 1991 |
| 62° 4' N | 16° 3' W | Current meters | 2 Aanderaa current meters, deployed 15 Jul 1990, to be recovered July 1991 |
| 61° 49' N | 15° 37' W | Current meters | 2 Aanderaa current meters, deployed 16 Jul 1990, to be recovered July 1991 |
| 62° 43' N | 16° 49' W | Current meters | 3 Aanderaa current meters, deployed 15 Jul 1990, to be recovered July 1991 |
| 62° 25' N | 16° 28' W | Current meters | 3 Aanderaa current meters, deployed 15 Jul 1990, to be recovered July 1991 |
| 64° 24' N | 11° 55' W | Current profiler (eg ADCP) | Sea floor ADCP, deployed 18 Jul 1991, recovered Charles Darwin cruise 51 |
Summary of BODC Data Holdings for the Cruise
National Oceanographic Database
Summary
| # Series | Instrument Description | Parameters |
|---|---|---|
| 56 | CTD/STD cast |
Dissolved oxygen parameters in the water column Salinity of the water column Temperature of the water column Transmittance and attenuance of the water column Vertical spatial coordinates |
| 1 | CTD/STD cast |
Temperature of the water column Transmittance and attenuance of the water column Vertical spatial coordinates |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
Full List
| BODC Reference | Instrument Description | Date/Time | Location | |
|---|---|---|---|---|
| 380554 | CTD/STD cast | 1990-07-11 08:45Z | 60° 10' N, 6° 3' W | Click for more |
| 380578 | CTD/STD cast | 1990-07-12 19:40Z | 60° 28' N, 12° 42' W | Click for more |
| 380609 | CTD/STD cast | 1990-07-12 21:18Z | 60° 33' N, 12° 53' W | Click for more |
| 380622 | CTD/STD cast | 1990-07-12 23:19Z | 60° 39' N, 13° 3' W | Click for more |
| 380646 | CTD/STD cast | 1990-07-13 01:25Z | 60° 44' N, 13° 13' W | Click for more |
| 380671 | CTD/STD cast | 1990-07-13 03:51Z | 60° 50' N, 13° 25' W | Click for more |
| 380695 | CTD/STD cast | 1990-07-13 06:27Z | 60° 55' N, 13° 36' W | Click for more |
| 380714 | CTD/STD cast | 1990-07-13 10:01Z | 61° 7' N, 14° 6' W | Click for more |
| 380738 | CTD/STD cast | 1990-07-13 13:55Z | 61° 23' N, 14° 35' W | Click for more |
| 380763 | CTD/STD cast | 1990-07-13 18:12Z | 61° 36' N, 15° 6' W | Click for more |
| 380787 | CTD/STD cast | 1990-07-13 21:58Z | 61° 49' N, 15° 36' W | Click for more |
| 380806 | CTD/STD cast | 1990-07-14 07:14Z | 62° 3' N, 16° 3' W | Click for more |
| 380831 | CTD/STD cast | 1990-07-14 10:33Z | 62° 18' N, 16° 19' W | Click for more |
| 380855 | CTD/STD cast | 1990-07-14 15:40Z | 62° 30' N, 16° 33' W | Click for more |
| 380879 | CTD/STD cast | 1990-07-14 18:25Z | 62° 41' N, 16° 47' W | Click for more |
| 380892 | CTD/STD cast | 1990-07-14 20:43Z | 62° 48' N, 16° 54' W | Click for more |
| 380923 | CTD/STD cast | 1990-07-14 23:12Z | 62° 54' N, 17° 1' W | Click for more |
| 380947 | CTD/STD cast | 1990-07-15 01:50Z | 63° 0' N, 17° 8' W | Click for more |
| 380960 | CTD/STD cast | 1990-07-15 04:32Z | 63° 12' N, 17° 12' W | Click for more |
| 380984 | CTD/STD cast | 1990-07-15 07:14Z | 63° 12' N, 17° 22' W | Click for more |
| 381011 | CTD/STD cast | 1990-07-16 00:20Z | 62° 10' N, 15° 31' W | Click for more |
| 381035 | CTD/STD cast | 1990-07-16 14:25Z | 62° 19' N, 15° 4' W | Click for more |
| 381059 | CTD/STD cast | 1990-07-16 18:27Z | 62° 28' N, 14° 39' W | Click for more |
| 381072 | CTD/STD cast | 1990-07-16 21:32Z | 62° 37' N, 14° 10' W | Click for more |
| 381096 | CTD/STD cast | 1990-07-17 00:26Z | 62° 46' N, 13° 41' W | Click for more |
| 381115 | CTD/STD cast | 1990-07-17 03:02Z | 62° 56' N, 13° 14' W | Click for more |
| 381139 | CTD/STD cast | 1990-07-17 05:20Z | 63° 5' N, 12° 46' W | Click for more |
| 381152 | CTD/STD cast | 1990-07-17 07:23Z | 63° 14' N, 12° 19' W | Click for more |
| 381176 | CTD/STD cast | 1990-07-17 09:45Z | 63° 23' N, 11° 52' W | Click for more |
| 381207 | CTD/STD cast | 1990-07-17 12:10Z | 63° 33' N, 11° 25' W | Click for more |
| 381220 | CTD/STD cast | 1990-07-17 14:12Z | 63° 42' N, 10° 55' W | Click for more |
| 381244 | CTD/STD cast | 1990-07-17 16:21Z | 63° 51' N, 10° 27' W | Click for more |
| 381268 | CTD/STD cast | 1990-07-17 18:27Z | 64° 0' N, 10° 0' W | Click for more |
| 381293 | CTD/STD cast | 1990-07-17 20:43Z | 64° 9' N, 9° 31' W | Click for more |
| 381312 | CTD/STD cast | 1990-07-17 23:08Z | 64° 18' N, 9° 2' W | Click for more |
| 381336 | CTD/STD cast | 1990-07-18 01:43Z | 64° 27' N, 8° 31' W | Click for more |
| 381361 | CTD/STD cast | 1990-07-18 04:15Z | 64° 31' N, 8° 19' W | Click for more |
| 381385 | CTD/STD cast | 1990-07-18 18:40Z | 64° 22' N, 12° 27' W | Click for more |
| 381404 | CTD/STD cast | 1990-07-18 19:47Z | 64° 19' N, 12° 18' W | Click for more |
| 381428 | CTD/STD cast | 1990-07-18 20:57Z | 64° 16' N, 12° 10' W | Click for more |
| 381453 | CTD/STD cast | 1990-07-18 22:13Z | 64° 13' N, 12° 3' W | Click for more |
| 381477 | CTD/STD cast | 1990-07-18 23:19Z | 64° 10' N, 11° 54' W | Click for more |
| 381490 | CTD/STD cast | 1990-07-19 01:47Z | 64° 1' N, 12° 24' W | Click for more |
| 381521 | CTD/STD cast | 1990-07-19 08:37Z | 63° 43' N, 14° 24' W | Click for more |
| 381545 | CTD/STD cast | 1990-07-19 09:41Z | 63° 42' N, 14° 22' W | Click for more |
| 381569 | CTD/STD cast | 1990-07-19 11:21Z | 63° 37' N, 14° 16' W | Click for more |
| 381582 | CTD/STD cast | 1990-07-19 13:15Z | 63° 30' N, 14° 7' W | Click for more |
| 381601 | CTD/STD cast | 1990-07-19 15:12Z | 63° 25' N, 13° 58' W | Click for more |
| 381625 | CTD/STD cast | 1990-07-19 17:06Z | 63° 19' N, 13° 49' W | Click for more |
| 381649 | CTD/STD cast | 1990-07-19 19:03Z | 63° 14' N, 13° 41' W | Click for more |
| 381662 | CTD/STD cast | 1990-07-19 20:44Z | 63° 8' N, 13° 32' W | Click for more |
| 381686 | CTD/STD cast | 1990-07-19 22:24Z | 63° 2' N, 13° 23' W | Click for more |
| 381705 | CTD/STD cast | 1990-07-19 23:59Z | 62° 56' N, 13° 15' W | Click for more |
| 381729 | CTD/STD cast | 1990-07-20 13:33Z | 61° 53' N, 9° 5' W | Click for more |
| 381742 | CTD/STD cast | 1990-07-20 15:03Z | 61° 48' N, 9° 16' W | Click for more |
| 381766 | CTD/STD cast | 1990-07-20 17:08Z | 61° 43' N, 9° 26' W | Click for more |
| 381791 | CTD/STD cast | 1990-07-20 18:53Z | 61° 39' N, 9° 37' W | Click for more |
Project Database
No data currently held for this cruise in the BODC Project Database
