BODC Cruise Metadata Report for RV Cirolana (74CZ) cruise CIR1/91
Introduction
This report collates information from the BODC cruise inventory and oceanographic databases. It presents
- Cruise Inventory Information
- A summary of BODC data holdings for the cruise from the

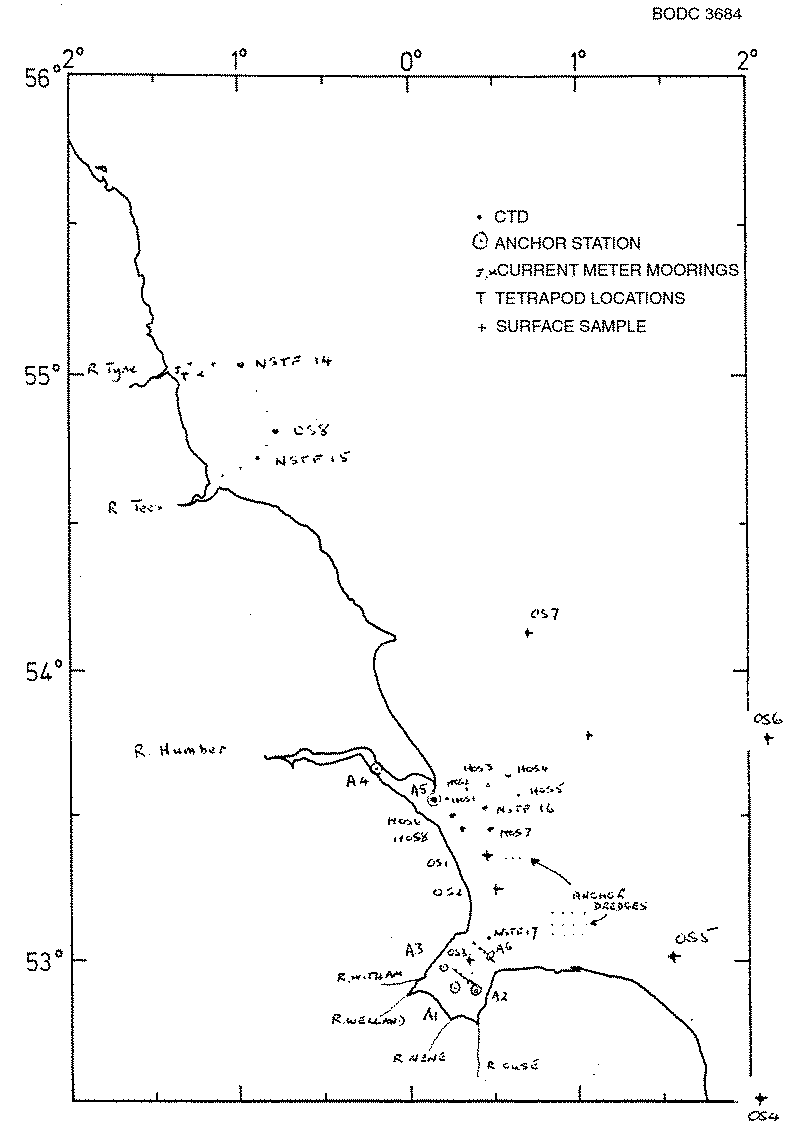

- References - including cruise tracks and cruise reports
Cruise Inventory Information
| Long name | RV Cirolana (74CZ) cruise CIR1/91 |
|---|---|
| Short name | CIR1/91 |
| Objectives and Narrative |
1. To recover the tetrapod and current meter moorings deployed during CIROLANA 19/90 in Marsden Bay.
2. To complete a 48 hour anchor station in Alnmouth Bay with the tetrapod deployed. 3. To complete nutrient transects between the Tyne, Tees, Dogger Bank, Humber and Wash for the North Sea Task Force Monitoring Master Plan. 4. To complete 15 anchor dredge stations to sruvey the benthos in one marine aggregate extraction site and one prospective site. 5. To complete anchor stations in the Wash and Humber while small boats are collecting water and sediment samples for the JONUS programme. 6. To deploy the tetrapod at two anchor stations in the Wash to provide further data for the sediment transport model being developed by the University of Bradford. 7. To complete off shore sampling for nutrients and sediments for the JONUS programme. All the aims were successfully completed. |
| Ship | RV Cirolana |
| Departure Port | Lowestoft, United Kingdom |
| Departure Date | 1991-01-05 |
| Arrival Port | Lowestoft, United Kingdom |
| Arrival Date | 1991-01-23 |
| Principal Scientist(s) | Paul A Gurbutt (Ministry of Agriculture, Fisheries and Food Lowestoft Fisheries Laboratory) |
| Responsible Organisation | Ministry of Agriculture, Fisheries and Food Lowestoft Fisheries Laboratory |
| Associated Project(s) | JONUS |
| IHB Sea Areas Visited | North Sea |
| Marsden Squares Visited | 181;1/181;3/216;1 |
| Work Area Description | North Sea - Tyne, Dogger Bank, Humber and Wash |
| Unable to lookup cruise bounds at this time | |
| Work Area Bounding Polygon | |
| Southern Limit | unknown |
| Northern Limit | unknown |
| Western Limit | unknown |
| Eastern Limit | unknown |
Cruise Inventory Datasets
| Physical oceanography | |
|---|---|
| CTD stations |
Quantity:
number of stations =
170
Description: 7 top & bottom 3 with T only |
| Current meters |
Quantity:
number of recoveries =
2
Description: 2 meters recovered |
| Other physical oceanographic measurements |
Quantity:
number of deployments =
1
Description: bottom mounted near bed velocity meter, 55 days of data |
| Water bottle stations |
Quantity:
number of stations =
11
Description: |
| Chemical oceanography | |
| Ammonia |
Quantity:
number of samples =
175
Description: |
| Nitrate |
Quantity:
number of samples =
167
Description: |
| Nitrite |
Quantity:
number of samples =
14
Description: |
| Phosphate |
Quantity:
number of samples =
174
Description: |
| Silicate |
Quantity:
number of samples =
175
Description: |
| Total - N |
Quantity:
number of samples =
175
Description: |
| Geology and geophysics | |
| Core - soft bottom |
Quantity:
number of cores =
20
Description: |
| Dredge |
Quantity:
number of deployments =
12
Description: anchor dredge |
Cruise Inventory Mooring/Buoy Operations
| Latitude | Longitude | Data type | Description |
|---|---|---|---|
| 55° 0' N | 1° 22' W | Current meters | Current speed, direction water temp., 1 meter recovered,55d |
| 54° 58' N | 1° 19' W | Current meters | Current speed, direction water temp., 1 meter recovered,55d |
| 54° 58' N | 1° 21' W | Other physical oceanographic measurements | Bottom mounted near bed velocity meter, 55days data |
Summary of BODC Data Holdings for the Cruise
National Oceanographic Database
Summary
| # Series | Instrument Description | Parameters |
|---|---|---|
| 22 | CTD/STD cast |
Salinity of the water column Temperature of the water column Vertical spatial coordinates |
| 17 | CTD/STD cast |
Salinity of the water column Temperature of the water column Transmittance and attenuance of the water column Vertical spatial coordinates |
| 123 | CTD/STD cast |
Concentration of suspended particulate material in the water column Salinity of the water column Temperature of the water column Transmittance and attenuance of the water column Vertical spatial coordinates |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
Full List
| BODC Reference | Instrument Description | Date/Time | Location | |
|---|---|---|---|---|
| 329986 | CTD/STD cast | 1991-01-06 11:08Z | 55° 0' N, 1° 22' W | Click for more |
| 329998 | CTD/STD cast | 1991-01-06 12:51Z | 55° 0' N, 1° 22' W | Click for more |
| 330011 | CTD/STD cast | 1991-01-07 09:47Z | 55° 1' N, 1° 23' W | Click for more |
| 330023 | CTD/STD cast | 1991-01-07 13:18Z | 55° 1' N, 1° 24' W | Click for more |
| 330035 | CTD/STD cast | 1991-01-07 14:06Z | 55° 1' N, 1° 21' W | Click for more |
| 330047 | CTD/STD cast | 1991-01-07 15:13Z | 55° 0' N, 1° 9' W | Click for more |
| 330059 | CTD/STD cast | 1991-01-07 16:27Z | 54° 57' N, 0° 56' W | Click for more |
| 330060 | CTD/STD cast | 1991-01-07 17:46Z | 54° 52' N, 0° 42' W | Click for more |
| 330072 | CTD/STD cast | 1991-01-07 18:44Z | 54° 49' N, 0° 30' W | Click for more |
| 330084 | CTD/STD cast | 1991-01-07 19:45Z | 54° 47' N, 0° 40' W | Click for more |
| 330096 | CTD/STD cast | 1991-01-07 20:52Z | 54° 43' N, 0° 52' W | Click for more |
| 330103 | CTD/STD cast | 1991-01-07 21:55Z | 54° 42' N, 1° 0' W | Click for more |
| 330115 | CTD/STD cast | 1991-01-07 22:24Z | 54° 40' N, 1° 4' W | Click for more |
| 330127 | CTD/STD cast | 1991-01-09 17:38Z | 54° 10' N, 0° 45' E | Click for more |
| 330139 | CTD/STD cast | 1991-01-10 15:52Z | 52° 57' N, 0° 19' E | Click for more |
| 330140 | CTD/STD cast | 1991-01-10 16:20Z | 52° 58' N, 0° 18' E | Click for more |
| 330152 | CTD/STD cast | 1991-01-10 17:48Z | 53° 3' N, 0° 24' E | Click for more |
| 330164 | CTD/STD cast | 1991-01-10 18:18Z | 53° 2' N, 0° 25' E | Click for more |
| 330176 | CTD/STD cast | 1991-01-10 18:52Z | 53° 1' N, 0° 27' E | Click for more |
| 330188 | CTD/STD cast | 1991-01-10 19:30Z | 53° 1' N, 0° 28' E | Click for more |
| 330207 | CTD/STD cast | 1991-01-10 20:32Z | 53° 1' N, 0° 27' E | Click for more |
| 330219 | CTD/STD cast | 1991-01-10 21:30Z | 53° 1' N, 0° 27' E | Click for more |
| 330220 | CTD/STD cast | 1991-01-10 22:30Z | 53° 1' N, 0° 27' E | Click for more |
| 330232 | CTD/STD cast | 1991-01-10 23:29Z | 53° 1' N, 0° 27' E | Click for more |
| 330244 | CTD/STD cast | 1991-01-11 00:30Z | 53° 1' N, 0° 27' E | Click for more |
| 330256 | CTD/STD cast | 1991-01-11 01:30Z | 53° 1' N, 0° 27' E | Click for more |
| 330268 | CTD/STD cast | 1991-01-11 02:30Z | 53° 1' N, 0° 27' E | Click for more |
| 330281 | CTD/STD cast | 1991-01-11 03:27Z | 53° 1' N, 0° 27' E | Click for more |
| 330293 | CTD/STD cast | 1991-01-11 04:28Z | 53° 1' N, 0° 27' E | Click for more |
| 330300 | CTD/STD cast | 1991-01-11 05:29Z | 53° 1' N, 0° 27' E | Click for more |
| 330312 | CTD/STD cast | 1991-01-11 06:29Z | 53° 1' N, 0° 27' E | Click for more |
| 330324 | CTD/STD cast | 1991-01-11 07:28Z | 53° 1' N, 0° 27' E | Click for more |
| 330336 | CTD/STD cast | 1991-01-11 08:29Z | 53° 1' N, 0° 27' E | Click for more |
| 330348 | CTD/STD cast | 1991-01-11 09:31Z | 53° 1' N, 0° 27' E | Click for more |
| 330361 | CTD/STD cast | 1991-01-11 13:04Z | 53° 27' N, 0° 30' E | Click for more |
| 330373 | CTD/STD cast | 1991-01-11 13:55Z | 53° 26' N, 0° 21' E | Click for more |
| 330385 | CTD/STD cast | 1991-01-11 14:45Z | 53° 30' N, 0° 17' E | Click for more |
| 330397 | CTD/STD cast | 1991-01-11 15:20Z | 53° 31' N, 0° 13' E | Click for more |
| 330404 | CTD/STD cast | 1991-01-11 15:52Z | 53° 33' N, 0° 16' E | Click for more |
| 330416 | CTD/STD cast | 1991-01-11 16:25Z | 53° 35' N, 0° 19' E | Click for more |
| 330428 | CTD/STD cast | 1991-01-11 17:38Z | 53° 36' N, 0° 22' E | Click for more |
| 330441 | CTD/STD cast | 1991-01-11 18:20Z | 53° 34' N, 0° 24' E | Click for more |
| 330453 | CTD/STD cast | 1991-01-11 19:05Z | 53° 32' N, 0° 20' E | Click for more |
| 330465 | CTD/STD cast | 1991-01-12 00:37Z | 53° 30' N, 2° 10' E | Click for more |
| 330477 | CTD/STD cast | 1991-01-12 08:35Z | 53° 33' N, 0° 6' E | Click for more |
| 330489 | CTD/STD cast | 1991-01-12 09:31Z | 53° 33' N, 0° 6' E | Click for more |
| 330490 | CTD/STD cast | 1991-01-12 10:30Z | 53° 33' N, 0° 6' E | Click for more |
| 330508 | CTD/STD cast | 1991-01-12 11:30Z | 53° 33' N, 0° 6' E | Click for more |
| 330521 | CTD/STD cast | 1991-01-12 12:28Z | 53° 33' N, 0° 6' E | Click for more |
| 330533 | CTD/STD cast | 1991-01-12 13:28Z | 53° 33' N, 0° 6' E | Click for more |
| 330545 | CTD/STD cast | 1991-01-12 14:26Z | 53° 33' N, 0° 6' E | Click for more |
| 330557 | CTD/STD cast | 1991-01-12 15:28Z | 53° 33' N, 0° 6' E | Click for more |
| 330569 | CTD/STD cast | 1991-01-12 16:27Z | 53° 33' N, 0° 6' E | Click for more |
| 330570 | CTD/STD cast | 1991-01-12 17:30Z | 53° 33' N, 0° 6' E | Click for more |
| 330582 | CTD/STD cast | 1991-01-12 18:28Z | 53° 33' N, 0° 6' E | Click for more |
| 330594 | CTD/STD cast | 1991-01-12 19:29Z | 53° 33' N, 0° 6' E | Click for more |
| 330601 | CTD/STD cast | 1991-01-12 20:30Z | 53° 33' N, 0° 6' E | Click for more |
| 330613 | CTD/STD cast | 1991-01-12 21:29Z | 53° 33' N, 0° 6' E | Click for more |
| 330625 | CTD/STD cast | 1991-01-15 07:38Z | 52° 56' N, 0° 23' E | Click for more |
| 330637 | CTD/STD cast | 1991-01-15 08:32Z | 52° 56' N, 0° 23' E | Click for more |
| 330649 | CTD/STD cast | 1991-01-15 09:30Z | 52° 56' N, 0° 23' E | Click for more |
| 330650 | CTD/STD cast | 1991-01-15 10:30Z | 52° 56' N, 0° 23' E | Click for more |
| 330662 | CTD/STD cast | 1991-01-15 11:30Z | 52° 56' N, 0° 23' E | Click for more |
| 330674 | CTD/STD cast | 1991-01-15 12:31Z | 52° 56' N, 0° 23' E | Click for more |
| 330686 | CTD/STD cast | 1991-01-15 14:06Z | 52° 56' N, 0° 23' E | Click for more |
| 330698 | CTD/STD cast | 1991-01-15 14:30Z | 52° 56' N, 0° 23' E | Click for more |
| 330705 | CTD/STD cast | 1991-01-15 15:30Z | 52° 56' N, 0° 23' E | Click for more |
| 330717 | CTD/STD cast | 1991-01-15 16:30Z | 52° 56' N, 0° 23' E | Click for more |
| 330729 | CTD/STD cast | 1991-01-15 17:32Z | 52° 56' N, 0° 23' E | Click for more |
| 330730 | CTD/STD cast | 1991-01-15 18:30Z | 52° 56' N, 0° 23' E | Click for more |
| 330742 | CTD/STD cast | 1991-01-15 19:28Z | 52° 56' N, 0° 23' E | Click for more |
| 330754 | CTD/STD cast | 1991-01-15 20:29Z | 52° 56' N, 0° 23' E | Click for more |
| 330766 | CTD/STD cast | 1991-01-16 07:29Z | 52° 55' N, 0° 15' E | Click for more |
| 330778 | CTD/STD cast | 1991-01-16 08:30Z | 52° 55' N, 0° 15' E | Click for more |
| 330791 | CTD/STD cast | 1991-01-16 09:30Z | 52° 55' N, 0° 15' E | Click for more |
| 330809 | CTD/STD cast | 1991-01-16 10:29Z | 52° 55' N, 0° 15' E | Click for more |
| 330810 | CTD/STD cast | 1991-01-16 11:28Z | 52° 55' N, 0° 15' E | Click for more |
| 330822 | CTD/STD cast | 1991-01-16 12:30Z | 52° 55' N, 0° 15' E | Click for more |
| 330834 | CTD/STD cast | 1991-01-16 13:29Z | 52° 55' N, 0° 15' E | Click for more |
| 330846 | CTD/STD cast | 1991-01-16 14:34Z | 52° 55' N, 0° 15' E | Click for more |
| 330858 | CTD/STD cast | 1991-01-16 15:29Z | 52° 55' N, 0° 15' E | Click for more |
| 330871 | CTD/STD cast | 1991-01-16 16:28Z | 52° 55' N, 0° 15' E | Click for more |
| 330883 | CTD/STD cast | 1991-01-16 17:57Z | 52° 55' N, 0° 15' E | Click for more |
| 330895 | CTD/STD cast | 1991-01-16 18:29Z | 52° 55' N, 0° 15' E | Click for more |
| 330902 | CTD/STD cast | 1991-01-16 19:31Z | 52° 55' N, 0° 15' E | Click for more |
| 330914 | CTD/STD cast | 1991-01-16 20:30Z | 52° 55' N, 0° 15' E | Click for more |
| 330926 | CTD/STD cast | 1991-01-17 03:28Z | 52° 56' N, 0° 23' E | Click for more |
| 330938 | CTD/STD cast | 1991-01-17 04:28Z | 52° 56' N, 0° 23' E | Click for more |
| 330951 | CTD/STD cast | 1991-01-17 05:28Z | 52° 56' N, 0° 23' E | Click for more |
| 330963 | CTD/STD cast | 1991-01-17 07:28Z | 52° 56' N, 0° 23' E | Click for more |
| 330975 | CTD/STD cast | 1991-01-17 08:29Z | 52° 56' N, 0° 23' E | Click for more |
| 330987 | CTD/STD cast | 1991-01-17 10:23Z | 53° 1' N, 0° 28' E | Click for more |
| 330999 | CTD/STD cast | 1991-01-17 10:49Z | 53° 1' N, 0° 27' E | Click for more |
| 331002 | CTD/STD cast | 1991-01-17 11:17Z | 53° 2' N, 0° 25' E | Click for more |
| 331014 | CTD/STD cast | 1991-01-17 11:45Z | 53° 3' N, 0° 24' E | Click for more |
| 331026 | CTD/STD cast | 1991-01-17 13:25Z | 52° 58' N, 0° 18' E | Click for more |
| 331038 | CTD/STD cast | 1991-01-17 14:00Z | 52° 57' N, 0° 19' E | Click for more |
| 331051 | CTD/STD cast | 1991-01-17 14:28Z | 52° 57' N, 0° 21' E | Click for more |
| 331063 | CTD/STD cast | 1991-01-17 16:18Z | 53° 3' N, 0° 24' E | Click for more |
| 331075 | CTD/STD cast | 1991-01-17 16:45Z | 53° 2' N, 0° 25' E | Click for more |
| 331087 | CTD/STD cast | 1991-01-17 17:33Z | 53° 1' N, 0° 27' E | Click for more |
| 331099 | CTD/STD cast | 1991-01-17 17:53Z | 53° 1' N, 0° 28' E | Click for more |
| 331106 | CTD/STD cast | 1991-01-18 04:32Z | 52° 59' N, 0° 12' E | Click for more |
| 331118 | CTD/STD cast | 1991-01-18 05:29Z | 52° 59' N, 0° 12' E | Click for more |
| 331131 | CTD/STD cast | 1991-01-18 06:28Z | 52° 59' N, 0° 12' E | Click for more |
| 331143 | CTD/STD cast | 1991-01-18 07:28Z | 52° 59' N, 0° 12' E | Click for more |
| 331155 | CTD/STD cast | 1991-01-18 08:28Z | 52° 59' N, 0° 12' E | Click for more |
| 331167 | CTD/STD cast | 1991-01-18 09:29Z | 52° 59' N, 0° 12' E | Click for more |
| 331179 | CTD/STD cast | 1991-01-18 10:29Z | 52° 59' N, 0° 12' E | Click for more |
| 331180 | CTD/STD cast | 1991-01-18 11:29Z | 52° 59' N, 0° 12' E | Click for more |
| 331192 | CTD/STD cast | 1991-01-18 13:28Z | 52° 59' N, 0° 12' E | Click for more |
| 331211 | CTD/STD cast | 1991-01-18 14:29Z | 52° 59' N, 0° 12' E | Click for more |
| 331223 | CTD/STD cast | 1991-01-18 15:29Z | 52° 59' N, 0° 12' E | Click for more |
| 331235 | CTD/STD cast | 1991-01-18 16:27Z | 52° 59' N, 0° 12' E | Click for more |
| 331247 | CTD/STD cast | 1991-01-18 17:29Z | 52° 59' N, 0° 12' E | Click for more |
| 331259 | CTD/STD cast | 1991-01-19 12:59Z | 53° 27' N, 0° 30' E | Click for more |
| 331260 | CTD/STD cast | 1991-01-19 13:50Z | 53° 26' N, 0° 21' E | Click for more |
| 331272 | CTD/STD cast | 1991-01-19 14:27Z | 53° 30' N, 0° 17' E | Click for more |
| 331284 | CTD/STD cast | 1991-01-19 14:58Z | 53° 31' N, 0° 13' E | Click for more |
| 331296 | CTD/STD cast | 1991-01-19 15:26Z | 53° 33' N, 0° 16' E | Click for more |
| 331303 | CTD/STD cast | 1991-01-19 15:57Z | 53° 35' N, 0° 19' E | Click for more |
| 331315 | CTD/STD cast | 1991-01-19 16:32Z | 53° 36' N, 0° 22' E | Click for more |
| 331327 | CTD/STD cast | 1991-01-19 17:33Z | 53° 34' N, 0° 24' E | Click for more |
| 331339 | CTD/STD cast | 1991-01-20 11:33Z | 53° 33' N, 0° 6' E | Click for more |
| 331340 | CTD/STD cast | 1991-01-20 12:33Z | 53° 33' N, 0° 6' E | Click for more |
| 331352 | CTD/STD cast | 1991-01-20 13:28Z | 53° 33' N, 0° 6' E | Click for more |
| 331364 | CTD/STD cast | 1991-01-20 14:30Z | 53° 33' N, 0° 6' E | Click for more |
| 331376 | CTD/STD cast | 1991-01-20 15:31Z | 53° 33' N, 0° 6' E | Click for more |
| 331388 | CTD/STD cast | 1991-01-20 16:29Z | 53° 33' N, 0° 6' E | Click for more |
| 331407 | CTD/STD cast | 1991-01-20 17:33Z | 53° 33' N, 0° 6' E | Click for more |
| 331419 | CTD/STD cast | 1991-01-20 19:29Z | 53° 33' N, 0° 6' E | Click for more |
| 331420 | CTD/STD cast | 1991-01-20 20:30Z | 53° 33' N, 0° 6' E | Click for more |
| 331432 | CTD/STD cast | 1991-01-20 21:30Z | 53° 33' N, 0° 6' E | Click for more |
| 331444 | CTD/STD cast | 1991-01-20 22:29Z | 53° 33' N, 0° 6' E | Click for more |
| 331456 | CTD/STD cast | 1991-01-20 23:28Z | 53° 33' N, 0° 6' E | Click for more |
| 331468 | CTD/STD cast | 1991-01-21 00:27Z | 53° 33' N, 0° 6' E | Click for more |
| 331481 | CTD/STD cast | 1991-01-21 10:29Z | 53° 40' N, 0° 13' W | Click for more |
| 331493 | CTD/STD cast | 1991-01-21 12:30Z | 53° 40' N, 0° 13' W | Click for more |
| 331500 | CTD/STD cast | 1991-01-21 13:32Z | 53° 40' N, 0° 13' W | Click for more |
| 331512 | CTD/STD cast | 1991-01-21 14:28Z | 53° 40' N, 0° 13' W | Click for more |
| 331524 | CTD/STD cast | 1991-01-21 15:30Z | 53° 40' N, 0° 13' W | Click for more |
| 331536 | CTD/STD cast | 1991-01-21 16:31Z | 53° 40' N, 0° 13' W | Click for more |
| 331548 | CTD/STD cast | 1991-01-21 17:31Z | 53° 40' N, 0° 13' W | Click for more |
| 331561 | CTD/STD cast | 1991-01-21 18:31Z | 53° 40' N, 0° 13' W | Click for more |
| 331573 | CTD/STD cast | 1991-01-21 19:29Z | 53° 40' N, 0° 13' W | Click for more |
| 331585 | CTD/STD cast | 1991-01-21 20:28Z | 53° 40' N, 0° 13' W | Click for more |
| 331597 | CTD/STD cast | 1991-01-21 21:30Z | 53° 40' N, 0° 13' W | Click for more |
| 331604 | CTD/STD cast | 1991-01-21 22:29Z | 53° 40' N, 0° 13' W | Click for more |
| 331616 | CTD/STD cast | 1991-01-21 23:28Z | 53° 40' N, 0° 13' W | Click for more |
| 331628 | CTD/STD cast | 1991-01-22 04:30Z | 53° 40' N, 0° 13' W | Click for more |
| 331641 | CTD/STD cast | 1991-01-22 05:30Z | 53° 40' N, 0° 13' W | Click for more |
| 331653 | CTD/STD cast | 1991-01-22 06:29Z | 53° 40' N, 0° 13' W | Click for more |
| 331665 | CTD/STD cast | 1991-01-22 07:30Z | 53° 40' N, 0° 13' W | Click for more |
| 331677 | CTD/STD cast | 1991-01-22 08:31Z | 53° 40' N, 0° 13' W | Click for more |
| 331689 | CTD/STD cast | 1991-01-22 09:30Z | 53° 40' N, 0° 13' W | Click for more |
| 331690 | CTD/STD cast | 1991-01-22 10:29Z | 53° 40' N, 0° 13' W | Click for more |
| 331708 | CTD/STD cast | 1991-01-22 11:30Z | 53° 40' N, 0° 13' W | Click for more |
| 331721 | CTD/STD cast | 1991-01-22 12:28Z | 53° 40' N, 0° 13' W | Click for more |
| 331733 | CTD/STD cast | 1991-01-22 13:30Z | 53° 40' N, 0° 13' W | Click for more |
| 331745 | CTD/STD cast | 1991-01-22 14:26Z | 53° 40' N, 0° 13' W | Click for more |
| 331757 | CTD/STD cast | 1991-01-22 16:28Z | 53° 40' N, 0° 13' W | Click for more |
| 331769 | CTD/STD cast | 1991-01-22 17:31Z | 53° 40' N, 0° 13' W | Click for more |
Project Database
No data currently held for this cruise in the BODC Project Database
