BODC Cruise Metadata Report for FRV Clupea (74CU) cruise 0798C
Introduction
This report collates information from the BODC cruise inventory and oceanographic databases. It presents
- Cruise Inventory Information
- A summary of BODC data holdings for the cruise from the

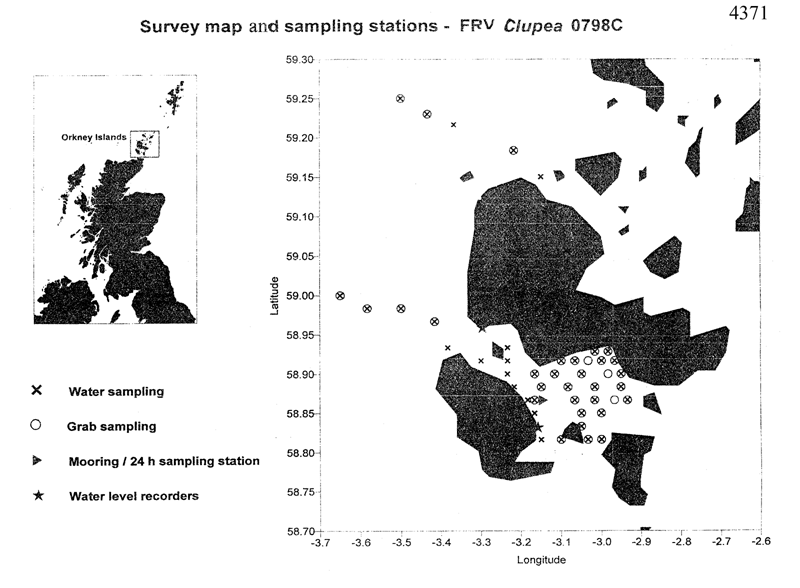

- References - including cruise tracks and cruise reports
Cruise Inventory Information
| Long name | FRV Clupea (74CU) cruise 0798C |
|---|---|
| Short name | 0798C |
| Objectives and Narrative |
1. To conduct a hydrographic and biological survey of the Orkney area.
2. To deploy water level recorders at three locations in Scapa Flow. 3. To collect sediment samples by Day Grab. 4. Sea trials using Laser Marine Surface Fluorosensor (LMSF) system (visitors from RGU). |
| Ship | FRV Clupea |
| Departure Port | Fraserburgh, United Kingdom |
| Departure Date | 1998-05-04 |
| Arrival Port | Fraserburgh, United Kingdom |
| Arrival Date | 1998-05-10 |
| Principal Scientist(s) | Marie Kelly (Fisheries Research Services Aberdeen Marine Laboratory) |
| Responsible Organisation | Fisheries Research Services Aberdeen Marine Laboratory |
| Associated Project(s) | |
| IHB Sea Areas Visited | North Sea |
| Marsden Squares Visited | 181;3 |
| Work Area Description | Orkney area and Scapa Flow, North Sea |
| Unable to lookup cruise bounds at this time | |
| Work Area Bounding Polygon | |
| Southern Limit | unknown |
| Northern Limit | unknown |
| Western Limit | unknown |
| Eastern Limit | unknown |
Cruise Inventory Datasets
| Physical oceanography | |
|---|---|
| CTD stations |
Quantity:
number of stations =
54
Description: CTD dips SBE and Chelsea |
| Optics (eg underwater light levels) |
Quantity:
number of stations =
54
Description: CTD dips SBE and Chelsea |
| Surface measurements underway (T,S) |
Quantity:
track kilometres =
640
Description: |
| Transparency (eg transmissometer) |
Quantity:
number of stations =
54
Description: CTD dips SBE and Chelsea |
| Chemical oceanography | |
| Ammonia |
Quantity:
number of stations =
54
Description: |
| Nitrate |
Quantity:
number of stations =
54
Description: |
| Phosphate |
Quantity:
number of stations =
54
Description: |
| Silicate |
Quantity:
number of stations =
54
Description: |
| Biology and fisheries | |
| Phytoplankton |
Quantity:
number of samples =
43
Description: Samples of water for phytoplankton analysis |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of stations =
54
Description: CTD dips SBE and Chelsea |
| Geology and geophysics | |
| Grab |
Quantity:
number of samples =
43
Description: Day grabs |
Cruise Inventory Mooring/Buoy Operations
| Latitude | Longitude | Data type | Description |
|---|---|---|---|
| 58° 58' N | 3° 18' W | Sea level (inc. bot. press., inverted echosounder) | Deployed WLR |
| 58° 57' N | 2° 58' W | Sea level (inc. bot. press., inverted echosounder) | Deployed WLR |
| 58° 49' N | 3° 10' W | Sea level (inc. bot. press., inverted echosounder) | Deployed WLR |
Summary of BODC Data Holdings for the Cruise
National Oceanographic Database
Summary
| # Series | Instrument Description | Parameters |
|---|---|---|
| 54 | CTD/STD cast |
Electrical conductivity of the water column Reference numbers Salinity of the water column Temperature of the water column Vertical spatial coordinates |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
Full List
| BODC Reference | Instrument Description | Date/Time | Location | |
|---|---|---|---|---|
| 510896 | CTD/STD cast | 1998-05-05 08:41Z | 58° 55' N, 3° 14' W | Click for more |
| 510903 | CTD/STD cast | 1998-05-05 09:42Z | 58° 55' N, 3° 14' W | Click for more |
| 510915 | CTD/STD cast | 1998-05-05 10:25Z | 58° 55' N, 3° 18' W | Click for more |
| 510927 | CTD/STD cast | 1998-05-05 11:29Z | 58° 54' N, 3° 13' W | Click for more |
| 510939 | CTD/STD cast | 1998-05-05 12:07Z | 58° 52' N, 3° 12' W | Click for more |
| 510940 | CTD/STD cast | 1998-05-05 12:44Z | 58° 52' N, 3° 12' W | Click for more |
| 510952 | CTD/STD cast | 1998-05-05 13:06Z | 58° 52' N, 3° 10' W | Click for more |
| 510964 | CTD/STD cast | 1998-05-05 13:35Z | 58° 51' N, 3° 11' W | Click for more |
| 510976 | CTD/STD cast | 1998-05-05 14:09Z | 58° 52' N, 3° 9' W | Click for more |
| 510988 | CTD/STD cast | 1998-05-05 14:51Z | 58° 52' N, 3° 4' W | Click for more |
| 511003 | CTD/STD cast | 1998-05-05 15:16Z | 58° 54' N, 3° 3' W | Click for more |
| 511015 | CTD/STD cast | 1998-05-05 15:59Z | 58° 54' N, 3° 7' W | Click for more |
| 511027 | CTD/STD cast | 1998-05-05 16:42Z | 58° 55' N, 3° 6' W | Click for more |
| 511039 | CTD/STD cast | 1998-05-05 17:25Z | 58° 54' N, 3° 10' W | Click for more |
| 511040 | CTD/STD cast | 1998-05-06 07:47Z | 58° 55' N, 3° 22' W | Click for more |
| 511052 | CTD/STD cast | 1998-05-06 08:48Z | 58° 58' N, 3° 24' W | Click for more |
| 511064 | CTD/STD cast | 1998-05-06 09:17Z | 58° 58' N, 3° 30' W | Click for more |
| 511076 | CTD/STD cast | 1998-05-06 10:17Z | 58° 59' N, 3° 34' W | Click for more |
| 511088 | CTD/STD cast | 1998-05-06 10:44Z | 59° 0' N, 3° 39' W | Click for more |
| 511107 | CTD/STD cast | 1998-05-06 12:58Z | 59° 15' N, 3° 30' W | Click for more |
| 511119 | CTD/STD cast | 1998-05-06 13:25Z | 59° 13' N, 3° 25' W | Click for more |
| 511120 | CTD/STD cast | 1998-05-06 14:22Z | 59° 13' N, 3° 21' W | Click for more |
| 511132 | CTD/STD cast | 1998-05-06 14:55Z | 59° 10' N, 3° 13' W | Click for more |
| 511144 | CTD/STD cast | 1998-05-06 15:53Z | 59° 9' N, 3° 8' W | Click for more |
| 511156 | CTD/STD cast | 1998-05-07 08:08Z | 58° 49' N, 3° 9' W | Click for more |
| 511168 | CTD/STD cast | 1998-05-07 08:37Z | 58° 49' N, 3° 6' W | Click for more |
| 511181 | CTD/STD cast | 1998-05-07 09:00Z | 58° 49' N, 3° 3' W | Click for more |
| 511193 | CTD/STD cast | 1998-05-07 09:32Z | 58° 49' N, 3° 1' W | Click for more |
| 511200 | CTD/STD cast | 1998-05-07 10:06Z | 58° 49' N, 3° 3' W | Click for more |
| 511212 | CTD/STD cast | 1998-05-07 10:36Z | 58° 51' N, 3° 0' W | Click for more |
| 511224 | CTD/STD cast | 1998-05-07 11:27Z | 58° 51' N, 3° 3' W | Click for more |
| 511236 | CTD/STD cast | 1998-05-07 11:57Z | 58° 52' N, 3° 4' W | Click for more |
| 511248 | CTD/STD cast | 1998-05-07 12:17Z | 58° 52' N, 3° 1' W | Click for more |
| 511261 | CTD/STD cast | 1998-05-07 12:49Z | 58° 52' N, 2° 55' W | Click for more |
| 511273 | CTD/STD cast | 1998-05-07 13:08Z | 58° 52' N, 2° 57' W | Click for more |
| 511285 | CTD/STD cast | 1998-05-07 13:40Z | 58° 54' N, 2° 56' W | Click for more |
| 511297 | CTD/STD cast | 1998-05-07 14:06Z | 58° 52' N, 3° 1' W | Click for more |
| 511304 | CTD/STD cast | 1998-05-07 14:34Z | 58° 55' N, 3° 0' W | Click for more |
| 511316 | CTD/STD cast | 1998-05-07 14:52Z | 58° 55' N, 2° 57' W | Click for more |
| 511328 | CTD/STD cast | 1998-05-07 15:14Z | 58° 55' N, 2° 58' W | Click for more |
| 511341 | CTD/STD cast | 1998-05-08 07:35Z | 58° 55' N, 3° 1' W | Click for more |
| 511353 | CTD/STD cast | 1998-05-08 08:07Z | 58° 55' N, 3° 4' W | Click for more |
| 511365 | CTD/STD cast | 1998-05-08 09:33Z | 58° 52' N, 3° 9' W | Click for more |
| 511377 | CTD/STD cast | 1998-05-08 10:34Z | 58° 52' N, 3° 9' W | Click for more |
| 511389 | CTD/STD cast | 1998-05-08 11:39Z | 58° 52' N, 3° 9' W | Click for more |
| 511390 | CTD/STD cast | 1998-05-08 12:36Z | 58° 52' N, 3° 9' W | Click for more |
| 511408 | CTD/STD cast | 1998-05-08 13:33Z | 58° 52' N, 3° 9' W | Click for more |
| 511421 | CTD/STD cast | 1998-05-08 14:33Z | 58° 52' N, 3° 9' W | Click for more |
| 511433 | CTD/STD cast | 1998-05-08 15:30Z | 58° 52' N, 3° 9' W | Click for more |
| 511445 | CTD/STD cast | 1998-05-08 16:35Z | 58° 52' N, 3° 9' W | Click for more |
| 511457 | CTD/STD cast | 1998-05-08 17:30Z | 58° 52' N, 3° 9' W | Click for more |
| 511469 | CTD/STD cast | 1998-05-08 18:34Z | 58° 52' N, 3° 9' W | Click for more |
| 511470 | CTD/STD cast | 1998-05-08 19:30Z | 58° 52' N, 3° 9' W | Click for more |
| 511482 | CTD/STD cast | 1998-05-08 20:35Z | 58° 52' N, 3° 9' W | Click for more |
Project Database
No data currently held for this cruise in the BODC Project Database
