BODC Cruise Metadata Report for RRS Charles Darwin (74AB) cruise CD105B

Introduction

This report collates information from the BODC cruise inventory and oceanographic databases. It presents

Cruise Inventory Information

Long name RRS Charles Darwin (74AB) cruise CD105B
Short name CD105B
Objectives and Narrative This cruise (leg), with CD105A, forms the first of the EC-MAST Ocean Margin Exchange (OMEX) Project phase II-II focusing on the NW Iberian continental shelf and slope. An acoustic Doppler current profiler and current meter mooring were deployed, underway ADCP and temperature, salanity, fluorescence and irradiance recorded. Night and day plankton net hauls were taken, and the LHPR towed on several occasions, night and day. The main activity was a grid of CTD stations recording profiles of temperature, salinity, fluorescence, dissolved oxygen, up- and down-welling radiance, transmittance and optical backscatter. Water samples were also taken at many of these stations to analyse for nutrients, biogenic silicate and calcite, primary production, pigments, DOC, bacteria, microzooplankton, natural radionuclides, SPM and POC. These data were gathered to contribute to the budgeting of fluxes of water and its contents, especially nutrients and organic carbon, in the shelf-ocean margin.
Ship RRS Charles Darwin
Departure Port Vigo, Spain
Departure Date 1997-06-10
Arrival Port Southampton, United Kingdom
Arrival Date 1997-06-23
Principal Scientist(s) John Huthnance (Proudman Oceanographic Laboratory)
Responsible Organisation XU-MEL
Associated Project(s) OMEX (II-II)
IHB Sea Areas Visited North East Atlantic Ocean (limit 40W)
Marsden Squares Visited 145;2/146;1

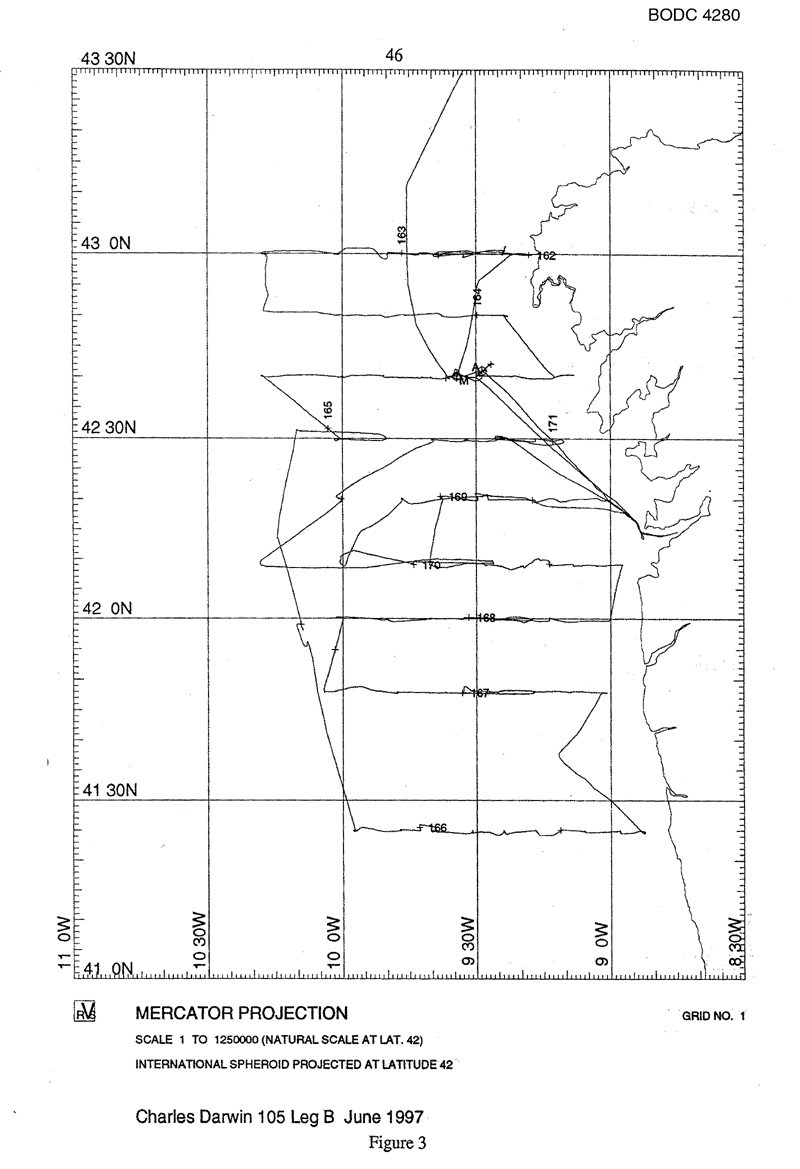

Work Area Description The continental shelf and slope off NW Portugal and Spain
Work Area Bounding Polygon 40N,15W; 45N,15W; 45N,5W; 40N,5W; 40N,15W
Southern Limit 40N
Northern Limit 45N
Western Limit 15W
Eastern Limit 5W

Cruise Inventory Datasets

Physical oceanography
CTD stations Quantity: number of profiles = 82
Description: CTD casts: profiles of T, S, transmittance, optical backscatter, up- and down-welling radiance, dissolved oxygen, fluorescence
Current profiler (eg ADCP) Quantity: track kilometres = 1111
Description: Ship-borne ADCP: current profiles to approx. 400m depth
Optics (eg underwater light levels) Quantity: number of profiles = 82
Description: CTD casts: profiles of T, S, transmittance, optical backscatter, up- and down-welling radiance, dissolved oxygen, fluorescence
Surface measurements underway (T,S) Quantity: track kilometres = 1111
Description: Underway continuous measurements of T, S, transmittance irradiance, fluorescence
Transparency (eg transmissometer) Quantity: number of profiles = 82
Description: CTD casts: profiles of T, S, transmittance, optical backscatter, up- and down-welling radiance, dissolved oxygen, fluorescence
Transparency (eg transmissometer) Quantity: number of samples = 43
Description: From the CTD casts, water samples for SPM
Chemical oceanography
Ammonia Quantity: number of track lines = 6
Description: Underway quasi-continuous sampling and nutrient analysis: nitrate, nitrite, phosphate, silicate, ammonia
Ammonia Quantity: number of samples = 166
Description: From the CTD casts, water samples for nutrients: nitrate, nitrite, phosphate, silicate, ammonia
Isotopes Quantity: number of samples = 25
Description: From the CTD casts, water samples for natural radionuclides
Nitrate Quantity: number of track lines = 6
Description: Underway quasi-continuous sampling and nutrient analysis: nitrate, nitrite, phosphate, silicate, ammonia
Nitrate Quantity: number of samples = 166
Description: From the CTD casts, water samples for nutrients: nitrate, nitrite, phosphate, silicate, ammonia
Nitrite Quantity: number of samples = 166
Description: From the CTD casts, water samples for nutrients: nitrate, nitrite, phosphate, silicate, ammonia
Nitrite Quantity: number of track lines = 6
Description: Underway quasi-continuous sampling and nutrient analysis: nitrate, nitrite, phosphate, silicate, ammonia
Other chemical oceanographic measurements Quantity: number of samples = 126
Description: From the CTD casts, water samples for biogenic silicate and calcite
Oxygen Quantity: number of profiles = 82
Description: CTD casts: profiles of T, S, transmittance, optical backscatter, up- and down-welling radiance, dissolved oxygen, fluorescence
Phosphate Quantity: number of samples = 166
Description: From the CTD casts, water samples for nutrients: nitrate, nitrite, phosphate, silicate, ammonia
Phosphate Quantity: number of track lines = 6
Description: Underway quasi-continuous sampling and nutrient analysis: nitrate, nitrite, phosphate, silicate, ammonia
Radioactivity Quantity: number of samples = 25
Description: From the CTD casts, water samples for natural radionuclides
Silicate Quantity: number of track lines = 6
Description: Underway quasi-continuous sampling and nutrient analysis: nitrate, nitrite, phosphate, silicate, ammonia
Silicate Quantity: number of samples = 126
Description: From the CTD casts, water samples for biogenic silicate and calcite
Silicate Quantity: number of samples = 166
Description: From the CTD casts, water samples for nutrients: nitrate, nitrite, phosphate, silicate, ammonia
Biology and fisheries
Dissolved organic matter (inc DOC) Quantity: number of samples = 30
Description: From the CTD casts, water samples for DOC
Particulate organic matter (inc POC, PON) Quantity: number of samples = 43
Description: From the CTD casts, water samples for SPM
Particulate organic matter (inc POC, PON) Quantity: number of samples = 43
Description: From the CTD casts, water samples for POC
Pelagic bacteria/micro-organisms Quantity: number of samples = 570
Description: From the CTD casts, water samples for bacteria
Phytoplankton Quantity: number of hauls = 23
Description: Phytoplankton net trawls
Phytoplankton Quantity: number of hauls = 6
Description: Longhurst Hardy Plankton Recorder (LHPR) tows
Phytoplankton pigs (eg chlorophyll, fluorescence) Quantity: number of samples = 343
Description: From the CTD casts, water samples for pigments
Phytoplankton pigs (eg chlorophyll, fluorescence) Quantity: track kilometres = 1111
Description: Underway continuous measurements of T, S, transmittance irradiance, fluorescence
Phytoplankton pigs (eg chlorophyll, fluorescence) Quantity: number of profiles = 82
Description: CTD casts: profiles of T, S, transmittance, optical backscatter, up- and down-welling radiance, dissolved oxygen, fluorescence
Primary productivity Quantity: number of samples = 72
Description: From the CTD casts, water samples for primary production
Zooplankton Quantity: number of hauls = 15
Description: Zooplankton net trawls
Zooplankton Quantity: number of hauls = 6
Description: Longhurst Hardy Plankton Recorder (LHPR) tows
Zooplankton Quantity: number of samples = 76
Description: From the CTD casts, water samples for microzooplankton & nanoplankton
Meteorology
Incident radiation Quantity: track kilometres = 1111
Description: Underway continuous measurements of T, S, transmittance irradiance, fluorescence

Cruise Inventory Mooring/Buoy Operations

Latitude Longitude Data type Description
42° 40' N 9° 34' W Current meters Subsurface single-strand mooring of 4 RCM current meters with T (also 2 have conductivity) in 686m water depth - deployed 10 June 1997
42° 40' N 9° 28' W Current profiler (eg ADCP) Bottom ADCP in 156m water depth - deployed 10 June 1997

Summary of BODC Data Holdings for the Cruise

National Oceanographic Database

Summary

# Series Instrument Description Parameters
1 Acoustic doppler current profiler Date and time
Temperature of the water column
1 Bottle station Nitrate concentration parameters in the water column
Nitrite concentration parameters in the water column
Phosphate concentration parameters in the water column
Quality control flags
Reference numbers
Silicate concentration parameters in the water column
Vertical spatial coordinates
23 Bottle station Ammonium and ammonia concentration parameters in water bodies
Nitrate concentration parameters in the water column
Nitrite concentration parameters in the water column
Phosphate concentration parameters in the water column
Quality control flags
Reference numbers
Silicate concentration parameters in the water column
Vertical spatial coordinates
1 Bottle station Ammonium and ammonia concentration parameters in water bodies
Nitrate concentration parameters in the water column
Nitrite concentration parameters in the water column
Phosphate concentration parameters in the water column
Quality control flags
Reference numbers
Vertical spatial coordinates
1 Bottle station Phosphate concentration parameters in the water column
Quality control flags
Reference numbers
Vertical spatial coordinates
9 Bottle station Chlorophyll pigment concentrations in water bodies
Quality control flags
Reference numbers
Vertical spatial coordinates
40 Bottle station Carotenoid and flavenoid pigment concentrations in water bodies
Chlorophyll pigment concentrations in water bodies
Quality control flags
Reference numbers
Vertical spatial coordinates
57 CTD/STD cast Chlorophyll pigment concentrations in water bodies
Density of the water column
Dissolved oxygen parameters in the water column
Raw fluorometer output
Raw suspended particulate material concentration sensor output
Salinity of the water column
Temperature of the water column
Transmittance and attenuance of the water column
Vertical spatial coordinates
24 CTD/STD cast Chlorophyll pigment concentrations in water bodies
Density of the water column
Dissolved oxygen parameters in the water column
Raw fluorometer output
Raw light meter output
Raw suspended particulate material concentration sensor output
Salinity of the water column
Temperature of the water column
Transmittance and attenuance of the water column
Vertical spatial coordinates
Visible waveband radiance and irradiance measurements in the water column
1 CTD/STD cast Chlorophyll pigment concentrations in water bodies
Density of the water column
Raw fluorometer output
Raw suspended particulate material concentration sensor output
Salinity of the water column
Temperature of the water column
Transmittance and attenuance of the water column
Vertical spatial coordinates
1 Pumped water sample Carotenoid and flavenoid pigment concentrations in water bodies
Chlorophyll pigment concentrations in water bodies
Date and time
Horizontal spatial co-ordinates

Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)

Full List

BODC Reference Instrument Description Date/Time Location
506049 Acoustic doppler current profiler 1997-06-10 15:15Z to 1997-12-16 16:45Z 42° 40' N, 9° 28' W Click for more
865796 CTD/STD cast 1997-06-12 08:20Z 43° 0' N, 10° 18' W Click for more
865803 CTD/STD cast 1997-06-12 21:52Z 42° 49' N, 9° 37' W Click for more
865815 CTD/STD cast 1997-06-13 03:29Z 42° 49' N, 9° 24' W Click for more
865827 CTD/STD cast 1997-06-13 08:44Z 42° 40' N, 9° 30' W Click for more
865839 CTD/STD cast 1997-06-13 14:33Z 42° 40' N, 9° 51' W Click for more
865840 CTD/STD cast 1997-06-14 01:26Z 42° 30' N, 10° 0' W Click for more
865852 CTD/STD cast 1997-06-14 21:36Z 41° 25' N, 9° 46' W Click for more
865864 CTD/STD cast 1997-06-15 07:03Z 41° 25' N, 9° 24' W Click for more
865876 CTD/STD cast 1997-06-15 14:13Z 41° 25' N, 8° 58' W Click for more
865888 CTD/STD cast 1997-06-16 13:00Z 42° 0' N, 10° 0' W Click for more
865907 CTD/STD cast 1997-06-17 18:57Z 42° 9' N, 9° 39' W Click for more
865919 CTD/STD cast 1997-06-12 16:01Z 42° 49' N, 10° 0' W Click for more
865920 CTD/STD cast 1997-06-15 09:30Z 41° 25' N, 9° 16' W Click for more
865932 CTD/STD cast 1997-06-16 09:04Z 41° 48' N, 10° 4' W Click for more
865944 CTD/STD cast 1997-06-19 11:50Z 42° 19' N, 10° 0' W Click for more
865956 CTD/STD cast 1997-06-19 15:35Z 42° 30' N, 9° 39' W Click for more
865968 CTD/STD cast 1997-06-19 17:57Z 42° 30' N, 9° 31' W Click for more
865981 CTD/STD cast 1997-06-19 20:16Z 42° 30' N, 9° 26' W Click for more
865993 CTD/STD cast 1997-06-19 22:18Z 42° 30' N, 9° 16' W Click for more
866007 CTD/STD cast 1997-06-20 00:55Z 42° 30' N, 9° 10' W Click for more
866019 CTD/STD cast 1997-06-20 03:30Z 42° 30' N, 9° 25' W Click for more
866020 CTD/STD cast 1997-06-20 12:21Z 42° 40' N, 9° 29' W Click for more
866032 CTD/STD cast 1997-06-20 13:50Z 42° 40' N, 9° 33' W Click for more
866044 CTD/STD cast 1997-06-20 15:04Z 42° 40' N, 9° 36' W Click for more
866056 CTD/STD cast 1997-06-15 21:40Z 41° 48' N, 9° 25' W Click for more
866068 CTD/STD cast 1997-06-16 05:35Z 41° 48' N, 9° 48' W Click for more
866081 CTD/STD cast 1997-06-16 17:33Z 42° 0' N, 9° 49' W Click for more
866093 CTD/STD cast 1997-06-17 02:07Z 42° 0' N, 9° 17' W Click for more
866100 CTD/STD cast 1997-06-17 07:12Z 42° 0' N, 9° 0' W Click for more
866112 CTD/STD cast 1997-06-17 10:54Z 42° 9' N, 9° 8' W Click for more
866124 CTD/STD cast 1997-06-17 16:34Z 42° 9' N, 9° 27' W Click for more
866136 CTD/STD cast 1997-06-18 01:33Z 42° 20' N, 9° 30' W Click for more
866148 CTD/STD cast 1997-06-18 11:31Z 42° 19' N, 9° 17' W Click for more
866161 CTD/STD cast 1997-06-18 17:29Z 42° 20' N, 9° 46' W Click for more
866173 CTD/STD cast 1997-06-19 02:57Z 42° 9' N, 9° 26' W Click for more
866185 CTD/STD cast 1997-06-11 17:58Z 43° 0' N, 9° 31' W Click for more
866197 CTD/STD cast 1997-06-12 00:57Z 43° 0' N, 9° 49' W Click for more
866204 CTD/STD cast 1997-06-15 15:20Z 41° 24' N, 8° 52' W Click for more
866216 CTD/STD cast 1997-06-15 18:37Z 41° 48' N, 9° 1' W Click for more
866228 CTD/STD cast 1997-06-15 19:49Z 41° 48' N, 9° 9' W Click for more
866241 CTD/STD cast 1997-06-15 23:42Z 41° 48' N, 9° 33' W Click for more
866253 CTD/STD cast 1997-06-16 02:31Z 41° 48' N, 9° 17' W Click for more
866265 CTD/STD cast 1997-06-16 14:04Z 42° 0' N, 10° 0' W Click for more
866277 CTD/STD cast 1997-06-16 20:10Z 42° 0' N, 9° 40' W Click for more
866289 CTD/STD cast 1997-06-16 22:27Z 42° 0' N, 9° 33' W Click for more
866290 CTD/STD cast 1997-06-17 03:45Z 42° 0' N, 9° 26' W Click for more
866308 CTD/STD cast 1997-06-17 05:43Z 42° 0' N, 9° 13' W Click for more
866321 CTD/STD cast 1997-06-17 08:48Z 42° 9' N, 8° 57' W Click for more
866333 CTD/STD cast 1997-06-17 09:51Z 42° 9' N, 9° 3' W Click for more
866345 CTD/STD cast 1997-06-17 13:57Z 42° 9' N, 9° 19' W Click for more
866357 CTD/STD cast 1997-06-17 15:17Z 42° 9' N, 9° 26' W Click for more
866369 CTD/STD cast 1997-06-17 22:41Z 42° 19' N, 9° 37' W Click for more
866370 CTD/STD cast 1997-06-18 08:52Z 42° 19' N, 9° 0' W Click for more
866382 CTD/STD cast 1997-06-18 10:20Z 42° 19' N, 9° 12' W Click for more
866394 CTD/STD cast 1997-06-18 13:53Z 42° 21' N, 9° 27' W Click for more
866401 CTD/STD cast 1997-06-18 15:03Z 42° 20' N, 9° 28' W Click for more
866413 CTD/STD cast 1997-06-18 20:59Z 42° 9' N, 10° 0' W Click for more
866425 CTD/STD cast 1997-06-19 00:12Z 42° 9' N, 9° 44' W Click for more
866437 CTD/STD cast 1997-06-19 07:56Z 42° 9' N, 10° 18' W Click for more
866449 CTD/STD cast 1997-06-10 14:24Z 42° 40' N, 9° 34' W Click for more
866450 CTD/STD cast 1997-06-10 23:50Z 43° 0' N, 9° 18' W Click for more
866462 CTD/STD cast 1997-06-11 16:29Z 43° 0' N, 9° 24' W Click for more
866474 CTD/STD cast 1997-06-11 19:19Z 43° 0' N, 9° 39' W Click for more
866486 CTD/STD cast 1997-06-11 21:37Z 43° 0' N, 9° 43' W Click for more
866498 CTD/STD cast 1997-06-12 03:09Z 42° 59' N, 9° 50' W Click for more
866505 CTD/STD cast 1997-06-12 04:46Z 43° 0' N, 10° 0' W Click for more
866517 CTD/STD cast 1997-06-12 11:53Z 43° 0' N, 10° 17' W Click for more
866529 CTD/STD cast 1997-06-12 19:20Z 42° 50' N, 9° 45' W Click for more
866530 CTD/STD cast 1997-06-13 00:39Z 42° 50' N, 9° 29' W Click for more
866542 CTD/STD cast 1997-06-13 02:36Z 42° 49' N, 9° 23' W Click for more
866554 CTD/STD cast 1997-06-13 05:26Z 42° 40' N, 9° 12' W Click for more
866566 CTD/STD cast 1997-06-13 07:25Z 42° 40' N, 9° 22' W Click for more
866578 CTD/STD cast 1997-06-13 10:19Z 42° 40' N, 9° 36' W Click for more
866591 CTD/STD cast 1997-06-13 12:22Z 42° 39' N, 9° 37' W Click for more
866609 CTD/STD cast 1997-06-13 17:07Z 42° 40' N, 10° 0' W Click for more
866610 CTD/STD cast 1997-06-13 20:23Z 42° 40' N, 10° 18' W Click for more
866622 CTD/STD cast 1997-06-14 04:24Z 42° 30' N, 9° 50' W Click for more
866634 CTD/STD cast 1997-06-14 18:10Z 41° 25' N, 9° 57' W Click for more
866646 CTD/STD cast 1997-06-15 01:44Z 41° 25' N, 9° 39' W Click for more
866658 CTD/STD cast 1997-06-15 04:55Z 41° 25' N, 9° 31' W Click for more
866671 CTD/STD cast 1997-06-15 11:44Z 41° 25' N, 9° 11' W Click for more
866683 CTD/STD cast 1997-06-15 13:03Z 41° 25' N, 9° 6' W Click for more
1278085 Bottle station 1997-06-20 03:42Z 42° 30' N, 9° 25' W Click for more
1278097 Bottle station 1997-06-17 08:51Z 42° 9' N, 8° 57' W Click for more
1278104 Bottle station 1997-06-17 14:02Z 42° 9' N, 9° 19' W Click for more
1278116 Bottle station 1997-06-19 00:51Z 42° 9' N, 9° 44' W Click for more
1278128 Bottle station 1997-06-12 03:44Z 42° 59' N, 9° 50' W Click for more
1278141 Bottle station 1997-06-12 09:18Z 43° 0' N, 10° 18' W Click for more
1278153 Bottle station 1997-06-13 03:35Z 42° 49' N, 9° 24' W Click for more
1278165 Bottle station 1997-06-13 05:29Z 42° 40' N, 9° 12' W Click for more
1278177 Bottle station 1997-06-13 08:49Z 42° 40' N, 9° 30' W Click for more
1278189 Bottle station 1997-06-13 10:38Z 42° 40' N, 9° 36' W Click for more
1278190 Bottle station 1997-06-13 15:09Z 42° 40' N, 9° 51' W Click for more
1278208 Bottle station 1997-06-14 02:10Z 42° 30' N, 10° 0' W Click for more
1278221 Bottle station 1997-06-15 02:32Z 41° 25' N, 9° 39' W Click for more
1278233 Bottle station 1997-06-15 11:49Z 41° 25' N, 9° 11' W Click for more
1278245 Bottle station 1997-06-16 02:31Z 41° 48' N, 9° 17' W Click for more
1278257 Bottle station 1997-06-16 13:45Z 42° 0' N, 10° 0' W Click for more
1278269 Bottle station 1997-06-17 02:15Z 42° 0' N, 9° 17' W Click for more
1278270 Bottle station 1997-06-17 08:51Z 42° 9' N, 8° 57' W Click for more
1278282 Bottle station 1997-06-17 14:02Z 42° 9' N, 9° 19' W Click for more
1278294 Bottle station 1997-06-18 01:53Z 42° 20' N, 9° 30' W Click for more
1278301 Bottle station 1997-06-18 11:36Z 42° 19' N, 9° 17' W Click for more
1278313 Bottle station 1997-06-19 00:51Z 42° 9' N, 9° 44' W Click for more
1278325 Bottle station 1997-06-19 03:11Z 42° 9' N, 9° 26' W Click for more
1278337 Bottle station 1997-06-19 08:44Z 42° 9' N, 10° 18' W Click for more
1278349 Bottle station 1997-06-20 01:04Z 42° 30' N, 9° 10' W Click for more
1278350 Bottle station 1997-06-20 03:42Z 42° 30' N, 9° 25' W Click for more
1671460 Bottle station 1997-06-12 03:44Z 42° 59' N, 9° 50' W Click for more
1671472 Bottle station 1997-06-13 03:35Z 42° 49' N, 9° 24' W Click for more
1671484 Bottle station 1997-06-14 02:10Z 42° 30' N, 10° 0' W Click for more
1671496 Bottle station 1997-06-15 02:32Z 41° 25' N, 9° 39' W Click for more
1671503 Bottle station 1997-06-16 02:31Z 41° 48' N, 9° 17' W Click for more
1671515 Bottle station 1997-06-17 02:15Z 42° 0' N, 9° 17' W Click for more
1671527 Bottle station 1997-06-18 01:53Z 42° 20' N, 9° 30' W Click for more
1671539 Bottle station 1997-06-19 03:11Z 42° 9' N, 9° 26' W Click for more
1671540 Bottle station 1997-06-20 01:04Z 42° 30' N, 9° 10' W Click for more
1679321 Pumped water sample 1997-06-11 07:40Z to 1997-06-20 14:15Z 41° 28' N to 43° 0' N; 10° 17' W to 8° 57' W Click for more
1697769 Bottle station 1997-06-10 14:45Z 42° 40' N, 9° 34' W Click for more
1697770 Bottle station 1997-06-10 23:58Z 43° 0' N, 9° 18' W Click for more
1697782 Bottle station 1997-06-11 16:39Z 43° 0' N, 9° 24' W Click for more
1697794 Bottle station 1997-06-11 19:48Z 43° 0' N, 9° 39' W Click for more
1697801 Bottle station 1997-06-11 22:18Z 43° 0' N, 9° 43' W Click for more
1697813 Bottle station 1997-06-12 03:44Z 42° 59' N, 9° 50' W Click for more
1697825 Bottle station 1997-06-12 09:18Z 43° 0' N, 10° 18' W Click for more
1697837 Bottle station 1997-06-12 12:48Z 43° 0' N, 10° 17' W Click for more
1697849 Bottle station 1997-06-12 16:47Z 42° 49' N, 10° 0' W Click for more
1697850 Bottle station 1997-06-13 03:35Z 42° 49' N, 9° 24' W Click for more
1697862 Bottle station 1997-06-13 05:29Z 42° 40' N, 9° 12' W Click for more
1697874 Bottle station 1997-06-13 08:49Z 42° 40' N, 9° 30' W Click for more
1697886 Bottle station 1997-06-13 10:38Z 42° 40' N, 9° 36' W Click for more
1697898 Bottle station 1997-06-13 15:09Z 42° 40' N, 9° 51' W Click for more
1697905 Bottle station 1997-06-14 02:10Z 42° 30' N, 10° 0' W Click for more
1697917 Bottle station 1997-06-14 19:06Z 41° 25' N, 9° 57' W Click for more
1697929 Bottle station 1997-06-15 02:32Z 41° 25' N, 9° 39' W Click for more
1697930 Bottle station 1997-06-15 10:06Z 41° 25' N, 9° 16' W Click for more
1697942 Bottle station 1997-06-15 11:49Z 41° 25' N, 9° 11' W Click for more
1697954 Bottle station 1997-06-15 15:28Z 41° 24' N, 8° 52' W Click for more
1697966 Bottle station 1997-06-15 19:52Z 41° 48' N, 9° 9' W Click for more
1697978 Bottle station 1997-06-16 02:31Z 41° 48' N, 9° 17' W Click for more
1697991 Bottle station 1997-06-16 13:45Z 42° 0' N, 10° 0' W Click for more
1698005 Bottle station 1997-06-17 02:15Z 42° 0' N, 9° 17' W Click for more
1698017 Bottle station 1997-06-17 09:55Z 42° 9' N, 9° 3' W Click for more
1698029 Bottle station 1997-06-17 14:02Z 42° 9' N, 9° 19' W Click for more
1698030 Bottle station 1997-06-17 15:28Z 42° 9' N, 9° 26' W Click for more
1698042 Bottle station 1997-06-17 16:55Z 42° 9' N, 9° 27' W Click for more
1698054 Bottle station 1997-06-17 19:33Z 42° 9' N, 9° 39' W Click for more
1698066 Bottle station 1997-06-18 01:53Z 42° 20' N, 9° 30' W Click for more
1698078 Bottle station 1997-06-18 08:56Z 42° 19' N, 9° 0' W Click for more
1698091 Bottle station 1997-06-18 11:36Z 42° 19' N, 9° 17' W Click for more
1698109 Bottle station 1997-06-18 18:05Z 42° 20' N, 9° 46' W Click for more
1698110 Bottle station 1997-06-19 03:11Z 42° 9' N, 9° 26' W Click for more
1698122 Bottle station 1997-06-19 08:44Z 42° 9' N, 10° 18' W Click for more
1698134 Bottle station 1997-06-19 16:16Z 42° 30' N, 9° 39' W Click for more
1698146 Bottle station 1997-06-19 20:36Z 42° 30' N, 9° 26' W Click for more
1698158 Bottle station 1997-06-20 01:04Z 42° 30' N, 9° 10' W Click for more
1698171 Bottle station 1997-06-20 03:42Z 42° 30' N, 9° 25' W Click for more
1698183 Bottle station 1997-06-20 12:26Z 42° 40' N, 9° 29' W Click for more

Project Database

# Events Gear Type Parameters Held
31 Sample taken from ship's non-toxic supply Chlorophyll pigment concentrations in water bodies
Salinity of the water column
Carotenoid and flavenoid pigment concentrations in water bodies
13 WP-2 zooplankton net Zooplankton and zoobenthos morphological parameters
Zooplankton taxonomy-related abundance per unit volume of the water column
Fish abundance in water bodies
Zooplankton non taxonomy-related abundance per unit volume of the water column
Fish morphology, age and physiology
Microzooplankton taxonomic abundance in water bodies
3494 150 kHz Shipborne Acoustic Doppler Current Profiler
82 CTD frame plus rosette sampler Ammonium and ammonia concentration parameters in water bodies

Particulate total and organic carbon concentrations in the water column
Particulate total and organic nitrogen concentrations in the water column
Raw suspended particulate material concentration sensor output
Radioactivity in water bodies
Transmittance and attenuance of the water column
Density of the water column
Visible waveband radiance and irradiance measurements in the water column
Chlorophyll pigment concentrations in water bodies
Metadata parameters
Bacterial production in the water column
Primary production in the water column
Raw fluorometer output
Silicate concentration parameters in the water column
Salinity of the water column
Concentration of suspended particulate material in the water column
Carotenoid and flavenoid pigment concentrations in water bodies
Nitrate concentration parameters in the water column
Temperature of the water column
Raw light meter output
Nitrite concentration parameters in the water column
Phosphate concentration parameters in the water column
Dissolved oxygen parameters in the water column
Regenerated production in water bodies
New production in water bodies
2 Instrument mooring

Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)

References

Track Charts

Track Chart

Reports

Cruise Report

Cruise Report
