BODC Cruise Metadata Report for RRS Discovery (74E3) cruise D285
Introduction
This report collates information from the BODC cruise inventory and oceanographic databases. It presents
- Cruise Inventory Information
- A summary of BODC data holdings for the cruise from the

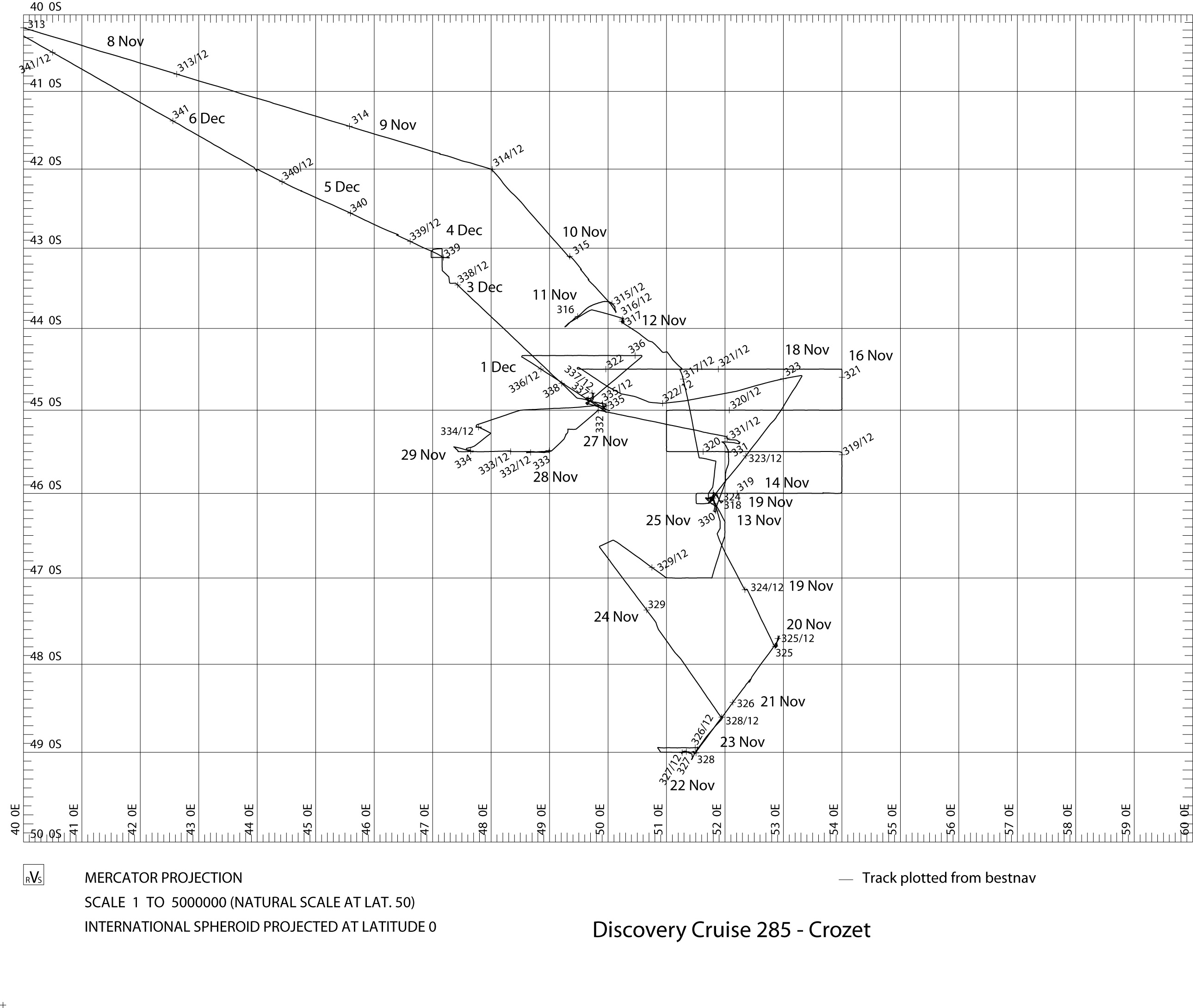

- References - including cruise tracks and cruise reports
Cruise Inventory Information
| Long name | RRS Discovery (74E3) cruise D285 |
|---|---|
| Short name | D285 |
| Objectives and Narrative |
The CROZEX cruise was designed to study both the initiation of, and export from, phytoplankton blooms around the Crozet plateau in the Southern Ocean which we hypothesise are caused by the mixing up of iron from shallow topography. The cruise will help us to understand the factors controlling iron chemistry and export production in naturally highly productive regions of the otherwise High Nutrient - Low Chlorophyll (HNLC) Southern Ocean. It will extend the work conducted on the Southern Ocean Iron Enrichment Experiment (SOIREE) by observing both the initiation of, and the export from, iron induced phytoplankton blooms in HNLC environments. Hence the results obtained may serve as a model for the possible consequences of large scale sustained iron fertilisation on export production in this region.
We compared bloom and non-bloom sites, the latter as control where HNLC conditions prevail. Central work was a suite of measurements (CTD, Iron CTD, SAPS, nets, thorium CTD, pelagra) at several named sites, M1 through M9, where M2 and M6 are control sites. A mooring was set at M3. A 4-day SeaSoar survey was worked early in the cruise to provide initialization for modelling studies which are part of the project. In between the major station work, shorter SeaSoar runs and CTD sections were worked. This cruise will be directly followed by D286, which is a direct continuation. D300 in December 2005 will follow up the work with a benthic programme in the same area. |
| Ship | RRS Discovery |
| Departure Port | Cape Town, South Africa |
| Departure Date | 2004-11-03 |
| Arrival Port | Port Elizabeth, South Africa |
| Arrival Date | 2004-12-10 |
| Principal Scientist(s) | Raymond T Pollard (Southampton Oceanography Centre) |
| Responsible Organisation | Southampton Oceanography Centre |
| Associated Project(s) | CROZEX (CROZet circulation, iron fertilization and EXport production experiment) |
| IHB Sea Areas Visited | Indian Ocean, Southern Ocean |
| Marsden Squares Visited | 474/475 |
| Work Area Description | Southern Ocean and Indian Ocean (Crozet Plateau) |
| Unable to lookup cruise bounds at this time | |
| Work Area Bounding Polygon | |
| Southern Limit | unknown |
| Northern Limit | unknown |
| Western Limit | unknown |
| Eastern Limit | unknown |
Cruise Inventory Datasets
| Physical oceanography | |
|---|---|
| CTD stations |
Quantity:
number of stations =
233
Description: Salinity (from CTD SS+TIT) |
| CTD stations |
Quantity:
number of stations =
12
Description: CTD Titanium (TIT) cast (temperature, conductivity, pressure, fluorescence, Oxygen) |
| CTD stations |
Quantity:
number of stations =
34
Description: CTD Stainless Steel (SS) cast (temperature, conductivity, pressure, fluorescence, Oxygen, FRRF, LADCP) |
| Current profiler (eg ADCP) | Description: Navigation data, ADCP 75 KHz, ADCP 150 KHz |
| Instrumented wave measurements | Description: Ship Borne Wave Recorder (SBWR) |
| Subsurface temperature and salinity measurements | Description: Seasoar |
| Surface measurements underway (T,S) |
Quantity:
number of samples =
358
Description: Underway salinity (surface from non-toxic water supply) |
| Surface measurements underway (T,S) | Description: Autoflux-metereological parameters |
| Surface measurements underway (T,S) | Description: Underway temperature (surface from non-toxic water supply) |
| Chemical oceanography | |
| Alkalinity |
Quantity:
number of samples =
400
Description: Alkalinity (from CTD SS+TIT) |
| Alkalinity |
Quantity:
number of samples =
199
Description: Underway Alkalinity (underway from non-toxic water supply) |
| Carbon dioxide | Description: Underway pCO2 (air) |
| Carbon dioxide | Description: Underway pCO2 (underway from non-toxic water supply) |
| Carbon dioxide |
Quantity:
number of samples =
297
Description: Underway TCO2 (underway from non-toxic water supply) |
| Carbon dioxide |
Quantity:
number of samples =
400
Description: TCO2 (from CTD SS+TIT) |
| Isotopes | Description: New and regenerated production (15N uptake) |
| Isotopes | Description: Size-fractionated 15N uptake (from FISH) |
| Nitrate |
Quantity:
number of samples =
394
Description: Underway nutrients (surface from non-toxic water supply) |
| Nitrate |
Quantity:
number of samples =
800
Description: Nutrients (from CTD SS+TIT) |
| Nitrite |
Quantity:
number of samples =
394
Description: Underway nutrients (surface from non-toxic water supply) |
| Nitrite |
Quantity:
number of samples =
800
Description: Nutrients (from CTD SS+TIT) |
| Other chemical oceanographic measurements |
Quantity:
number of samples =
223
Description: PIC (total # samples) from 17 stations |
| Oxygen | Description: Oxygen electrode (mounted on SS CTD) |
| Oxygen | Description: Oxygen sensor (underway from non-toxic water supply) |
| Phosphate |
Quantity:
number of samples =
394
Description: Underway nutrients (surface from non-toxic water supply) |
| Phosphate |
Quantity:
number of samples =
800
Description: Nutrients (from CTD SS+TIT) |
| Radioactivity |
Quantity:
number of samples =
81
Description: Radium samples (from CTD, mooring M3, non-toxic supply) |
| Radioactivity |
Quantity:
number of samples =
10
Description: Thorium samples (from SAPS) |
| Radioactivity |
Quantity:
number of samples =
115
Description: Thorium samples (from CTD) |
| Silicate |
Quantity:
number of samples =
800
Description: Nutrients (from CTD SS+TIT) |
| Silicate |
Quantity:
number of samples =
229
Description: Biogenic Silica (Bsi) from 17 stations |
| Silicate |
Quantity:
number of samples =
394
Description: Underway nutrients (surface from non-toxic water supply) |
| Trace elements |
Quantity:
number of samples =
210
Description: Underway Iron (from Fish) |
| Trace elements |
Quantity:
number of samples =
1
Description: Iron in sediments (from Megacorer) |
| Trace elements |
Quantity:
number of samples =
4
Description: iron in Pelagra |
| Trace elements |
Quantity:
number of samples =
10
Description: Iron in rainwater |
| Trace elements |
Quantity:
number of samples =
10
Description: Iron samples (from SAPS) |
| Trace elements |
Quantity:
number of samples =
10
Description: Iron in Aerosol samples |
| Trace elements |
Quantity:
number of samples =
214
Description: Iron from CTD on 11 stations |
| Biology and fisheries | |
| Benthic bacteria/micro-organisms |
Quantity:
number of samples =
4
Description: Meiofauna species composition and abundance, lipids analysis (from Megacorer) at three stations |
| Biochemical measurements (eg lipids, amino acids) |
Quantity:
number of samples =
2
Description: Lipid analysis of sedioments (from Megacorer) |
| Particulate organic matter (inc POC, PON) |
Quantity:
number of samples =
321
Description: POC/PON (total # samples) from 24 stations |
| Pelagic bacteria/micro-organisms |
Quantity:
number of samples =
163
Description: Nano-phytoplankton counts (flow-cytometry from CTD samples) |
| Pelagic bacteria/micro-organisms |
Quantity:
number of samples =
156
Description: Bacteria counts |
| Pelagic bacteria/micro-organisms |
Quantity:
number of experiments =
10
Description: Bacteria nutrients uptake |
| Pelagic bacteria/micro-organisms | Description: Nano-phytoplankton counts (flow-cytometry from Underway) |
| Phytoplankton | Description: Nano-phytoplankton counts (flow-cytometry from Underway) |
| Phytoplankton |
Quantity:
number of samples =
130
Description: microplankton samples (lugol + formalin fixed) |
| Phytoplankton |
Quantity:
number of samples =
163
Description: Nano-phytoplankton counts (flow-cytometry from CTD samples) |
| Phytoplankton |
Quantity:
number of experiments =
4
Description: Phytoplankton Incubation Experiments (Fe and macro-nutrients additions) |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of samples =
36
Description: HPLC from 5 stations |
| Phytoplankton pigs (eg chlorophyll, fluorescence) | Description: Underway FRRF (surface from non-toxic water supply) |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of samples =
357
Description: Underway Chlorophyll-a (surface from non-toxic water supply) |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of experiments =
19
Description: Zooplankton size fractionated gut fluorescence |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of samples =
991
Description: Chlorophyll-a (total samples excluding underway) |
| Primary productivity | Description: FRRF (from Underway) |
| Primary productivity |
Quantity:
number of experiments =
60
Description: determining size-fractionated primary production at 10 stations |
| Primary productivity |
Quantity:
number of experiments =
7
Description: determining PvI curves |
| Primary productivity |
Quantity:
8
Description: FRRF (from Seasoar) |
| Primary productivity |
Quantity:
34
Description: FRRF (from CTD) |
| Zooplankton |
Quantity:
number of experiments =
19
Description: Zooplankton size fractionated gut fluorescence |
| Zooplankton |
Quantity:
number of samples =
41
Description: Microzooplankton (lugol fixed) |
| Zooplankton |
Quantity:
number of experiments =
7
Description: Zooplankton Iron experiment |
| Zooplankton |
Quantity:
number of hauls =
21
Description: Vertical nets 63 micron |
| Zooplankton |
Quantity:
number of experiments =
8
Description: Oithona feeding selection from 8 stations |
| Zooplankton |
Quantity:
number of hauls =
22
Description: Vertical nets 200 micron |
| Meteorology | |
| Other meteorological measurements | Description: Autoflux-metereological parameters |
| Upper air observations | Description: Autoflux-metereological parameters |
| Geology and geophysics | |
| Core - soft bottom |
Quantity:
number of samples =
1
Description: Iron in sediments (from Megacorer) |
| Core - soft bottom |
Quantity:
number of samples =
4
Description: Meiofauna species composition and abundance, lipids analysis (from Megacorer) at three stations |
| Core - soft bottom |
Quantity:
number of samples =
2
Description: Lipid analysis of sedioments (from Megacorer) |
Cruise Inventory Mooring/Buoy Operations
| Latitude | Longitude | Data type | Description |
|---|---|---|---|
| 48° 58' S | 51° 28' E | Bottom photography | Bathysnap, 1 deployment at station number 15509 21/11/04 at the depth (uncorrected) of 4202 m |
| 46° 3' S | 51° 43' E | Neutrally buoyant floats | Argo floats |
| 46° 3' S | 51° 43' E | Phytoplankton | LHPR |
| 46° 3' S | 51° 43' E | Sediment traps | Pelagra |
| 46° 3' S | 51° 43' E | Surface drifters/drifting buoys | Mooring deployed at station M3 13/11/04 |
| 46° 3' S | 51° 43' E | Zooplankton | LHPR |
Summary of BODC Data Holdings for the Cruise
National Oceanographic Database
Summary
| # Series | Instrument Description | Parameters |
|---|---|---|
| 1 | Acoustic current meter |
Date and time Electrical conductivity of the water column Horizontal velocity of the water column (currents) Moored instrument depth Reference numbers Salinity of the water column Temperature of the water column |
| 37 | Acoustic doppler current profiler |
Acoustic backscatter in the water column Date and time Horizontal platform movement Horizontal spatial co-ordinates Horizontal velocity of the water column (currents) Metadata parameters Raw current meter output parameters Vertical spatial coordinates Vertical velocity of the water column (currents) |
| 37 | Acoustic doppler current profiler |
Acoustic backscatter in the water column Date and time Horizontal platform movement Horizontal spatial co-ordinates Horizontal velocity of the water column (currents) Metadata parameters Raw current meter output parameters Reference numbers Vertical spatial coordinates Vertical velocity of the water column (currents) |
| 6 | CTD in towed or autonomous underwater vehicle |
Chlorophyll pigment concentrations in water bodies Date and time Horizontal spatial co-ordinates Reference numbers Salinity of the water column Temperature of the water column Vertical spatial coordinates |
| 40 | CTD/STD cast |
Chlorophyll pigment concentrations in water bodies Concentration of suspended particulate material in the water column Density of the water column Dissolved oxygen parameters in the water column Electrical conductivity of the water column Reference numbers Salinity of the water column Temperature of the water column Transmittance and attenuance of the water column Vertical spatial coordinates |
| 5 | CTD/STD cast |
Chlorophyll pigment concentrations in water bodies Concentration of suspended particulate material in the water column Density of the water column Dissolved oxygen parameters in the water column Electrical conductivity of the water column Reference numbers Salinity of the water column Temperature of the water column Transmittance and attenuance of the water column Vertical spatial coordinates Visible waveband radiance and irradiance measurements in the water column |
| 1 | CTD/STD cast |
Concentration of suspended particulate material in the water column Density of the water column Dissolved oxygen parameters in the water column Electrical conductivity of the water column Reference numbers Salinity of the water column Temperature of the water column Transmittance and attenuance of the water column Vertical spatial coordinates Visible waveband radiance and irradiance measurements in the water column |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
Full List
| BODC Reference | Instrument Description | Date/Time | Location | |
|---|---|---|---|---|
| 683230 | CTD/STD cast | 2004-11-05 07:55Z | 37° 3' S, 26° 53' E | Click for more |
| 683242 | CTD/STD cast | 2004-11-05 11:31Z | 37° 7' S, 27° 11' E | Click for more |
| 683254 | CTD/STD cast | 2004-11-09 11:06Z | 42° 0' S, 48° 1' E | Click for more |
| 683266 | CTD/STD cast | 2004-11-11 10:36Z | 43° 52' S, 50° 15' E | Click for more |
| 683278 | CTD/STD cast | 2004-11-11 14:11Z | 43° 55' S, 50° 16' E | Click for more |
| 683291 | CTD/STD cast | 2004-11-11 19:54Z | 43° 55' S, 50° 15' E | Click for more |
| 683309 | CTD/STD cast | 2004-11-12 06:53Z | 44° 30' S, 51° 15' E | Click for more |
| 683310 | CTD/STD cast | 2004-11-13 00:28Z | 46° 3' S, 51° 46' E | Click for more |
| 683322 | CTD/STD cast | 2004-11-13 09:57Z | 46° 3' S, 51° 47' E | Click for more |
| 683334 | CTD/STD cast | 2004-11-13 15:07Z | 46° 4' S, 51° 47' E | Click for more |
| 683346 | CTD/STD cast | 2004-11-18 17:39Z | 46° 2' S, 51° 48' E | Click for more |
| 683358 | CTD/STD cast | 2004-11-18 21:03Z | 46° 1' S, 51° 48' E | Click for more |
| 683371 | CTD/STD cast | 2004-11-19 11:53Z | 47° 8' S, 52° 21' E | Click for more |
| 683383 | CTD/STD cast | 2004-11-19 20:21Z | 47° 48' S, 52° 51' E | Click for more |
| 683395 | CTD/STD cast | 2004-11-20 01:22Z | 47° 48' S, 52° 51' E | Click for more |
| 683402 | CTD/STD cast | 2004-11-20 05:42Z | 47° 46' S, 52° 52' E | Click for more |
| 683414 | CTD/STD cast | 2004-11-20 17:18Z | 48° 11' S, 52° 24' E | Click for more |
| 683426 | CTD/STD cast | 2004-11-21 15:30Z | 49° 0' S, 51° 29' E | Click for more |
| 683438 | CTD/STD cast | 2004-11-22 22:05Z | 49° 0' S, 51° 30' E | Click for more |
| 683451 | CTD/STD cast | 2004-11-23 02:52Z | 49° 1' S, 51° 28' E | Click for more |
| 683463 | CTD/STD cast | 2004-11-23 07:54Z | 48° 36' S, 51° 57' E | Click for more |
| 683475 | CTD/STD cast | 2004-11-25 00:42Z | 46° 3' S, 51° 47' E | Click for more |
| 683487 | CTD/STD cast | 2004-11-25 02:15Z | 46° 4' S, 51° 46' E | Click for more |
| 683499 | CTD/STD cast | 2004-11-25 06:25Z | 46° 4' S, 51° 45' E | Click for more |
| 683506 | CTD/STD cast | 2004-11-26 05:35Z | 45° 24' S, 52° 14' E | Click for more |
| 683518 | CTD/STD cast | 2004-11-27 14:50Z | 45° 30' S, 48° 59' E | Click for more |
| 683531 | CTD/STD cast | 2004-11-27 18:39Z | 45° 30' S, 49° 0' E | Click for more |
| 683543 | CTD/STD cast | 2004-11-27 22:37Z | 45° 29' S, 49° 0' E | Click for more |
| 683555 | CTD/STD cast | 2004-11-28 02:34Z | 45° 29' S, 48° 57' E | Click for more |
| 683567 | CTD/STD cast | 2004-11-28 10:03Z | 45° 30' S, 48° 19' E | Click for more |
| 683579 | CTD/STD cast | 2004-11-29 00:41Z | 45° 29' S, 47° 37' E | Click for more |
| 683580 | CTD/STD cast | 2004-11-29 23:54Z | 44° 55' S, 49° 54' E | Click for more |
| 683592 | CTD/STD cast | 2004-11-30 00:40Z | 44° 55' S, 49° 54' E | Click for more |
| 683611 | CTD/STD cast | 2004-11-30 05:39Z | 44° 57' S, 49° 56' E | Click for more |
| 683623 | CTD/STD cast | 2004-11-30 10:05Z | 44° 57' S, 49° 58' E | Click for more |
| 683635 | CTD/STD cast | 2004-12-01 22:33Z | 44° 52' S, 49° 39' E | Click for more |
| 683647 | CTD/STD cast | 2004-12-02 01:20Z | 44° 51' S, 49° 39' E | Click for more |
| 683659 | CTD/STD cast | 2004-12-02 06:14Z | 44° 52' S, 49° 39' E | Click for more |
| 683660 | CTD/STD cast | 2004-12-02 16:05Z | 44° 54' S, 49° 37' E | Click for more |
| 683672 | CTD/STD cast | 2004-12-03 20:36Z | 43° 7' S, 47° 11' E | Click for more |
| 683684 | CTD/STD cast | 2004-12-03 22:45Z | 43° 7' S, 47° 10' E | Click for more |
| 683696 | CTD/STD cast | 2004-12-04 04:53Z | 43° 7' S, 47° 11' E | Click for more |
| 683703 | CTD/STD cast | 2004-12-04 13:32Z | 42° 49' S, 46° 23' E | Click for more |
| 683715 | CTD/STD cast | 2004-12-04 21:38Z | 42° 33' S, 45° 36' E | Click for more |
| 683727 | CTD/STD cast | 2004-12-05 06:06Z | 42° 16' S, 44° 45' E | Click for more |
| 683739 | CTD/STD cast | 2004-12-05 14:12Z | 42° 0' S, 43° 59' E | Click for more |
| 684509 | Acoustic doppler current profiler | 2004-11-19 04:00:40Z to 2004-11-20 03:58:43Z | From 46° 4' S, 51° 48' E to 47° 48' S, 52° 51' E | Click for more |
| 684510 | Acoustic doppler current profiler | 2004-11-20 04:00:44Z to 2004-11-21 03:58:44Z | From 47° 48' S, 52° 51' E to 48° 55' S, 51° 35' E | Click for more |
| 684522 | Acoustic doppler current profiler | 2004-11-21 04:00:45Z to 2004-11-22 03:58:46Z | From 48° 55' S, 51° 34' E to 48° 59' S, 51° 18' E | Click for more |
| 684534 | Acoustic doppler current profiler | 2004-11-22 04:00:47Z to 2004-11-23 03:58:49Z | From 48° 59' S, 51° 18' E to 49° 1' S, 51° 28' E | Click for more |
| 684546 | Acoustic doppler current profiler | 2004-11-23 04:00:50Z to 2004-11-24 03:58:51Z | From 49° 1' S, 51° 28' E to 46° 56' S, 50° 10' E | Click for more |
| 684558 | Acoustic doppler current profiler | 2004-11-24 04:00:50Z to 2004-11-25 03:58:52Z | From 46° 55' S, 50° 10' E to 46° 5' S, 51° 45' E | Click for more |
| 684571 | Acoustic doppler current profiler | 2004-11-25 04:00:53Z to 2004-11-26 03:58:54Z | From 46° 5' S, 51° 45' E to 45° 23' S, 52° 4' E | Click for more |
| 684583 | Acoustic doppler current profiler | 2004-11-26 04:00:53Z to 2004-11-27 03:58:56Z | From 45° 23' S, 52° 5' E to 45° 17' S, 49° 16' E | Click for more |
| 684595 | Acoustic doppler current profiler | 2004-11-27 04:00:55Z to 2004-11-28 03:58:58Z | From 45° 17' S, 49° 16' E to 45° 29' S, 48° 56' E | Click for more |
| 684602 | Acoustic doppler current profiler | 2004-11-28 04:00:57Z to 2004-11-29 03:59:00Z | From 45° 29' S, 48° 56' E to 45° 28' S, 47° 36' E | Click for more |
| 684614 | Acoustic doppler current profiler | 2004-11-29 04:01:00Z to 2004-11-30 03:59:02Z | From 45° 28' S, 47° 35' E to 44° 54' S, 49° 54' E | Click for more |
| 684626 | Acoustic doppler current profiler | 2004-11-30 04:01:00Z to 2004-12-01 03:59:03Z | From 44° 54' S, 49° 54' E to 44° 19' S, 49° 40' E | Click for more |
| 684638 | Acoustic doppler current profiler | 2004-12-01 04:01:04Z to 2004-12-02 03:59:05Z | From 44° 19' S, 49° 40' E to 44° 51' S, 49° 38' E | Click for more |
| 684651 | Acoustic doppler current profiler | 2004-12-02 04:01:07Z to 2004-12-03 03:59:07Z | From 44° 51' S, 49° 38' E to 44° 17' S, 48° 38' E | Click for more |
| 684663 | Acoustic doppler current profiler | 2004-12-03 04:01:08Z to 2004-12-04 03:59:11Z | From 44° 16' S, 48° 37' E to 43° 7' S, 47° 10' E | Click for more |
| 684675 | Acoustic doppler current profiler | 2004-12-04 04:01:10Z to 2004-12-05 03:59:11Z | From 43° 7' S, 47° 10' E to 42° 23' S, 45° 4' E | Click for more |
| 684687 | Acoustic doppler current profiler | 2004-12-05 04:01:10Z to 2004-12-06 03:59:13Z | From 42° 22' S, 45° 4' E to 41° 3' S, 41° 48' E | Click for more |
| 684699 | Acoustic doppler current profiler | 2004-12-06 04:01:12Z to 2004-12-07 03:59:15Z | From 41° 3' S, 41° 48' E to 39° 6' S, 37° 21' E | Click for more |
| 684706 | Acoustic doppler current profiler | 2004-12-07 04:01:14Z to 2004-12-08 03:59:11Z | From 39° 6' S, 37° 20' E to 37° 12' S, 33° 6' E | Click for more |
| 684718 | Acoustic doppler current profiler | 2004-12-08 04:01:10Z to 2004-12-09 03:59:13Z | From 37° 12' S, 33° 6' E to 35° 19' S, 29° 1' E | Click for more |
| 684731 | Acoustic doppler current profiler | 2004-12-09 04:01:12Z to 2004-12-10 03:58:38Z | From 35° 18' S, 29° 1' E to 33° 54' S, 25° 57' E | Click for more |
| 685088 | Acoustic doppler current profiler | 2004-11-03 09:59:54Z to 2004-11-04 09:57:52Z | From 34° 19' S, 18° 16' E to 36° 2' S, 22° 43' E | Click for more |
| 685107 | Acoustic doppler current profiler | 2004-11-04 16:58:17Z to 2004-11-05 05:57:23Z | From 36° 16' S, 23° 40' E to 37° 0' S, 26° 37' E | Click for more |
| 685119 | Acoustic doppler current profiler | 2004-11-05 16:39:46Z to 2004-11-06 05:57:52Z | From 37° 20' S, 28° 1' E to 38° 3' S, 31° 1' E | Click for more |
| 685120 | Acoustic doppler current profiler | 2004-11-06 06:01:52Z to 2004-11-07 03:57:54Z | From 38° 3' S, 31° 2' E to 39° 16' S, 36° 11' E | Click for more |
| 685132 | Acoustic doppler current profiler | 2004-11-07 04:01:56Z to 2004-11-08 03:58:15Z | From 39° 16' S, 36° 12' E to 40° 21' S, 40° 49' E | Click for more |
| 685144 | Acoustic doppler current profiler | 2004-11-08 04:00:14Z to 2004-11-09 03:58:22Z | From 40° 21' S, 40° 50' E to 41° 39' S, 46° 29' E | Click for more |
| 685156 | Acoustic doppler current profiler | 2004-11-09 04:00:21Z to 2004-11-10 03:58:25Z | From 41° 39' S, 46° 29' E to 43° 24' S, 49° 40' E | Click for more |
| 685168 | Acoustic doppler current profiler | 2004-11-10 04:00:24Z to 2004-11-11 03:58:27Z | From 43° 24' S, 49° 40' E to 43° 57' S, 49° 18' E | Click for more |
| 685181 | Acoustic doppler current profiler | 2004-11-11 04:00:26Z to 2004-11-12 03:58:28Z | From 43° 57' S, 49° 18' E to 44° 14' S, 50° 51' E | Click for more |
| 685193 | Acoustic doppler current profiler | 2004-11-12 04:00:27Z to 2004-11-13 03:58:30Z | From 44° 15' S, 50° 52' E to 46° 4' S, 51° 45' E | Click for more |
| 685200 | Acoustic doppler current profiler | 2004-11-13 04:00:29Z to 2004-11-14 03:58:32Z | From 46° 4' S, 51° 45' E to 46° 0' S, 53° 1' E | Click for more |
| 685212 | Acoustic doppler current profiler | 2004-11-14 04:00:31Z to 2004-11-15 03:58:33Z | From 46° 0' S, 53° 1' E to 45° 24' S, 51° 0' E | Click for more |
| 685224 | Acoustic doppler current profiler | 2004-11-15 04:00:34Z to 2004-11-16 03:58:36Z | From 45° 24' S, 51° 0' E to 44° 30' S, 53° 25' E | Click for more |
| 685236 | Acoustic doppler current profiler | 2004-11-16 04:00:36Z to 2004-11-17 03:58:37Z | From 44° 30' S, 53° 25' E to 44° 30' S, 49° 33' E | Click for more |
| 685248 | Acoustic doppler current profiler | 2004-11-17 04:00:39Z to 2004-11-18 03:58:39Z | From 44° 30' S, 49° 33' E to 44° 45' S, 53° 10' E | Click for more |
| 685261 | Acoustic doppler current profiler | 2004-11-18 04:00:38Z to 2004-11-19 03:58:41Z | From 44° 45' S, 53° 9' E to 46° 4' S, 51° 48' E | Click for more |
| 685421 | Acoustic doppler current profiler | 2004-11-03 07:00:16Z to 2004-11-04 10:54:24Z | From 33° 51' S, 18° 24' E to 36° 5' S, 22° 54' E | Click for more |
| 685433 | Acoustic doppler current profiler | 2004-11-04 11:02:03Z to 2004-11-05 09:32:11Z | From 36° 6' S, 22° 55' E to 37° 3' S, 26° 53' E | Click for more |
| 685445 | Acoustic doppler current profiler | 2004-11-05 09:37:22Z to 2004-11-05 18:27:31Z | From 37° 3' S, 26° 54' E to 37° 25' S, 28° 26' E | Click for more |
| 685457 | Acoustic doppler current profiler | 2004-11-06 15:43:11Z to 2004-11-07 06:25:15Z | From 38° 34' S, 33° 12' E to 39° 25' S, 36° 48' E | Click for more |
| 685469 | Acoustic doppler current profiler | 2004-11-07 06:44:06Z to 2004-11-08 10:26:13Z | From 39° 27' S, 36° 52' E to 40° 41' S, 42° 15' E | Click for more |
| 685470 | Acoustic doppler current profiler | 2004-11-08 10:26:55Z to 2004-11-09 03:31:00Z | From 40° 41' S, 42° 16' E to 41° 37' S, 46° 22' E | Click for more |
| 685482 | Acoustic doppler current profiler | 2004-11-09 03:32:55Z to 2004-11-10 10:15:01Z | From 41° 38' S, 46° 23' E to 43° 44' S, 50° 7' E | Click for more |
| 685494 | Acoustic doppler current profiler | 2004-11-10 10:15:44Z to 2004-11-11 07:57:23Z | From 43° 44' S, 50° 7' E to 43° 48' S, 49° 55' E | Click for more |
| 685501 | Acoustic doppler current profiler | 2004-11-11 07:57:56Z to 2004-11-12 07:58:03Z | From 43° 48' S, 49° 55' E to 44° 30' S, 51° 15' E | Click for more |
| 685513 | Acoustic doppler current profiler | 2004-11-12 07:59:41Z to 2004-11-13 08:01:46Z | From 44° 30' S, 51° 15' E to 46° 3' S, 51° 43' E | Click for more |
| 685525 | Acoustic doppler current profiler | 2004-11-13 08:02:49Z to 2004-11-14 08:40:55Z | From 46° 3' S, 51° 43' E to 46° 0' S, 53° 58' E | Click for more |
| 685537 | Acoustic doppler current profiler | 2004-11-14 08:42:58Z to 2004-11-15 08:29:04Z | From 46° 0' S, 53° 58' E to 45° 0' S, 51° 20' E | Click for more |
| 685549 | Acoustic doppler current profiler | 2004-11-15 08:29:46Z to 2004-11-16 08:51:53Z | From 45° 0' S, 51° 20' E to 44° 30' S, 52° 29' E | Click for more |
| 685550 | Acoustic doppler current profiler | 2004-11-16 08:53:51Z to 2004-11-17 09:27:57Z | From 44° 30' S, 52° 28' E to 44° 50' S, 50° 28' E | Click for more |
| 685562 | Acoustic doppler current profiler | 2004-11-17 09:29:11Z to 2004-11-18 08:35:16Z | From 44° 50' S, 50° 28' E to 45° 12' S, 52° 44' E | Click for more |
| 685574 | Acoustic doppler current profiler | 2004-11-18 08:36:07Z to 2004-11-19 08:22:13Z | From 45° 12' S, 52° 43' E to 46° 37' S, 51° 57' E | Click for more |
| 685586 | Acoustic doppler current profiler | 2004-11-19 08:24:08Z to 2004-11-20 08:38:12Z | From 46° 37' S, 51° 57' E to 47° 46' S, 52° 53' E | Click for more |
| 685598 | Acoustic doppler current profiler | 2004-11-20 08:39:46Z to 2004-11-21 08:47:52Z | From 47° 46' S, 52° 53' E to 49° 0' S, 50° 54' E | Click for more |
| 685605 | Acoustic doppler current profiler | 2004-11-21 08:48:29Z to 2004-11-22 08:42:34Z | From 49° 0' S, 50° 54' E to 49° 0' S, 51° 15' E | Click for more |
| 685617 | Acoustic doppler current profiler | 2004-11-22 08:43:05Z to 2004-11-23 11:27:11Z | From 49° 0' S, 51° 15' E to 48° 36' S, 51° 56' E | Click for more |
| 685629 | Acoustic doppler current profiler | 2004-11-23 11:28:18Z to 2004-11-24 09:00:22Z | From 48° 36' S, 51° 56' E to 46° 38' S, 50° 16' E | Click for more |
| 685630 | Acoustic doppler current profiler | 2004-11-24 09:01:32Z to 2004-11-25 08:53:38Z | From 46° 38' S, 50° 16' E to 46° 6' S, 51° 44' E | Click for more |
| 685642 | Acoustic doppler current profiler | 2004-11-25 08:55:50Z to 2004-11-26 12:27:57Z | From 46° 6' S, 51° 44' E to 45° 19' S, 52° 1' E | Click for more |
| 685654 | Acoustic doppler current profiler | 2004-11-26 12:30:11Z to 2004-11-27 12:42:18Z | From 45° 19' S, 52° 1' E to 45° 30' S, 48° 37' E | Click for more |
| 685666 | Acoustic doppler current profiler | 2004-11-27 12:43:04Z to 2004-11-28 09:41:09Z | From 45° 30' S, 48° 37' E to 45° 30' S, 48° 20' E | Click for more |
| 685678 | Acoustic doppler current profiler | 2004-11-28 09:43:24Z to 2004-11-29 12:25:29Z | From 45° 30' S, 48° 20' E to 45° 10' S, 47° 45' E | Click for more |
| 685691 | Acoustic doppler current profiler | 2004-11-29 12:27:22Z to 2004-11-30 09:23:28Z | From 45° 10' S, 47° 45' E to 44° 57' S, 49° 57' E | Click for more |
| 685709 | Acoustic doppler current profiler | 2004-11-30 09:25:29Z to 2004-12-01 09:21:34Z | From 44° 57' S, 49° 57' E to 44° 19' S, 48° 38' E | Click for more |
| 685710 | Acoustic doppler current profiler | 2004-12-01 09:23:11Z to 2004-12-02 10:41:18Z | From 44° 19' S, 48° 38' E to 44° 51' S, 49° 42' E | Click for more |
| 685722 | Acoustic doppler current profiler | 2004-12-02 10:42:22Z to 2004-12-03 10:28:27Z | From 44° 51' S, 49° 42' E to 43° 37' S, 47° 39' E | Click for more |
| 685734 | Acoustic doppler current profiler | 2004-12-03 10:29:24Z to 2004-12-04 11:35:31Z | From 43° 37' S, 47° 39' E to 42° 55' S, 46° 40' E | Click for more |
| 685746 | Acoustic doppler current profiler | 2004-12-04 11:37:19Z to 2004-12-05 02:39:24Z | From 42° 55' S, 46° 40' E to 42° 28' S, 45° 20' E | Click for more |
| 685758 | Acoustic doppler current profiler | 2004-12-05 08:23:31Z to 2004-12-06 10:47:37Z | From 42° 16' S, 44° 45' E to 40° 35' S, 40° 43' E | Click for more |
| 685771 | Acoustic doppler current profiler | 2004-12-06 10:48:59Z to 2004-12-07 11:51:05Z | From 40° 35' S, 40° 43' E to 38° 30' S, 36° 0' E | Click for more |
| 685783 | Acoustic doppler current profiler | 2004-12-07 11:51:42Z to 2004-12-08 14:57:49Z | From 38° 30' S, 36° 0' E to 36° 21' S, 31° 17' E | Click for more |
| 685795 | Acoustic doppler current profiler | 2004-12-08 14:58:45Z to 2004-12-09 20:12:52Z | From 36° 21' S, 31° 16' E to 34° 17' S, 26° 49' E | Click for more |
| 685802 | Acoustic doppler current profiler | 2004-12-09 20:15:14Z to 2004-12-10 03:57:18Z | From 34° 17' S, 26° 49' E to 33° 54' S, 25° 57' E | Click for more |
| 690355 | CTD in towed or autonomous underwater vehicle | 2004-11-13 17:32:50Z to 2004-11-18 15:10:45Z | Click for more | |
| 690367 | CTD in towed or autonomous underwater vehicle | 2004-11-23 12:48:05Z to 2004-11-24 17:38:42Z | Click for more | |
| 690379 | CTD in towed or autonomous underwater vehicle | 2004-11-25 11:36:52Z to 2004-11-25 16:08:46Z | Click for more | |
| 690380 | CTD in towed or autonomous underwater vehicle | 2004-11-29 11:23:29Z to 2004-11-29 23:28:19Z | Click for more | |
| 690392 | CTD in towed or autonomous underwater vehicle | 2004-11-30 16:37:00Z to 2004-12-01 19:28:00Z | Click for more | |
| 690411 | CTD in towed or autonomous underwater vehicle | 2004-12-02 18:51:06Z to 2004-12-03 17:18:40Z | Click for more | |
| 1623015 | Acoustic current meter | 2004-11-13 08:30Z to 2005-01-09 07:58Z | 46° 3' S, 51° 43' E | Click for more |
Project Database
| # Events | Gear Type | Parameters Held |
|---|---|---|
| 7 | Rain water collector |
Precipitation chemistry
Metadata parameters |
| 10 | Stand-alone pumps |
Particulate metal concentrations in the water column
Particulate total and organic nitrogen concentrations in the water column Concentration of suspended particulate material in the water column Radioactivity in water bodies Particulate total and organic carbon concentrations in the water column Concentration of silicon species in the water column |
| 1 | Longhurst-Hardy Plankton Recorder |
Salinity of the water column
Temperature of the water column |
| 1 | All plastic clean surface pumped supply |
Phosphate concentration parameters in the water column
Silicate concentration parameters in the water column Nitrate concentration parameters in the water column Primary production in the water column |
| 1 | Instrument mooring | |
| 3 | Multicorer |
Concentration of aliphatic hydrocarbons in sediment samples
Sediment lipid concentrations Concentration of carbohydrates, phenols, alkanols (alcohols), ethers, aldehydes and ketones in sediment Concentration of alkenones and alkenoates in sediment Carbon concentrations in sediment Nitrogen concentrations in sediment |
| 47 | CTD frame plus rosette sampler |
Transmittance and attenuance of the water column
Reference numbers Total dissolved inorganic carbon (TCO2) concentration in the water column Carotenoid and flavenoid pigment concentrations in water bodies Particulate total and organic nitrogen concentrations in the water column Variable fluorescence parameters Dissolved oxygen parameters in the water column Total metal concentrations in water bodies Temperature of the water column Salinity of the water column Phytoplankton taxonomic abundance in water bodies Phosphate concentration parameters in the water column Concentration of suspended particulate material in the water column Bacteria generic abundance in water bodies Visible waveband radiance and irradiance measurements in the water column Silicate concentration parameters in the water column Density of the water column Plankton abundance per unit volume of the water column Phytoplankton generic abundance in water bodies Particulate inorganic carbon concentrations in the water column Electrical conductivity of the water column Metadata parameters Radioactivity in water bodies Nitrate concentration parameters in the water column Primary production in the water column Chlorophyll pigment concentrations in water bodies Particulate total and organic carbon concentrations in the water column Alkalinity, acidity and pH of the water column Concentration of silicon species in the water column |
| 761 | Sample taken from ship's non-toxic supply |
Phosphate concentration parameters in the water column
Silicate concentration parameters in the water column Nitrate concentration parameters in the water column |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
