Shelf Sea Biogeochemistry RRS Discovery cruise DY021 underway meteorology quality control report

Air Temperature, Humidity and Pressure

M flags applied to anomalous values from 14 March 2015 14:17:30 hours to 14 March 2015 14:19:00 hours.

Wind sensors

Various periods were identified where the absolute wind direction is aligned with the ship's heading. This is due to the fact that the ship is positioned into the wind when on station.

Light sensors

Both PAR and TIR sensors exhibited negative readings in the dark. This phenomena is known to be caused by radiation loss at night. Night time negative values were flagged suspect to preserve the data value. (BODC assessment)

Data Access Policy

Open Data supplied by Natural Environment Research Council (NERC)

You must always use the following attribution statement to acknowledge the source of the information: "Contains data supplied by Natural Environment Research Council."

Narrative Documents

Gill Instruments Windsonic Anemometer

The Gill Windsonic is a 2-axis ultrasonic wind sensor that monitors wind speed and direction using four transducers. The time taken for an ultrasonic pulse to travel from the North to the South transducers is measured and compared with the time for a pulse to travel from South to North. Travel times between the East and West transducers are similarly compared. The wind speed and direction are calculated from the differences in the times of flight along each axis. This calculation is independent of environmental factors such as temperature.

Specifications

Further details can be found in the manufacturer's specification sheet.

Kipp and Zonen Pyranometer Model CM6B

The CM6B pyranometer is intended for routine global solar radiation measurement research on a level surface. The CM6B features a sixty-four thermocouple junction (series connected) sensing element. The sensing element is coated with a highly stable carbon based non-organic coating, which delivers excellent spectral absorption and long term stability characteristics. The sensing element is housed under two concentric fitting Schott K5 glass domes.

Specifications

Shelf Sea Biogeochemistry RRS Discovery cruise DY021 underway meteorology instrumentation

Instrumentation

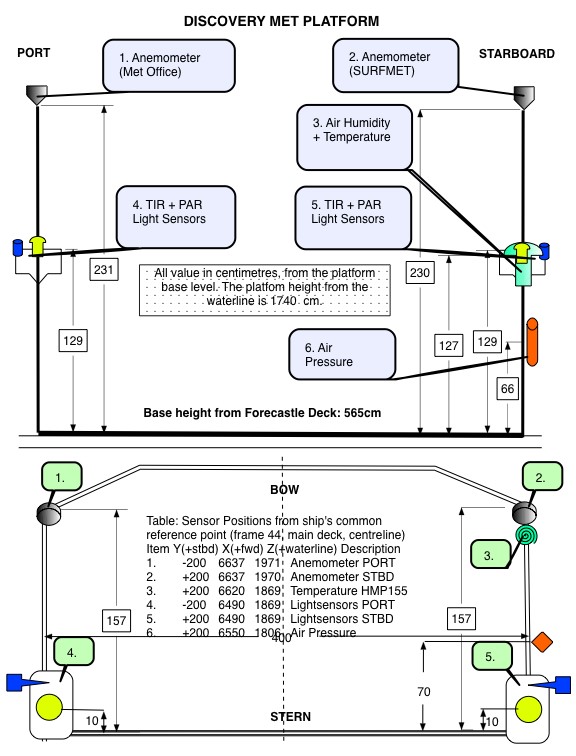

The meteorological suite of sensors were located on the foremast, approximately 17.4 m above sea level. The anemometer orientation was 0° on the bow.

Skye Instruments PAR Energy Sensor Model SKE 510

The SKE 510 is suitable for measuring photosynthetically active radiation (PAR) from natural or artificial light sources. The sensor is fully waterproof and guaranteed submersible to 4m depth, and indoor versions are also available.

The instrument uses a blue-enhanced planar diffused silicon detector to measure energy (in W m^-2) over the 400-700 nm waveband. It has a cosine-corrected head and a square spectral response. The sensor can operate over a temperature range of -35 to 70 °C and a humidity range of 0-100% RH.

Specifications

Vaisala PTB110 barometer

An industrial, analog barometer which uses a silicon capacitive sensor (BAROCAP). The sensor produces either frequency or voltage output and is mountable on a (35 mm wide) DIN rail.

Operating ranges (1 hPa = 1 mbar)

General

Accuracy

* Defined as ±2 standard deviation limits of end-point non-linearity, hysteresis error or repeatability error.
** Defined as ±2 standard deviation limits of inaccuracy of the working standard including traceability to NIST.
*** Defined as the root sum of the squares (RSS) of end-point non-linearity, hysteresis error, repeatability error and calibration uncertainty at room temperature when using voltage output.

More detailed information can be found in the manufacturer's data sheet and user's guide.

Vaisala Temperature and Relative Humidity HMP Sensors

A family of sensors and instruments (sensors plus integral displays or loggers) for the measurement of air temperature and relative humidity. All are based on a probe containing a patent (HUMICAP) capacitive thin polymer film capacitanece humidity sensor and a Pt100 platinum resistance thermometer. The probes are available with a wide range of packaging, cabling and interface options all of which have designations of the form HMPnn or HMPnnn such as HMP45 and HMP230. Vaisala sensors are incorporated into weather stations and marketed by Campbell Scientific.

All versions operate at up to 100% humidity. Operating temperature ranges vary between models, allowing users to select the version best suited to their requirements.

Further details can be found in the manufacturer's specification sheets for the HMP 45 series, HMP 70 series and HMP 230 series.

Shelf Sea Biogeochemistry RRS Discovery cruise DY021 underway meteorology data processing procedures

Originator's Data Processing

All underway sensors/instruments were initially logged via the Ifremer TECHSAS (TECHnical and Scientific sensors Acquisition System) system. The data were then broadcast in UDP/IP frames via the on-board LAN. Data were broadcast in two formats: NMEA broadcasting format and XML broadcasting format. The XML broadcast was used to create TECHSAS NetCDF files while the NMEA broadcast was used to transfer data to the RVS Level-C UNIX system where it was parsed into RVS data streams (RVS format files). Data were not processed by the originator.

BODC Data Processing

The file surfmet was selected for transfer into BODC format since it contained all meteorological data available. The data included in prowind were not transferred, as absolute wind and direction was derived from the relative data sent in the surfmet file. The data were reformatted to NetCDF using BODC standard data banking procedures. The following table shows how variables within the file were mapped to appropriate BODC parameter codes:

The file also contained surface hydrography parameters, fluo, trans, temp_h, temp_r, cond. These will be addressed in the surface hydrography document.

All data expressed at measurement altitude.

All the reformatted data were visualised using the in-house EDSERPLO software. Suspect data were marked by adding an appropriate quality control flag, missing data by both setting the data to an appropriate value and setting the quality control flag.

Absolute wind speed and direction

Relative wind speed and direction were corrected for the ship's heading and speed using the POS MV gyro heading, ship velocities (calculated at BODC from the main positional channels) and an anemometer orientation of 0° on the bow.

PAR and TIR

The following manufacturer's calibrations were applied to the PAR and TIR light sensors using:

where 'a' is the raw data in volts and 'b' is the calibration offset (µV per W m^-2) as shown below.

Subsequently, as no offset could be identified, the average value of the port-side and starboard-side sensor pairs were calculated into a new data channels.
