BODC Cruise Metadata Report for RRS Challenger (74CH) cruise CH125A
Introduction
This report collates information from the BODC cruise inventory and oceanographic databases. It presents
- Cruise Inventory Information
- A summary of BODC data holdings for the cruise from the

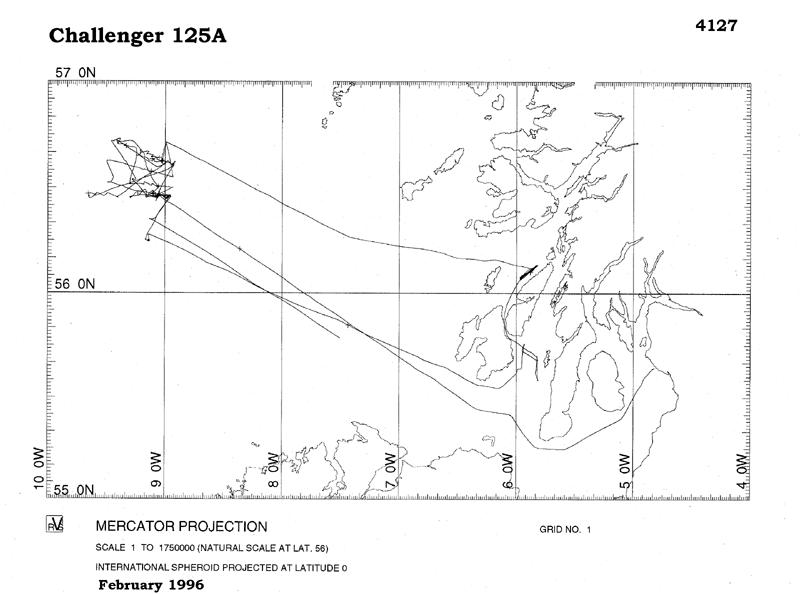

- References - including cruise tracks and cruise reports
Cruise Inventory Information
| Long name | RRS Challenger (74CH) cruise CH125A |
|---|---|
| Short name | CH125A |
| Objectives and Narrative |
Recovery and redeployment of the mooring array.
After these mooring deployment, searches and attempted recoveries, including dragging, will be made for 'lost' moorings. The highest priorities are: 1) The BPRs deployed at S1500 on Charles Darwin 91 and at N1500 on Charles Darwin 93. 2) Two S200 moorings (deployed on Charles Darwin 93 and Challenger 121A) located acoustically at 56 15'N 9 10.08'W, with ranges of 1.9 and 2.5km. 3) The S140 mooring deployed on Charles Darwin 93 located acoustically at the N140 site. Seabed photographs will be taken near the STABLE S200 site with a bed-hopping camera. |
| Ship | RRS Challenger |
| Departure Port | Ardrossan, United Kingdom |
| Departure Date | 1996-01-31 |
| Arrival Port | Ardrossan, United Kingdom |
| Arrival Date | 1996-02-12 |
| Principal Scientist(s) | M John Howarth (Proudman Oceanographic Laboratory) |
| Responsible Organisation | Proudman Oceanographic Laboratory |
| Associated Project(s) | LOIS - SES |
| IHB Sea Areas Visited | Inner Seas off the West Coast of Scotland, North East Atlantic Ocean (limit 40W) |
| Marsden Squares Visited | 181;4 |
| Work Area Description | |
| Unable to lookup cruise bounds at this time | |
| Work Area Bounding Polygon | |
| Southern Limit | unknown |
| Northern Limit | unknown |
| Western Limit | unknown |
| Eastern Limit | unknown |
Cruise Inventory Datasets
| Physical oceanography | |
|---|---|
| CTD stations |
Quantity:
number of profiles =
43
Description: |
| Current meters |
Quantity:
number of stations =
9
Description: 15 cms deployed |
| Current profiler (eg ADCP) |
Quantity:
activity duration in days =
12
Description: shipborne ADCP |
| Surface measurements underway (T,S) |
Quantity:
activity duration in days =
12
Description: underway thermosalinograph, fluorometer and transmissometer |
| Transparency (eg transmissometer) |
Quantity:
activity duration in days =
12
Description: underway thermosalinograph, fluorometer and transmissometer |
| Transparency (eg transmissometer) |
Quantity:
number of profiles =
43
Description: transmissometer on CTD |
| Water bottle stations |
Quantity:
number of profiles =
43
Description: at least 2 water bottles on each CTD cast |
| Biology and fisheries | |
| Other biological/fisheries measurement |
Quantity:
number of image series =
14
Description: 150 to 300 photographs per film at 15 second intervals for marine snow |
| Particulate organic matter (inc POC, PON) |
Quantity:
number of samples =
52
Description: POC determinations from samples from 5 CTD casts to a minimum depth of 1508m |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of profiles =
43
Description: fluorometer on CTD |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
activity duration in days =
12
Description: underway thermosalinograph, fluorometer and transmissometer |
| Phytoplankton pigs (eg chlorophyll, fluorescence) |
Quantity:
number of samples =
121
Description: 83 sub-surface and 38 surface samples for chlorophyll determination |
Cruise Inventory Mooring/Buoy Operations
| Latitude | Longitude | Data type | Description |
|---|---|---|---|
| 56° 37' N | 9° 1' W | Current meters | CC1, CM, transmissometer (H16), thermistor chain (H72) depl. in 228m water |
| 56° 37' N | 9° 1' W | Current meters | CC2, CM, transmissometer (H16), thermistor chain (H72) depl. in 335m water |
| 56° 43' N | 8° 58' W | Current meters | CC3, CM, transmissometer (H16), thermistor chain (H72) depl. in 234m water |
| 56° 43' N | 9° 25' W | Current meters | N1500, 2 sediment traps (B73), CM/transmissometer (H16) rec./redepl. |
| 56° 37' N | 9° 1' W | Current meters | N300, sub-surface mooring, 3 CMs deployed in 303m water |
| 56° 28' N | 8° 58' W | Current meters | S140, 2 CMs and 1 transmissometer (H16) deployed in 146m water |
| 56° 28' N | 9° 3' W | Current meters | S200, STABLE sea bed frame (D09, D72) deployed in 204m water |
| 56° 28' N | 9° 4' W | Current meters | S300, 3 CMs, bottom CM fitted with transmissometer (H16) depl. in 298m water |
| 56° 28' N | 9° 10' W | Current meters | S700, 3 CMs, lowest plus transmissometer (H16), 3 thermistor chains (H72) |
| 56° 28' N | 8° 58' W | Current profiler (eg ADCP) | S140, pop-up ADCP and bottom pressure recorder (D09) recovered/redeployed |
| 56° 27' N | 9° 4' W | Current profiler (eg ADCP) | S400, pop-up ADCP deployed in 400m water |
| 56° 36' N | 8° 55' W | Sea level (inc. bot. press., inverted echosounder) | N140, bottom pressure recorder recovered/redeployed in 137m water |
| 56° 28' N | 8° 58' W | Transparency (eg transmissometer) | S140, surface mooring with transmissometer and fluorometer (B02) deployed |
Summary of BODC Data Holdings for the Cruise
National Oceanographic Database
Summary
| # Series | Instrument Description | Parameters |
|---|---|---|
| 2 | Acoustic doppler current profiler |
Date and time Horizontal velocity of the water column (currents) Metadata parameters Vertical spatial coordinates Vertical velocity of the water column (currents) |
| 42 | Bottle station |
Chlorophyll pigment concentrations in water bodies Phaeopigment concentrations in the water column Quality control flags Reference numbers Vertical spatial coordinates |
| 2 | Bottom pressure sensor tide gauge |
Date and time Sea level Temperature of the water column |
| 7 | CTD/STD cast |
Chlorophyll pigment concentrations in water bodies Density of the water column Salinity of the water column Temperature of the water column Transmittance and attenuance of the water column Vertical spatial coordinates Visible waveband radiance and irradiance measurements in the water column |
| 40 | CTD/STD cast |
Chlorophyll pigment concentrations in water bodies Density of the water column Salinity of the water column Temperature of the water column Transmittance and attenuance of the water column Vertical spatial coordinates |
| 1 | Fluorometers |
Chlorophyll pigment concentrations in water bodies Date and time Raw fluorometer output |
| 2 | Paddle wheel current meter |
Date and time Electrical conductivity of the water column Horizontal velocity of the water column (currents) Moored instrument depth Salinity of the water column Temperature of the water column Transmittance and attenuance of the water column |
| 5 | Paddle wheel current meter |
Date and time Electrical conductivity of the water column Horizontal velocity of the water column (currents) Moored instrument depth Salinity of the water column Temperature of the water column |
| 1 | Pumped water sample |
Chlorophyll pigment concentrations in water bodies Date and time Horizontal spatial co-ordinates Phaeopigment concentrations in the water column |
| 1 | Savonius rotor current meter |
Date and time Horizontal velocity of the water column (currents) Platform or instrument orientation Sea level Temperature of the water column |
| 3 | Thermistor chain |
Date and time Temperature of the water column Vertical spatial coordinates |
| 1 | Transmissometer |
Date and time Transmittance and attenuance of the water column |
| 1 | Water temperature and/or salinity monitor |
Date and time Temperature of the water column |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
Full List
| BODC Reference | Instrument Description | Date/Time | Location | |
|---|---|---|---|---|
| 436204 | Paddle wheel current meter | 1996-02-05 18:15Z to 1996-04-17 16:45Z | 56° 27' N, 9° 9' W | Click for more |
| 436228 | Paddle wheel current meter | 1996-02-01 09:45Z to 1996-04-17 09:45Z | 56° 27' N, 8° 57' W | Click for more |
| 436253 | Paddle wheel current meter | 1996-02-03 15:30Z to 1996-02-18 19:30Z | 56° 37' N, 9° 1' W | Click for more |
| 436265 | Paddle wheel current meter | 1996-02-03 15:30Z to 1996-02-18 19:30Z | 56° 37' N, 9° 1' W | Click for more |
| 436277 | Paddle wheel current meter | 1996-02-05 17:45Z to 1996-04-17 16:45Z | 56° 27' N, 9° 9' W | Click for more |
| 439380 | Paddle wheel current meter | 1996-02-01 09:45Z to 1996-04-17 10:15Z | 56° 27' N, 8° 57' W | Click for more |
| 439392 | Paddle wheel current meter | 1996-02-06 21:30Z to 1996-04-21 17:30Z | 56° 43' N, 9° 24' W | Click for more |
| 442406 | Thermistor chain | 1996-02-05 18:00Z to 1996-04-17 17:30Z | 56° 27' N, 9° 9' W | Click for more |
| 442431 | Thermistor chain | 1996-02-05 18:00Z to 1996-04-17 17:30Z | 56° 27' N, 9° 9' W | Click for more |
| 442443 | Thermistor chain | 1996-02-05 18:00Z to 1996-04-17 17:30Z | 56° 27' N, 9° 9' W | Click for more |
| 442719 | Bottom pressure sensor tide gauge | 1996-02-01 11:50Z to 1996-04-19 18:10Z | 56° 27' N, 8° 57' W | Click for more |
| 442720 | Bottom pressure sensor tide gauge | 1996-02-02 16:00Z to 1996-04-23 07:15Z | 56° 36' N, 8° 55' W | Click for more |
| 444425 | Savonius rotor current meter | 1996-02-01 08:17Z to 1996-02-21 08:46Z | 56° 27' N, 9° 3' W | Click for more |
| 476138 | Fluorometers | 1996-02-01 16:02Z to 1996-04-15 17:02Z | 56° 27' N, 8° 58' W | Click for more |
| 477234 | Water temperature and/or salinity monitor | 1996-02-03 09:20Z to 1996-05-17 13:00Z | 56° 36' N, 9° 1' W | Click for more |
| 489769 | Acoustic doppler current profiler | 1996-02-01 11:55Z to 1996-04-19 17:54Z | 56° 27' N, 8° 57' W | Click for more |
| 489770 | Acoustic doppler current profiler | 1996-02-05 20:15Z to 1996-02-22 12:35Z | 56° 27' N, 9° 4' W | Click for more |
| 491909 | Transmissometer | 1996-02-01 13:17Z to 1996-03-16 18:46Z | 56° 27' N, 8° 58' W | Click for more |
| 855937 | CTD/STD cast | 1996-02-01 11:11Z | 56° 27' N, 8° 58' W | Click for more |
| 855949 | CTD/STD cast | 1996-02-01 18:01Z | 56° 27' N, 8° 57' W | Click for more |
| 855950 | CTD/STD cast | 1996-02-01 19:23Z | 56° 27' N, 8° 59' W | Click for more |
| 855962 | CTD/STD cast | 1996-02-01 20:12Z | 56° 28' N, 9° 2' W | Click for more |
| 855974 | CTD/STD cast | 1996-02-01 22:32Z | 56° 28' N, 9° 4' W | Click for more |
| 855986 | CTD/STD cast | 1996-02-01 23:55Z | 56° 28' N, 9° 6' W | Click for more |
| 855998 | CTD/STD cast | 1996-02-02 03:12Z | 56° 28' N, 9° 13' W | Click for more |
| 856001 | CTD/STD cast | 1996-02-02 04:45Z | 56° 27' N, 9° 18' W | Click for more |
| 856013 | CTD/STD cast | 1996-02-02 22:15Z | 56° 27' N, 9° 39' W | Click for more |
| 856025 | CTD/STD cast | 1996-02-03 01:31Z | 56° 28' N, 9° 36' W | Click for more |
| 856037 | CTD/STD cast | 1996-02-03 03:06Z | 56° 28' N, 9° 30' W | Click for more |
| 856049 | CTD/STD cast | 1996-02-03 17:20Z | 56° 36' N, 8° 55' W | Click for more |
| 856050 | CTD/STD cast | 1996-02-03 19:13Z | 56° 37' N, 8° 58' W | Click for more |
| 856062 | CTD/STD cast | 1996-02-03 21:33Z | 56° 37' N, 9° 0' W | Click for more |
| 856074 | CTD/STD cast | 1996-02-03 22:31Z | 56° 37' N, 9° 2' W | Click for more |
| 856086 | CTD/STD cast | 1996-02-04 01:38Z | 56° 39' N, 9° 6' W | Click for more |
| 856098 | CTD/STD cast | 1996-02-04 03:08Z | 56° 39' N, 9° 9' W | Click for more |
| 856105 | CTD/STD cast | 1996-02-05 21:50Z | 56° 30' N, 8° 59' W | Click for more |
| 856117 | CTD/STD cast | 1996-02-05 22:34Z | 56° 30' N, 9° 2' W | Click for more |
| 856129 | CTD/STD cast | 1996-02-06 23:31Z | 56° 42' N, 9° 19' W | Click for more |
| 856130 | CTD/STD cast | 1996-02-07 05:11Z | 56° 31' N, 9° 10' W | Click for more |
| 856142 | CTD/STD cast | 1996-02-07 06:22Z | 56° 30' N, 9° 6' W | Click for more |
| 856154 | CTD/STD cast | 1996-02-10 19:36Z | 56° 42' N, 8° 59' W | Click for more |
| 856166 | CTD/STD cast | 1996-02-10 21:21Z | 56° 33' N, 8° 55' W | Click for more |
| 856178 | CTD/STD cast | 1996-02-10 22:09Z | 56° 33' N, 9° 0' W | Click for more |
| 856191 | CTD/STD cast | 1996-02-10 22:49Z | 56° 33' N, 9° 1' W | Click for more |
| 856209 | CTD/STD cast | 1996-02-10 23:52Z | 56° 34' N, 9° 7' W | Click for more |
| 856210 | CTD/STD cast | 1996-02-11 00:55Z | 56° 34' N, 9° 10' W | Click for more |
| 856222 | CTD/STD cast | 1996-02-11 02:14Z | 56° 36' N, 9° 18' W | Click for more |
| 856234 | CTD/STD cast | 1996-02-11 04:15Z | 56° 37' N, 9° 28' W | Click for more |
| 856246 | CTD/STD cast | 1996-02-03 18:23Z | 56° 36' N, 8° 56' W | Click for more |
| 856258 | CTD/STD cast | 1996-02-04 00:34Z | 56° 38' N, 9° 4' W | Click for more |
| 856271 | CTD/STD cast | 1996-02-04 04:48Z | 56° 40' N, 9° 12' W | Click for more |
| 856283 | CTD/STD cast | 1996-02-06 21:27Z | 56° 42' N, 9° 24' W | Click for more |
| 856295 | CTD/STD cast | 1996-02-01 07:22Z | 56° 27' N, 9° 3' W | Click for more |
| 856302 | CTD/STD cast | 1996-02-01 18:38Z | 56° 27' N, 8° 57' W | Click for more |
| 856314 | CTD/STD cast | 1996-02-01 21:17Z | 56° 28' N, 9° 3' W | Click for more |
| 856326 | CTD/STD cast | 1996-02-02 01:09Z | 56° 28' N, 9° 9' W | Click for more |
| 856338 | CTD/STD cast | 1996-02-03 00:47Z | 56° 28' N, 9° 35' W | Click for more |
| 856351 | CTD/STD cast | 1996-02-03 04:39Z | 56° 27' N, 9° 24' W | Click for more |
| 856363 | CTD/STD cast | 1996-02-03 19:50Z | 56° 36' N, 9° 0' W | Click for more |
| 856375 | CTD/STD cast | 1996-02-03 23:30Z | 56° 38' N, 9° 3' W | Click for more |
| 856387 | CTD/STD cast | 1996-02-07 01:03Z | 56° 40' N, 9° 15' W | Click for more |
| 856399 | CTD/STD cast | 1996-02-07 07:12Z | 56° 30' N, 9° 3' W | Click for more |
| 856406 | CTD/STD cast | 1996-02-03 20:37Z | 56° 36' N, 9° 1' W | Click for more |
| 856418 | CTD/STD cast | 1996-02-07 03:28Z | 56° 31' N, 9° 18' W | Click for more |
| 856431 | CTD/STD cast | 1996-02-05 21:05Z | 56° 30' N, 8° 55' W | Click for more |
| 1651330 | Pumped water sample | 1996-02-01 07:01Z to 1996-02-11 04:58Z | 55° 36' N to 56° 43' N; 9° 39' W to 5° 49' W | Click for more |
| 1678840 | Bottle station | 1996-02-01 07:36Z | 56° 27' N, 9° 3' W | Click for more |
| 1678852 | Bottle station | 1996-02-02 03:36Z | 56° 28' N, 9° 13' W | Click for more |
| 1678864 | Bottle station | 1996-02-02 05:18Z | 56° 27' N, 9° 18' W | Click for more |
| 1678876 | Bottle station | 1996-02-02 23:06Z | 56° 27' N, 9° 39' W | Click for more |
| 1678888 | Bottle station | 1996-02-03 02:03Z | 56° 28' N, 9° 36' W | Click for more |
| 1678907 | Bottle station | 1996-02-03 03:35Z | 56° 28' N, 9° 30' W | Click for more |
| 1678919 | Bottle station | 1996-02-03 05:09Z | 56° 27' N, 9° 24' W | Click for more |
| 1678920 | Bottle station | 1996-02-03 18:33Z | 56° 36' N, 8° 56' W | Click for more |
| 1678932 | Bottle station | 1996-02-03 19:19Z | 56° 37' N, 8° 58' W | Click for more |
| 1678944 | Bottle station | 1996-02-03 20:01Z | 56° 36' N, 9° 0' W | Click for more |
| 1678956 | Bottle station | 1996-02-03 20:45Z | 56° 36' N, 9° 1' W | Click for more |
| 1678968 | Bottle station | 1996-02-03 21:45Z | 56° 37' N, 9° 0' W | Click for more |
| 1678981 | Bottle station | 1996-02-03 22:44Z | 56° 37' N, 9° 2' W | Click for more |
| 1678993 | Bottle station | 1996-02-03 23:49Z | 56° 38' N, 9° 3' W | Click for more |
| 1679007 | Bottle station | 1996-02-04 00:49Z | 56° 38' N, 9° 4' W | Click for more |
| 1679019 | Bottle station | 1996-02-04 02:00Z | 56° 39' N, 9° 6' W | Click for more |
| 1679020 | Bottle station | 1996-02-04 03:30Z | 56° 39' N, 9° 9' W | Click for more |
| 1679032 | Bottle station | 1996-02-04 05:16Z | 56° 40' N, 9° 12' W | Click for more |
| 1679044 | Bottle station | 1996-02-05 21:11Z | 56° 30' N, 8° 55' W | Click for more |
| 1679056 | Bottle station | 1996-02-05 21:56Z | 56° 30' N, 8° 59' W | Click for more |
| 1679068 | Bottle station | 1996-02-05 22:36Z | 56° 30' N, 9° 2' W | Click for more |
| 1679081 | Bottle station | 1996-02-06 22:09Z | 56° 42' N, 9° 24' W | Click for more |
| 1679093 | Bottle station | 1996-02-06 23:58Z | 56° 42' N, 9° 19' W | Click for more |
| 1679100 | Bottle station | 1996-02-07 01:29Z | 56° 40' N, 9° 15' W | Click for more |
| 1679112 | Bottle station | 1996-02-07 03:54Z | 56° 31' N, 9° 18' W | Click for more |
| 1679124 | Bottle station | 1996-02-07 05:30Z | 56° 31' N, 9° 10' W | Click for more |
| 1679136 | Bottle station | 1996-02-07 06:33Z | 56° 30' N, 9° 6' W | Click for more |
| 1679148 | Bottle station | 1996-02-07 07:20Z | 56° 30' N, 9° 3' W | Click for more |
| 1679161 | Bottle station | 1996-02-01 18:46Z | 56° 27' N, 8° 57' W | Click for more |
| 1679173 | Bottle station | 1996-02-10 19:46Z | 56° 42' N, 8° 59' W | Click for more |
| 1679185 | Bottle station | 1996-02-10 21:26Z | 56° 33' N, 8° 55' W | Click for more |
| 1679197 | Bottle station | 1996-02-10 22:13Z | 56° 33' N, 9° 0' W | Click for more |
| 1679204 | Bottle station | 1996-02-10 22:56Z | 56° 33' N, 9° 1' W | Click for more |
| 1679216 | Bottle station | 1996-02-11 00:06Z | 56° 34' N, 9° 7' W | Click for more |
| 1679228 | Bottle station | 1996-02-11 01:11Z | 56° 34' N, 9° 10' W | Click for more |
| 1679241 | Bottle station | 1996-02-11 02:38Z | 56° 36' N, 9° 18' W | Click for more |
| 1679253 | Bottle station | 1996-02-11 04:46Z | 56° 37' N, 9° 28' W | Click for more |
| 1679265 | Bottle station | 1996-02-01 19:31Z | 56° 27' N, 8° 59' W | Click for more |
| 1679277 | Bottle station | 1996-02-01 20:24Z | 56° 28' N, 9° 2' W | Click for more |
| 1679289 | Bottle station | 1996-02-01 21:32Z | 56° 28' N, 9° 3' W | Click for more |
| 1679290 | Bottle station | 1996-02-01 22:49Z | 56° 28' N, 9° 4' W | Click for more |
| 1679308 | Bottle station | 1996-02-02 00:10Z | 56° 28' N, 9° 6' W | Click for more |
Project Database
| # Events | Gear Type | Parameters Held |
|---|---|---|
| 48 | Sample taken from ship's non-toxic supply |
Salinity of the water column
Phaeopigment concentrations in the water column Chlorophyll pigment concentrations in water bodies |
| 3243 | Shipborne Acoustic Doppler Current Profile | |
| 13 | Instrument mooring |
Concentration of silicon species in suspended particulate material
Other physical and chemical properties of suspended particulate material Carbon concentrations in suspended particulate material Sedimentation flux of carbon, nitrogen or organic matter in the water column Nitrogen concentrations in suspended particulate material Sedimentation flux quantification in the water column Sedimentation flux of non-metallic inorganic species in the water column |
| 47 | CTD frame plus rosette sampler |
Transmittance and attenuance of the water column
Particulate total and organic nitrogen concentrations in the water column Salinity of the water column Temperature of the water column Visible waveband radiance and irradiance measurements in the water column Density of the water column Phaeopigment concentrations in the water column Chlorophyll pigment concentrations in water bodies Particulate total and organic carbon concentrations in the water column |
Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)
