BODC Cruise Metadata Report for RV Cirolana (74CZ) cruise CIR1/96

Introduction

This report collates information from the BODC cruise inventory and oceanographic databases. It presents

Cruise Inventory Information

Long name RV Cirolana (74CZ) cruise CIR1/96
Short name CIR1/96
Objectives and Narrative 1. To recover the Tetrapod, Quadrapod, 4 minipods and 6 current meter moorings at the end of their 2 month deployment to measure the impact of trawling and storms on the remobilisation of radionuclides from the Sellafield mudpatch (AE0135). This will assist in the continuing provision of the highest quality protection to the environment to safeguard human health, especially in relation to past discharges of radionuclides to the Irish Sea.
2. To undertake CTD and surface water sampling to measure the nutrient concentrations in the waters around England and Wales as part of the National Monitoring Programme (AE0503). This will help to establish the quality of the water around the UK in support of the UK's position in fora such as the Oslo and Paris Commission and the Ministerial North Sea Conference.
3. To deploy minipods and undertake sediment sampling on dredged spoil disposal grounds off Harwich and the Tees to determine the behaviour of sediments after disposal (AE0227). This will provide information to aid licensing decisions under FEPA II both for offshore disposals of dredged material and for the beneficial uses of such material in the near shore zone.
4. To deploy and recover a NAS2 (automatic monitoring nitrate analyser) and other instruments for the Joint Nutrient Study (JoNuS - AE0504, Smart Biophysical Moorings) and for National Monitoring Programme (AE0503). Successful trials should lead to improved temporal monitoring and a reduction in the costs of future monitoring.
5. To undertake a preliminary sediment coring survey near major estuaries in preparation for JoNuS 2 (AE0529(P)). This will guide the detailed selection of sites for the main programme commencing in April 1996 and ensure the successful and timely delivery of the scientific programme. The JoNuS 2 programme will help to establish the impact of nutrients discharged from land on coastal and offshore waters in support of UK policy development and in support of contributions to such fora as the Oslo and Paris Convention and the Ministerial North Sea Conference.
Ship RV Cirolana
Departure Port Lowestoft, United Kingdom
Departure Date 1996-01-04
Arrival Port Lowestoft, United Kingdom
Arrival Date 1996-01-31
Principal Scientist(s) Paul A Gurbutt (Ministry of Agriculture, Fisheries and Food Lowestoft Fisheries Laboratory)
Responsible Organisation
Associated Project(s) Joint Nutrient Study (JONUS)
IHB Sea Areas Visited English Channel, North Sea, Irish Sea and St. George's Channel
Marsden Squares Visited 145;4/181;1/181;2/181;3/216;1
Work Area Description North Sea, English Channel, Irish Sea
Work Area Bounding Polygon 45N,10W; 60N,10W; 60N,5E; 45N,5E; 45N,10W
Southern Limit 45N
Northern Limit 60N
Western Limit 10W
Eastern Limit 5E

Cruise Inventory Datasets

Physical oceanography
CTD stations Quantity: number of stations = 88
Description:
Current meters Quantity: number of stations = 11
Description: 11 current meters recovered, 3 deployed
Water bottle stations Quantity: number of stations = 125
Description: surface and 15m 2 with T only & 3 with S only
Chemical oceanography
Ammonia Quantity: number of samples = 209
Description:
Nitrate Quantity: number of samples = 212
Description:
Nitrite Quantity: number of samples = 209
Description:
Oxygen Quantity: number of stations = 34
Description:
Phosphate Quantity: number of samples = 209
Description:
Silicate Quantity: number of samples = 209
Description:
Contamination
Suspended matter Quantity: number of samples = 204
Description: suspended load
Biology and fisheries
Phytoplankton pigs (eg chlorophyll, fluorescence) Quantity: number of samples = 204
Description: chlorophyll
Geology and geophysics
Core - soft bottom Quantity: number of cores = 14
Description:
Grab Quantity: number of samples = 51
Description:

Cruise Inventory Mooring/Buoy Operations

Latitude Longitude Data type Description
56° 25' N 3° 39' W Current meters 1 cm recovered
54° 19' N 3° 33' W Current meters 1 cm recovered
54° 18' N 3° 40' W Current meters 2 cm recovered
54° 24' N 3° 45' W Current meters 2 cm recovered
54° 22' N 3° 52' W Current meters 2 cm recovered
51° 49' N 1° 27' E Current meters nearbed cm deployed
51° 52' N 1° 28' E Current meters nearbed cm deployed
54° 40' N 1° 1' W Current meters nearbed cm deployed
54° 19' N 3° 49' W Current meters nearbed cm recovery
54° 22' N 3° 37' W Current meters nearbed cm recovery
54° 21' N 3° 42' W Current meters nearbed cm recovery
52° 0' N 2° 19' E Other chemical oceanographic measurements self recording moored nitrate analyser

Summary of BODC Data Holdings for the Cruise

National Oceanographic Database

Summary

# Series Instrument Description Parameters
88 CTD/STD cast Reference numbers
Salinity of the water column
Temperature of the water column
Vertical spatial coordinates

Note: Parameter terms are taken from the BODC Parameter Discovery Vocabulary XML (SKOS)

Full List

BODC Reference Instrument Description Date/Time Location
487321 CTD/STD cast 1996-01-11 17:56Z 53° 58' N, 3° 19' W Click for more
487333 CTD/STD cast 1996-01-11 19:41Z 53° 58' N, 3° 3' W Click for more
487345 CTD/STD cast 1996-01-11 20:31Z 53° 58' N, 3° 3' W Click for more
487357 CTD/STD cast 1996-01-11 21:28Z 53° 58' N, 3° 3' W Click for more
487369 CTD/STD cast 1996-01-11 22:30Z 53° 58' N, 3° 3' W Click for more
487370 CTD/STD cast 1996-01-11 23:28Z 53° 58' N, 3° 2' W Click for more
487382 CTD/STD cast 1996-01-12 00:30Z 53° 58' N, 3° 2' W Click for more
487394 CTD/STD cast 1996-01-12 01:30Z 53° 58' N, 3° 2' W Click for more
487401 CTD/STD cast 1996-01-12 02:30Z 53° 58' N, 3° 2' W Click for more
487413 CTD/STD cast 1996-01-12 07:30Z 53° 28' N, 3° 16' W Click for more
487425 CTD/STD cast 1996-01-12 08:31Z 53° 28' N, 3° 16' W Click for more
487437 CTD/STD cast 1996-01-12 09:30Z 53° 28' N, 3° 16' W Click for more
487449 CTD/STD cast 1996-01-12 10:30Z 53° 28' N, 3° 16' W Click for more
487450 CTD/STD cast 1996-01-12 11:30Z 53° 28' N, 3° 16' W Click for more
487462 CTD/STD cast 1996-01-12 12:30Z 53° 28' N, 3° 16' W Click for more
487474 CTD/STD cast 1996-01-12 13:31Z 53° 28' N, 3° 16' W Click for more
487486 CTD/STD cast 1996-01-12 14:30Z 53° 28' N, 3° 16' W Click for more
487498 CTD/STD cast 1996-01-12 16:32Z 53° 30' N, 3° 41' W Click for more
487505 CTD/STD cast 1996-01-12 19:38Z 54° 0' N, 3° 50' W Click for more
487517 CTD/STD cast 1996-01-12 22:30Z 53° 37' N, 4° 30' W Click for more
487529 CTD/STD cast 1996-01-13 07:03Z 52° 30' N, 5° 0' W Click for more
487530 CTD/STD cast 1996-01-13 10:30Z 52° 21' N, 4° 10' W Click for more
487542 CTD/STD cast 1996-01-13 11:30Z 52° 21' N, 4° 10' W Click for more
487554 CTD/STD cast 1996-01-13 12:30Z 52° 21' N, 4° 10' W Click for more
487566 CTD/STD cast 1996-01-13 13:30Z 52° 21' N, 4° 10' W Click for more
487578 CTD/STD cast 1996-01-13 14:30Z 52° 21' N, 4° 10' W Click for more
487591 CTD/STD cast 1996-01-13 15:30Z 52° 21' N, 4° 10' W Click for more
487609 CTD/STD cast 1996-01-13 16:32Z 52° 21' N, 4° 10' W Click for more
487610 CTD/STD cast 1996-01-13 17:30Z 52° 21' N, 4° 10' W Click for more
487622 CTD/STD cast 1996-01-14 08:39Z 51° 18' N, 3° 33' W Click for more
487634 CTD/STD cast 1996-01-14 09:30Z 51° 18' N, 3° 33' W Click for more
487646 CTD/STD cast 1996-01-14 10:30Z 51° 18' N, 3° 33' W Click for more
487658 CTD/STD cast 1996-01-14 11:30Z 51° 18' N, 3° 33' W Click for more
487671 CTD/STD cast 1996-01-14 12:30Z 51° 18' N, 3° 33' W Click for more
487683 CTD/STD cast 1996-01-14 13:30Z 51° 18' N, 3° 33' W Click for more
487695 CTD/STD cast 1996-01-14 14:34Z 51° 18' N, 3° 33' W Click for more
487702 CTD/STD cast 1996-01-14 15:30Z 51° 18' N, 3° 33' W Click for more
487714 CTD/STD cast 1996-01-14 23:40Z 51° 15' N, 6° 0' W Click for more
487726 CTD/STD cast 1996-01-15 16:07Z 48° 30' N, 8° 0' W Click for more
487738 CTD/STD cast 1996-01-16 06:15Z 50° 1' N, 4° 21' W Click for more
487751 CTD/STD cast 1996-01-16 08:30Z 50° 18' N, 4° 10' W Click for more
487763 CTD/STD cast 1996-01-16 09:31Z 50° 18' N, 4° 10' W Click for more
487775 CTD/STD cast 1996-01-16 10:30Z 50° 18' N, 4° 10' W Click for more
487787 CTD/STD cast 1996-01-16 11:30Z 50° 18' N, 4° 10' W Click for more
487799 CTD/STD cast 1996-01-16 12:31Z 50° 18' N, 4° 10' W Click for more
487806 CTD/STD cast 1996-01-16 13:30Z 50° 18' N, 4° 10' W Click for more
487818 CTD/STD cast 1996-01-16 14:30Z 50° 18' N, 4° 10' W Click for more
487831 CTD/STD cast 1996-01-16 15:30Z 50° 18' N, 4° 10' W Click for more
487843 CTD/STD cast 1996-01-16 19:38Z 50° 4' N, 3° 0' W Click for more
487855 CTD/STD cast 1996-01-17 04:30Z 50° 41' N, 0° 49' W Click for more
487867 CTD/STD cast 1996-01-17 05:30Z 50° 41' N, 0° 49' W Click for more
487879 CTD/STD cast 1996-01-17 06:28Z 50° 41' N, 0° 49' W Click for more
487880 CTD/STD cast 1996-01-17 07:28Z 50° 41' N, 0° 49' W Click for more
487892 CTD/STD cast 1996-01-17 08:30Z 50° 41' N, 0° 49' W Click for more
487911 CTD/STD cast 1996-01-17 09:30Z 50° 41' N, 0° 49' W Click for more
487923 CTD/STD cast 1996-01-17 10:30Z 50° 41' N, 0° 49' W Click for more
487935 CTD/STD cast 1996-01-17 11:28Z 50° 41' N, 0° 49' W Click for more
487947 CTD/STD cast 1996-01-17 21:16Z 50° 55' N, 1° 16' E Click for more
487959 CTD/STD cast 1996-01-18 03:32Z 51° 30' N, 0° 58' E Click for more
487960 CTD/STD cast 1996-01-18 04:31Z 51° 30' N, 0° 58' E Click for more
487972 CTD/STD cast 1996-01-18 05:30Z 51° 30' N, 0° 58' E Click for more
487984 CTD/STD cast 1996-01-18 06:30Z 51° 30' N, 0° 58' E Click for more
487996 CTD/STD cast 1996-01-18 07:30Z 51° 30' N, 0° 58' E Click for more
488011 CTD/STD cast 1996-01-18 08:30Z 51° 30' N, 0° 58' E Click for more
488023 CTD/STD cast 1996-01-18 09:30Z 51° 30' N, 0° 58' E Click for more
488035 CTD/STD cast 1996-01-18 10:30Z 51° 30' N, 0° 58' E Click for more
488047 CTD/STD cast 1996-01-18 22:18Z 52° 49' N, 2° 49' E Click for more
488059 CTD/STD cast 1996-01-19 04:20Z 54° 0' N, 2° 0' E Click for more
488060 CTD/STD cast 1996-01-19 08:55Z 54° 49' N, 1° 19' E Click for more
488072 CTD/STD cast 1996-01-19 16:33Z 55° 0' N, 1° 8' W Click for more
488084 CTD/STD cast 1996-01-19 17:37Z 55° 0' N, 1° 7' W Click for more
488096 CTD/STD cast 1996-01-19 18:30Z 55° 0' N, 1° 8' W Click for more
488103 CTD/STD cast 1996-01-19 19:30Z 55° 0' N, 1° 7' W Click for more
488115 CTD/STD cast 1996-01-19 20:30Z 55° 0' N, 1° 7' W Click for more
488127 CTD/STD cast 1996-01-19 21:30Z 55° 0' N, 1° 8' W Click for more
488139 CTD/STD cast 1996-01-19 22:30Z 55° 0' N, 1° 8' W Click for more
488140 CTD/STD cast 1996-01-19 23:31Z 55° 0' N, 1° 7' W Click for more
488152 CTD/STD cast 1996-01-21 10:14Z 53° 19' N, 0° 34' E Click for more
488164 CTD/STD cast 1996-01-21 13:03Z 52° 58' N, 0° 20' E Click for more
488176 CTD/STD cast 1996-01-21 14:30Z 53° 3' N, 0° 28' E Click for more
488188 CTD/STD cast 1996-01-21 15:30Z 53° 3' N, 0° 28' E Click for more
488207 CTD/STD cast 1996-01-21 16:30Z 53° 3' N, 0° 28' E Click for more
488219 CTD/STD cast 1996-01-21 17:30Z 53° 3' N, 0° 28' E Click for more
488220 CTD/STD cast 1996-01-21 18:32Z 53° 3' N, 0° 28' E Click for more
488232 CTD/STD cast 1996-01-21 19:30Z 53° 3' N, 0° 28' E Click for more
488244 CTD/STD cast 1996-01-21 20:30Z 53° 3' N, 0° 28' E Click for more
488256 CTD/STD cast 1996-01-21 21:30Z 53° 3' N, 0° 28' E Click for more
488268 CTD/STD cast 1996-01-22 09:33Z 52° 0' N, 2° 20' E Click for more

Project Database

No data currently held for this cruise in the BODC Project Database

References

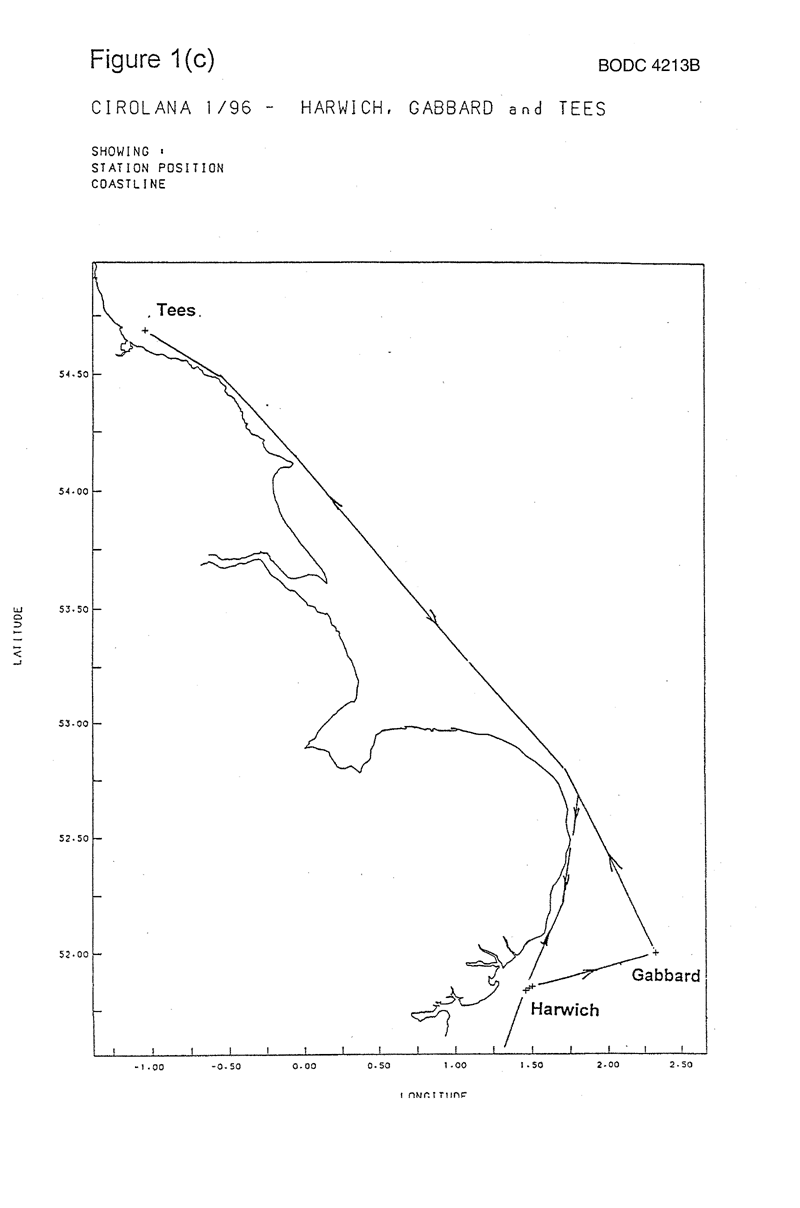

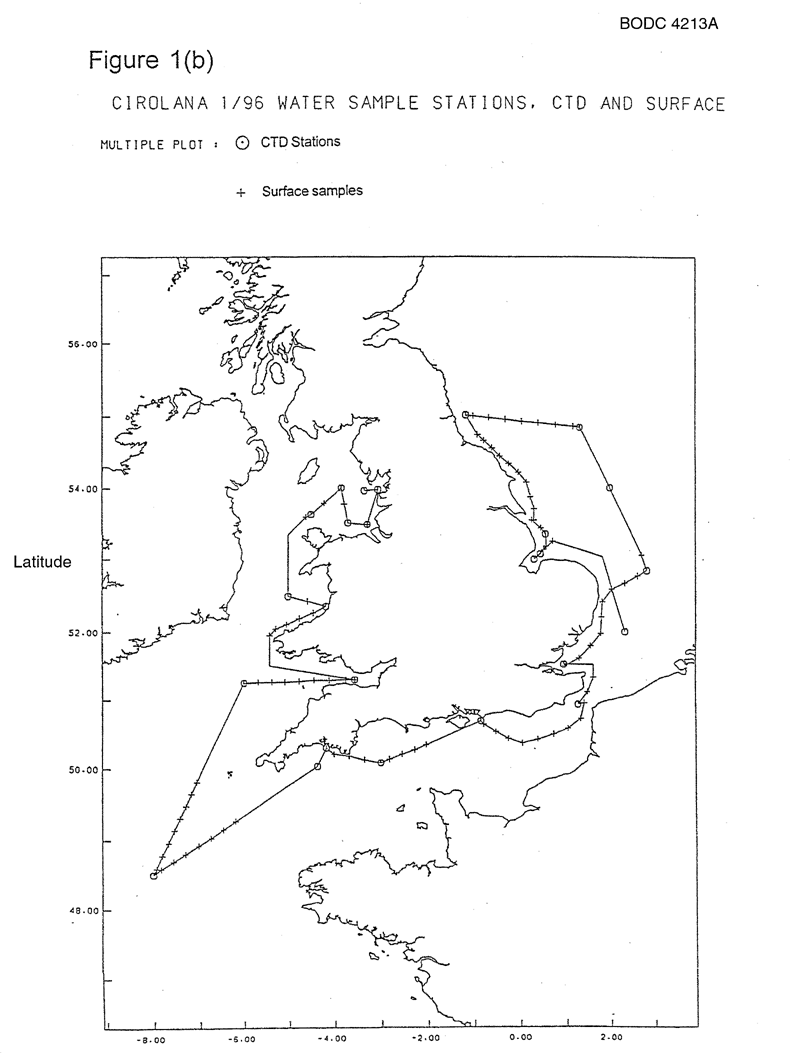

Track Charts

Track Chart

Track Chart

Reports

Cruise Report
